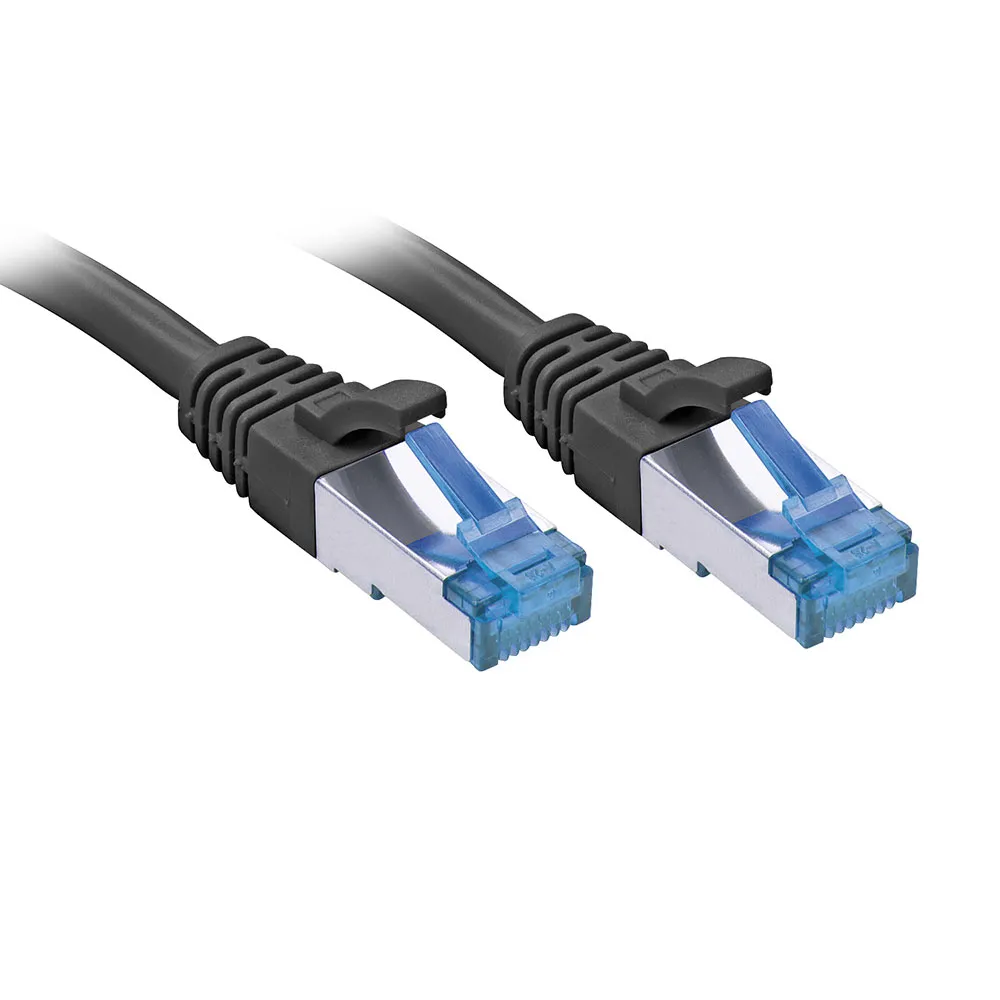

Lindy S/FTP TPE CAT6a network cable 2 m

Cat.6a S/Ftp Network Cable With Support For Bandwidth Up To 500mhz And Features A Snagless Design With Gold Plated Contacts For Ethernet Standards Up To 10 Gbase-T.

The Tpe Jacket Is A Non-Toxic Alternative To Pvc Allowing It To Be Used In A Variety Of Environments, As Well As Being More Flexible Than Its Counterpart With A Flex Rating Of 10 Million It Has High Impact And Tear Resistance Making It A Very Durable Jacket Material.

Cat.6a Cable, Shielded With Braid As Overall Shield And Foil Shield For The Individual Wire Pairs (S/Ftp).

Cat.6a Cables Meet The Requirements Of 10 Gigabit Ethernet (10gbaset) With An Operating Frequency Of Up To 500mhz.

These Cables Are Manufactured And Tested According To The Iso/Iec 11801 Specification.

The Cables Are Packaged Individually In A Polybag.

The Gold-Plated Contacts Ensure Reliable, Corrosion-Free Connections Over Extensive Periods Of Time.

A Robust Snagless Strain Relief Design Prevents Damage To The Connector Latch During Installation And Removal.

The Tpe Used As A Sheath Material Provides Increased Flexibility And Easy Handling Of Cables.

Features:

- Twisted Pair Patch Cable With Rj45 Connectors.

- Cat.6a S/Ftp Pimf, Tpe.

- Integrated Snagless Connector For Latch Protection.

- Gold Plated Pins For Better Conductivity And Elimination Of Signal Loss.

Specifications:

Connectors:

- Connector A:

Rj45 Male.

- Connector B:

Rj45 Male.

- Housing Material:

Polycarbonate.

- Connector Plating:

Nickel.

- Pin Construction:

Copper Alloy.

- Pin Plating:

Gold Plated.

- Dimensions (Approx.) Wxdxh:

11.6x22.8x8.3mm (0.46x0.90x0.33in) Cable Construction:

- Length:

2m (4.92ft).

- Type:

Cat.6a.

- Jacket Diameter:

6.2mm (0.24in).

- Jacket Material:

Tpe.

- Conductor Material:

Copper.

- Conductor Gauge:

28awg.

- Shielding:

Aluminium Braid.

- Supported Bandwidth:

500mhz.

- Nominal Attenuation:

49.3db/100m 500mhz.

- Minimum Band Radius:

74mm (2.91in).

- Operating Temperature:

-10°C.

- 60°C (14°F.

- 140°F).

- Storage Temperature:

-20°C.

- 75°C (-4°F.

- 167°F).
