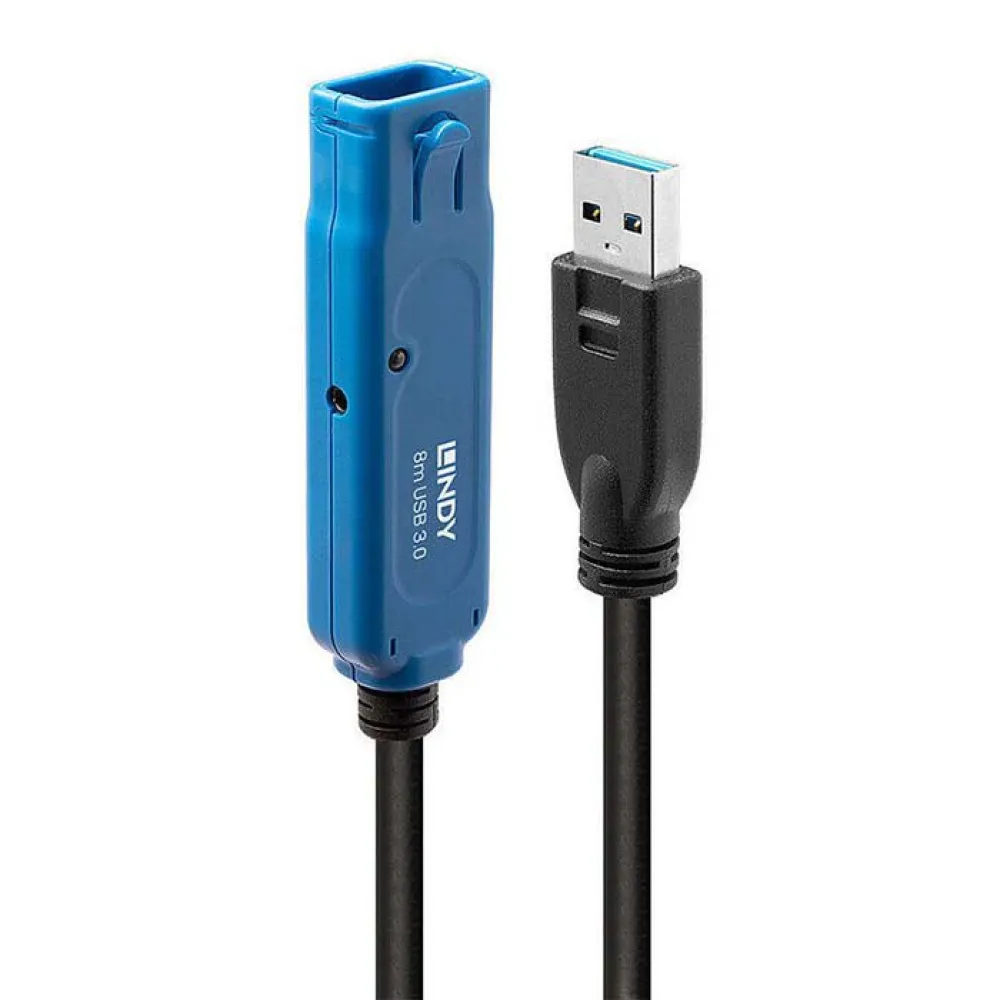

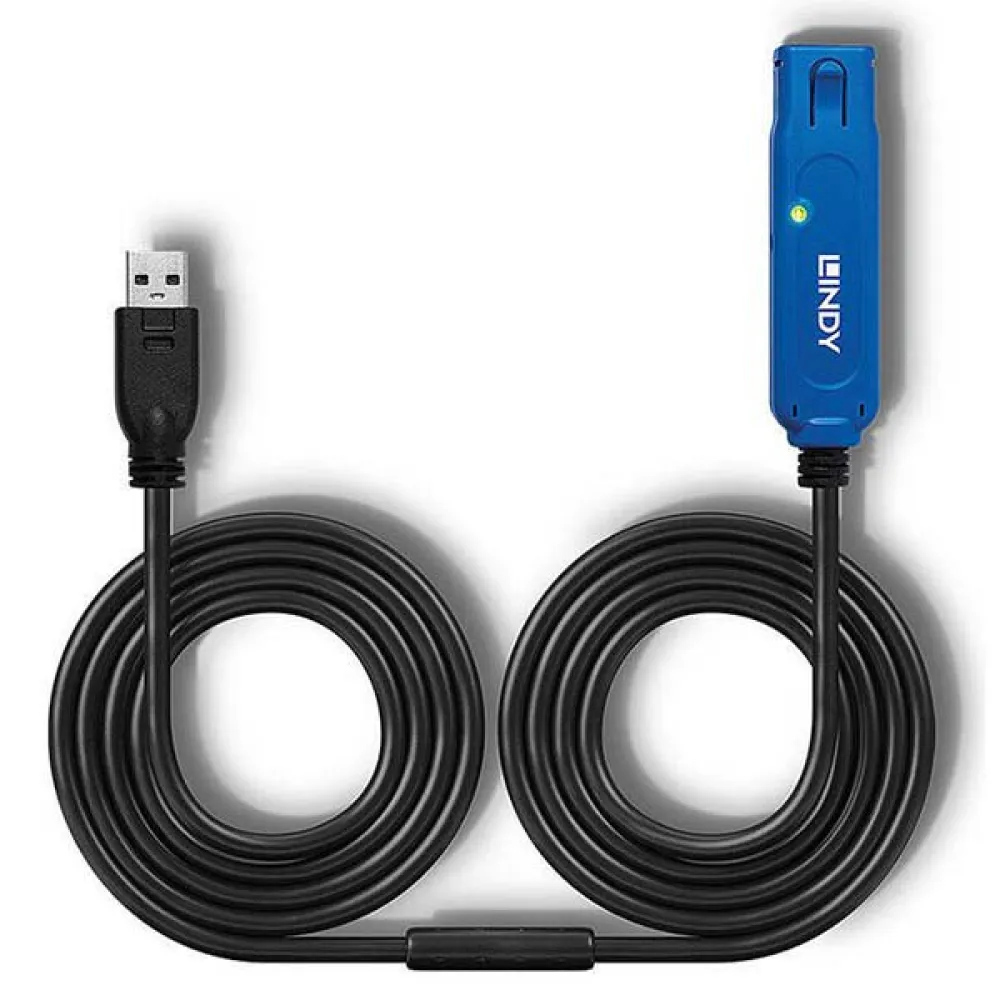

Lindy USB 3.0 USB extension cable 8 m

The Lindy Usb Active Extension Cable Pro Is A High Performance Active Cable That Allows Access To Usb 3.0 Superspeed Peripherals Over Long Distances.

With Support For Data Transfer Speeds Of Up To 5gbps This Extension Cable Is Perfect For Transferring Large Data Volumes Quickly And Reliably.

This 8m Extension Cable Can Be Used Standalone Or As Part Of The Lindy Usb 3.0 Active Extension System Pro.

This System Is A Modular Solution That Can Combine Multiple Usb Active Extension Pro Cables And A Usb 3.0 Active Extension Pro Hub To Distribute Usb Signals To Up To 4 Devices At About 40m (Depending On The Cable Configurations Used).

Features:

- High Performance, Active Cable That Provides An Extended 8m Connection Between A Computer And Usb 3.0 Device.

- Can Be Used Standalone Or As Part Of The Lindy Active Extension System Pro To Create Bespoke Extension Systems Of Over 40m (Depending On The Cables Used).

- Supports The Full Usb 3.0 Superspeed Bandwidth For Speeds Of 5gbps.

- Easy To Use - Connects To The Device´S Existing Usb Cable (2m Maximum).

Specifications:

Connectors:

- Connector A:

Usb Type A Male.

- Connector B:

Usb Type A Female.

- Power:

2.5/0.7mm Dc Connector.

- Housing Material:

Plastic.

- Connector Plating:

Nickel.

- Pin Construction:

Brass.

- Pin Plating:

Gold Flash.

- Dimensions (Approx.) Wxdxh:

- Usb A Male:

15x49x8mm (0.59x1.93x0.31in).

- Usb A Female:

20x80x13mm (0.79x3.15x0.51in) Cable Construction:

- Length:

8m (26.25ft).

- Standard:

Usb 3.1 Gen 1 / 3.0.

- Type:

Round.

- Jacket Diameter:

7mm +/- 0.15mm (0.28in +/- 0.01in).

- Jacket Material:

Half Matt Pvc Low Toxic.

- Conductor Material:

Tinned Copper.

- Conductor Gauge:

24/24/20awg.

- Shielding:

Al Mylar And Braid.

- Supported Bandwidth:

5 Gbps Nominal Attenuation:

- 0.064mhz.

- <0.08db.

- 0.256mhz.

- <0.11db.

- 0.512mhz.

- <0.13db.

- 0.772mhz.

- <0.15db.

- 1.0mhz.

- <0.20db.

- 4mhz.

- <0.39db.

- 8mhz.

- <0.57db.

- 12mhz.

- <0.67db.

- 24mhz.

- <0.95db.

- 48mhz.

- <1.35db.

- 96mhz.

- <1.90db.

- 200mhz.

- <3.20db.

- 400mhz.

- <5.80db.

- Minimum Bend Radius:

36mm (1.42in).

- Maximum Tensile Load:

- Operating Temperature:

0°C.

- 50°C (32°F.

- 122°F).

- Storage Temperature:

-20°C.

- 60°C (-4°F.

- 140°F).

- Transmission Medium:

Twisted Pair.

- Transmission.

Technology:

Usb 3.1 Gen 1 / 3.0.
