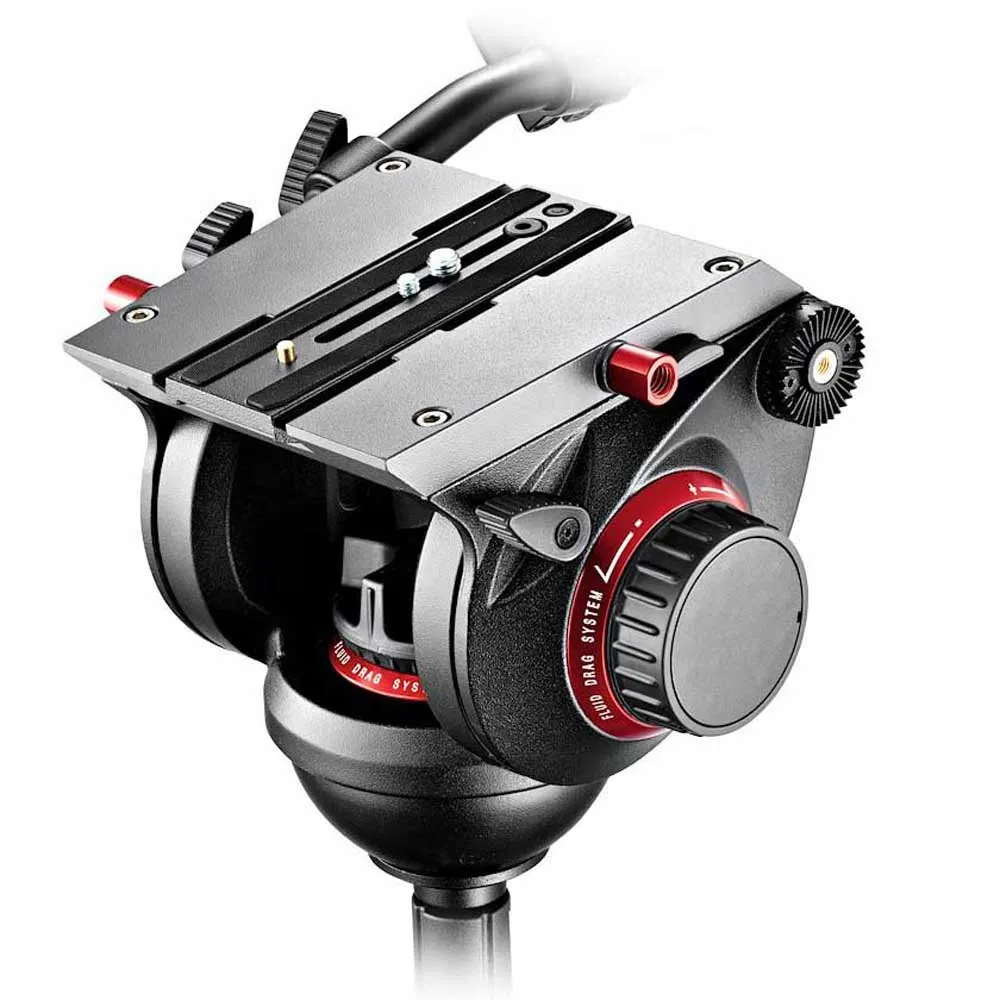

Manfrotto 509HD 509Long 100 mm Tripod

A perfect balance of design and performance, the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability, strength and speed to suit any condition.

The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting, and a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.

Easy link 3/8´´ thread connections allow an external monitor or other accessory equipment to be fitted.

The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.

Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble.


Features:

- Variable Fluid Drag System on PAN and TILT for easy operation
- 4 step counterbalance system
- Sliding plate for fast camera connection and set up
- Inbuilt Ø100mm levelling half ball
- Illuminated levelling bubble for easy set up


Specifications:

- Weight: 3.9 kg
- Counterbalance Weight: 8.5 kg
- Material: Aluminium
- Bubble Spirit Level (No.): 1
- Center Of Gravity: 125 mm
- Safety Payload Weight: 13.5 kg
- Powered By (Batteries): Lithium
- Top Attachment: 1/4″ screw, 3/8″ screw
- Easy Link: Yes
- Front Tilt: -60° / +90°
- Ball Flat: 100 Ball
- Head Type: Video/Fluid Head
- Maximum Working Temperature: 60 °C
- Minimum Working Temperature: -20 °C
- Pan Bar Included: Yes
- Pan Drag: continuously adjustable from 0 to max level
- Panoramic Rotation: 360 °
- Quick Release: Yes
- Tilt Drag: continuously adjustable from 0 to max level
- Working Height: 18 cm
- Accessory Compatibility: 502HLV; 509HLV
