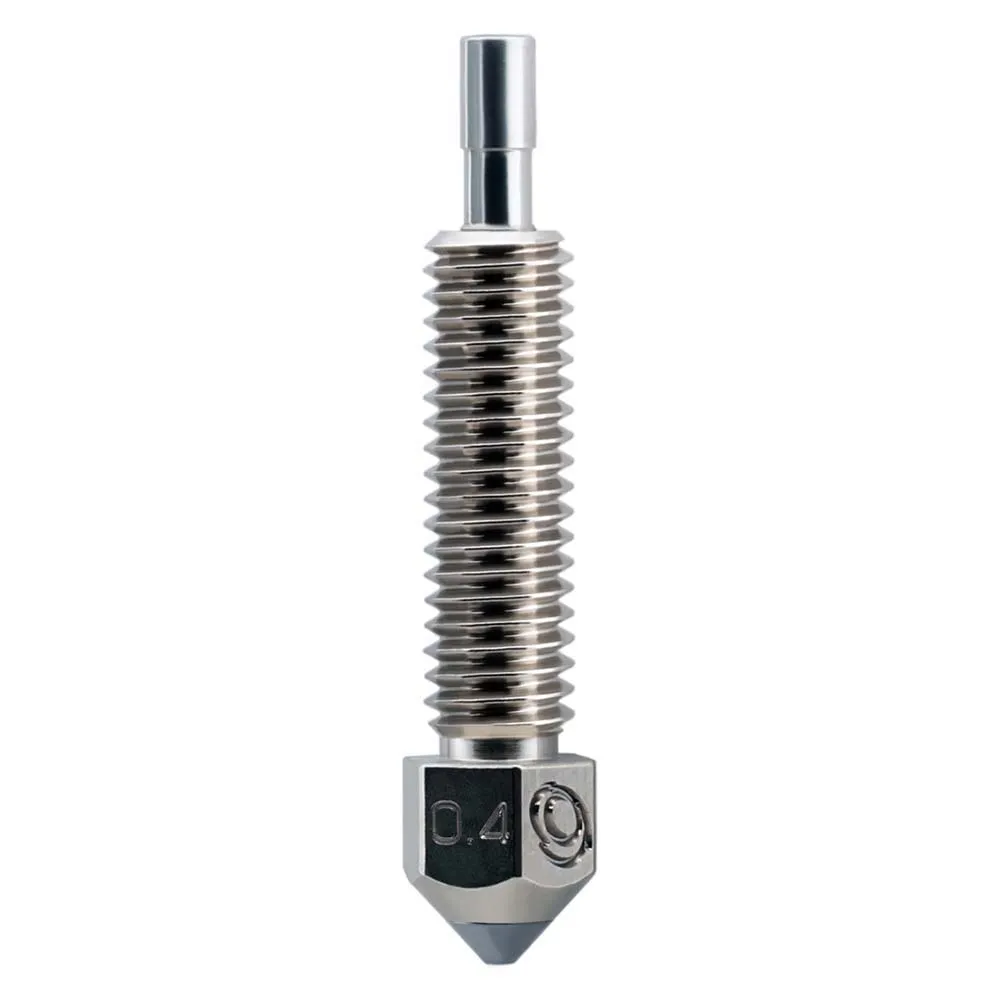

Micro Swiss FlowTech™ CHT High Flow CM2™ Nozzle 0.4 mm

EU Plug.

Microswiss and Bondtech have partnered to bring the High Flow, Hardened Tip CM2™ nozzle to the FlowTech ecosystem.

This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate.

Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating.

This special alloy retains its strength at much higher temperatures compared to a regular copper alloy.

The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special WS2 nonstick nano coating.

Features:

CHT.

- CM2™ Nozzle.

Features:

- Copper Chromium Zirconium body.

- Plated with an Electroless Nickel Plating M2 Hardened High Speed Steel insert:- Plated with an Electroless Nickel Plating.

- Coated with nonstick nano WS2 coating.

- Coefficient of friction:0.035.

- Heat-treated hardness:68 HRC High Flow CHT Technology:- The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec.

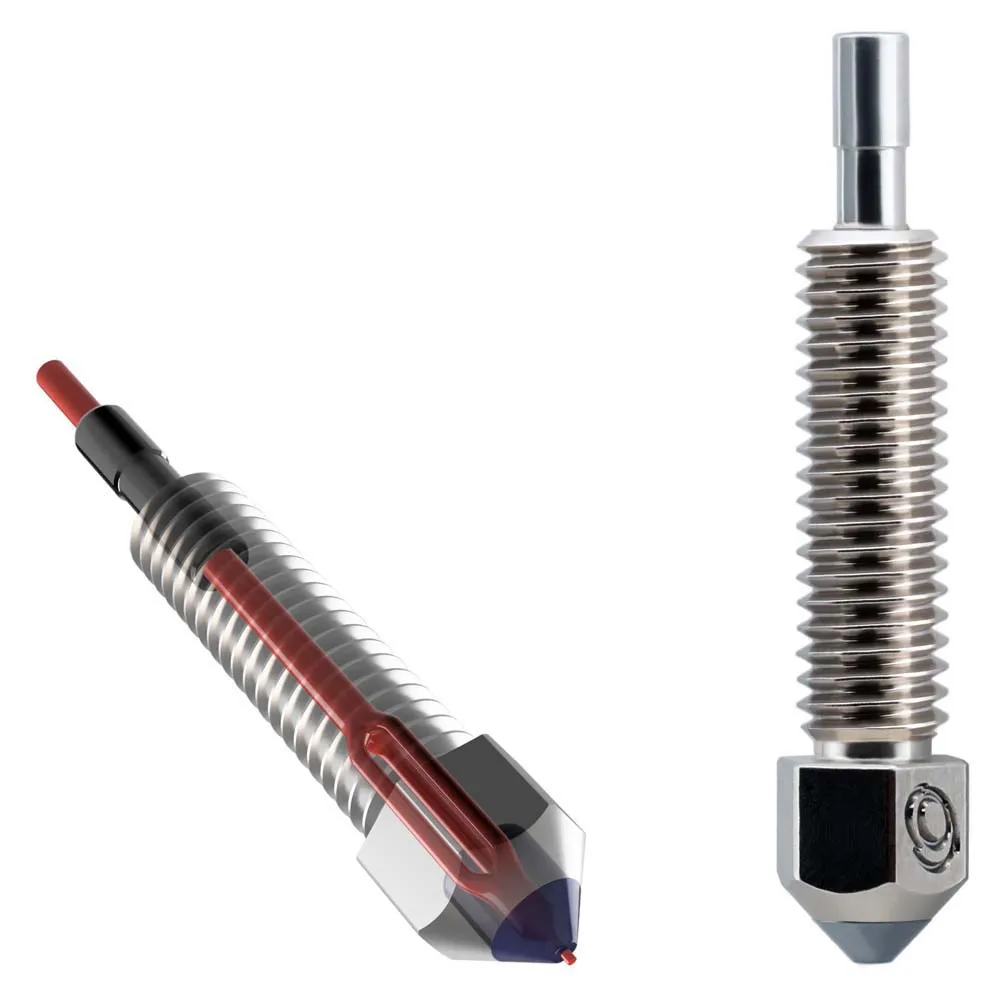

- More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone.

This reduces gaps and weak points between layers.

- Orifice size available:4mm,.6mm,.8mm, 1.0mm.
