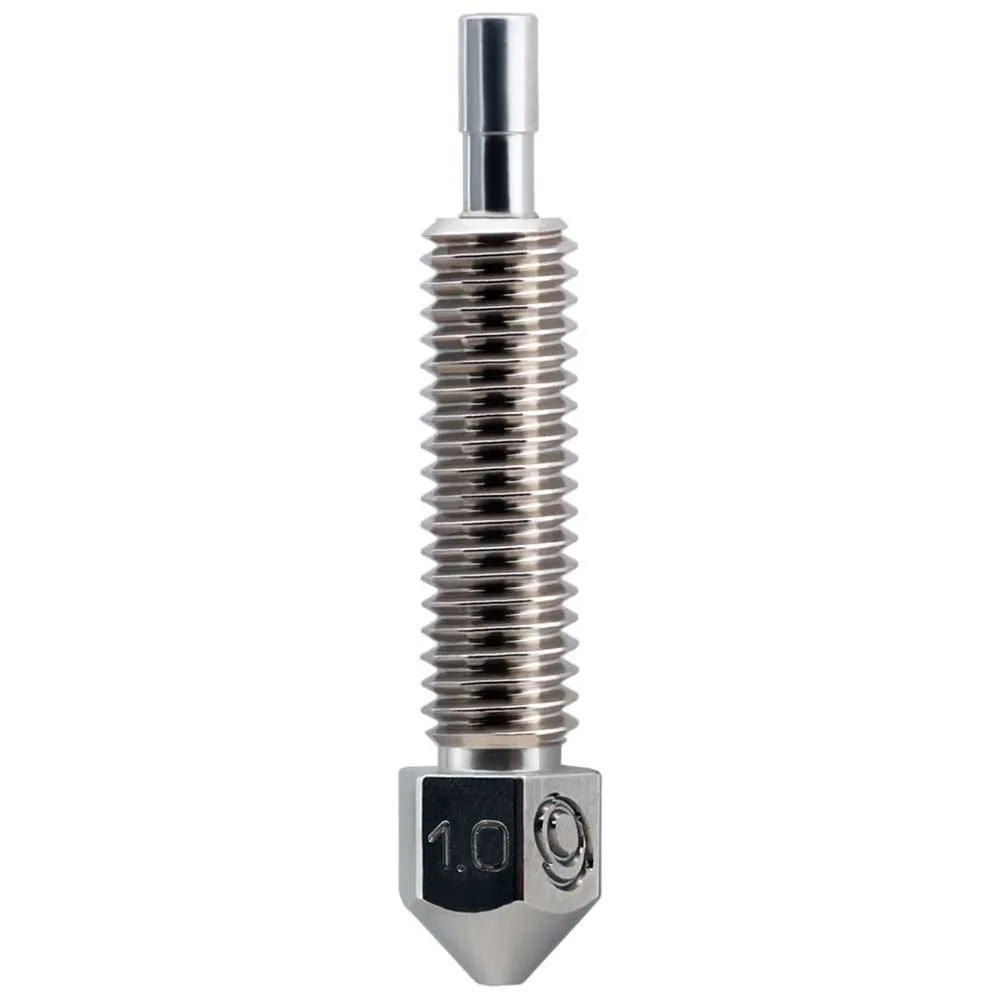

Micro Swiss FlowTech™ High Flow CHT 3D Printer Nozzle 1.0 mm

MICRO SWISS FlowTech™ High Flow CHT 3D Printer Nozzle 1.0 mm

Unleash the full potential of your 3D printing with the revolutionary MICRO SWISS FlowTech™ High Flow CHT Nozzle. Designed for makers, engineers, and enthusiasts who demand unparalleled speed without sacrificing quality, this 1.0 mm nozzle transforms your printing experience. By integrating cutting-edge technology from industry leaders, this component pushes the boundaries of volumetric flow, enabling you to complete large-scale projects in a fraction of the time. Elevate your production capabilities and achieve professional-grade results with every print.

The genesis of this exceptional performance lies in a landmark collaboration. Micro Swiss and Bondtech have partnered to bring the High Flow nozzle to the FlowTech ecosystem. This partnership combines Micro Swiss´s expertise in precision manufacturing and advanced coatings with Bondtech´s groundbreaking CHT (Core Heating Technology), creating a nozzle that is truly greater than the sum of its parts.

This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate. Unlike traditional nozzles that heat the filament from the outside in, the innovative CHT design splits the filament into multiple smaller strands internally. This dramatically increases the surface area for heat transfer, allowing the material to melt much more quickly and uniformly from its core. The result is a substantial boost in the amount of filament you can extrude per second, directly translating to significantly faster print speeds.

Key Features and Benefits:

Exceptional High-Flow Performance
Experience a new dimension of printing speed. High Flow CHT: The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec. This incredible throughput allows you to utilize the full speed capabilities of modern 3D printers, drastically reducing print times for large models, rapid prototypes, and batch production runs. Say goodbye to lengthy waits and hello to enhanced productivity.

Superior Mechanical Strength and Layer Adhesion
Speed is nothing without strength. This nozzle is engineered to produce parts that are not only printed faster but are also mechanically superior. Better layer adhesion: More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This process ensures the filament is melted more thoroughly and consistently, promoting a stronger, more homogenous bond between layers. The outcome is a significant reduction in gaps and weak points, leading to final parts with improved tensile strength and durability.

Advanced Plating for Ultimate Reliability
Maintain pristine print quality and minimize maintenance with a state-of-the-art surface treatment. The nozzle´s Brass body is plated with Non-stick Composite Additive TwinClad® XT Plating. This specialized coating creates an extremely lubricious, low-friction surface that prevents molten plastic from sticking to the nozzle. This greatly reduces material buildup, blobbing, and stringing, ensuring cleaner prints and preventing catastrophic print failures. It also makes nozzle cleaning and maintenance significantly easier.

Seamless Integration
Designed for perfect compatibility, this nozzle is a drop-in upgrade for your existing setup. Compatible with: The FlowTech CHT nozzle is compatible with all FlowTech hot end models. This ensures a hassle-free installation process, allowing you to quickly and easily upgrade your 3D printer and start benefiting from high-flow printing immediately.

Mouthpieces

This specific model features a 1.0 mm orifice, making it an ideal choice for large-format 3D printing where speed is the top priority. The wider diameter is perfect for creating robust structural parts, large-scale prototypes, and functional prints with remarkable speed. It is also less prone to clogging when using filaments with abrasive additives like carbon fiber, wood, or glow-in-the-dark particles.

Technical Specifications

EU Plug.
- Material: Brass body with TwinClad® XT non-stick coating
- Nozzle Orifice Size: 1.0 mm
- Technology: Bondtech CHT® (Core Heating Technology)
- Maximum Volumetric Flow Rate: Up to 50 mm³/sec
- Compatibility: Fully compatible with all MICRO SWISS FlowTech™ Hotend models
- Specifications:
- Size: 10 mm
