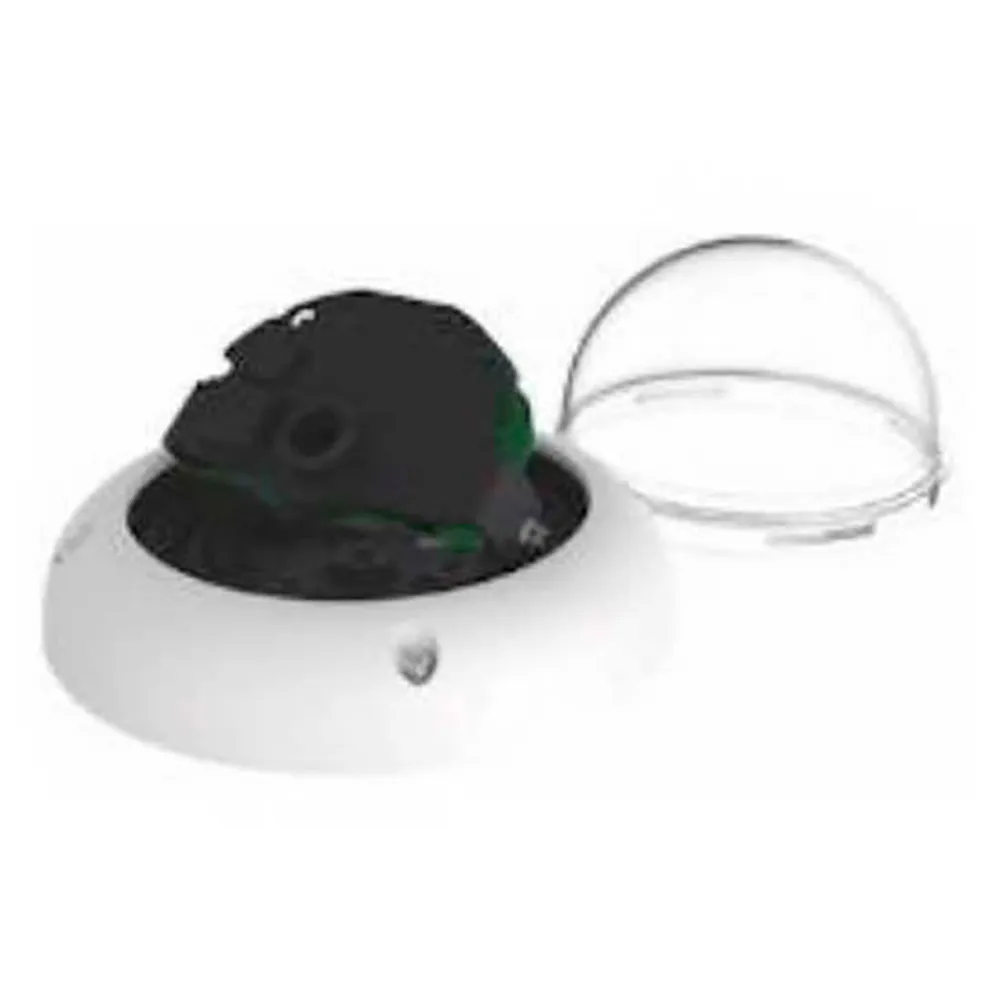

Mobotix D26B BODY 6MP Security Camera Housing

Features:- D26B camera module (body) with 6 Megapixel Moonlight Sensor, color (day).

- ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG.

- Lens to be ordered individually (B036 to B237).

- Max.

image size:6MP (3072 x 2048).

- IP66/IK10, -40 to 50°C (-40 to 122°F).

- Internal DVR:4 GB microSD.

- Temperature sensor, MxActivitySensor, MxAnalytics, shock detector.

- Ethernet cable 0.5 m/1.6 ft.

- Lens cover with sealing ring (polycarbonate, 1.5 mm).

- Interfaces:Ethernet 10/100 (RJ45), MxBus, USB.

I/O and RS232 via MX-232-IO-Box (MX-OPT-RS1-EXT).

Specifications:- Ambient Temperature (°C):-40.+50 °C (-40.

122 °F.

Operational temperature):Cold start at -30 °C (-22 °F).

- IP Class:IP66.

- IK Class:IK10 (with and without Vandlsm Set) Certificates:- EN55022:2010.EN55024:2010.

EN50121-4:2006 EN61000-6-1:2007.

EN 61000-6-2:2005 EN61000-6-3:2007+A1:2011 EN61000-6-4:2007+A1:2011 AS/ NZS CISPR22:2009+A1:2010 CFR47 FCC part15B.

- MTBF (h):80,000 DVR:- Camera-internal via microSD card.

- External on USB device.

- External on NAS.

- Full image recording regardless of live image zoom.

- MxFFS.

- Pre-alarm and post-alarm images.

- DVR monitoring with error notification.

- Video Phone:with Accessory Protocols:- IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 Ethernet:- Ethernet 10/100, IPv4/IPv6, MiniUSB.

- IO and RS232 via Interface Boxes (accessories) Environmental Sensors:- temperature sensor.

- shock sensor (with later SW update).

- other sensors/IO via MxMessageSystem.

- Overvoltage Protection:via MX-Overvoltage-Protection-Box Mounting Options:- Wall.

- Ceiling.

- Pole.

- CPU:i.MX 6 Dual Core incl.

GPU.

- RAM:1GB.

- Aperture:f/1.8 Max.

Frame Rate:- MxPEG:42HD(1280x720), 34Full-HD, 24QXGA, 155Mp, 126MP.

- MJPEG:26HD(1280x720), 13Full-HD, 9QXGA, 55Mp, 46MP.

- H.264:25Full-HD, 20QXGA Max.

Image Size:- 6MP (3072x2048).

- Lens(es):B036 to B237 Image Format:- Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA) PTZ:- Digital pan/tilt/zoom.

max.

zoom 8x (continious) Camera Optics:- Night.

- Day Light Sensitivity:- Color sensor (day):0,1 lx 1/60s.

0,005 lx 1s.

- BW sensor (night):0,02 lx 1/60s.

0,001 lx 1s Video Codecs:- MxPEG+, M-JPEG, JPEG (max.

output fromat 6MP).

- H.264 (max.

output format QXGA.

bandwith limitation possible) ONVIF compatibility:- compatible Image Sensor:- 1/1,8“ CMOS sensor, 6MP (3072x2048), progressive scan.

- Signal Input:via accessory (MX-232-IO-Box).

- Signal Output:via accessory (MX-232-IO-Box).

- RJ45 Ethernet Connectors:1.

- Height Product:86.

- Diameter Product (mm):160.

- Weight Product (g):350 Software:- Camera Software (From Version):5.1.0.x Software.

Features:- Multistreaming.

- Multicast.

- vPTZ.

- Programmable exposure windows.

- Single-frame capture.

- Full featured recording (MxFFS Archive, continuous recording).

- Time and event controlled recording.

- Weekly scheduled arming considering holy days.

- Web functionality.

- Logo generator.

- Linked event logic.

- Master/slave arming.

- Several time-controlled pirivacy zones.

- Custom voice messages.

- VoIP phone.

- Remote control.

- Program interface/HTTP-API.

- Secure FTP.
