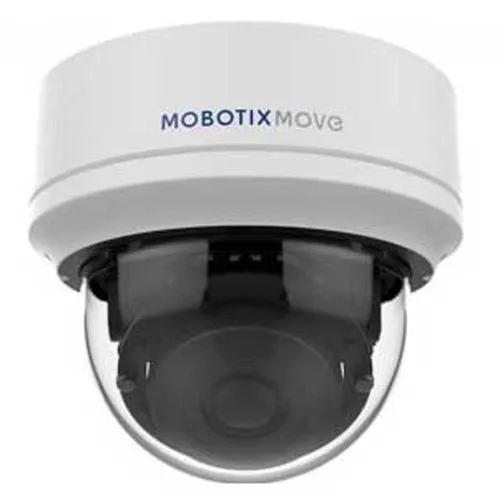

Mobotix Move Indoor Micro Security Camera

Automatic translation Original description available here

MOBOTIX MOVE Mx-MD-5-IR Indoor Microdome Network Camera -Max.

Image resolution:5M (2720x1976), 1/2.7´´ progressive CMOS -ONVIF S/G/T dome camera with integrated IR LEDs (up to 15 m) for day and night operation -Automatic color image switching B/W (mechanical IR cut filter) -Fixed lens (F2.0:2.8 mm), viewing angle H:108.3°, V:-76.5°) -3-axis lens adjustment - Indoor, IK8 -Ambient temperature -30 to 55°C, humidity 10 to 90% non-condensing -Video codecs:H.264, H.265, MJPEG (up to 4 simultaneous video streams) True WDR (120 dB) -Max.

Frame rate:5MP H.264, H.265 @ 30 fps MJPEG:1080p @ 30 fps - Power:PoE IEEE802.3af, max.

5.09 W -MTBF:95,000h -Warranty:2 years.

Specifications:-Built-in speakers:Yes.

-Built-in microphone:Yes.

-Supported audio formats:G.711, G.726, LPCM.

-Audio input channels:1.

-Audio output channels:1 channel.

-Fixed focal length:2.8 mm.

-Digital zoom:10x.

-Zoom capacity:Yes.

-Focus settings:2.0.

-Height:65 mm.

-Weight:248 g.

-Diameter:10.5 cm.

-Power:PoE.

-Power consumption (Power over Ethernet, PoE):3.27 W.

-Operating temperature range:-30 -55 °C.

-Storage temperature range:-20 -70 °C.

-Relative operating humidity:10 -90%.

-Storage relative humidity:10 -90%.

-Relay mode:Multicast.

-Number of simultaneous live viewing channels:4 channels.

-Ethernet:Yes.

-Wifi:No.

-Network standards:IEEE 802.3af.

-Supported network protocols:ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2.

-Bluetooth:No.

-Ethernet interface type:Fast Ethernet.

-Maximum resolution:2720 x 1976 Pixels.

-Video compression formats:H.264, H.265, M-JPEG.

-Supported video format:720p, 1080p.

-Frame rate:30 pps.

-Privacy mask:Yes.

-Noise reduction:Yes.

-Noise reduction technology:3D noise reduction.

-Total megapixels:5 Mpx.

-Image quality adjustment:Brightness, Color depth, Contrast, DNR, Sharpness.

-Overlay text:Yes.

-Video broadcast:Yes.

-Integrated card reading:Yes.

-Compatible memory cards:SD, SDHC, SDXC.

-Maximum memory card size:1000 GB.

-Built-in HDD:No.

-Digest authentication:Yes.

-Video motion detection:Yes.

-Supported security algorithms:802.1x RADIUS, 2048-bit RSA, AES, HTTPS, SNMP.

-Password protection:Yes.

-Active tamper alarm:Yes.

-Optical sensor size:25.4 / 2.7 mm (1 / 2.7´´).

-Sensor type:CMOS.

-Progressive scanning:Yes.

-Camera pixel size:2 µm.

-Viewing angle of the lens, horizontal:108.3°.

-Viewing angle of the lens, vertical:76.5°.

-Minimum illumination:0.04 lx.

-Shutter speed:1 -1/10000 s.

-Product color:White.

-Form factor:Minidome.

-Mounting type:Ceiling.

-Housing material:Plastic.

-IK code:IK08.

-Night vision:Yes.

-Night vision distance:15 m.

-LED type:IR.

-Infrared wavelength:850 nm.

-Dynamic range:120 dB.

-Type:IP security camera.

-Placement supported:Indoor and outdoor.

-Connectivity technology:Cable.

-Day/night mode:Yes.

-Infrared cut filter:Yes.

-Wide dynamic range (WDR):Yes.




Are you interested in Mobotix Move Indoor Micro Security Camera? At this moment the product is in stock at techinn, your online electronics and computers store. At techinn you can find more electronics and computers products from the brand Mobotix. Do not wait any longer and enjoy from Mobotix Move Indoor Micro Security Camera in just a few clicks. Discover techinn´s wide range of electronics and computers supports now.
