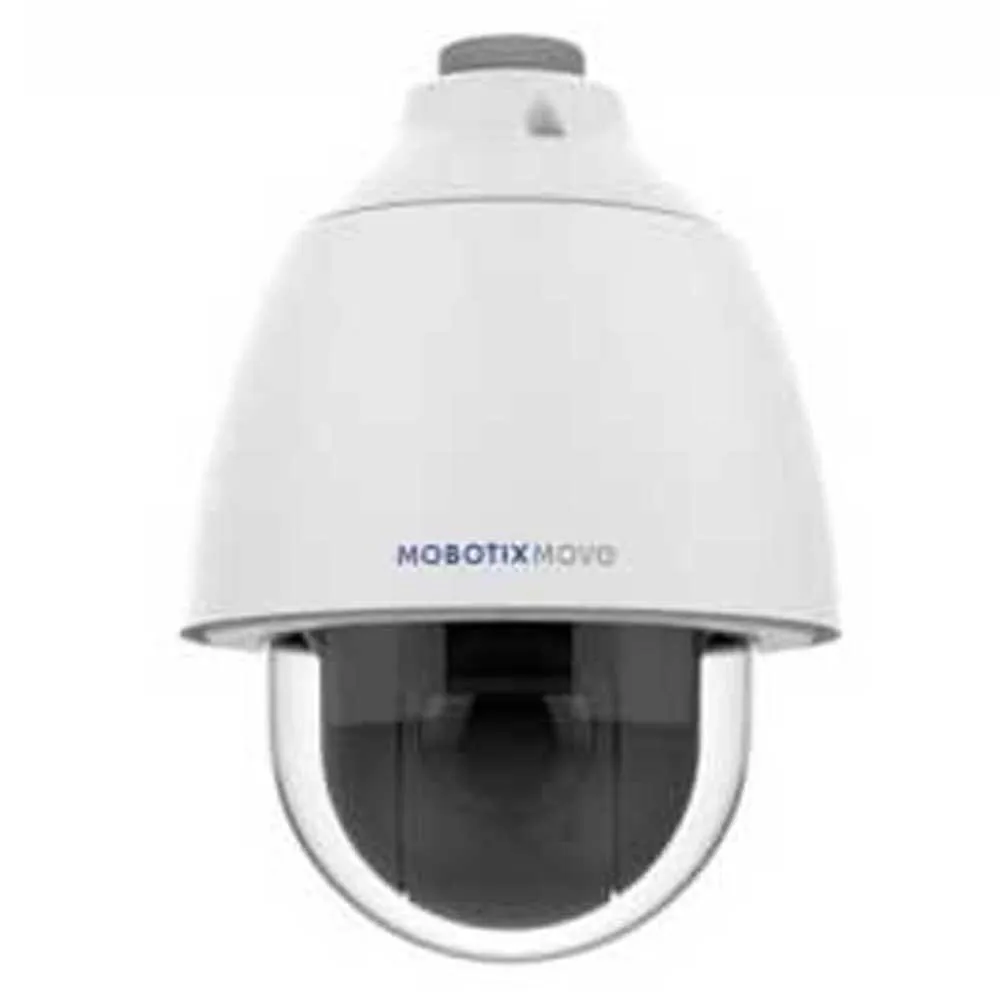

Mobotix MOVE SD-230-LL security camera

Features:- MOBOTIX MOVE SpeedDome Network Camera SD-230-LL.

- Weatherproof motor-driven ONVIF S / G Dome PTZ camera.

- Up to 30x optical zoom.

- Image sensor:2MP SONY Low-Light Sensor (1945 x 1097), 1/2.8´´ Progressive CMOS.

- Automatic changeover from color to B / W image (mechanical IR cut filter).

- Automatic switching from color to B / W image (mechanical IR cut filter).

- Motor-controlled Varifocal lens (F1.6:4.3 to 129 mm, viewing angle HxV:62 °.

- 2 ° x 47 ° -2 °) with ´´One Push´´ autofocus and P-Iris with automatic adaptation to changing light situations.

- Anti-Vibration function.

- autom.

Object Tracking.

- IP66, IK10.

- Ambient temperature -40 to 55°C, humidity 10 to 90%.

- Video codecs:H.264, H.265, MJPEG (up to 3 streams simultaneously).

- Wide Dynamic Range (120 dB).

- Max.

Frame rate:2MP 30 B / s (H.264, with and without WDR enabled).

MJPEG:1080p 30 B / s.

- Power supply:PoE IEEE802.3at, max.

23.11 W, DC12V max.

19.01 W, AC24V max.

24.20 W / 39.60 VA.

- Hardened and ´´self-cleaning´´ anti-reflex dome bubble coating by MOBOTIX EverClear.

- MOBOTIX MOVE SpeedDome Camera.

Specifications:- Camera Type:Dome Camera Application Area:- Indoor.

- Outdoor.

- Servo-controlled Lens Alignment:Yes.

- Housing Shape:Dome Ambient Temperature (°C):- 40°C to 55°C (-40°F to 131°F) with Heater.

- 10 % to 90 %, no Condensation IP Class:IP66 IK Class:IK10 Certificates:- EMC:CE / FCC.

- Safety:LVD.

- Environment:IP66.

- MTBF (h):40,000.

- Audio:Line in/out.

- DVR:Support for Recording to NAS.

- Protocols:iARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2.

- EthernetL:10/100 Mbps Ethernet.

- Overvoltage Protection:optional via Mx-Overvoltage-Protection-Box Mounting Options:- Ceiling.

- Wall.

- Pole.

- Corner.

- LensType:30x Zoom.

- Image Angle horizontal:62° (Wide), 2° (Tele).

- Image Angle vertical:47° (Wide), 2° (Tele).

- Focal Length:4.3 to 129 mm.

- Aperture:F1.6.

- Automatical IR-cut Filter:Yes Max.

Frame Rate:- H.264/H.265:2MP30fps.

- MJPEG 1080p30fps Max.

Image Size:1945 x 1097 (2MP):- Lens(es):Zoom Lens:Focus, Zoom, P-Iris, Auto-Iris.

- Image Format:4:3.

- PTZ:Yes Video Codecs:- H.265, H.264.

- MJPEG.

- ONVIF compatibility:Profile S/G/T/Q conformant.

- Image Sensor:2MP, 1/2.8´´ Progressive CMOS.

- Wide Dynamic Range (WDR):Yes.

- Power Consumption (W):max.

24.2.

- Power Supply:PoE+ IEEE802.3at, class 4, max 23.11 W or AC24V, max 24.20 W, max 39.60 VA.

- Height Product:279.

- Width Product (mm):210.

- Diameter Product (mm):210.

- Weight Product (g):2900.
