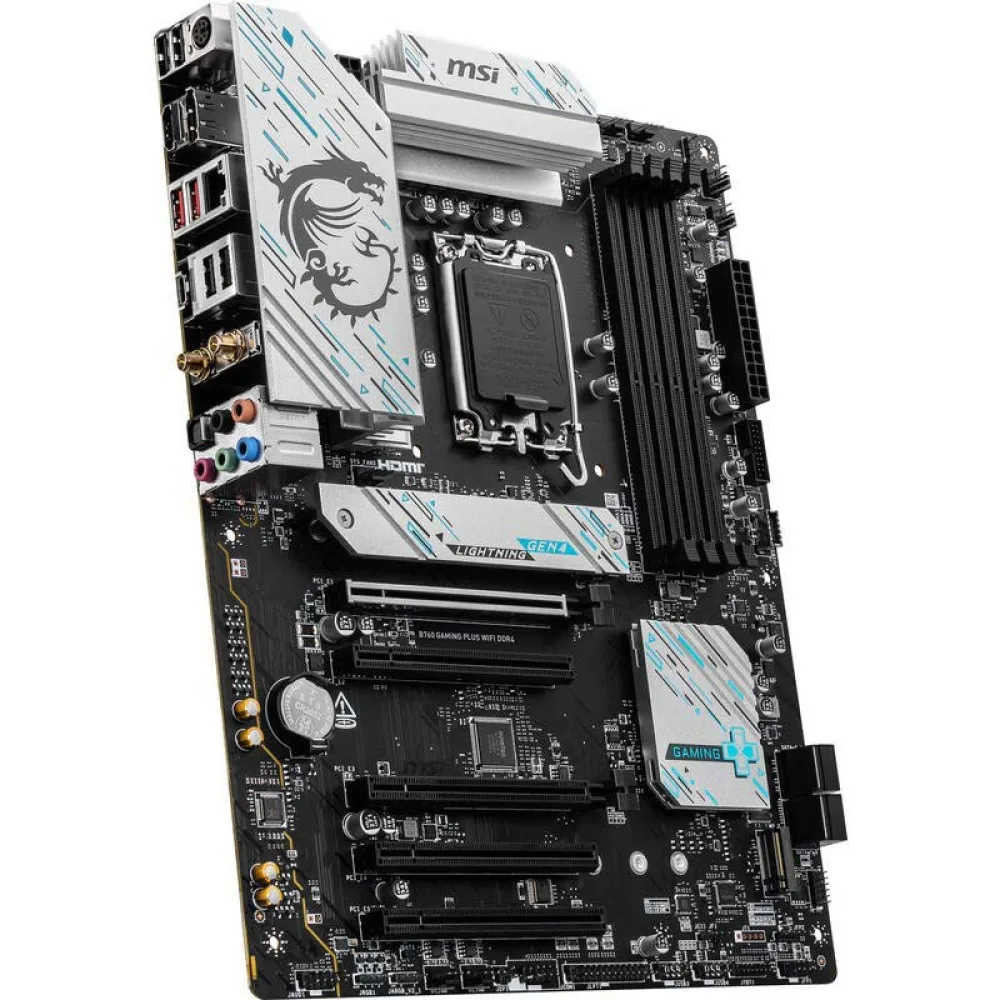

MSI B760 Gaming PLUS WiFi DDR4 motherboard

MSI B760 GAMING PLUS WIFI DDR4.

Processor manufacturer:

Intel, Processor socket:

LGA 1700, Compatible processor:

Intel® Celeron®, Intel® Pentium® Gold.

Supported memory types:

DDR4-SDRAM, Maximum internal memory:

128 GB, Memory slots type:

DIMM.

Supported storage drive interfaces:

M.

2, SATA, RAID levels:

0, 1, 5, 10.

Ethernet interface type:

2.

5 Gigabit Ethernet, LAN controller:

Dragon RTL8125BG, Wi-Fi standard:

Wi-Fi 6 (802.

11ax).

Component for:

PC, Form factor:

ATX, Chipset family:

Intel.

Specifications:- Processor manufacturer:

Intel.

- Processor socket:

LGA 1700.

- Compatible processor:

Intel® Celeron®, Intel® Pentium® Gold.

- Supported processor sockets:

LGA 1700.

- Maximum internal memory supported by processor:

128 GB.

- Supported memory types:

DDR4-SDRAM.

- Number of memory slots:

4.

- Memory slots type:

DIMM.

- Maximum internal memory:

128 GB.

- Memory channels:

Dual-channel.

- Supported memory clock speeds:

2133.2400,2666.2933,3200.3333,3400.3466,3600.3733,3800.4000,4200.4266,4400.4600,4800.5000,5066.5200,5333 MHz.

- Non-ECC:

Yes.

- Wi-Fi standard:

Wi-Fi 6 (802.

11ax).

- Ethernet:

Yes.

- Ethernet interface type:

2.

5 Gigabit Ethernet.

- LAN controller:

Dragon RTL8125BG.

- Wifi:

Yes.

- Wi-Fi standards:

802.

11a, 802.

11b, 802.

11g, Wi-Fi 4 (802.

11n), Wi-Fi 5 (802.

11ac), Wi-Fi 6 (802.

11ax).

- Bluetooth:

Yes.

- Bluetooth version:

5.

3.

- USB 2.

0, connectors:

4.

- USB 3.

2 Gen 1 (3.

1 Gen 1) connectors:

3.

- Number of SATA III connectors:

4.

- S/PDIF out connector:

Yes.

- Connector for RGB LED strips:

Yes.

- TPM connector:

Yes.

- Total number of SATA connectors:

4.

- USB 2.

0:

4.

- Number of USB 3.

2 Gen 2 (3.

1 Gen 2) type-A ports:

2.

- Number ofType C USB 3.

2 Gen 2 (3.

1 Gen 2):

1.

- Ethernet LAN ports (RJ-45):

1.

- S/PDIF output port:

Yes.

- HDMI ports:

1.

- HDMI version:

2.

1.

- DisplayPort:

1.

- DisplayPort version:

1.

4.

- RAID support:

Yes.

- Number of storage drives supported:

6.

- Supported storage drive interfaces:

M.

2, SATA.

- RAID levels:

0, 1, 5, 10.

- Number of HDDs supported:

4.

- PCI Express x1 slots:

3.

- PCI Express x16 slots:

2.

- PCI Express x16 slots (Gen 4.

x):

2.

- Number of M.

2 slots (M):

2.

- PCI Express x1 (Gen 3.

x) slots:

3.

- BIOS type:

UEFI AMI.

- BIOS, memory size:

256 MB/s.

- ACPI version:

6.

4.

- Chipset family:

Intel.

- Chipset:

B760.

- Form factor:

ATX.

- Audio output channels:

7.

1 channels.

- Sound chip:

Realtek ALC897.

- Component for:

PC.

- Supported Windows operating system:

Windows 10 x64, Windows 11 x64.

- Width:

243.8 mm.

- Depth:

304.8 mm.
