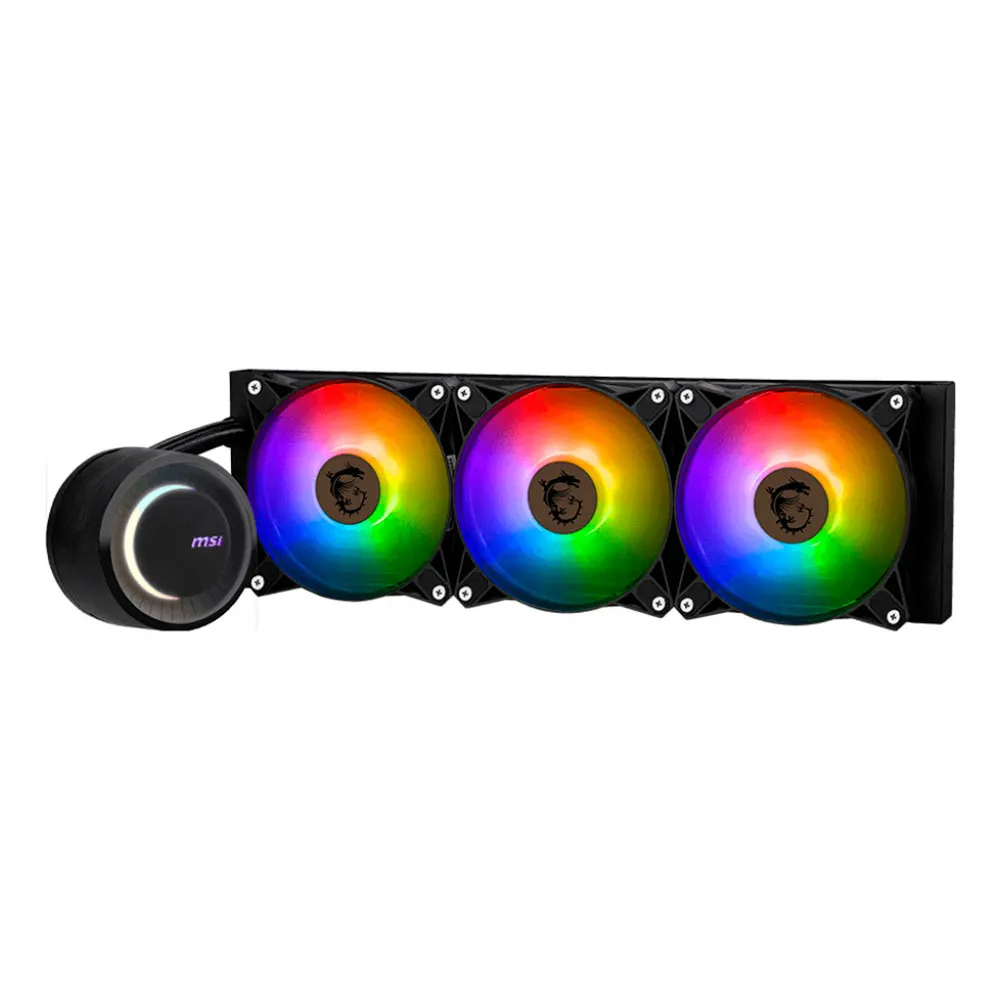

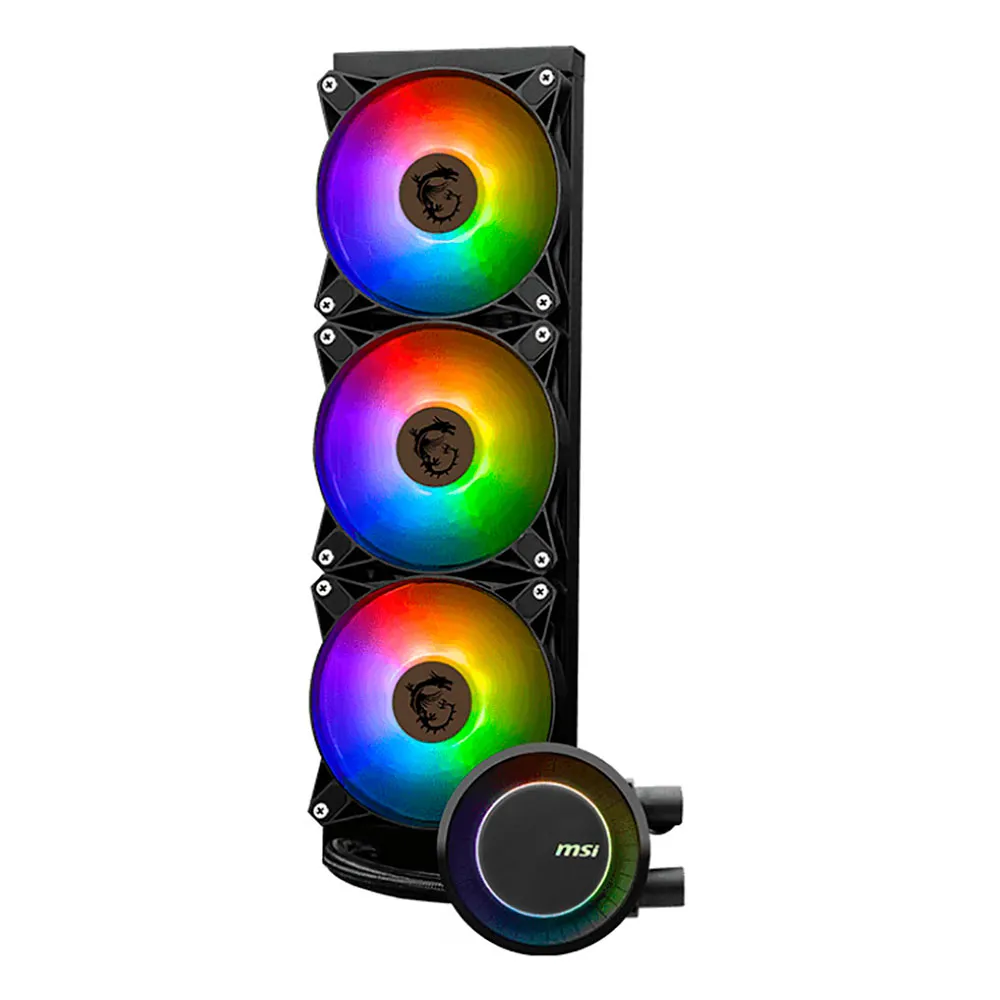

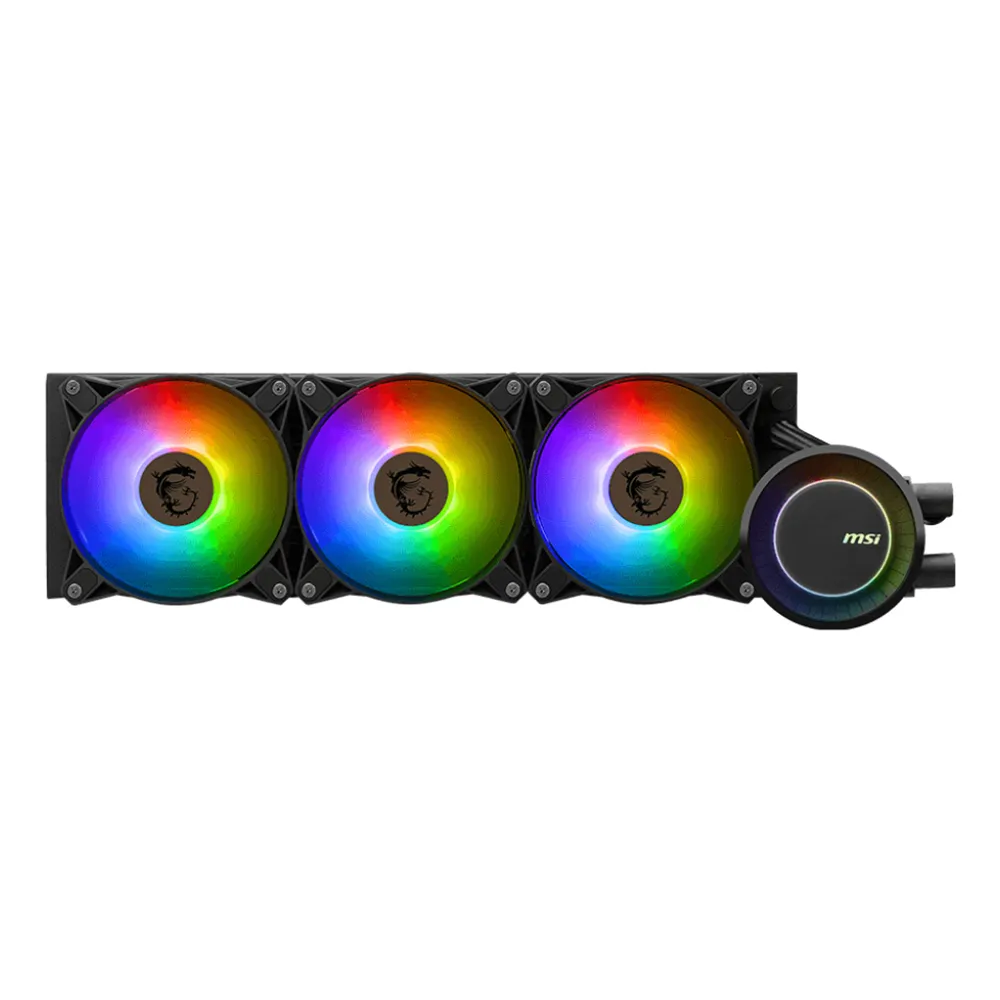

MSI Mag Coreliquid E360 liquid cooling

The MAG series fights alongside players for honor. With added military-inspired elements in these gaming products, they were reborn as a symbol of robustness and durability. The MAG CORELIQUID E Series, inspired by the passage of time and the shape of the solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The circular shape of the MAG CORELIQUID E Series represents the cyclical nature of time and the continuous flow of energy.


Features:

Rotable Blockhead:
- Mount the cold plate in any orientation, rotate the block up to 270 degrees and keep it upright.

Full Cpu Coverage:
- By expanding the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E series maximizes CPU heat dissipation. The higher density of the microchannel design improves the efficiency of the water cooling system by expanding the contact surface.

Pump Cooling Design:
- It ensures that the temperature of the chilled water can reach the desired location of the heat source, effectively reducing the temperature of the heat source.

Removing Pump Motor Resonance:
- A durable three-phase motor in the pump core generates minimal vibrations for long-lasting operation.

High Thermal Dissipation:
- The radiator has 12 channels designed to help quickly dissipate heat.

Evaporation Proof Tube:
- The multi-layer structure effectively prevents liquid from evaporating, while the reinforced mesh plastic tube increases the durability of the outer mesh.

Integration With The System Environment:
- With MSI CENTER software, users can integrate MSI liquid cooling with their motherboard and adjust the speed of the fan and cooling pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware for optimal computer performance.

Light Up Your Pc:
- Add some color and RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light gives you complete control of your PC´s RGB lighting in a single software.


Specifications:

Technical details:
- Refrigeration Typology: Heatsinks
- Supported processor sockets: Socket 1150, Socket 1151, Socket 1155, Socket 1156, Socket 1200, Socket 1700, Socket AM4, Socket AM5, Socket TR4
- Radiator: Yes
- Noise level (minimum speed): 11.2dB
- Noise level: 32.5dB
- Bearing technology: Fluid Dynamic Bearing
- Fan connector: 4 pin
- Pump connector: 4 pin
- Pump motor speed (max): 3000RPM
- Number of fans: 3
- Maximum air flow: 75.04 cfm
- Minimum air flow: 25.5cfm
- Fan diameter: 120mm
- Maximum air pressure: 2.52 mmH2O

Weight and measurements:
- Height: 119.2mm
- Broad: 394mm
- Depth: 27mm

Power control:
- Fan power consumption: 3W
- Pump energy consumption: 6W
- Fan current: 0.25A

Lighting/Alarms:
- Lightning: Yes
