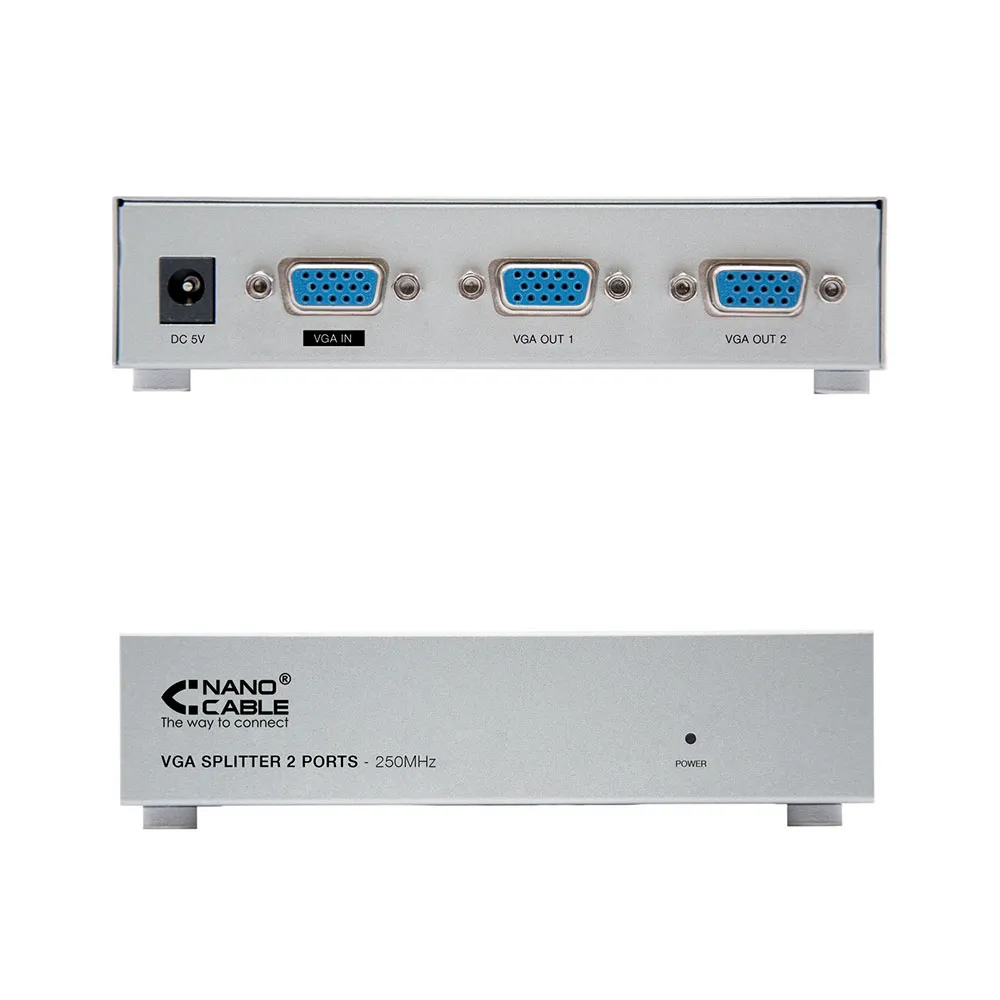

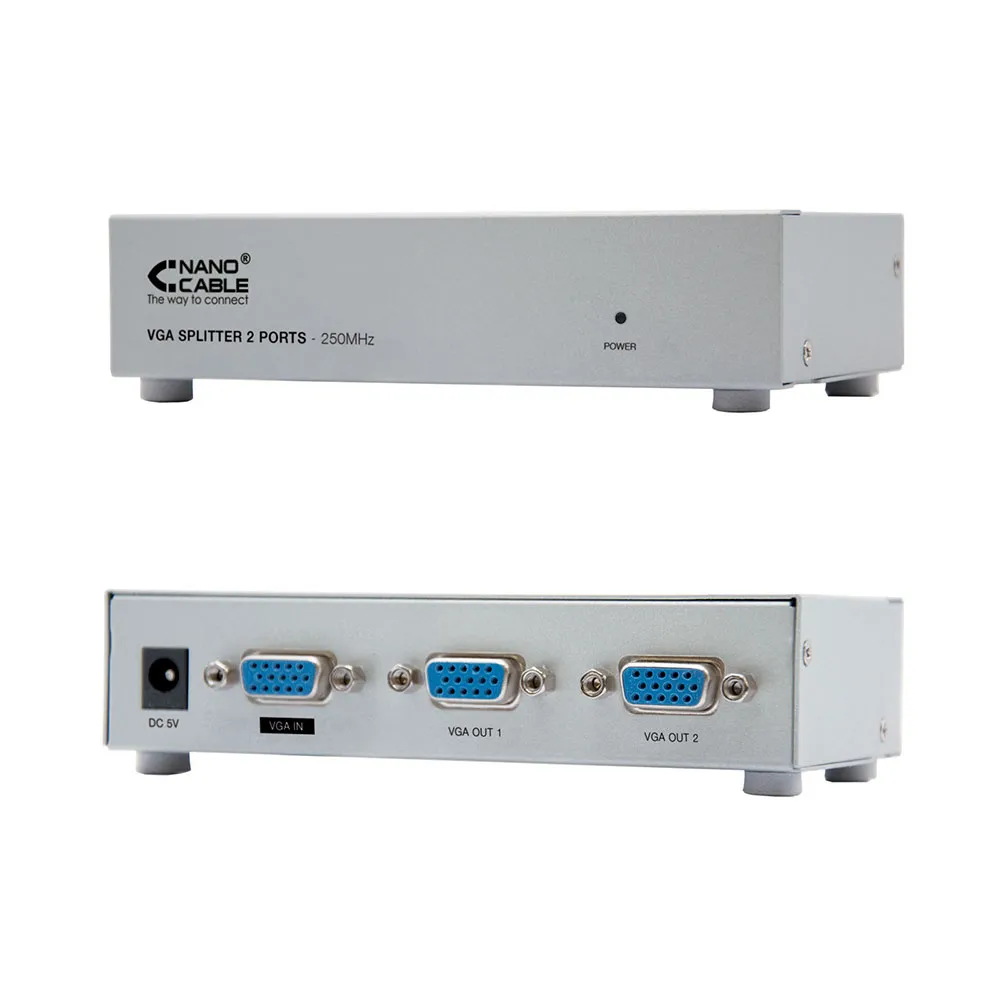

Nanocable 2xVGA Multiplexer switch

VGA duplicator for two monitors.

Specification:-250MHz bench width.

-Increases the video signal for distances up to 30m.

-Supports DDC, DDC2, DDC2B (port 1 only).

-Allows daisy chain connection.

-Signal input port:female.

-Signal output port:female.

-Metal casing.

-Small form factor.

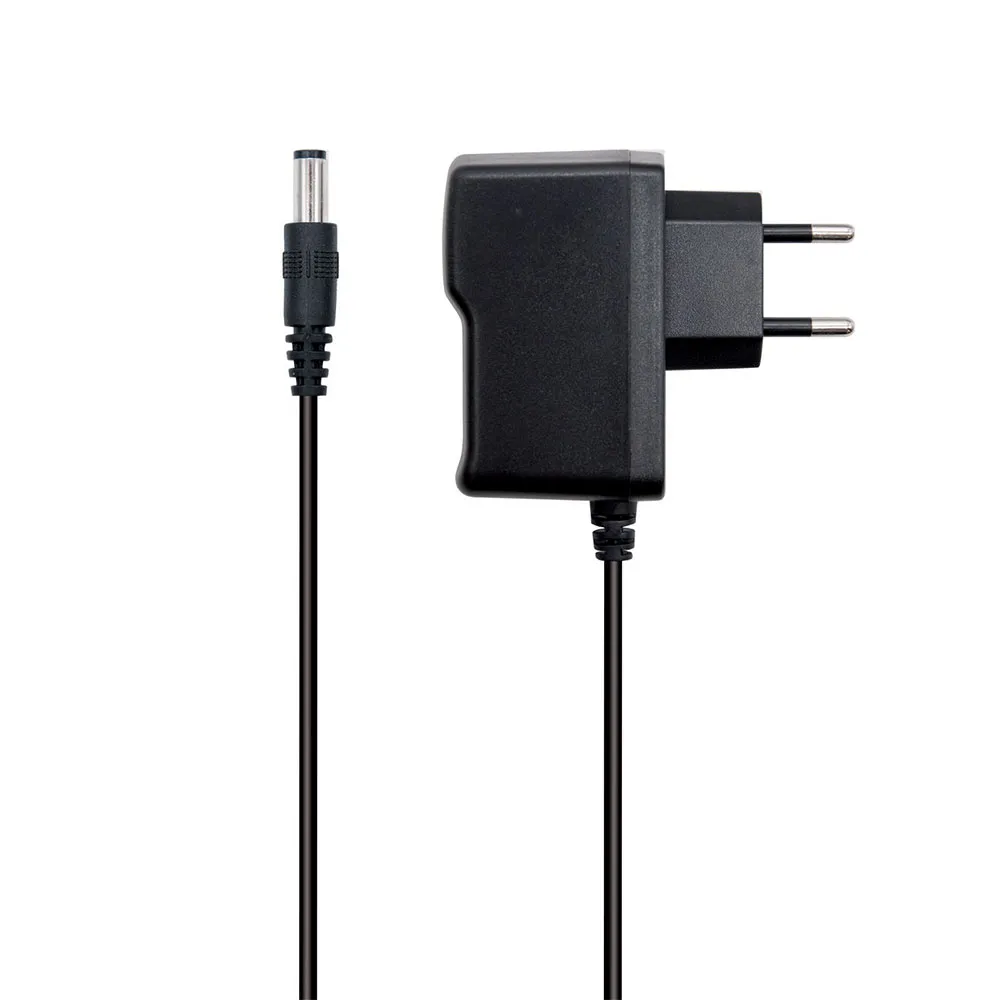

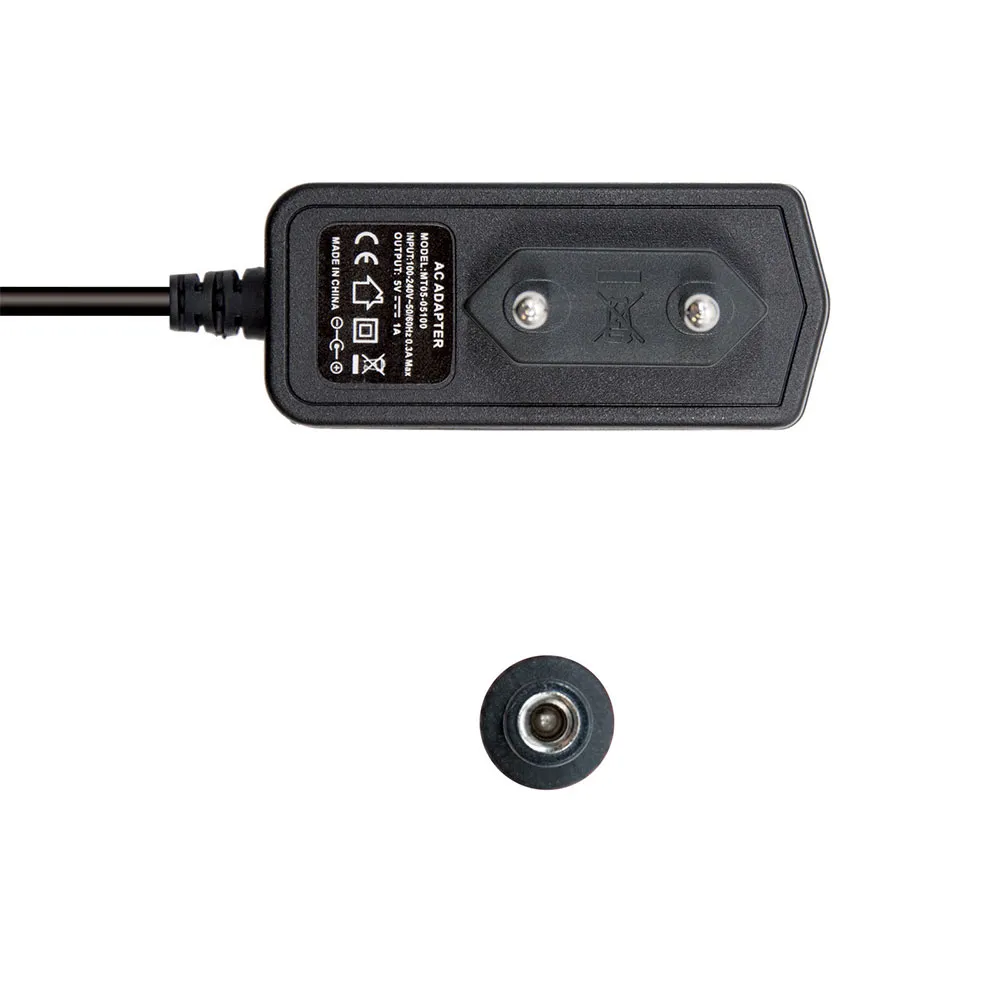

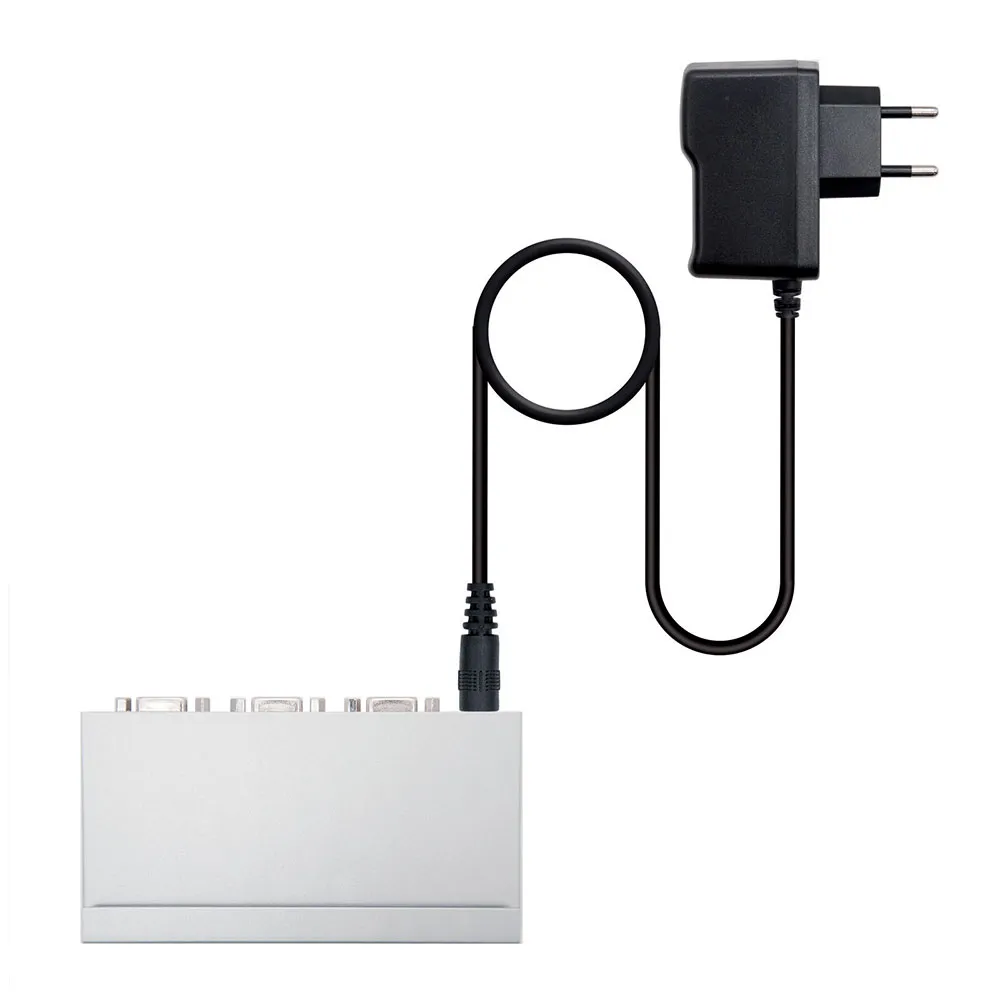

-Power adapter included.

-SVGA cables not included.

-Ideal for public broadcasts, remote monitoring, training classrooms, etc.

-Package content:-1 x Vga duplicator (splitter) for 2 monitors with power.

Packaging information:Retail box.

Approx.

weight (kg):0.9.

Approximate measurements (mm) height/width/length:230/100/60.

Specifications:-Video port type:VGA.

-Number of video ports:2.

-DC-in jack:Yes.

-Video output:2x VGA.

-Output current:1 A.

-Output voltage:5 V.

-AC input frequency:50 -60 Hz.

-Input voltage:100 -240 V.

-Input current:0.3 A.

-Package width:100mm.

-Package depth:60 mm.

-Package height:230 mm.

-Package weight:900 g.

-Packing type:Box.

-Package content:CE.

-AC adapter included:Yes.

-Power plug types included:EU.

-LED Indicators:Power.

-RoHS Compliant:Yes.

-Number of screens supported:2.

-Product color:Silver.

-Housing material:Metal.

-Maximum operating distance:30 m.

-Maximum resolution:1920 x 1440 Pixels.

-Bandwidth:250 MHz.
