Neomounts Select Screen Wall Wall 100´´ TV stand

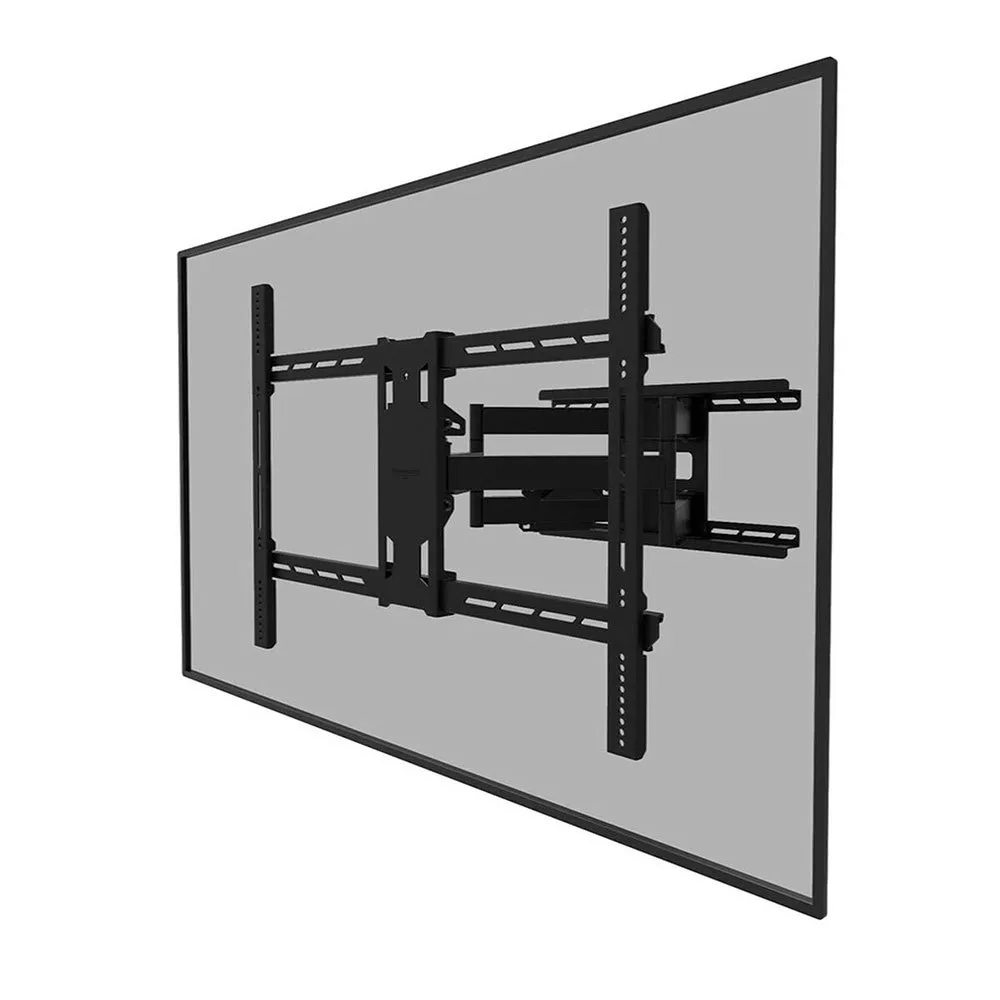

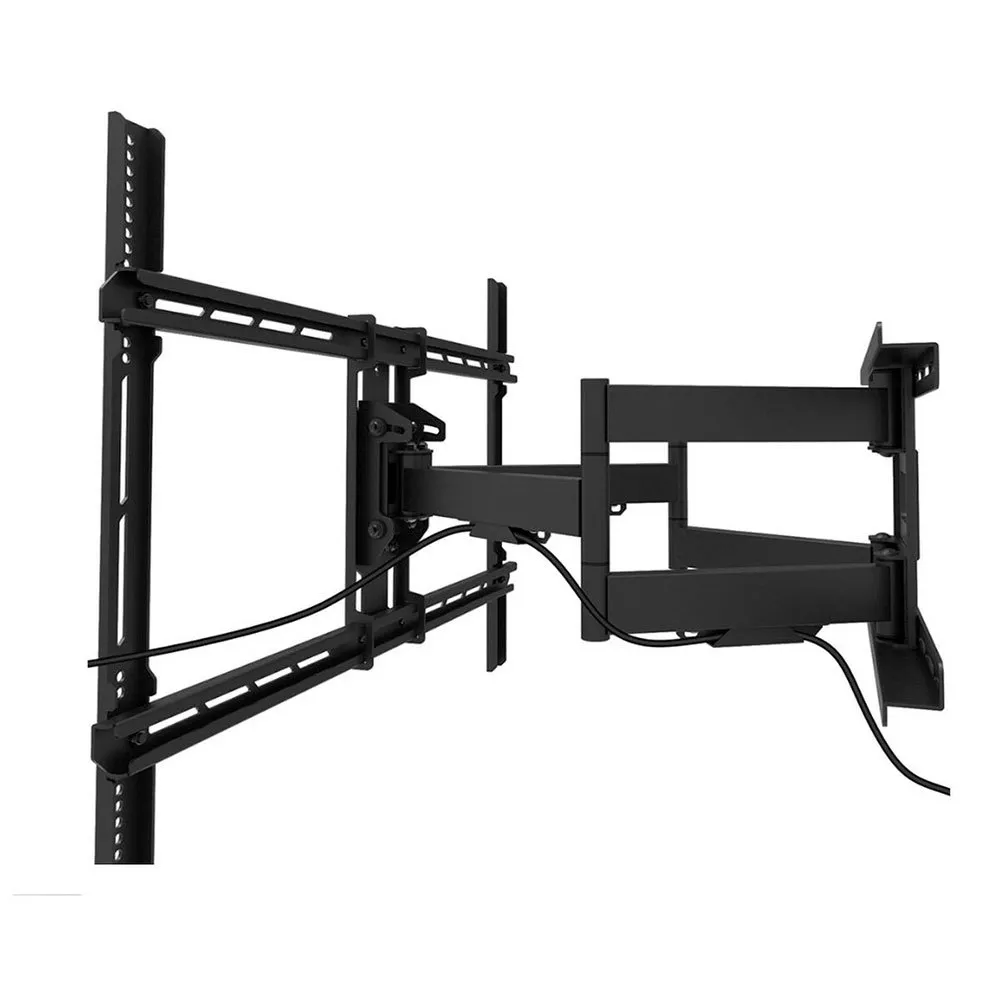

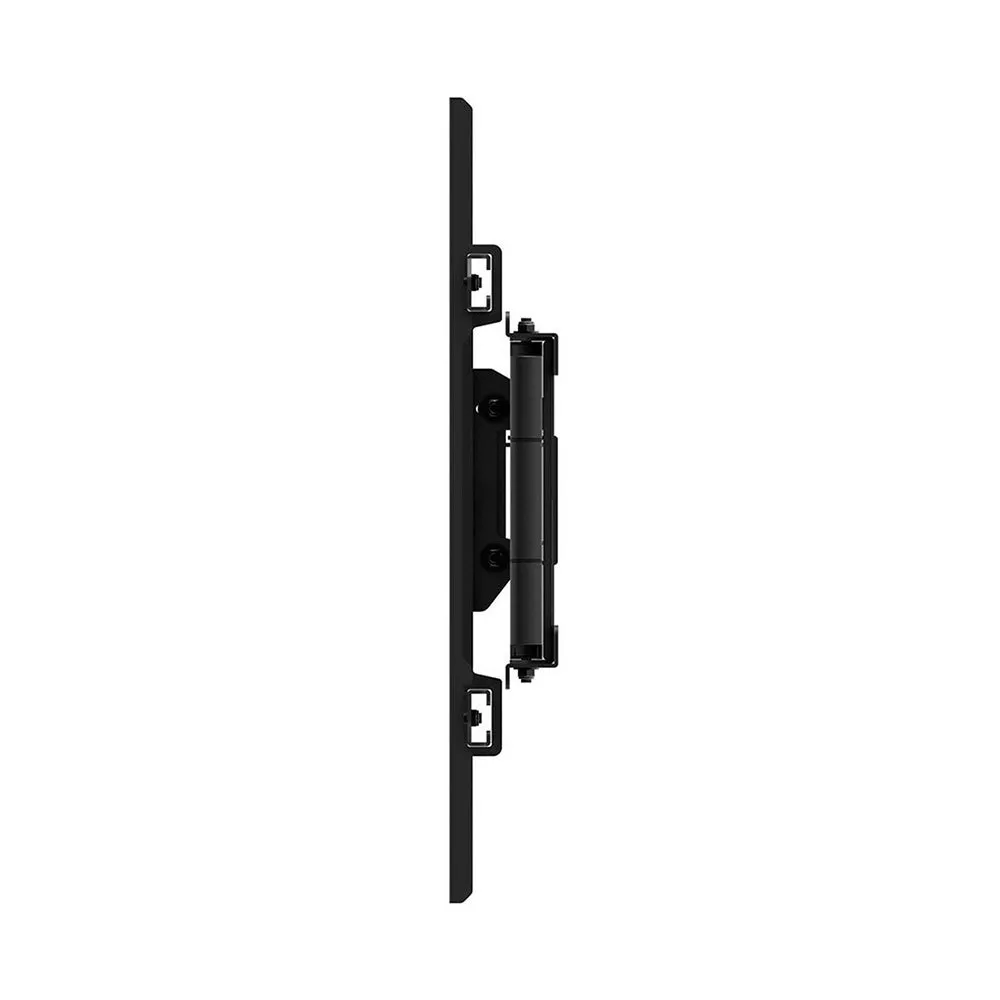

The Neomounts Select WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110´´ with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.

The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.


Specifications:

Mounting:
- Minimum screen size: 55´´
- Maximum weight capacity: 275.6 lbs (125 kg)
- Maximum screen size: 110´´
- Suitable for TV: Yes
- Minimum VESA mount: 11.8 x 3.94´´ (300 x 100 mm)
- Maximum VESA mount: 31.5 x 23.6´´ (800 x 600 mm)
- Panel mounting interface: 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 400 x 500, 400 x 600, 440 x 400, 500 x 400, 600 x 200, 600 x 400, 600 x 600, 600 x 300, 600 x 500, 680 x 300, 800 x 200, 800 x 400, 800 x 500, 800 x 600
- Number of displays supported: 1
- Mounting type: Wall
- Distance to the wall (min): 3.23´´ (8.2 cm)
- Distance to the wall (max): 27.6´´ (70 cm)

Ergonomics:
- Height adjustment: Yes
- Height adjustment range: 0 - 0.394´´ (0 - 10 mm)
- Tilt angle range: -15 - 5°
- Swivel angle range: -45 - 45°
- Pivot angle: -3 - 3°
- Cable management: Yes
- Tilt adjustment: Yes

Weight & dimensions:
- Width: 34.6´´ (880 mm)
- Depth: 3.23´´ (82 mm)
- Height: 24.8´´ (630 mm)
