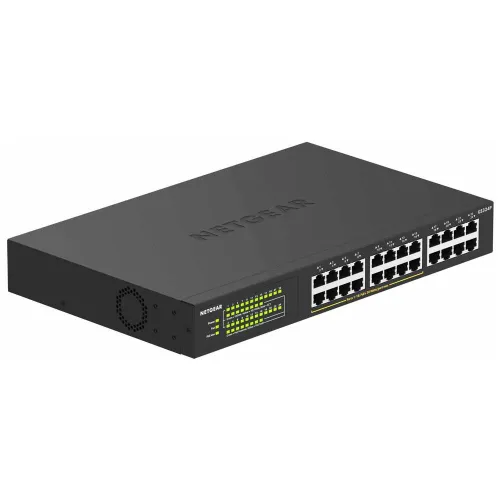

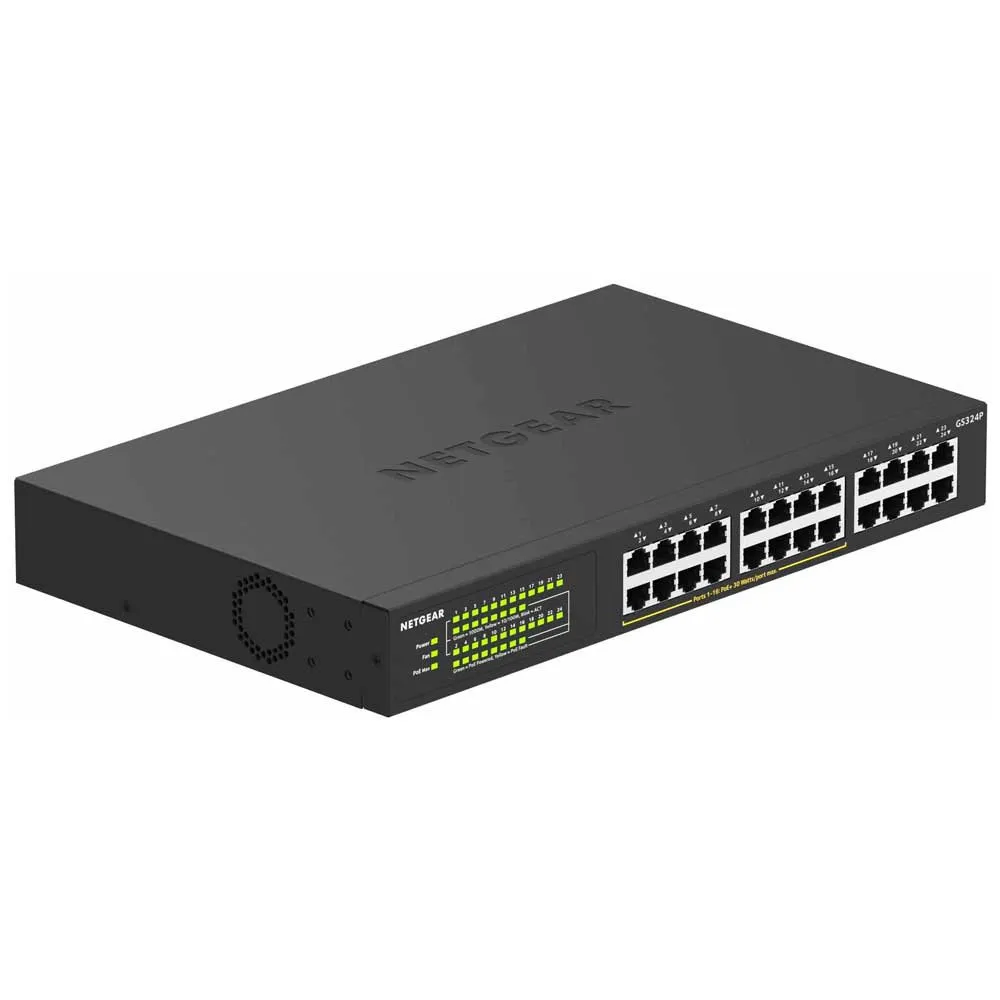

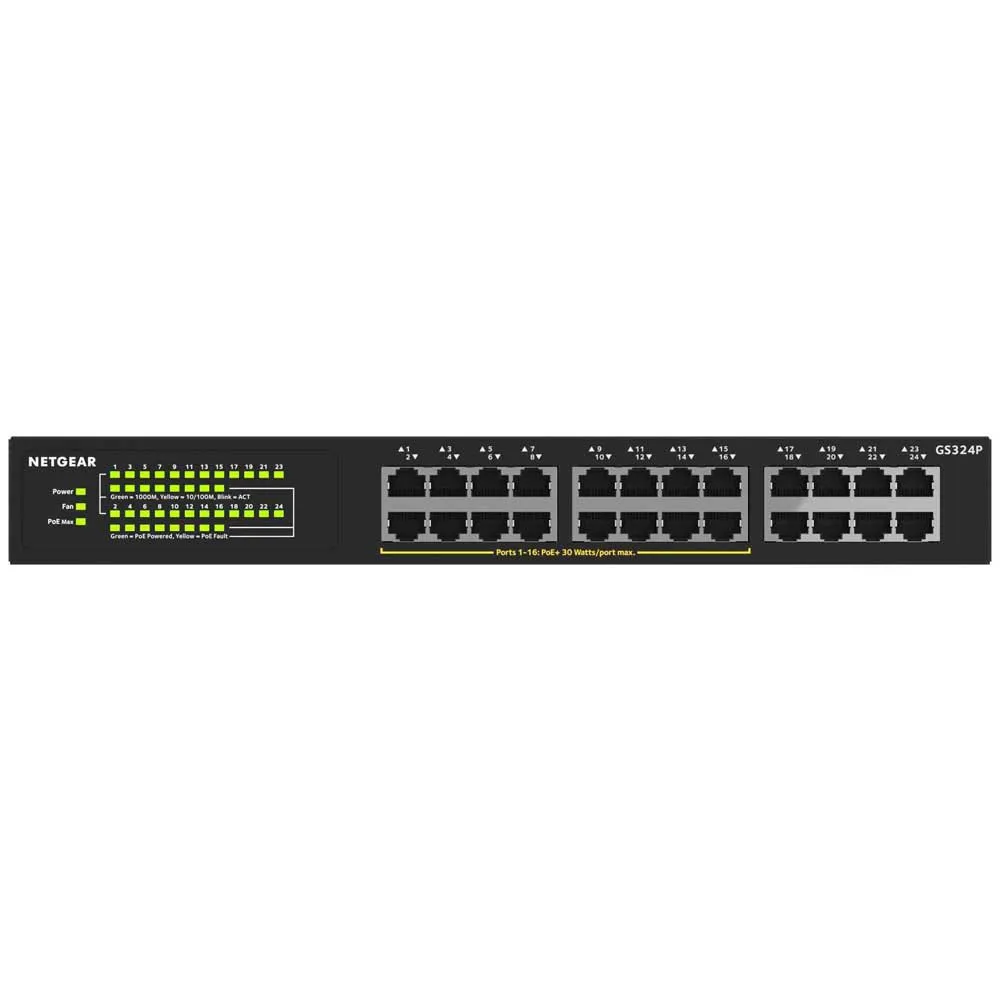

Netgear GS324P 24 switch

EU Plug.

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices.

They are easy to use, reliable, and rugged with metal enclosures.

Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc.

With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required.

Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Features:

- ETHERNET PORT CONFIGURATION:24 Gigabit ports.

- POWER-OVER-ETHERNET:16 PoE+ ports with 190W total power budget to power wireless AP, IP Cameras, IP Phones and much more.

- PLUG-AND-PLAY:Simple set up with no software to install or configuration needed.

- VERSATILE MOUNTING OPTIONS:Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box.

- PoE POWER AUTO-BALANCE AND ALLOCATION.

- NETGEAR´s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.

- QUIET OPERATION:Ideal for noise-sensitive environments.

- ENERGY EFFICIENT:Designed to optimize power usage lowering its cost to operate.

Compliant with IEEE802.3az Energy Efficient Ethernet mode.

- BUILT TO LAST:Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.

Specifications:

Management.

Features:

- Switch type:Unmanaged.

- Quality of Service (QoS) support:Yes.

Ports & interfaces:- Basic switching RJ-45 Ethernet ports quantity:24.

- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000).

Network:- Networking standards:IEEE 802.1p,IEEE 802.3at.

- 10G support:No.

- Full duplex:Yes.

- Auto MDI/MDI-X:Yes.

- Auto-negotiation:Yes Data transmission:- Switching capacity:48 Gbit/s.

- MAC address table:8000 entries.

- Latency (1 Gbps):4 µs.

- Jumbo frames support:Yes.

- Jumbo frames:10000.

- Packet forwarding rate (1 Gbps):1448000 pps.

- Packet buffer.

Memory:0.192 MB.

Security:- Queue scheduling algorithms:Weighted Round Robin (WRR) Design:- Rack mounting:Yes.

- Form factor:1U.

- Housing material:Metal.

- LED indicators:Activity, Link, PoE, Power, Speed.

- Number of fans:1 fan(s) Design:- Electromagnetic compatibility:CE, FCC 15 A, IC A, RCM, VCCI, KC.

Certification:CB, CE LVD, UL.

Performance:- Mean time between failures (MTBF):1193574 h.

Power:- AC input voltage:100.

- 240 V.

- AC input frequency:50/60 Hz.

- Input current:3 A.

- Power consumption (max):210 W.

- Power over Ethernet (PoE).

- Power over Ethernet (PoE):Yes.

- Power over Ethernet (PoE) ports quantity:16.

- Power over Ethernet (PoE) power per port:30 W.

- Total Power over Ethernet (PoE) budget:190 W Operational conditions:- Operating temperature (T-T):0.

- 45 °C.

- Storage temperature (T-T):-20.

- 70 °C.

- Operating relative humidity (H-H):10.

- 90%.

- Storage relative humidity (H-H):10.

- 95%.

- Operating altitude:0.

- 3000 m.

- Heat dissipation:718.2 BTU/h.

Weight & dimensions:- Width:330 mm.

- Depth:206 mm.

- Height:43 mm.

- Weight:2.44 kg.
