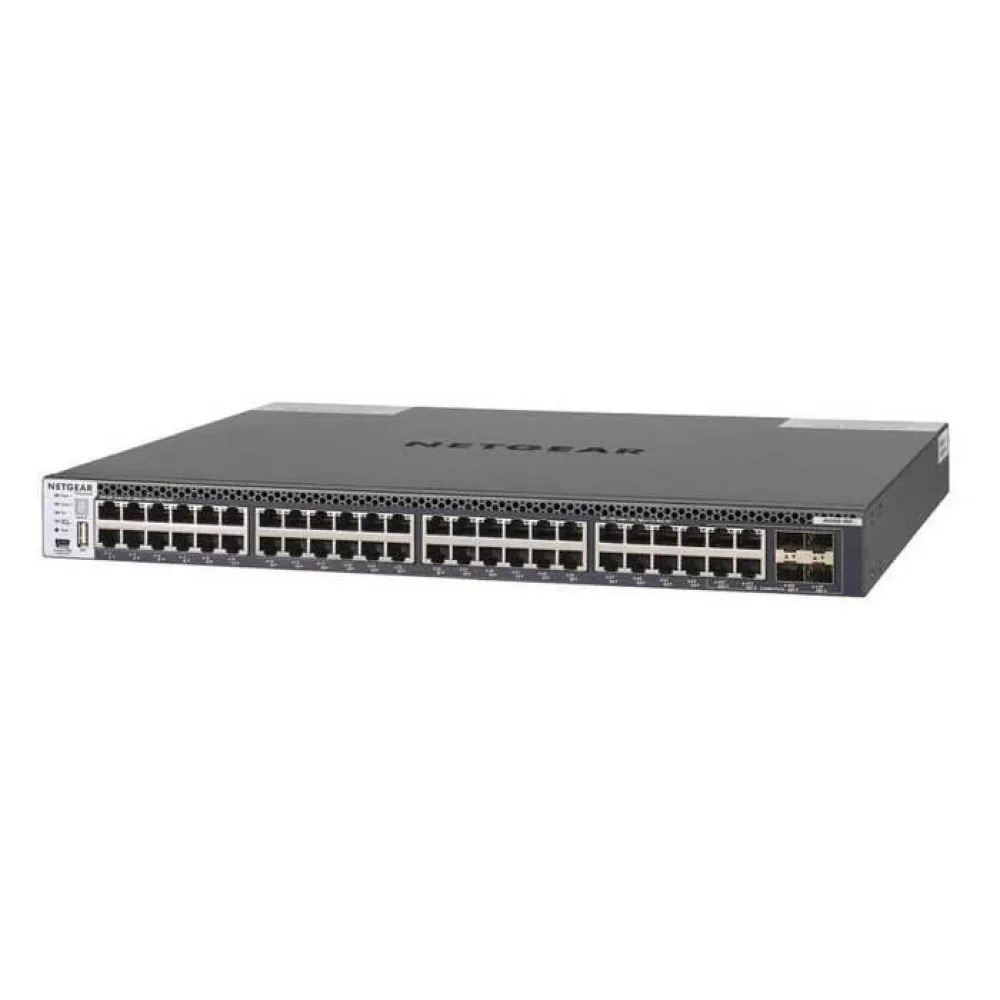

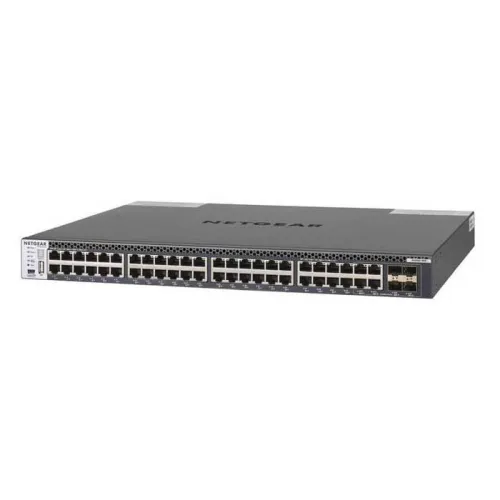

Netgear M4300-48X Stackable MGD switch

EU Plug.

Features:

Stackable Switches with Full PoE+ Provisioning:- The world´s first 1G and 10G virtual chassis platform with 10G stacking designed for mid-enterprise edge and SMB core deployments.

The M4300 series scales from 24x1G to 48x10G to deliver resilient, spine and leaf, edge to core connectivity for unified wired and wireless networks.

Introducing the NETGEAR ProSAFE M4300 Intelligent Edge Series:- Managed Switches with 10 Gigabit models and 1 Gigabit models all stacking together.

The NETGEAR ProSAFE M4300 Intelligent Edge Series applications:- Cost effective edge, HA top-of-rack, and spine and leaf collapsed cores.

What sets M4300 Intelligent Edge Series apart:- Mixed stacking, hybrid 10G, full power PoE+, nonstop forwarding (NSF) and hitless failover.

- The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use:10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies.

Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack.

Dual redundant, modular power supplies equipping full width models contribute to business continuity management.

Layer 3 feature set includes static, dynamic and policy-based routing - as standard.

Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking:- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables).

- High-availability is another key differentiator for stackable solutions:in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption Higher flexibility:- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization.

- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds Lower complexity:- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license.

- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation Investment protection:- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks.

- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection Secure services:- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs.

- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies Industry standard management:- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN.

- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support.

Specifications:

Management.

Features:

- Switch type:Managed.

- Switch layer:L3.

- Quality of Service (QoS) support:Yes.

- ARP inspection:Yes.

- System event log:Yes.

Ports & interfaces:- Basic switching RJ-45 Ethernet ports quantity:48.

- Basic switching RJ-45 Ethernet ports type:10G Ethernet (100/1000/10000).

- SFP+ module slots quantity:4.

- Console port:RJ-45.

- USB 2.0 ports quantity:2.

- Power connector:DC-in jack.

Network:- Networking standards:IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq, IEEE 802.3az.

- 10G support:Yes.

- Link aggregation:Yes.

- Spanning tree protocol:Yes.

- VLAN support:Yes.

- Virtual LAN.

Features:

Private VLAN.

- Number of VLANs:4000 Data transmission:- Switching capacity:960 Gbit/s.

- Throughput:714 Mpps.

- MAC address table:128000 entries.

- Packet buffer.

Memory:56 MB.

Security:- DHCP.

Features:

DHCP server Multicast.

Features:

- Multicast support:Yes Protocols:- Management protocols:Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+ Design:- Rack mounting:Yes.

- Form factor:1U.

- Reset button:Yes.

- LED indicators:Yes Performance:- Built-in.

Processor:Yes.

- Processor frequency:800 MHz.

- Internal.

Memory:1024 MB.

- Flash.

Memory:256 MB.

- Noise level:40.3 dB.

Power:- AC input voltage:110.

- 220 V.

- Power consumption (typical):250 W.

Weight & dimensions:- Weight:6.55 kg.
