Newstar Ceiling Mount 10-40´´ Tilt

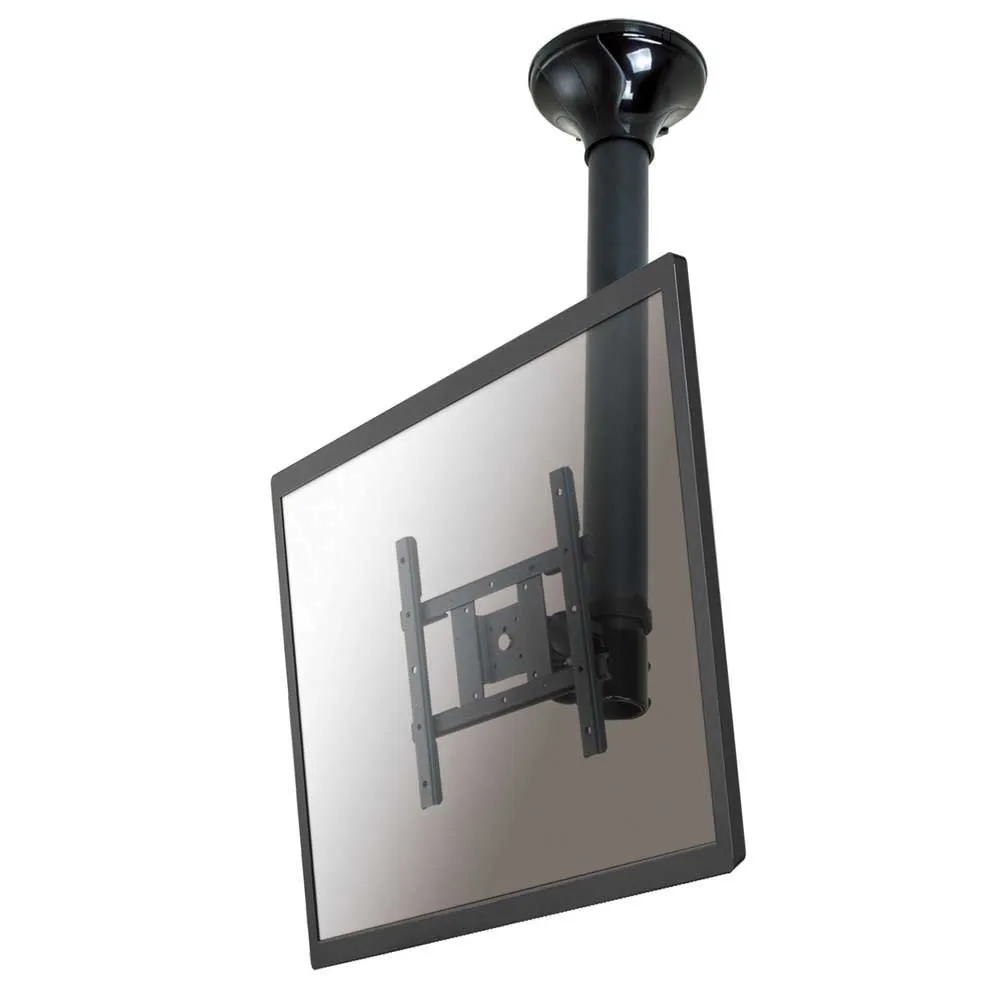

The NewStar ceiling mount, model FPMA-C200BLACK is a tilt- and swivel ceiling mount for flat screens up to 40”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

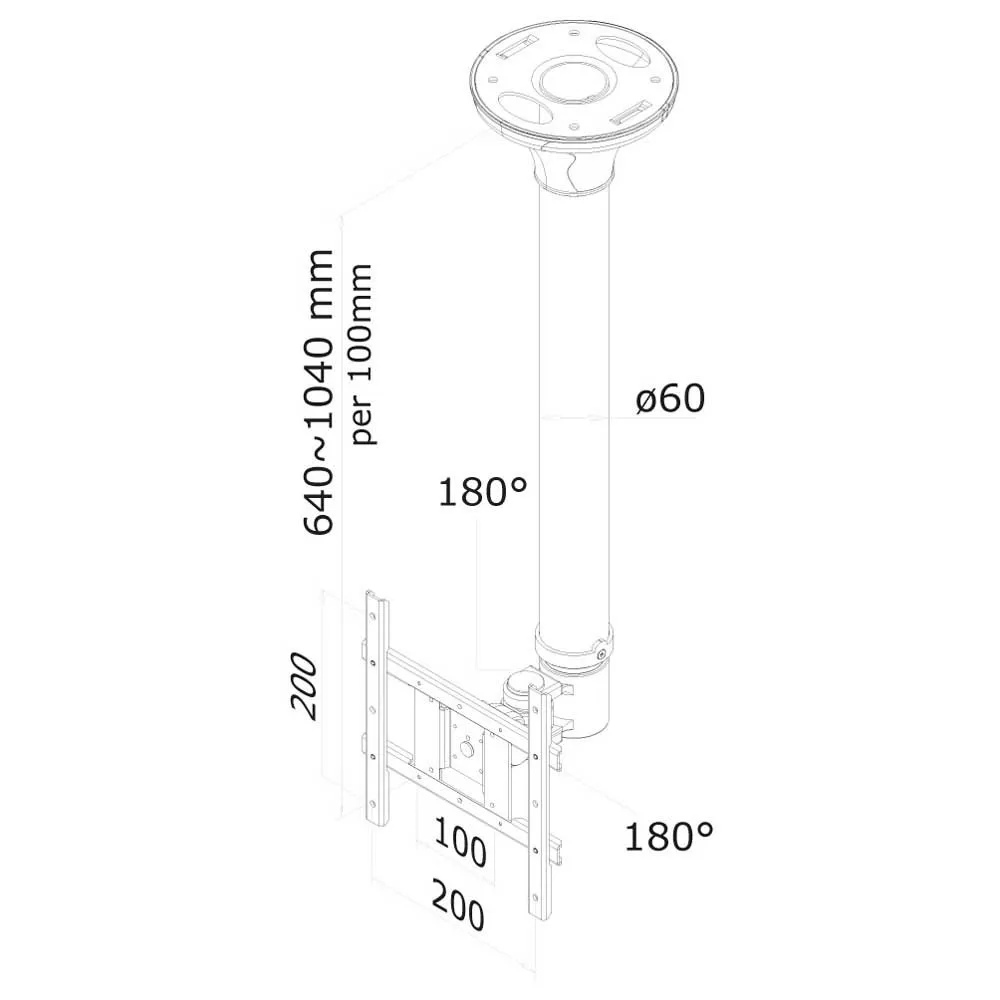

NewStar´s versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

NewStar FPMA-C200BLACK has two pivot points and is suitable for screens up to 40´´ (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using NewStar VESA adapter plates.
All installation material is included with the product.


Specifications:

Mounting:
- Minimum screen size compatibility: 25.4 cm (10´´)
- Maximum weight capacity: 20 kg
- Maximum screen size compatibility: 101.6 cm (40´´)
- Mounting type: Ceiling
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 200 x 200 mm
- Number of displays supported: 1

Ergonomics:
- Height adjustment: Yes
- Height adjustment type: Manual
- Height adjustment range: 640 - 1040 mm
- Tilt angle range: 0 - 180°
- Swivel angle: 180°
- Angle of rotation: 360°
- Cord management: Yes

Weight & dimensions:
- Depth: 90 mm
- Height: 1040 mm

Packaging data:
- Package width: 760 mm
- Package depth: 225 mm
- Package height: 190 mm

Logistics data:
- Master (outer) case gross weight: 6.6 kg
- Master (outer) case net weight: 6 kg
- Harmonized System (HS) code: HS83025000
- Quantity per EUR-pallet: 40 pc(s)
- Master (outer) case width: 76 cm
- Master (outer) case length: 22.5 cm
- Master (outer) case height: 19 cm
- Quantity per master (outer) case: 1 pc(s)
