Newstar Desk Mount Quad 10-30´´ Support

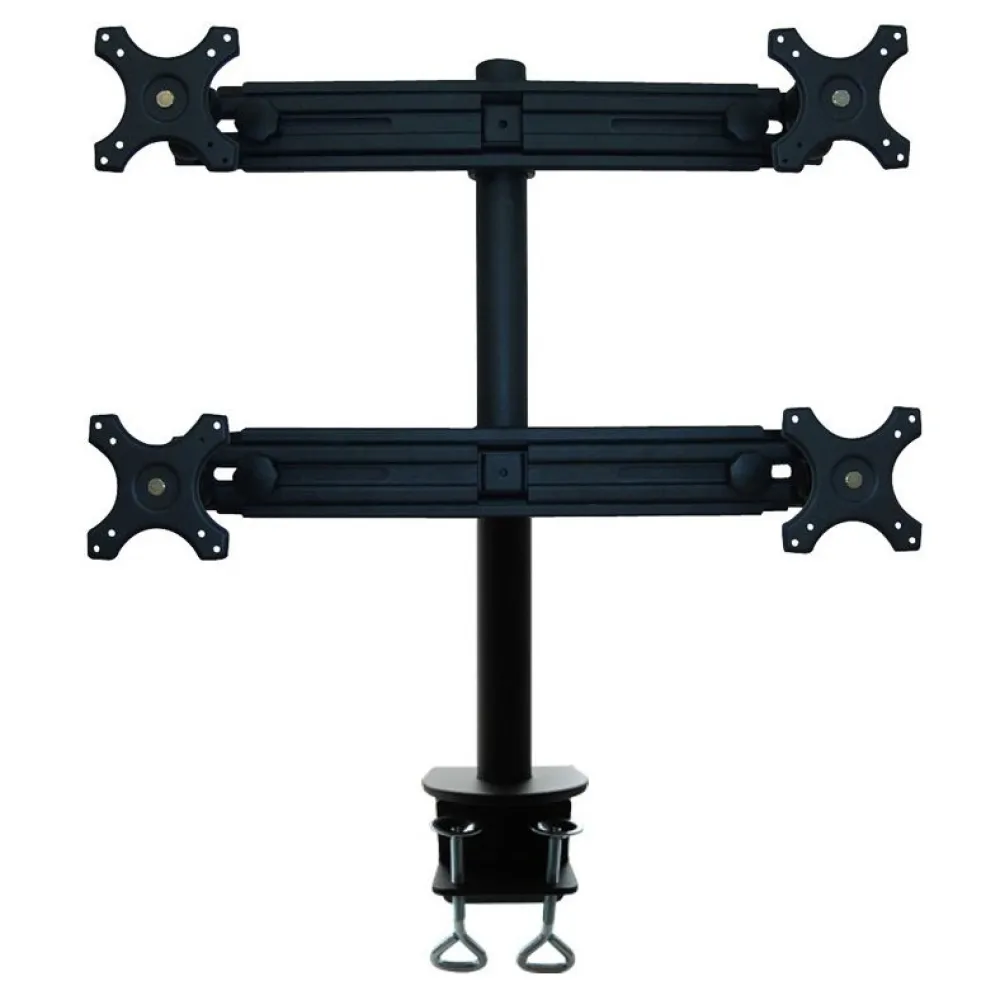

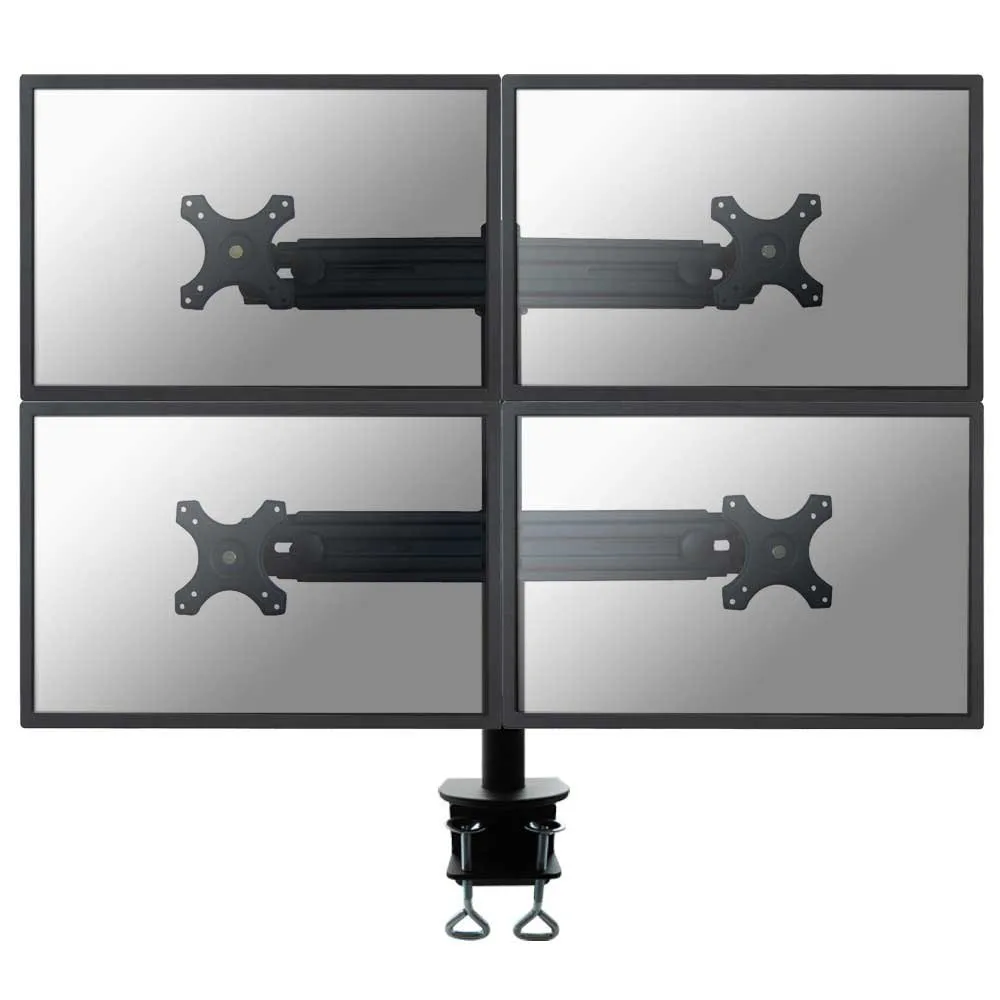

The NewStar desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30”. This mount is a great choice for space saving placement on desks using a desk clamp.

NewStar´s versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

NewStar FPMA-D700D4 has two pivot points and is suitable for screens up to 30´´ (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.


Specifications:

Mounting:
- Minimum screen size compatibility: 48.3 cm (19´´)
- Maximum weight capacity: 8 kg
- Maximum screen size compatibility: 76.2 cm (30´´)
- Mounting: Clamp
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Number of displays supported: 4
- Mounting type: Desk

Ergonomics:
- Height adjustment: Yes
- Height adjustment type: Manual
- Height adjustment range: 0 - 700 mm
- Tilt angle range: 0 - 180°
- Swivel angle: 180°
- Angle of rotation: 360°

Weight & dimensions:
- Width: 830 mm
- Depth: 150 mm
- Height: 700 mm
- Package width: 830 mm
- Package depth: 555 mm
- Package height: 180 mm

Logistics data:
- Master (outer) case width: 83 cm
- Master (outer) case length: 55.5 cm
- Master (outer) case height: 18 cm
- Quantity per master (outer) case: 1 pc(s)
- Harmonized System (HS) code: HS83025000
- Quantity per EUR-pallet: 14 pc(s)

Other features:
- Width adjustment range: 520 - 830 mm
