Newstar FPMA-C060 TV Mount

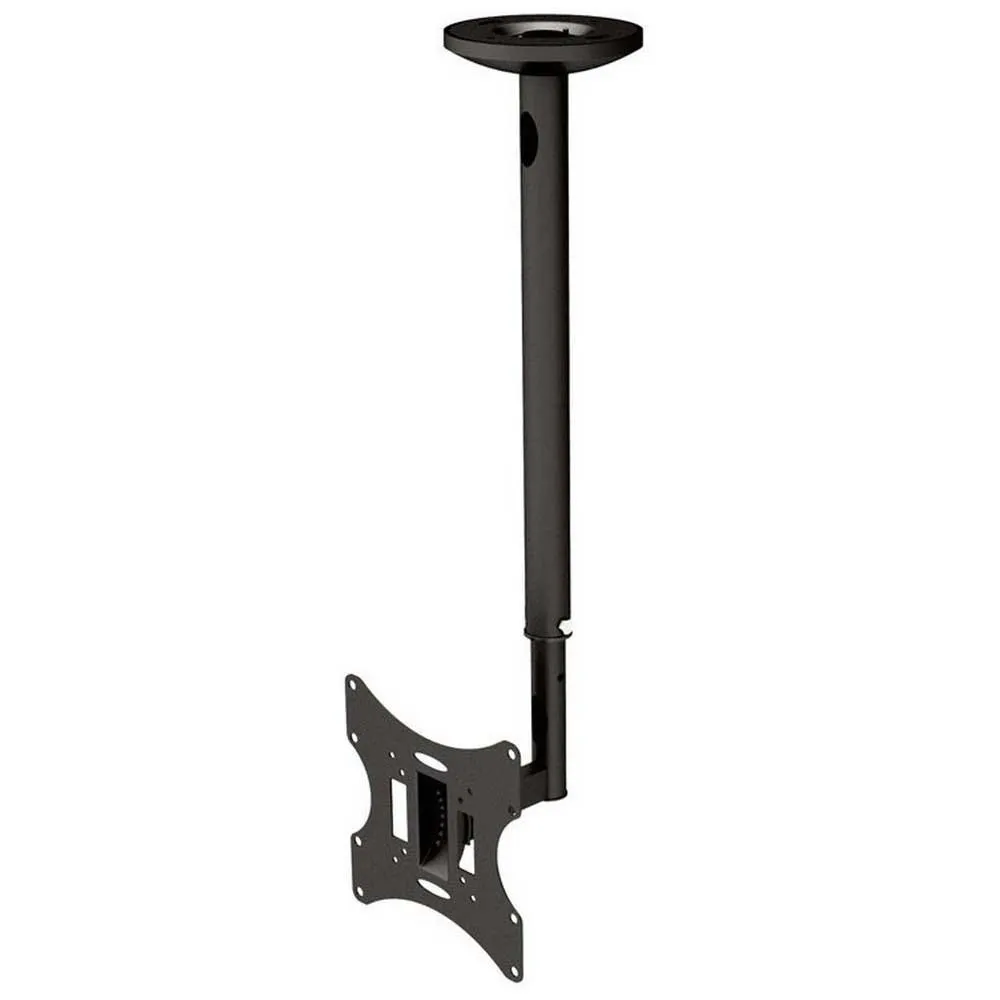

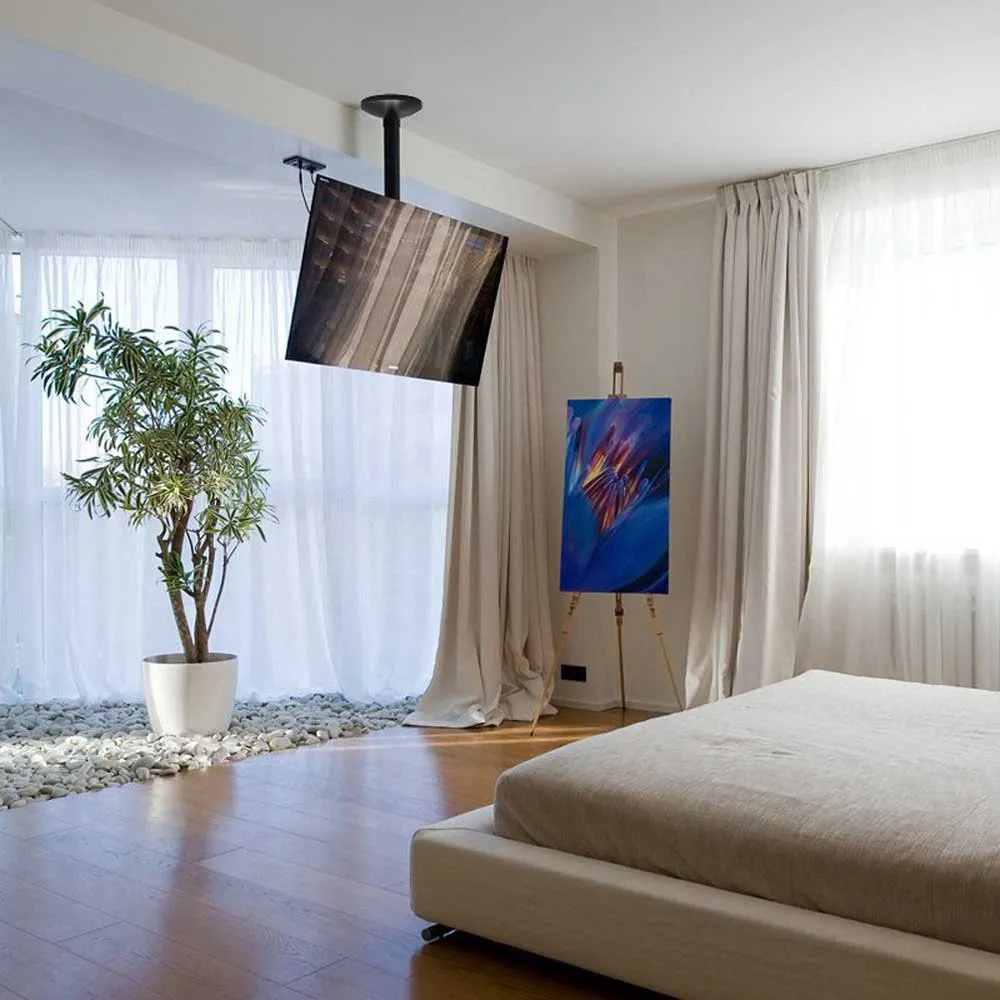

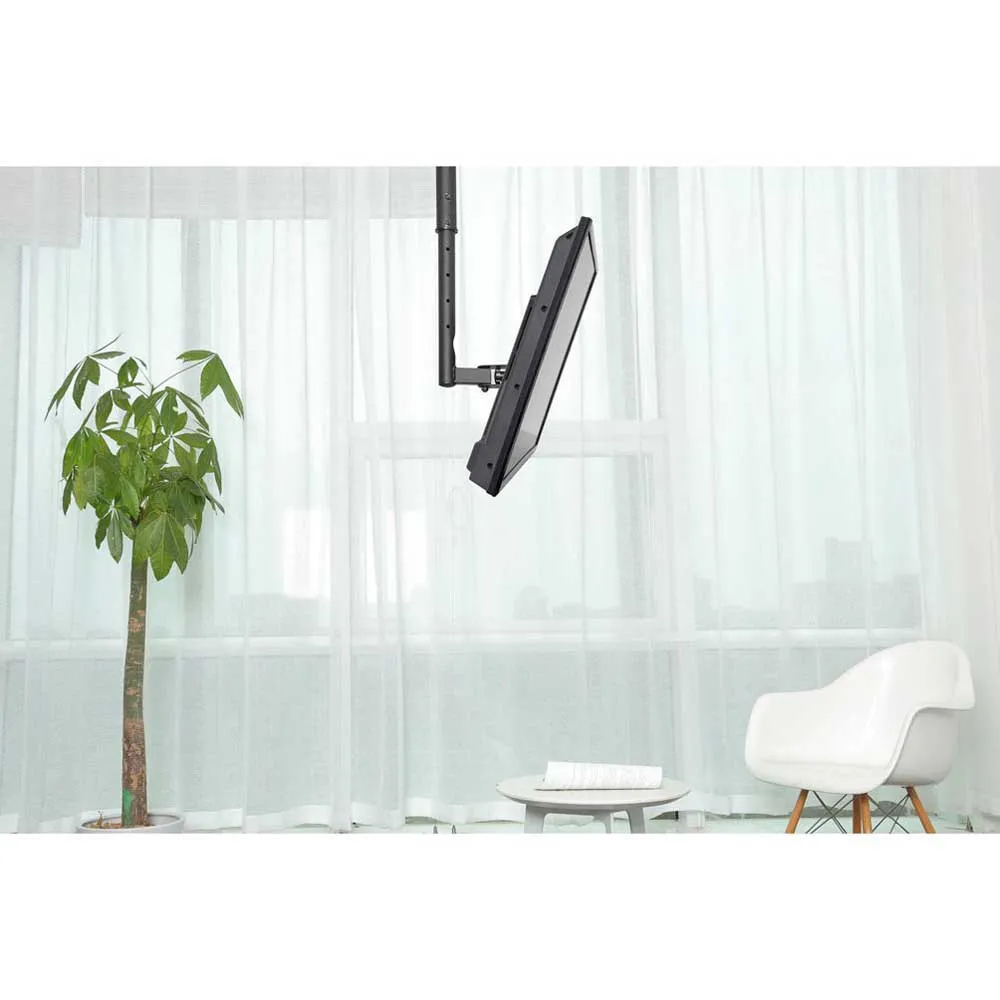

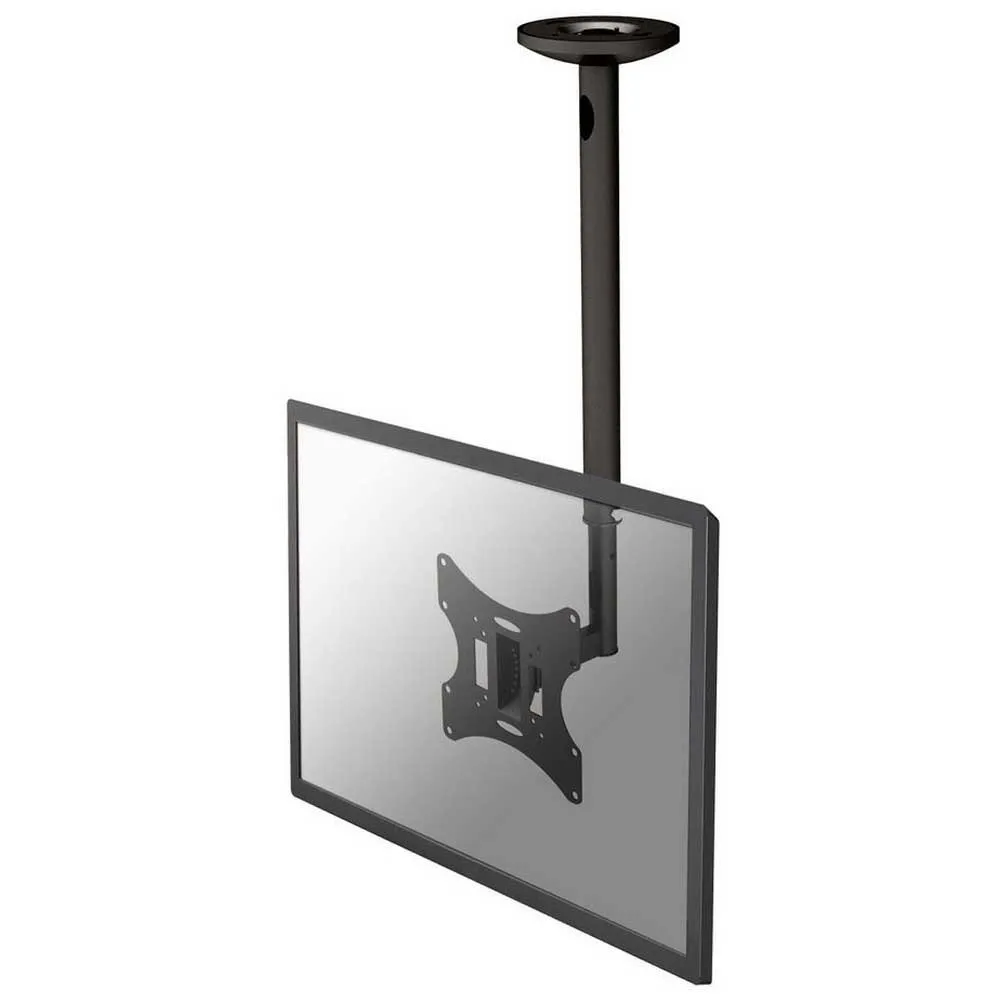

The NewStar ceiling mount, model FPMA-C060BLACK is a tilt- and swivel ceiling mount for flat screens up to 40”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

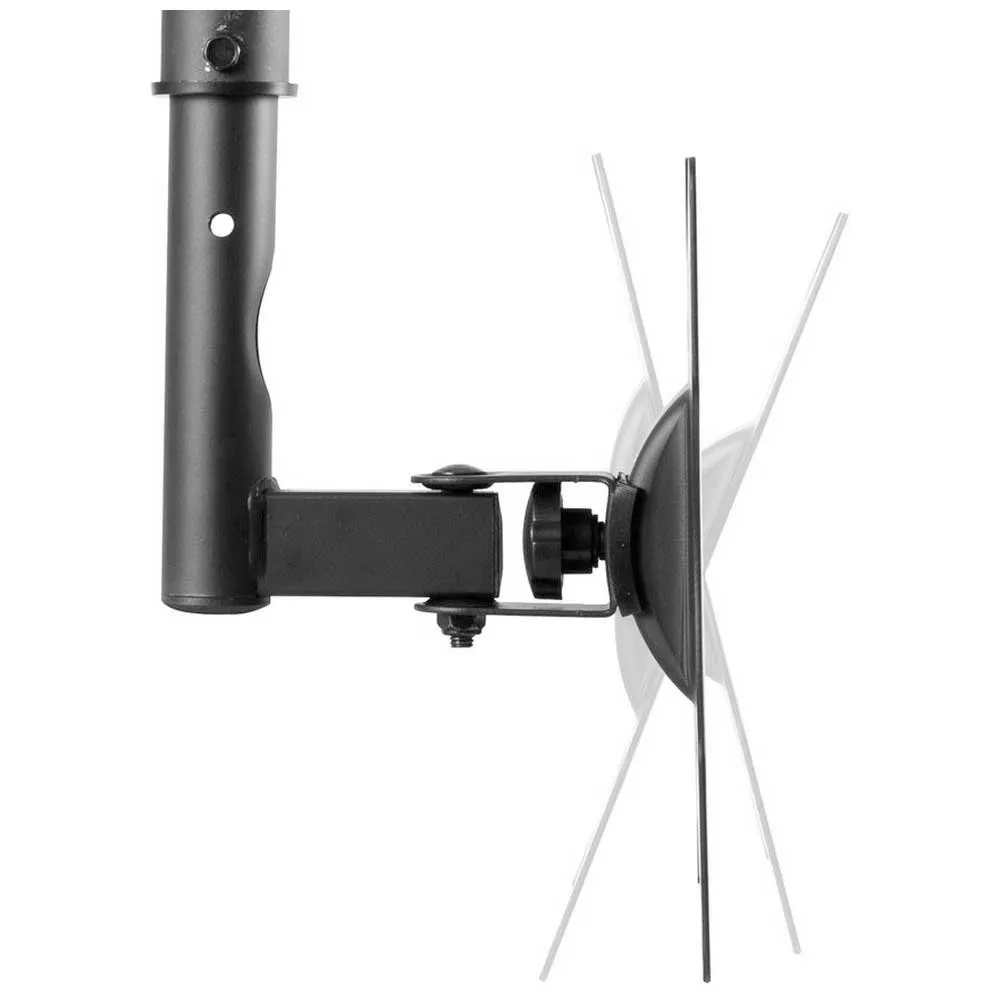

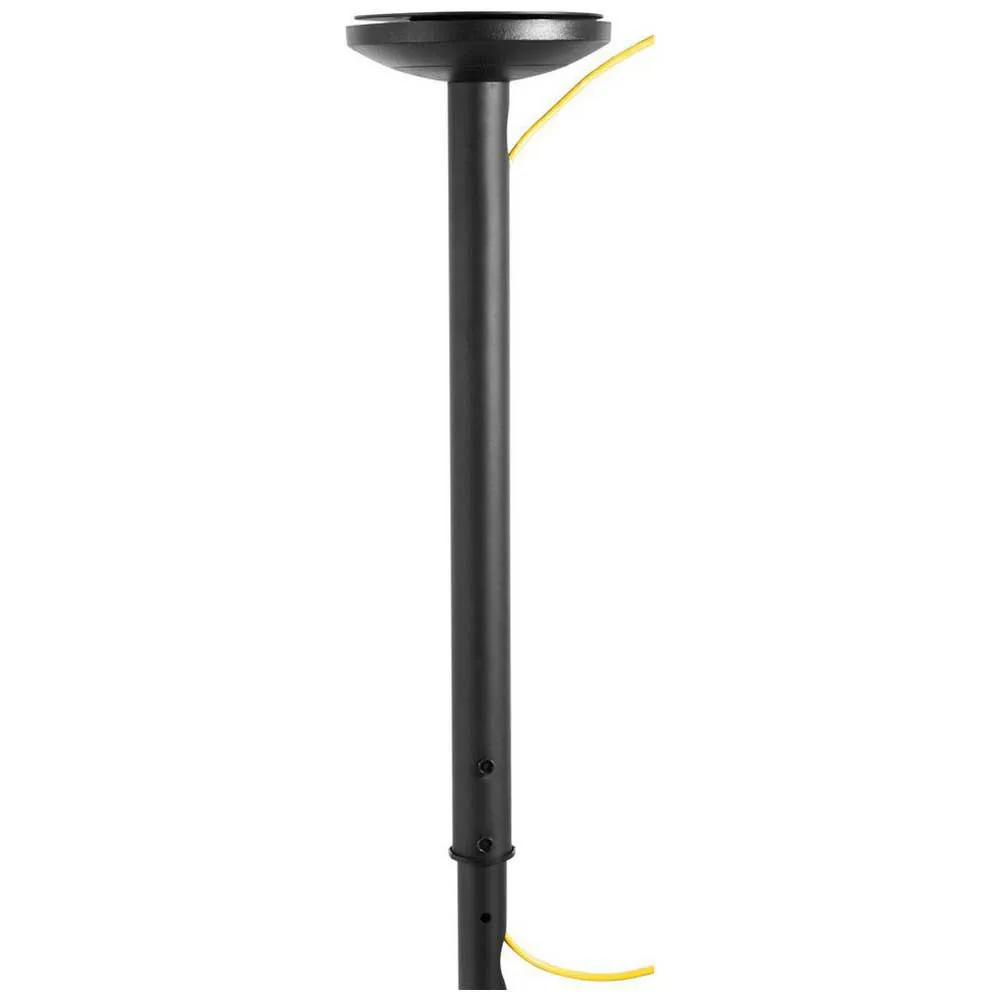

NewStar´s versatile tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 60 to 85 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

NewStar FPMA-C060BLACK has two pivot points and is suitable for screens up to 40´´ (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 or 200x200mm. Different hole patterns can be covered using NewStar VESA adapter plates.

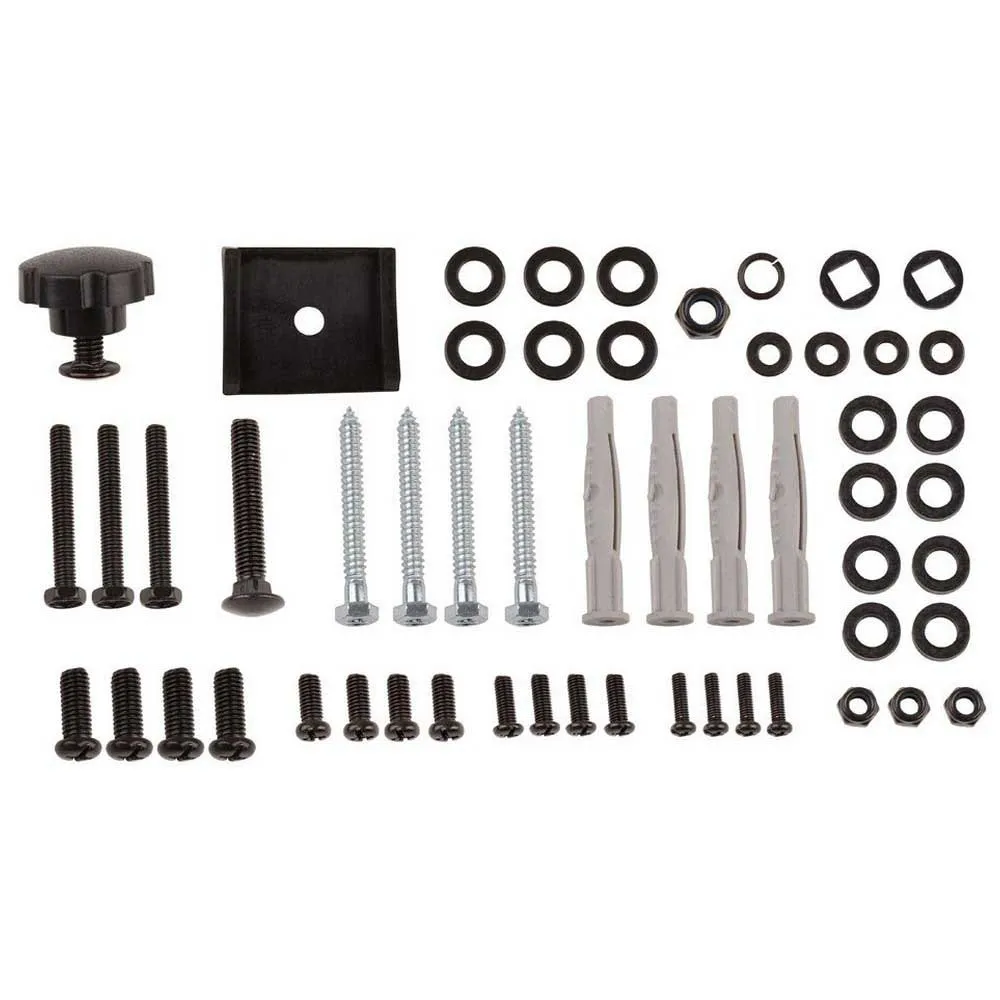

All installation material is included with the product.

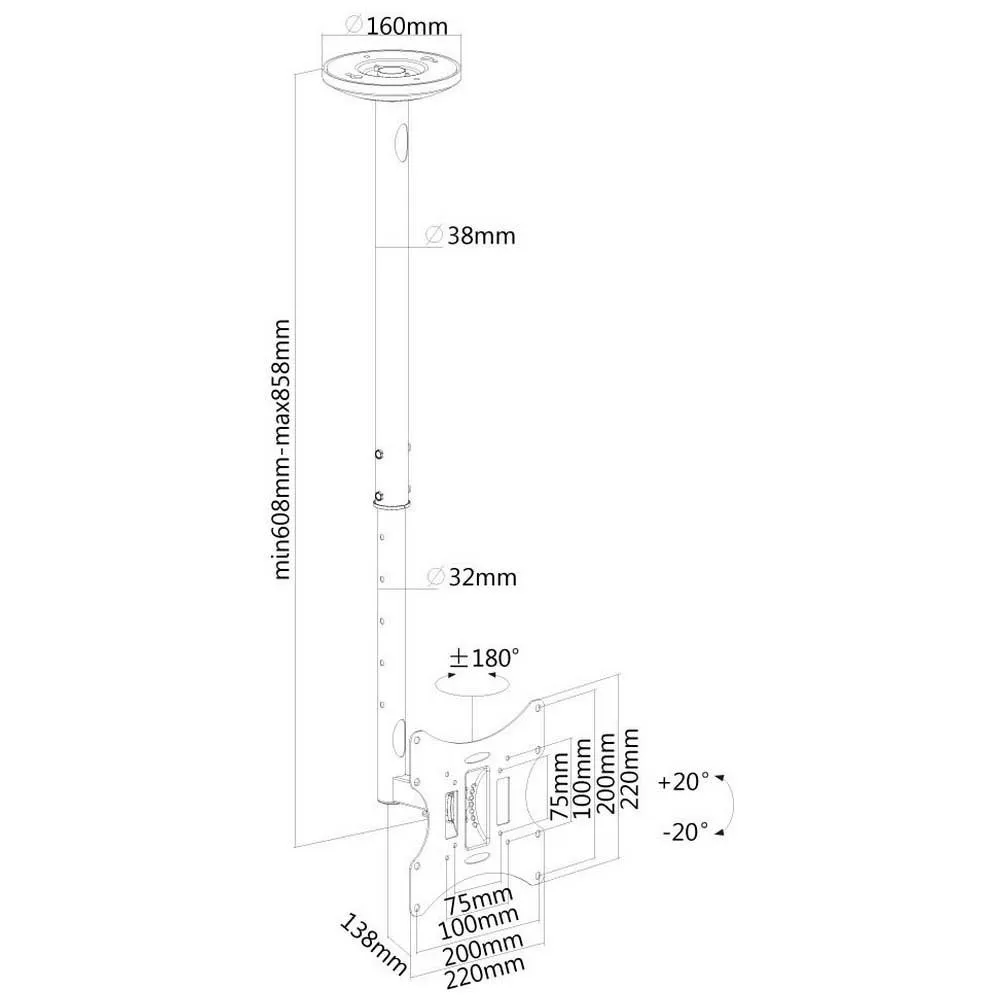

Specifications:

General:
- Min. screen size: 10 inch
- Max. screen size: 40 inch
- Min. weight: 0 kg
- Max. weight: 20 kg
- Screens: 1
- VESA pattern: 75x200, 75x75, 100x100, 100x200, 200x100, 200x200 mm
- VESA minimum: 75x75 mm
- VESA maximum: 200x200 mm

Functionality:
- Type: Full motion, Tilt, Swivel
- Tilt (degrees): 40°
- Swivel (degrees): 180°
- Depth: 13 cm
- Height: 60 - 85 cm
- Height adjustment: Manual
