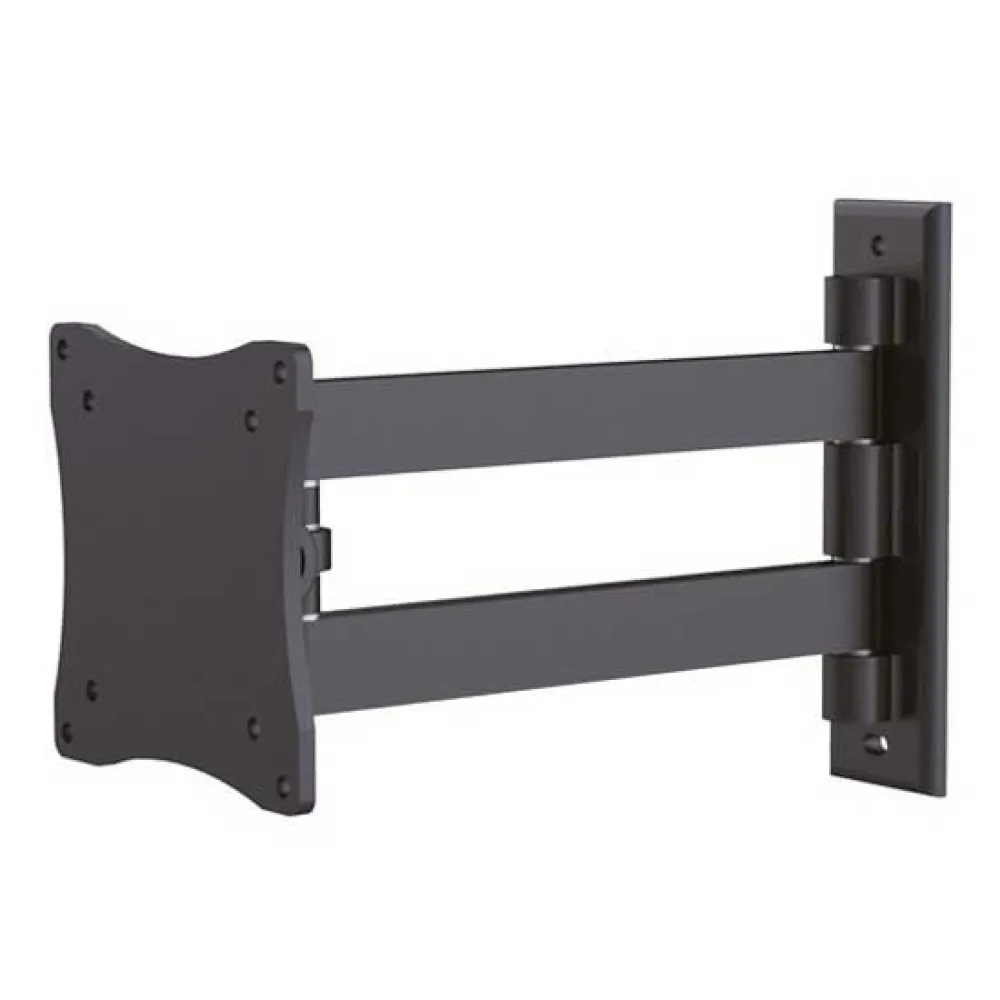

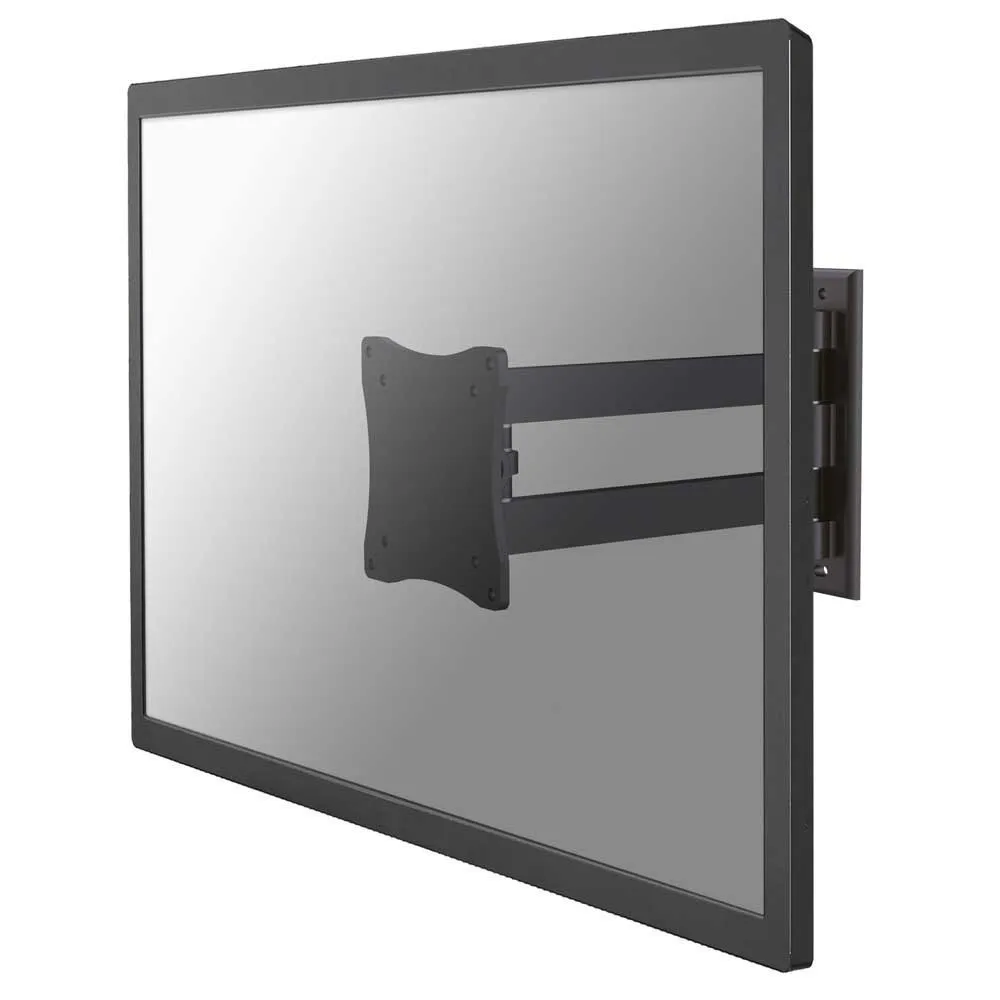

Newstar FPMA-W820 TV Mount

The NewStar wall mount, model FPMA-W820BLACK is a tilt- and swivel wall mount for flat screens up to 27´´ (69 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. NewStars’ tilt (20°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 4 to 24 centimetres. NewStar FPMA-W820BLACK has two pivot points and is suitable for screens up to 27´´ (69 cm). The weight capacity of this product is 12 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.


Specifications:

Mounting:
- Minimum screen size25.4 cm (10´´)
- Maximum weight capacity:12 kg
- Maximum screen size:68.6 cm (27´´)
- Minimum VESA mount:75 x 75 mm
- Maximum VESA mount:100 x 100 mm
- Number of displays supported1
- Mounting type:Wall

Ergonomics:
- Tilt angle range0 - 20°
- Swivel angle180°
- Distance to the wall (max)24 cm
- Distance to the wall (min)4 cm

Design:
Technical details:
- Package net weight1 kg

Packaging data:
- Package width178 mm
- Package depth50 mm
- Package height285 mm

Logistics data:
- Master (outer) case width37.5 cm
- Master (outer) case length34 cm
- Master (outer) case height31 cm
- Master (outer) case gross weight13 kg
- Master (outer) case net weight21 kg
