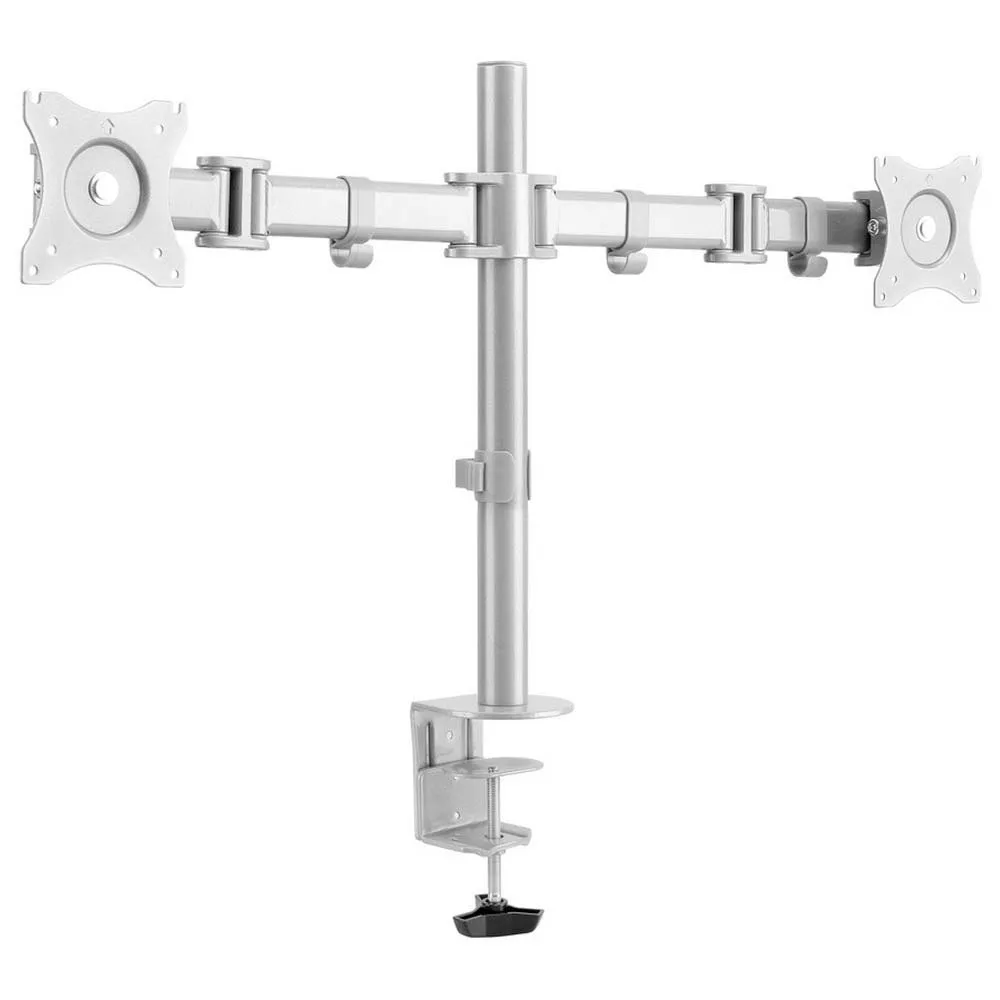

Newstar Neo D135D Mount

The NewStar desk mount, model NM-D135DSILVER is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27”. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount. NewStar´s versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 40 centimetres. Depth adjustable from 4 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar NM-D135DSILVER has three pivot points and is suitable for screens up to 27´´ (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.


Specifications:

- Mounting
- Minimum screen size:25.4 cm (10´´)
- Maximum weight capacity:8 kg
- Maximum screen size:68.6 cm (27´´)
- MountingClamp/Bolt-through
- Minimum VESA mount:75 x 75 mm
- Maximum VESA mount:100 x 100 mm
- Number of displays supported:2
- Mounting type:Desk
- Distance to the wall (min)4 cm
- Distance to the wall (max)43 cm
- Ergonomics
- Height adjustmentYes
- Height adjustment typeManual
- Height adjustment range0 - 400 mm
- Tilt angle range0 - 90°
- Swivel angle180°
- Angle of rotation360°
- Design
- Product colour:Silver
- Weight & dimensions
- Depth420 mm
- Height420 mm
- Package width150 mm
- Package depth130 mm
- Package height473 mm
- Package net weight4.44 kg
- Logistics data
- Master (outer) case width49.5 cm
- Master (outer) case length31.5 cm
- Master (outer) case height37 cm
- Quantity per master (outer) case4 pc(s)
- Master (outer) case net weight17.8 kg
