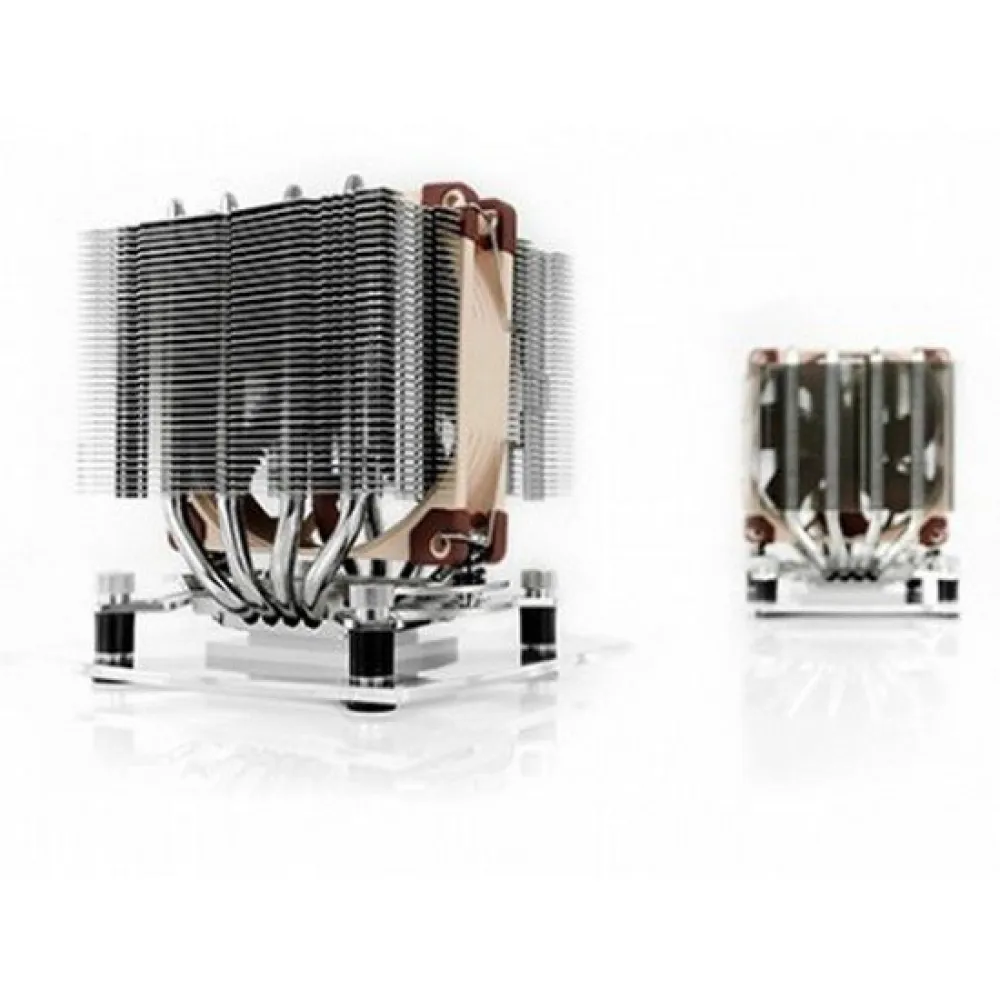

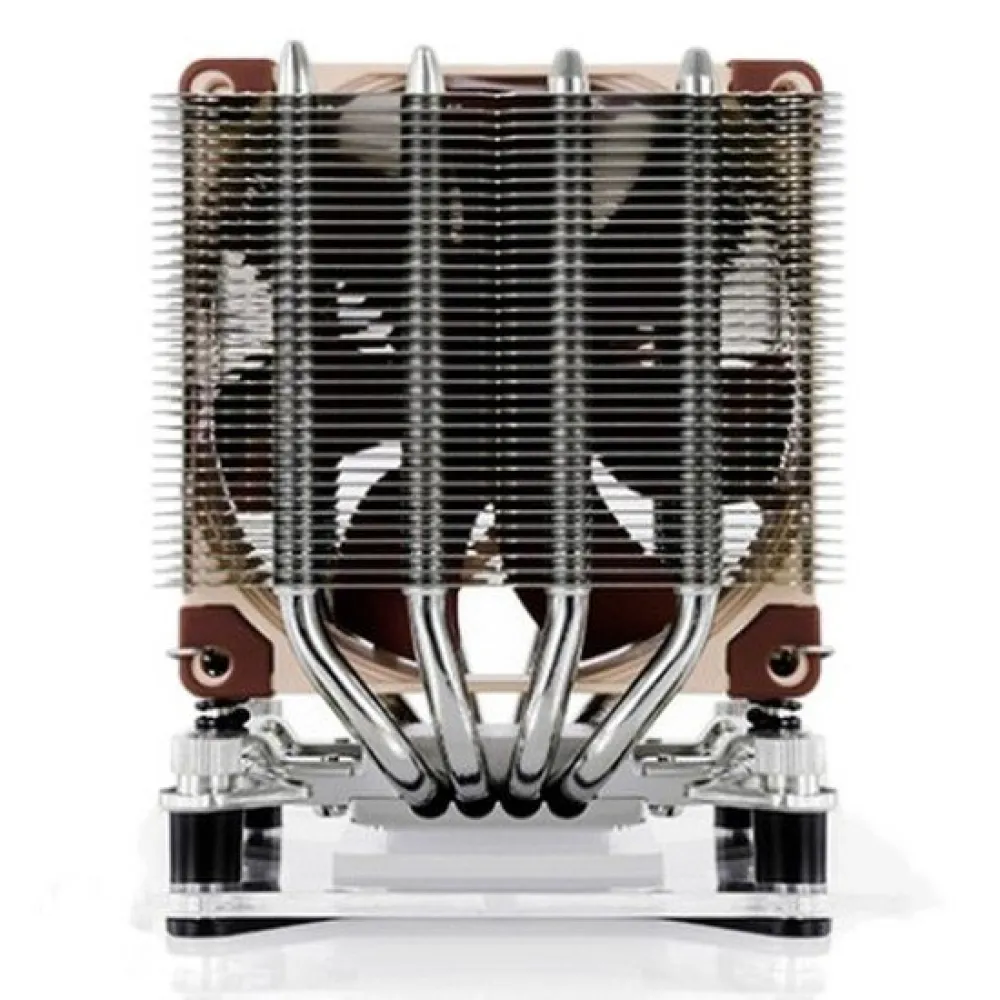

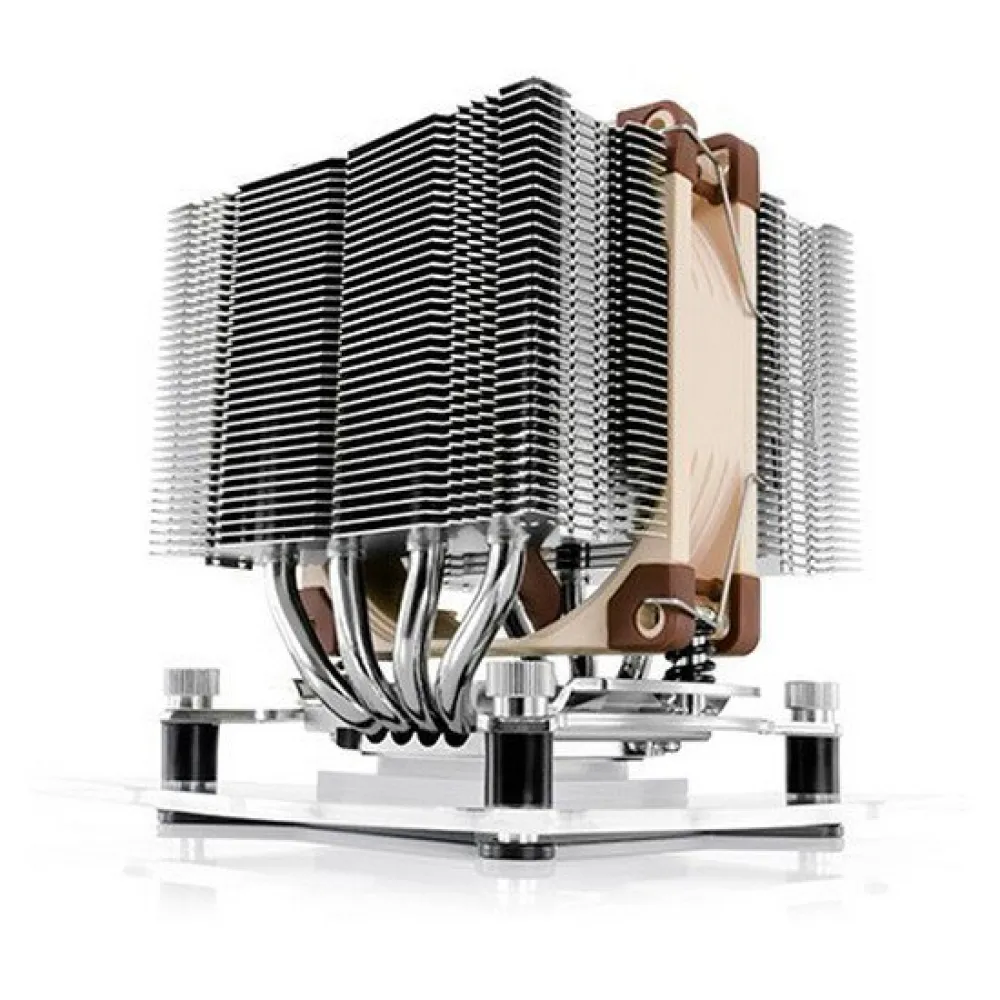

Noctua NH-D9L CPU Fan

The NH-D9L is a premium grade dual tower CPU cooler that has been designed to provide excellent quiet cooling performance at a height of only 110mm. Its comparably low profile (15mm lower than classic 9cm tower coolers such as the NH-U9S) doesn’t only guarantee full 3U compliance but also makes the NH-D9L ideal for compact HTPC and Small Form Factor cases that have airflow paths parallel to the mainboard. Thanks to its 95x95mm footprint, the NH-D9L clears the RAM and PCIe slots on all Intel based and most AMD based ITX mainboards. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode.


Specifications:

- Height (without fan): 110 mm
- Width (without fan): 95 mm
- Depth (without fan): 95 mm
- Height (with fan): 110 mm
- Width (with fan): 95 mm
- Depth (with fan): 95 mm
- Weight (with fan): 531 g
- Material Copper: (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Max. TDP see CPU: compatibility list max_tdp
- Fan compatibility: 92x92x25

FAN:
- Max. rotational speed (+/- 10%): 2000 RPM
- Max. rotational speed with L.N.A. (+/- 10%): 1550 RPM
- Min. rotational speed (PWM, +/-20%): 400 RPM
- Max. airflow: 78,9 m³/h
- Max. airflow with L.N.A.: 62,6 m³/h
- Max. acoustical noise: 22,8 dB(A)
- Max. acoustical noise with L.N.A.: 16,3 dB(A)
- Input power: 1,2 W
- Voltage range: 12 V
- MTTF: 150.000 h
