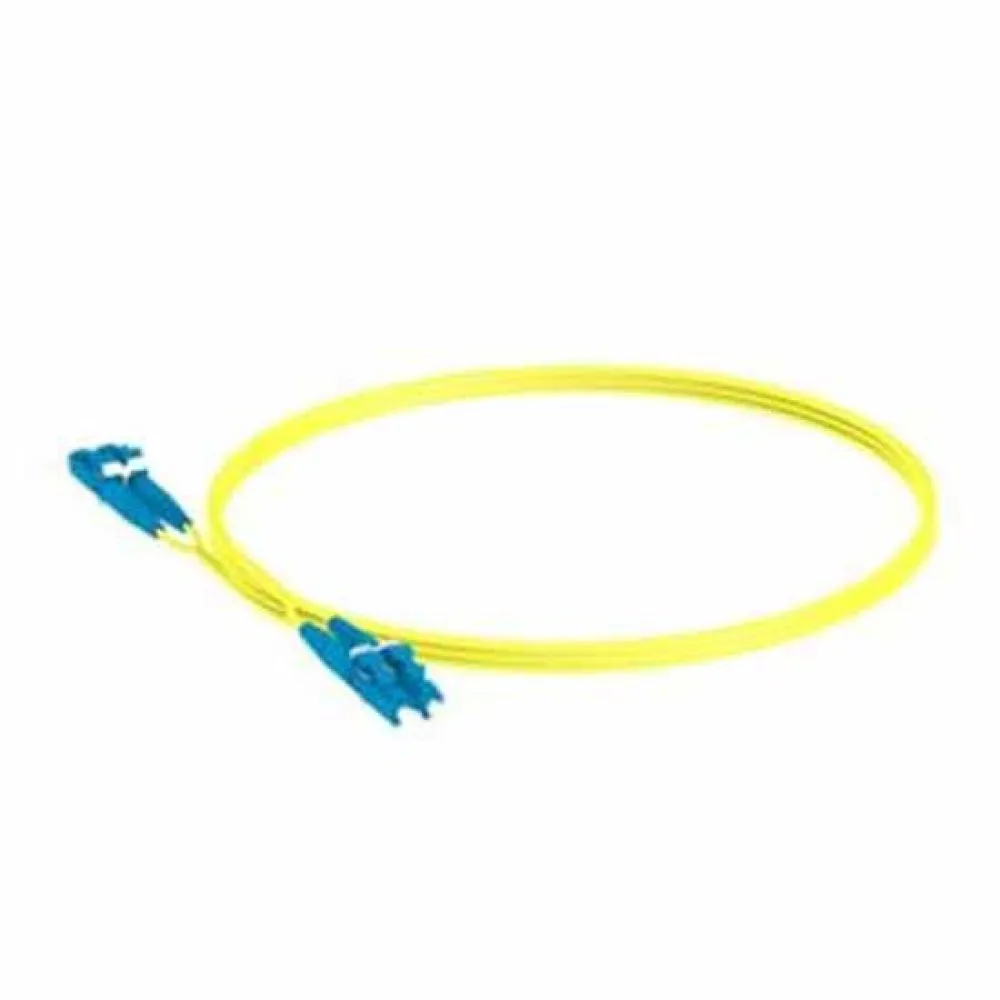

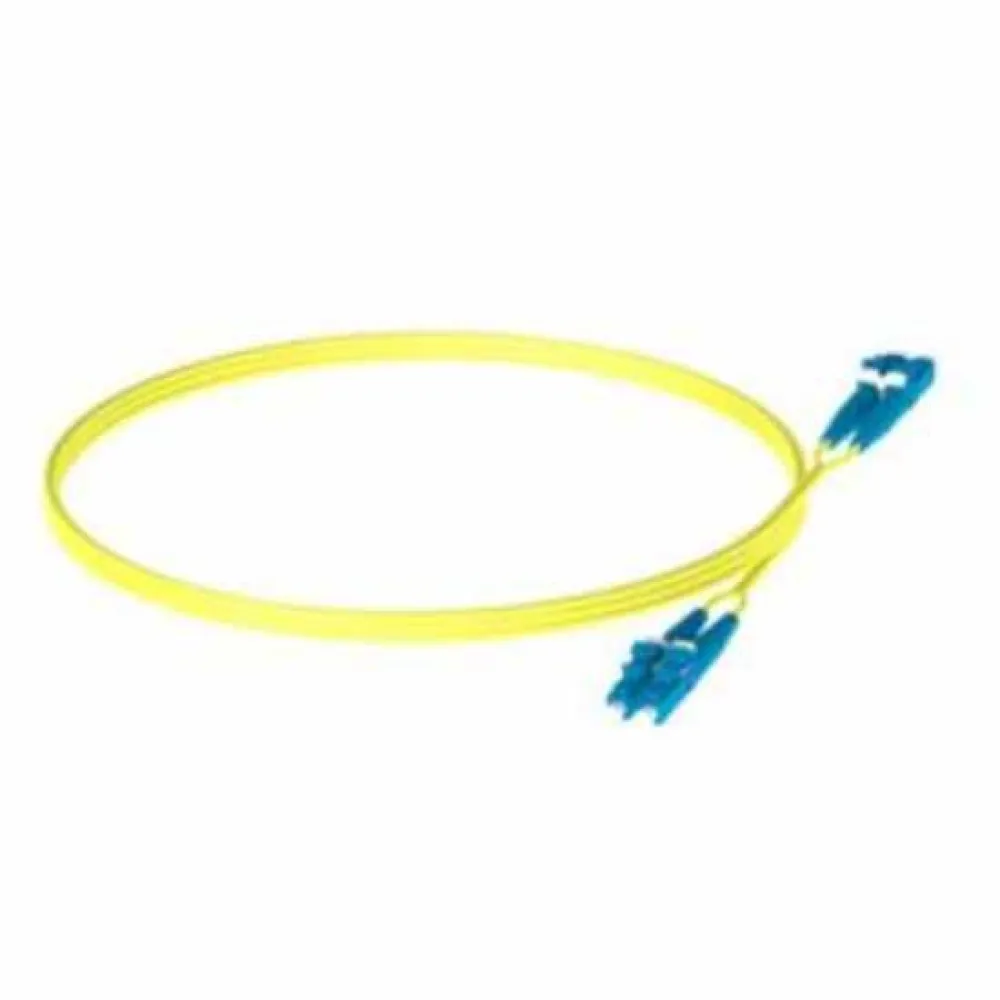

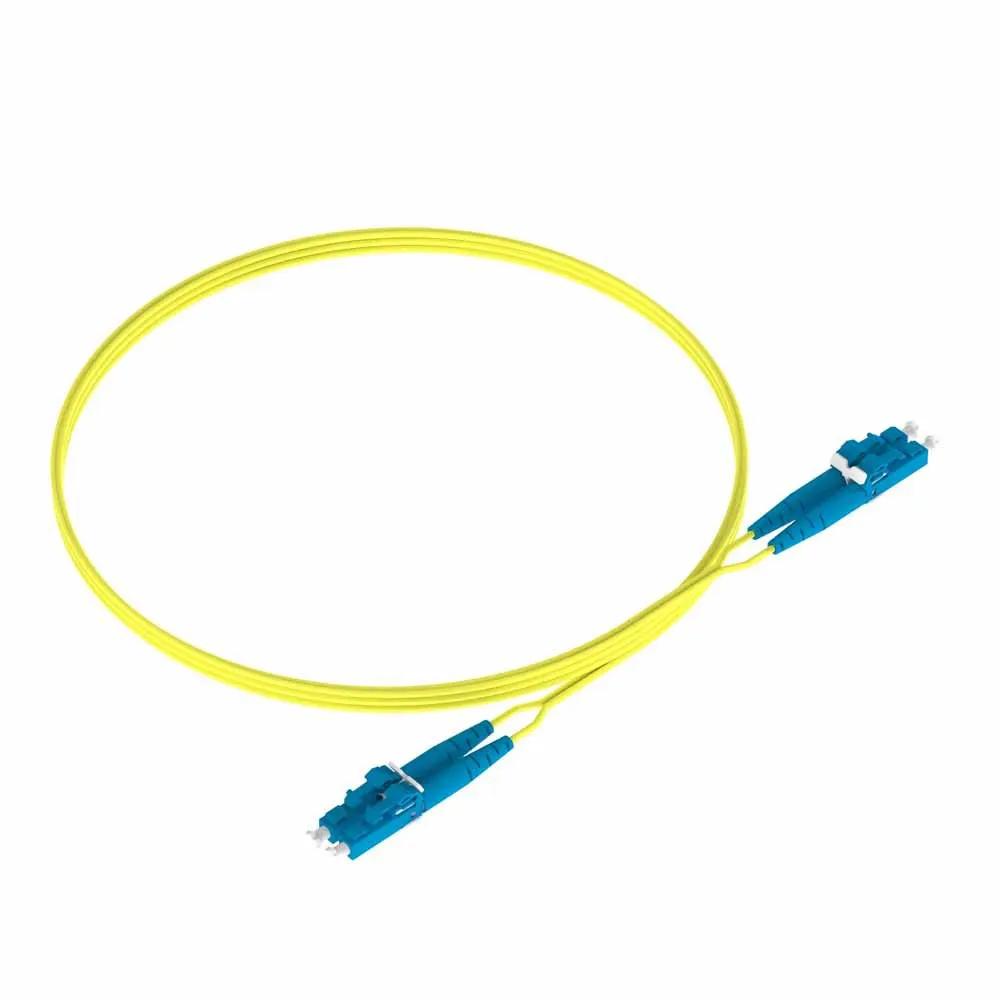

Panduit LC-LC 10 m fiber optic cable

The duplex fiber patch cord is OS2 with a 1.6mm cable jacket. It is Low Smoke Zero Halogen (LSZH), features LC Duplex to LC Duplex connectors, has standard insertion loss and is 10 meters in length.


Specifications:

- Fiber Type: OS2
- Number of Fibers: 2
- Connector 1 Type: LC Duplex
- Sub Brand: Opti-Core®
- Connector 2 Type: LC Duplex
- Flammability Rating: LSZH
- Maximum Connector Insertion Loss (dB): 0.25
- Minimum Connector Return Loss (dB): 55
- Overall Length (ft.): 32.8084
- Overall Length (m): 10
- Fiber Diameter (µm): 9
- Outer Diameter (In.): 0.06
- Outer Diameter (mm): 1.6
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Minimum Operating Temperature (°C): -10
- Minimum Operating Temperature (°F): 14
- Maximum Installation Temperature (°C): 60
- Maximum Installation Temperature (°F): 140
- Minimum Installation Temperature (°C): -10
- Minimum Installation Temperature (°F): 14
- Resistance Properties: Flame-Resistant
- Environment: Indoor
- Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
- Application: Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
- Body Style: Duplex
- Product Type: LC Patch Cord
