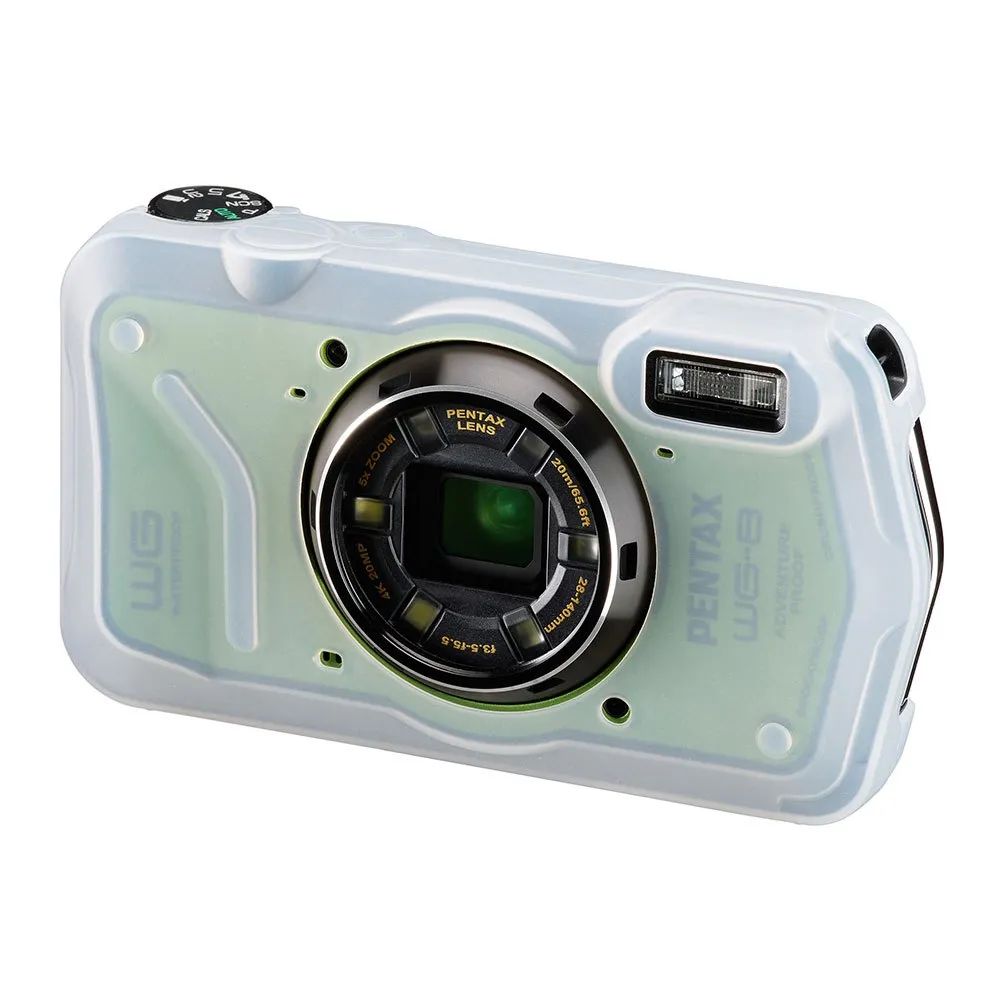

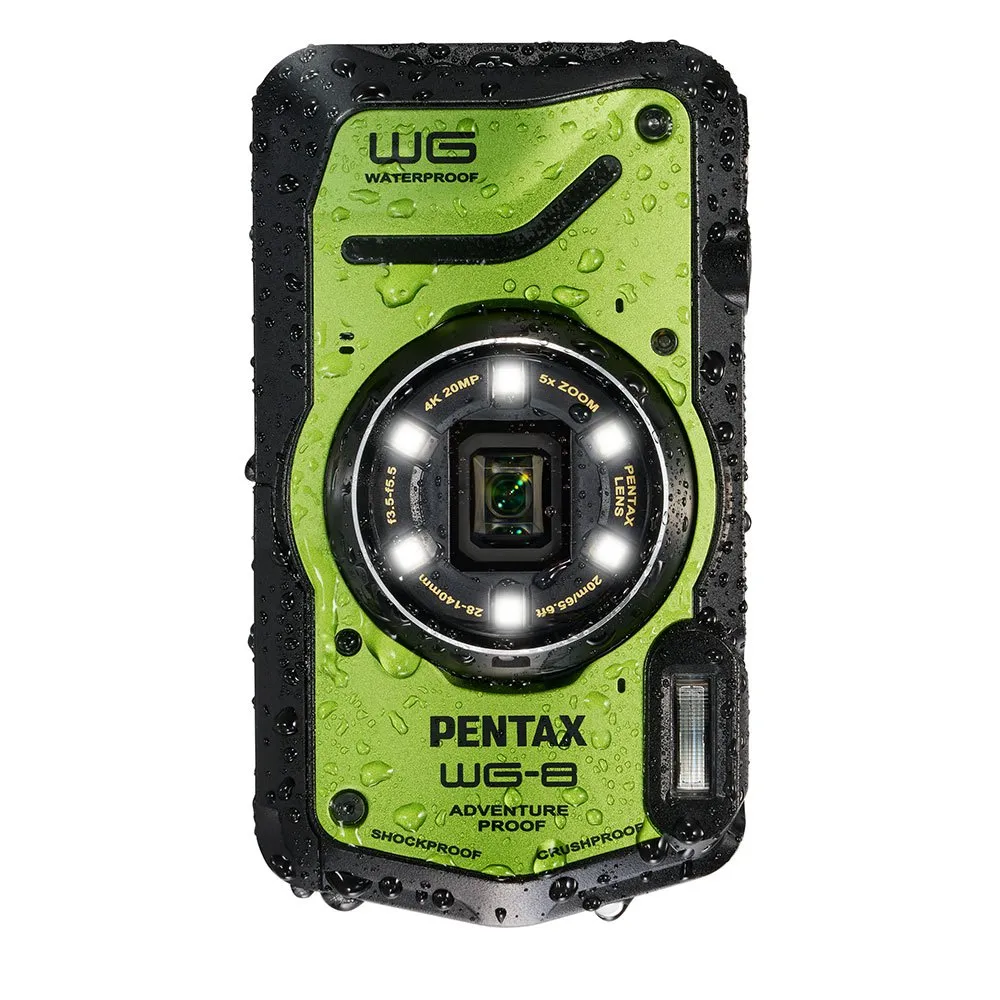

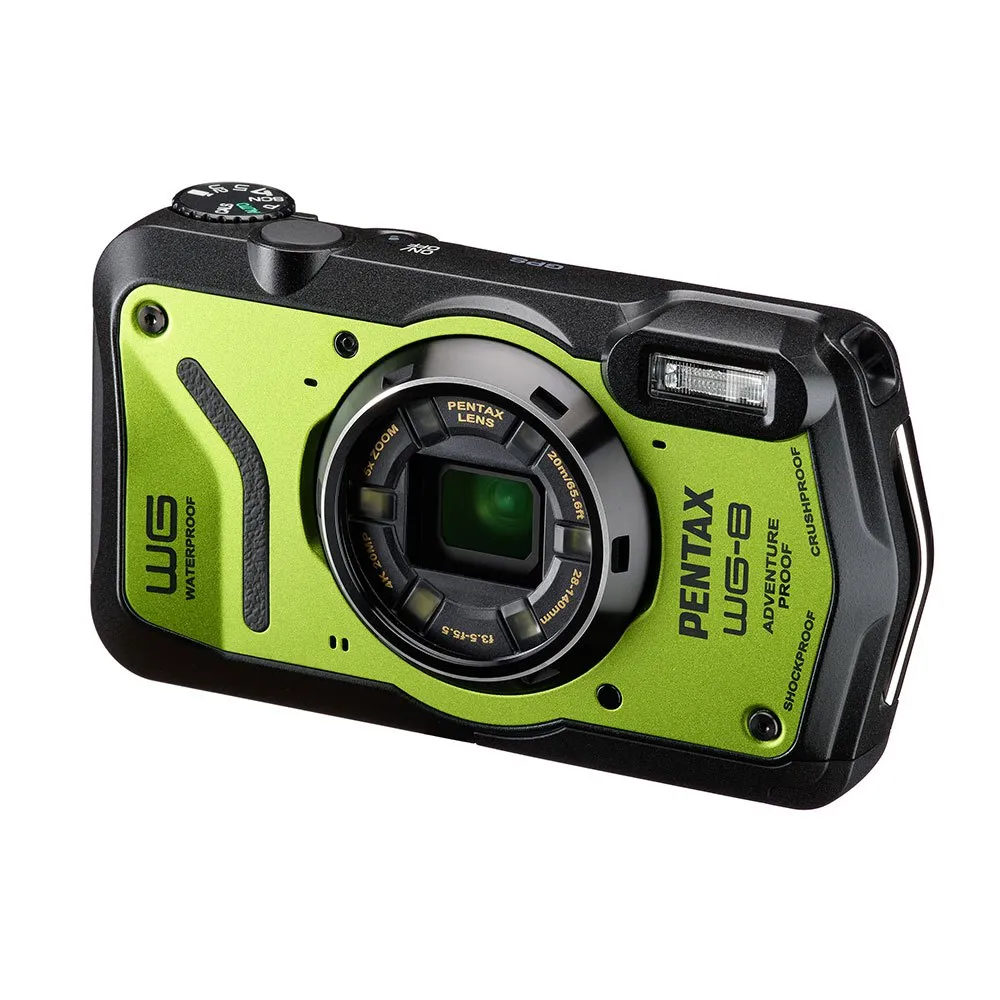

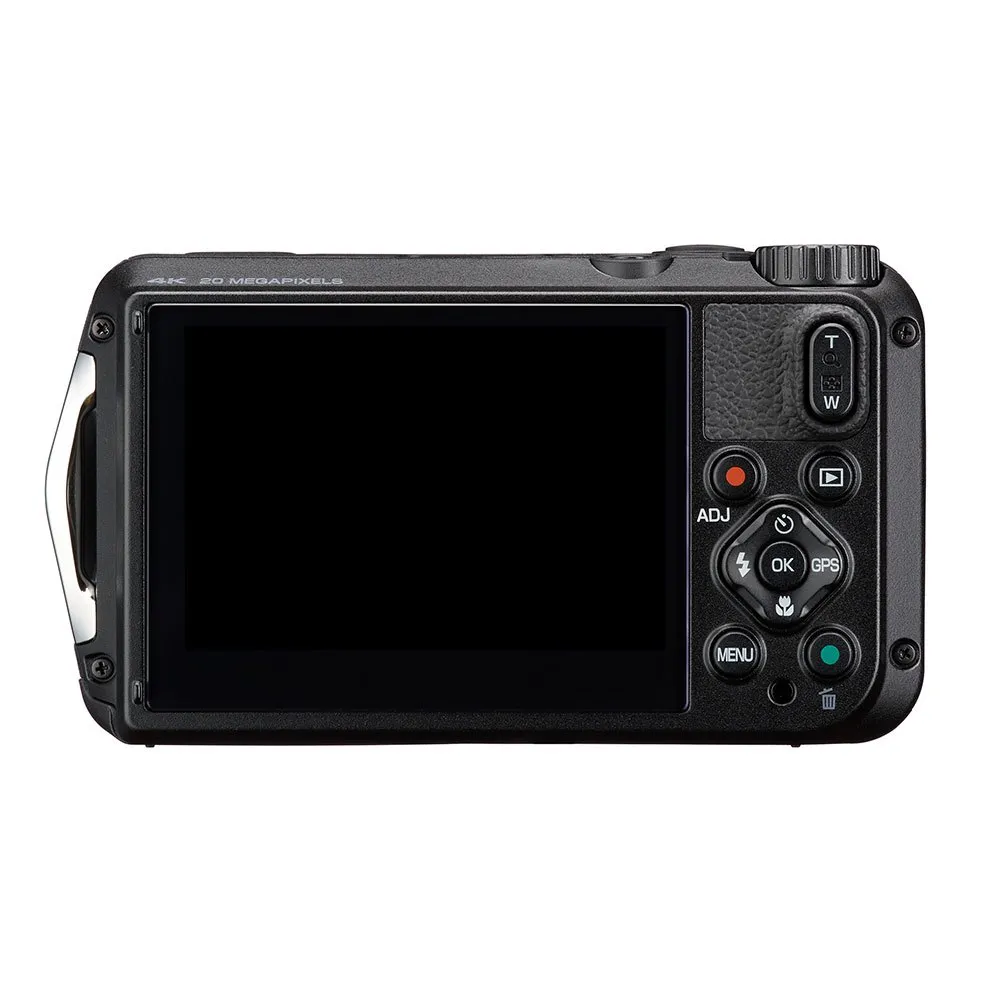

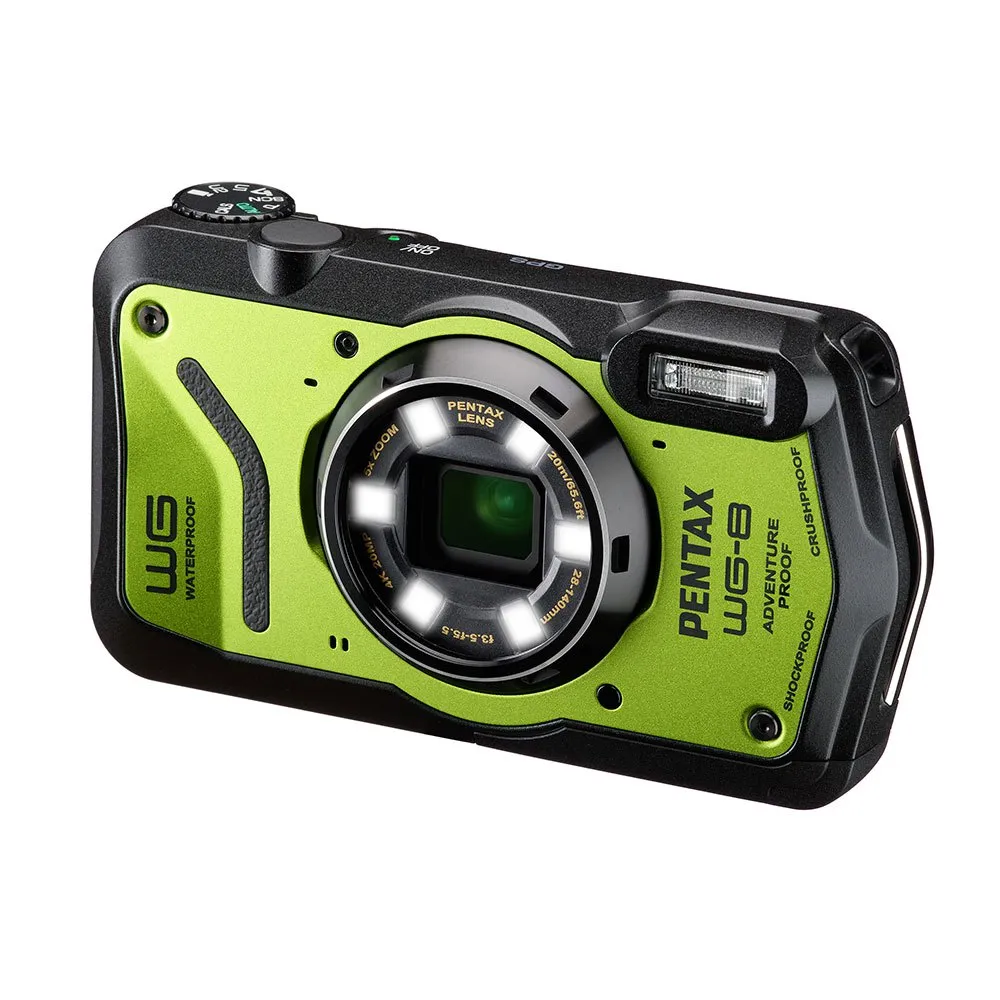

Pentax WG-8 compact camera

EU Plug.

Specification:CAMERA TYPE Zoom-compact digital-still camera LENS Construction PENTAX lens, 11 elements in 9 groups, (5 aspherical elements) Focal Length 5.

- 25 mm, Approx.

28.

- 140mm (in 35mm format equivalent) Maximum Aperture F3.5(W).

- F5.5(T) Zoom Ratio Optical Zoom:5x Digital Zoom:approx.

8.1X Intelligent Zoom:approx.

7X at 10M, approx.

40.5X at 640 (including optical zoom) Focal length (Macro) 9.26mm Maximum Magnification Approx.

0.4 x Filter Diameter 37 mm IMAGE CAPTURE UNIT Image Sensor 1/2.3 CMOS / Total:approx.

20 megapixels Still image:File Format / Recorded Pixels JPEG (conforms to Exif 2.3), conforms to DCF2.0, PRINT Image Matching III.

20M (5184 x 3888), 10M (3648 x 2736), 5M (2592 x 1944), 3M (2048 x 1536), VGA (640 x 480).

18M (5184 x 3456), 9M (3648 x 2432), 4M (2592 x 1728), 3M (2048 x 1368), VGA (640 x 424).

15M (3888 x 3888), 7M (2736 x 2736), 4M (1920 x 1920), 2M (1440 x 1440), VGA (480 x 480).

- 2M and 1M are available only in the CALS mode.

- In the CALS mode, the aspect ratio is fixed to 4:3.

Quality Level ★★★, ★★, ★ Movie:File Format / Recorded Pixels MPEG-4 AVC/H.264 4K（3840 x 2160）:approx.

30fps, 1920（1920 x 1080):approx.

30fps, 1280（1280 x 720）:approx.

60/30fps.

Audio:File Format [Movie/Underwater Movie] 32KHz, 16bit, stereops Sensitivity (Stand.

output) AUTO, Manual (ISO 125.

- 64000) White Balance Auto, Daylight, Shade, Cloudy, Tungsten light, Fluorescent light(D:Daylight Color, N:Daylight White, W:White Light, L:Warm White), Ring light, Manual Motion Blur Reduction Still:Pixel Track SR Hi-sensitivity anti-shake mode (Digital SR:ISO 125.

- 6400) Movie:Movie SR, Movie SR+ Noise reduction Automatically applied when the shutter speed is slower than 0.25 sec.

FOCUS Focus type TTL contrast detection auto focus system with AF Assist Beam 9-point AF, Spot AF, Auto tracking AF Focus Range (From lens face) Standard:0.5m.

- infinity / 1.64ft.

- infinity (entire zoom range) Macro:0.1.

- 0.6m / 0.33.

- 1.97ft.

(entire zoom range) 1cm Macro:0.01.

- 0.3m / 0.03.

- 0.98ft.

(middle zoom position) Infinity-landscape, Pan Focus, Manual Focus:available Face Detection AF&AE is available for all modes up to 30 faces (1 pet) Smile Capture, Self-portrait Assist, Self-portrait Assist + Smile Capture, Blink Detection EXPOSURE CONTROL Metering System Multi-segment metering, Center-weighted metering, Spot metering EV Compensation ± 2EV ( 1/3EV steps) Shutter Speed 1/4000.

- 1/4sec.

(Mechanical and electronic shutter), 4sec at most.

(Night Scene mode setting) Capture modes Auto Mode, Movie Mode Scene Mode (Auto Picture, Program, HDR, Handheld Night Snap, Movie, High Speed Movie, Digital Microscope, Landscape, Flower, Portrait, Underwater, Underwater Movie, Interval Shot, Interval Movie, Surf & Snow, Kids, Pet, Sport, Night Scene, Fireworks, Digital SR, Report, Green, Depth of field composition) Scene Modes Landscape, Portrait, Night Scene, Night Scene Portrait, Standard, Flower, Sport, Candlelight, Blue Sky, Sunset, Text, Group Photo, Pet, Portrait x Blue Sky, Portrait x Sunset, Portrait x Backlight Dynamic range available (Shadow/ Highlight adjustment) Image Tone Bright, Natural, Vibrant, Slide Film, Monochrome BUILT-IN FLASH Modes Force Off, Flash Auto, Fill Flash, Slow Sync., Slow Sync.∔Red-Eye, Red-Eye Reduction Flash Range Wide:approx.

0.2.

- 5.5m / 0.66.

- 18 ft.

(ISO Auto) Tele:approx.

0.2.

- 3.5m / 0.66.

- 11 ft.

(ISO Auto) LCD MONITOR Display Type TFT color 3.0 LCD, approx.

1040K dots, AR Coating (Cover only) Adjustments Brightness, Outdoor View Setting:±2 Steps MEMORY Storage Media Built-in Memory (approx.

27MB) SD/SDHC/SDXC Memory Card FlashAir™ Card Verified memory card Sandisk, Panasonic, Toshiba FUNCTION Drive Modes One shot, Self-timer, Continuous Shooting, Burst Shooting, M Continuous, S Continuous, Remote Control, Auto Bracketing Self- timer count 10 sec, 2 sec, Remote Control (immediately, 3 sec) Start-up Time Approx.

1.0 sec.

Release Time Lug Approx.

0.003 sec.

Continuous shooting Approx.

3 frames/sec.

Max.

frames at conti.

Shooting 30 (Subject dependent) High speed continuous shooting Approx.

10 fps, 5M(4:3):up to 36 frames Playback functions One Shot, Index (20 thumb nails, 81 thumb nails), Enlargement (up to 10X, scroll available), Movie Playback, Histogram, Folder display, Delete, Select&Delete, Delete All, Calendar Playback modes Slideshow, Image Rotation, Small Face Filter, Ink Rubbing Filter, Digital Filter, HDR Filter, Movie Edit, Red-eye Edit, Resize, Cropping, Image Copy, Protect, Start-up Screen, Recover File, Auto Image Rotation Digital filter Playback only.

- B&W / Sepia, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fisheye, Brightness, Miniature Filter Movie edit functions Save as still image, Divide Movies, Adding title picture Languages Traditional Chinese, Simplified Chinese, Japanese, Korean, English, French, Spanish, Portuguese, Italy, Germany, Russian, Swedish, Danish, Indonesian, Norwegian, Hungarian, Greek, Polish, Vietnamese, Thai, Dutch, Turkey, Czech, Croatian, Hindi, Arabic Date Imprint Date Imprint Available (Date, Time, Date & time) (except Green) GPS GPS, GLONASS GPS display mode:LAT/LON, UTM, MGRS GPS log, GPS lock, GPS time adjustment, GPS data imprint, UTC data imprint Electronic Compass Compass heading:Cardinal, Degrees, Cardinal/Degrees Declination, Compass data imprint Web Camera USB Video Class 1.1 Others.

- Ring light.

- USER Setting (U1/U2).

- ADJ Setting.

- Green Button Setting.

- Todays Shots Counter.

- Electronic Leveler.

- Copyright Information.

- Eco Mode.

- Optional screwing in DW-5 wide-angle attachment.

It is simply screwed in front of the lens and shortens the focal length by a factor of 0.8x to a focal length of 22 mm (35 mm film equivalent).

It complies with JIS protection class 7 OPERATING ENVIRONMENT Water proof / Dustproof Equivalent to JIS Class 8 waterproof and JIS Class 6 dustproof capabilitie.

- Waterproof.

- Up to 20m(65.6ft.) for 2hours.

- Shock proof.

- Up to 2.1m (6.8ft.).

- Operating Temperature.

- 10℃(14°F) to 40℃(104°F) POWER SUPPLY Power Source Rechargeable Battery DB-110 AC Adapter Kit K-AC166(Optional) Battery life Still.

- 1:approx.

340 shots Playback.

- 2:approx.

260 min.

- 1 Recording capacity shows approximate number of shots recorded during CIPA-compliant testing.

Actual performance may vary depending on operating conditions.

- 2 According to the result of RICOH in-house testing.

Charging internal, (USB Type-C), approx.

180 min.

INTERFACES Connection Port USB3.0 (Type C), HDMI output terminal (Type D) DIMENSIONS AND WEIGHT Dimensions Approx.

118.2 (W) x 65.5 (H) x 33.1 (D)mm /4.7 (W) x 2.6 (H) x 1.3 (D) inches (including lens depth) Weight Approx.

242g / 8.5 oz.

(Included dedicated battery and SD memory card),Approx.

215g / 7.6 oz.(Body only).
