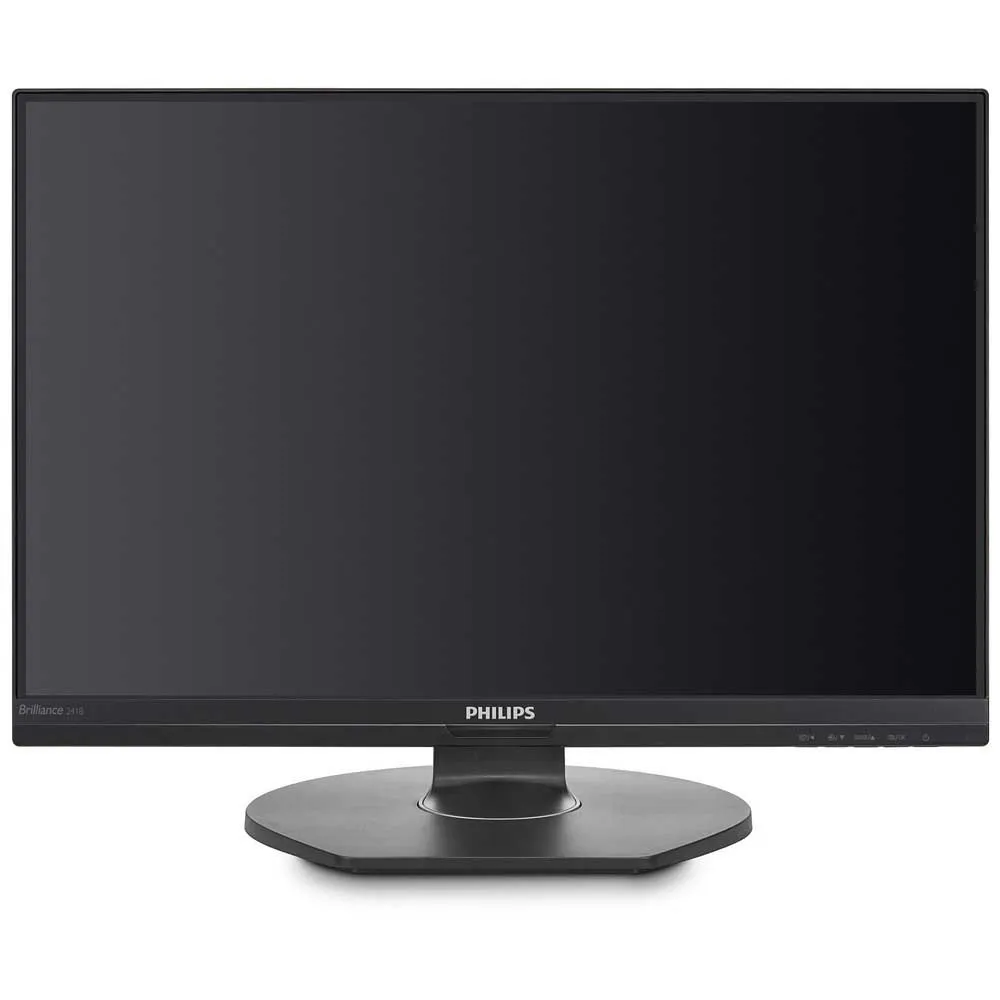

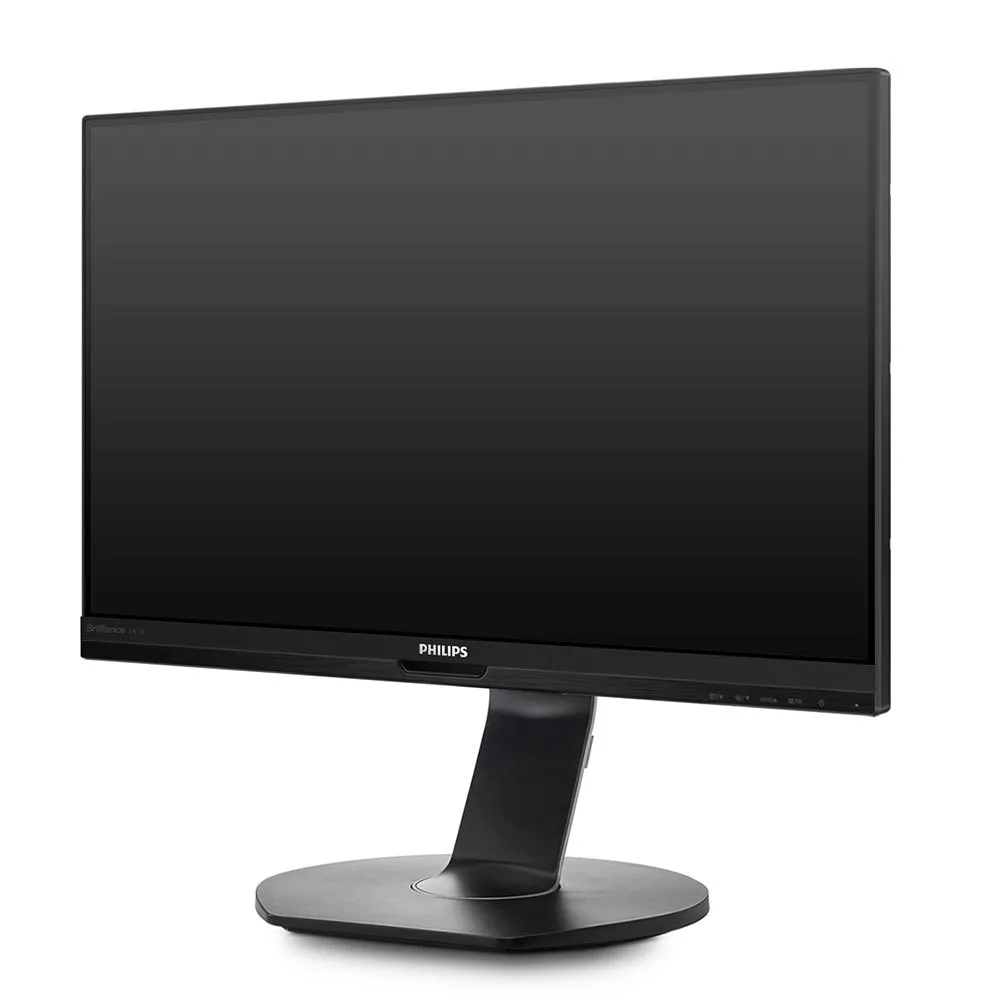

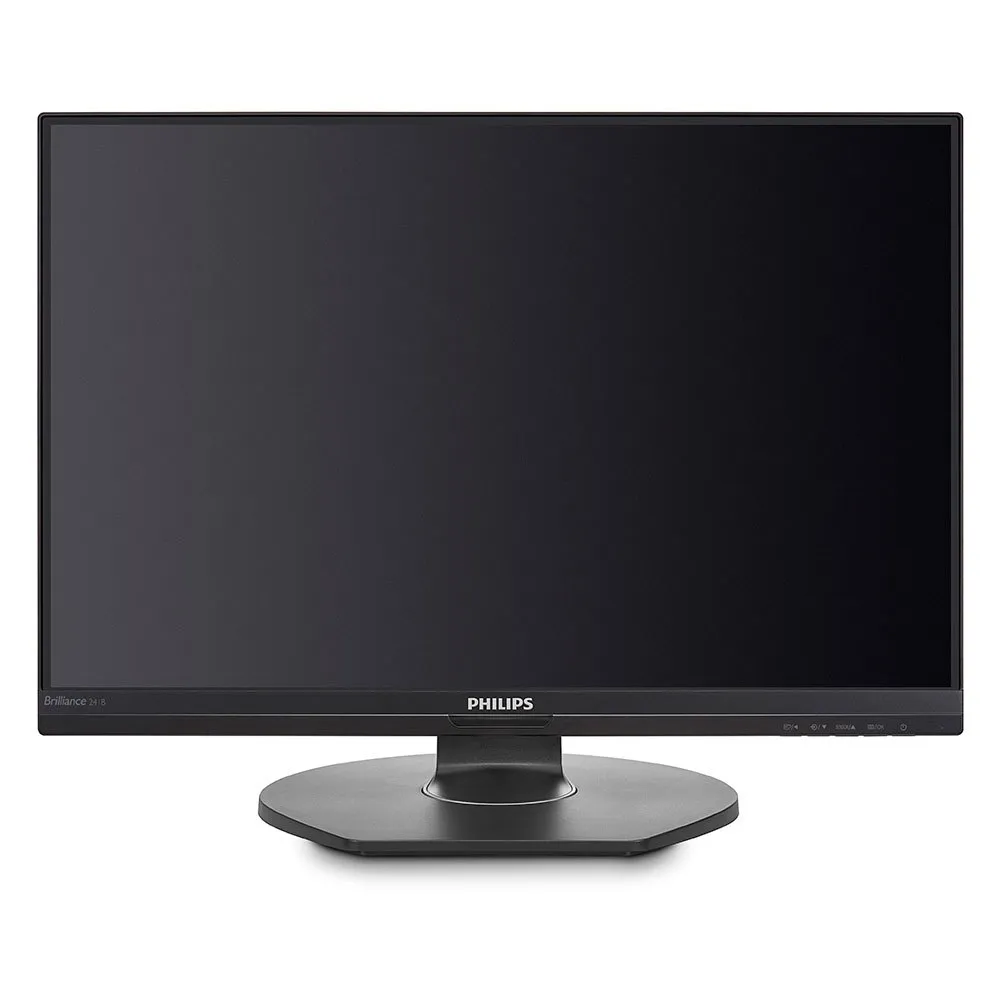

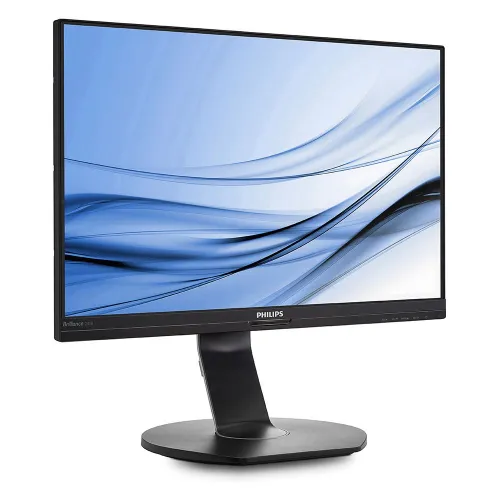

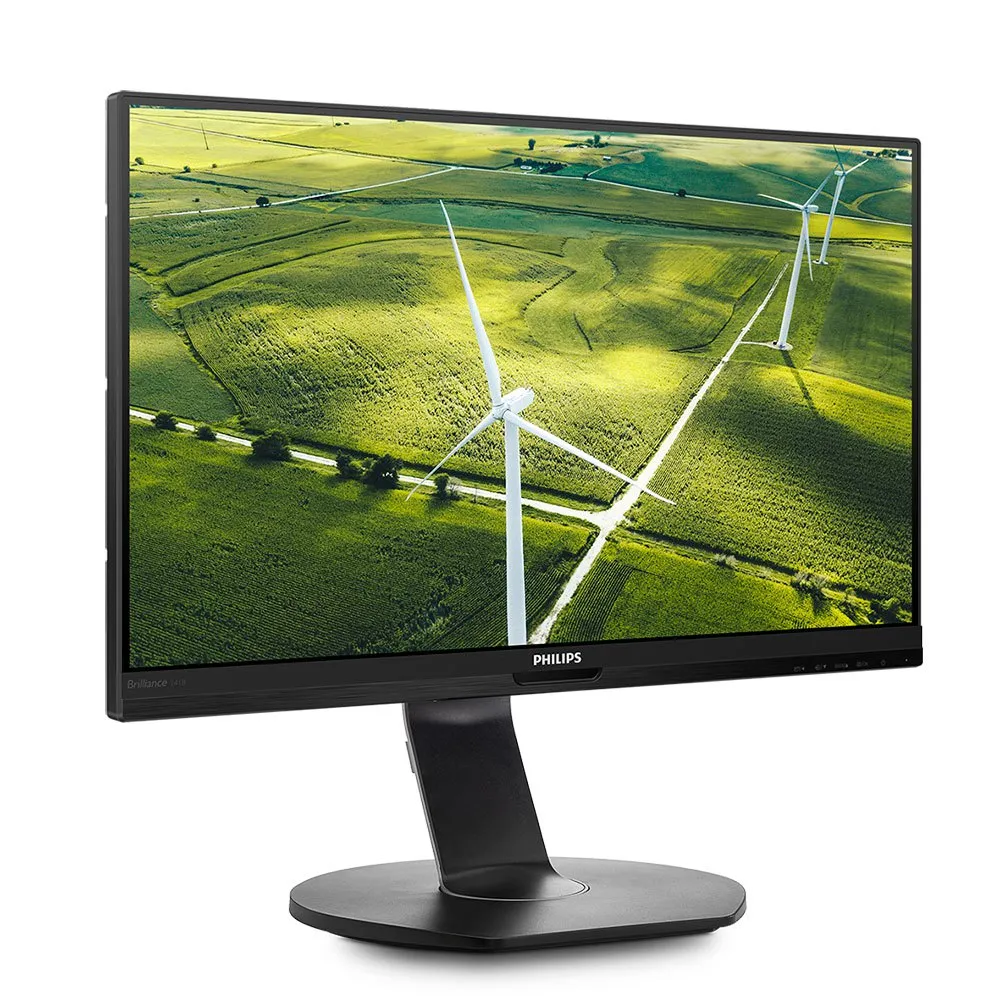

Philips 241B7QUPBEB 24´´ WLED FHD 60Hz monitor

EU PLUG.

Simple USB-C connection and crystal-clear IPS images.

The Philips B-line monitor with USB-C connector allows simple notebook docking via one cable for fast data and video to full HD IPS display, and even notebook charging.

Simplify your connections with revolutionary USB-C:

- B Line.

- 24 (23.8´´/60.5 cm diag.).

- Full HD (1920 x 1080) Features:

All your connections through one USB-C cable:

- The new USB 3.1 Type-C cable with Features a slim and reversible connector and offers easy one-cable docking.

With USB 3.1 you get the fastest data speeds, 20 times as fast as USB 2.0, allowing you to transfer data from a HDD to your PC faster than ever.

Simplify by connecting all your peripherals to your monitor as a dock with one cable to the notebook, including high resolution video output from your PC to monitor.

Additionally, USB-C with power delivery even allows you to power and charge your notebook from the monitor, eliminating the need for extra power cables.

Narrow border display for seamless appearance:

- The new Philips displays feature ultra-narrow borders which allow for minimal distractions and maximum viewing size.

Especially suited for multi-display or tiling setups like gaming, graphic design and professional applications, the ultra-narrow border display gives you the feeling of using one large display.

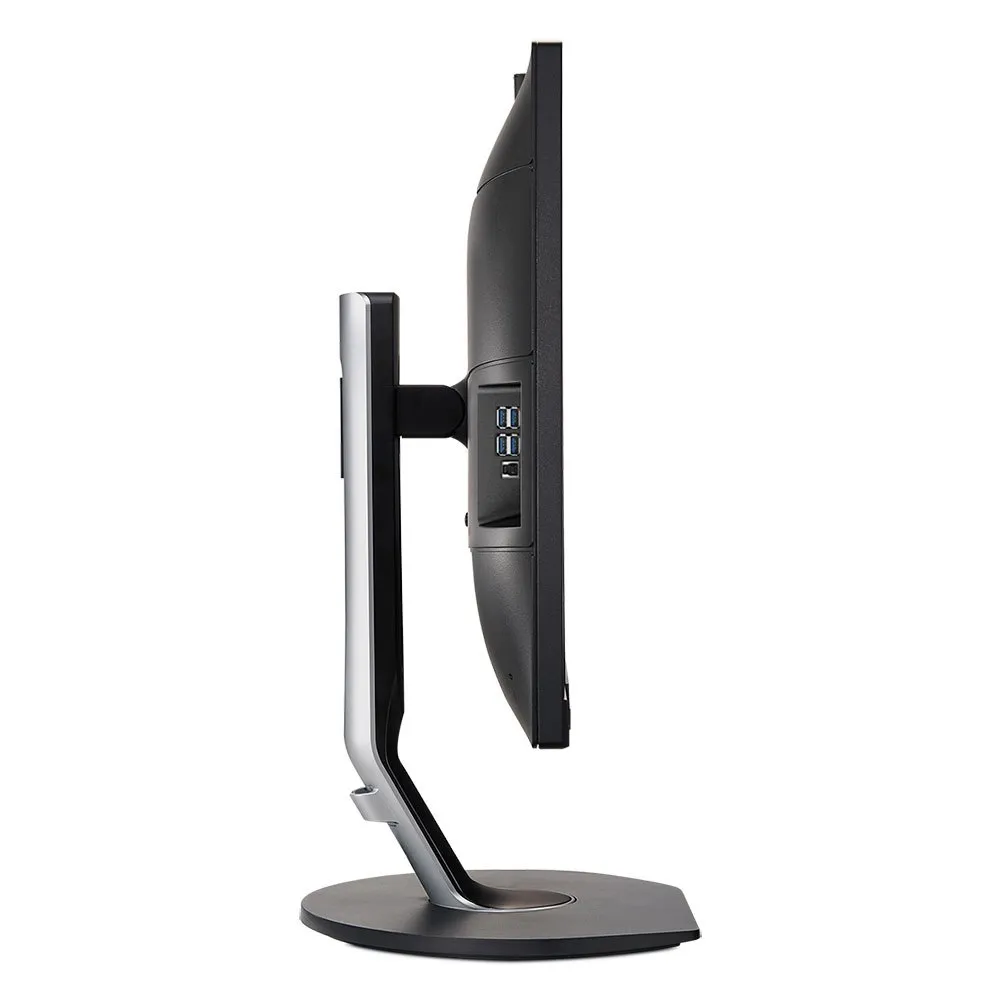

SmartErgoBase enables user-friendly ergonomic adjustments:

- The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management.

The user-friendly height, swivel, tilt and rotation angle adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long workday.

In addition, cable management reduces cable clutter and keeps the workspace neat and professional.

Less eye fatigue with Flicker-Free technology:

- Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue.

Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

LowBlue Mode for easy-on-the-eyes productivity:

- Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time.

Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

IPS technology for full colours and wide viewing angles:

- IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle - even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

PowerSensor saves up to 70% energy costs:

- PowerSensor is a built-in ´people sensor´ that transmits and receives harmless infrared signals to determine if the user is present and automatically reduces monitor brightness when the user steps away from the desk, cutting energy costs by up to 70 percent and prolonging monitor life.

- EasyRead mode for a paper-like reading experience Built-in stereo speakers for multimedia:

- A pair of high-quality stereo speakers built into a display device.

They may be visible front firing, or invisible down firing, top firing, rear firing etc.

depending on model and design.

Technical Specifications:

Picture/Display:

- LCD panel type:

IPS technology.

- Backlight type:

W-LED system.

- Panel Size:

23.8 inch/60.5 cm.

- Display Screen Coating:

Anti-Glare, 3H, Haze 25%.

- Effective viewing area:

527 x 296.5 mm.

- Aspect ratio:

16:9.

- Maximum resolution:

1920 x 1080 75 Hz.

- Pixel Density:

93 PPI.

- Response time (typical):

5 ms (Grey to Grey).

- Brightness:

250 cd/m.

- Contrast ratio (typical):

1000:1.

- SmartContrast:

20,000,000:1.

- Pixel pitch:

0.275 x 0.275 mm.

- Viewing angle:

178º (H)/178º (V), C/R > 10.

- Flicker-free:

Yes.

- Picture enhancement:

SmartImage.

- Display colours:

16.7 M.

- Colour gamut (typical):

NTSC 85%, sRGB 102%.

- Scanning Frequency:

30.

- 83 kHz (H) / 56.

- 76 Hz (V).

- sRGB:

Yes.

- LowBlue Mode:

Yes.

- EasyRead:

Yes Connectivity:

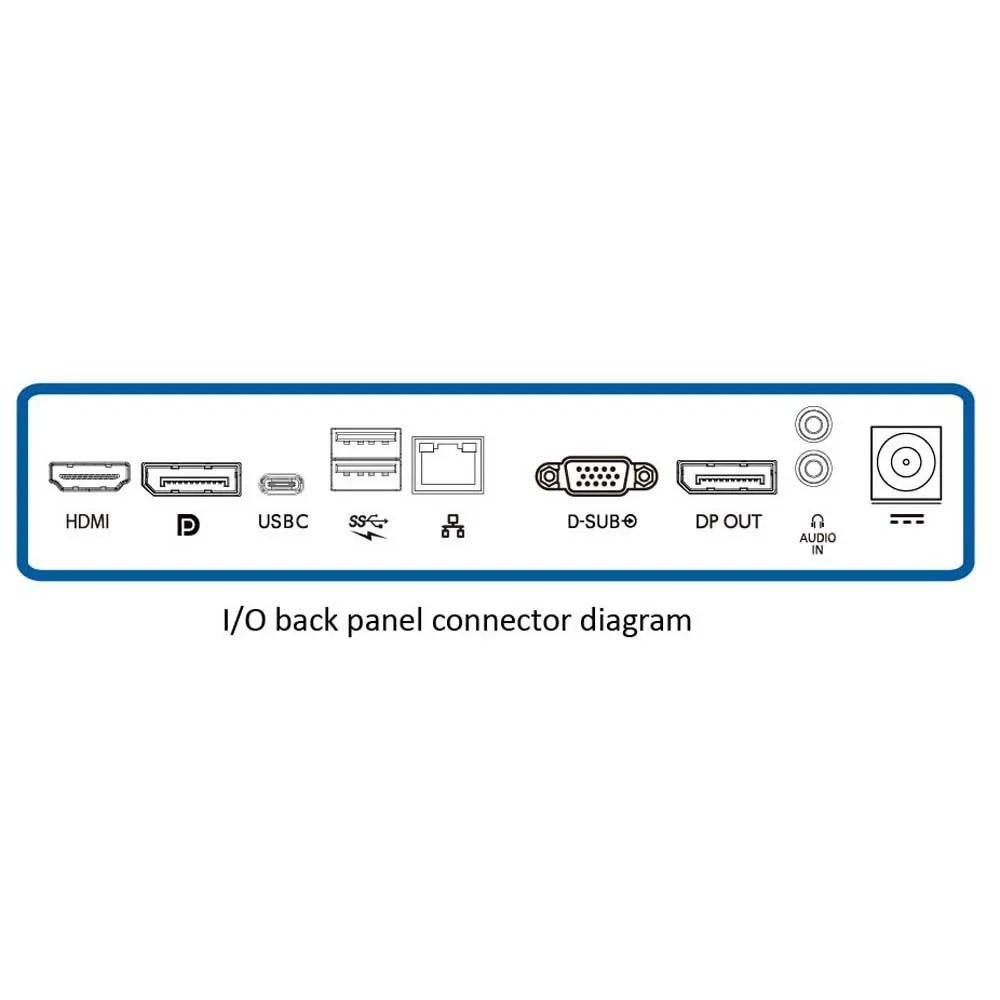

- Signal Input:

VGA (Analogue), DisplayPort 1.2 x 1, HDMI 1.4 x 1, USB-C 3.1 Gen 2 x 1 (upstream, power delivery up to 65 W), USB 3.0 x 2 (downstream, w/ fast charging).

- Signal Output:

DisplayPort out.

- Sync Input:

Separate Sync, Sync on Green.

- Audio (In/Out):

PC audio-in, Headphone out.

- RJ45:

Ethernet LAN up to 1G USB docking:

- USB-C:

Reversible plug connector.

- Super speed:

Data and Video transfer.

- DP:

Built-in DisplayPort Alt mode.

- USB-C power delivery:

USB PD version 2.0.

- USB-C max.

power delivery:

Up to 65 watts (5 V/3 A.

7 V/3 A.

9 V/3 A.

12 V/3 A.

15 V/3 A.

20 V/3 A) Convenience:

- Built-in Speakers:

2 W x 2.

- User convenience:

SmartImage, Input, PowerSensor, Menu, Power On/Off.

- Control software:

SmartControl.

- OSD Languages:

English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish, Korean, Brazil Portuguese, Czech, Dutch, Finnish, Greek, Hungarian, Japanese, Polish, Swedish, Traditional Chinese, Turkish, Ukrainian.

- Other convenience:

Kensington lock, VESA mount (100 x 100 mm).

- Plug and Play Compatibility:

DDC/CI (VGA only), Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7 Stand:

- Height adjustment:

150 mm.

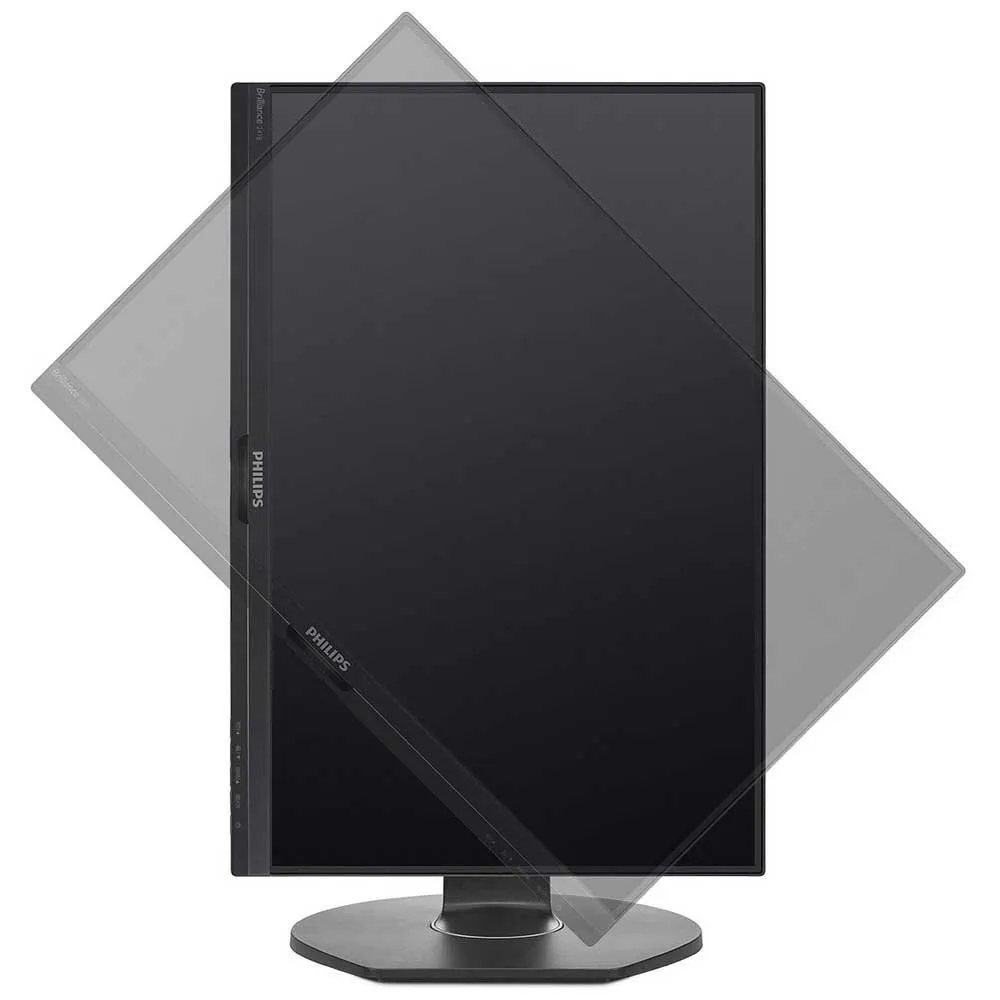

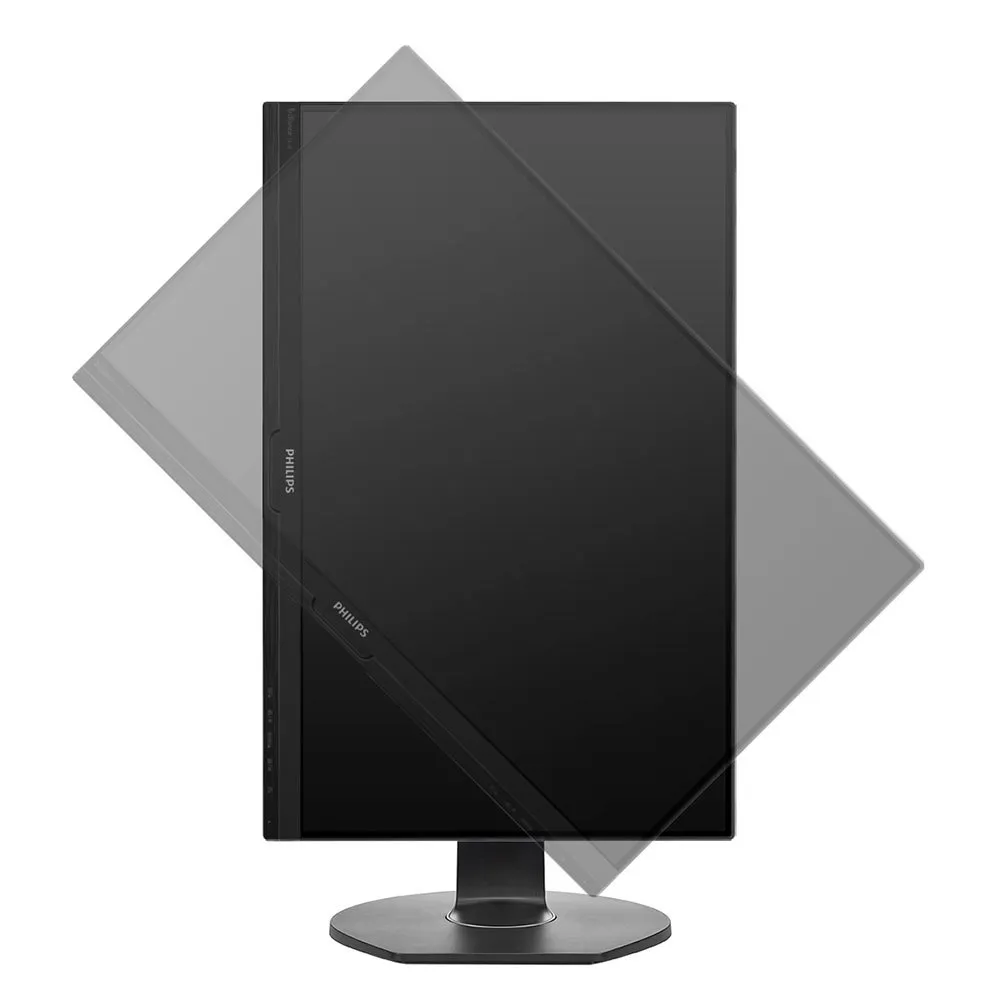

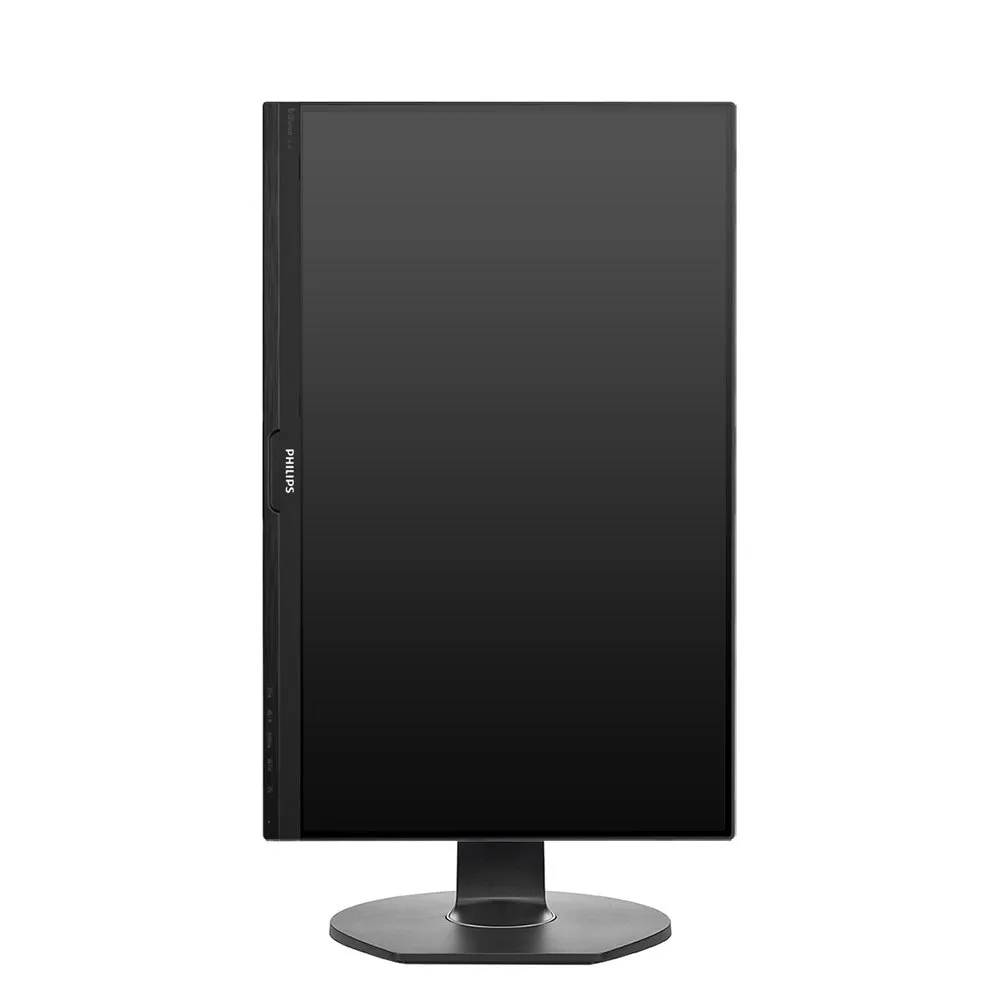

- Pivot:

90 degree.

- Swivel:

-175/175 degree.

- Tilt:

-5/30 degree Power:

- ECO mode:

11.8 W (typ.).

- On mode:

13.14 W (typ.) (EnergyStar test method).

- Standby mode:

<0.7 W (typ.).

- Off mode:

<0.3 W (typ.).

- Energy Label Class:

A.

- Power LED indicator:

Operation.

- White, Standby mode.

- White (flashing).

- Power supply:

External, 100-240 VAC, 50-60 Hz Dimensions:

- Product with stand (max height):

541 x 527 x 257 mm.

- Product without stand (mm):

541 x 332 x 57 mm.

- Packaging in mm (W x H x D):

603 x 492 x 224 mm Weight:

- Product with stand (kg):

5.72 kg.

- Product without stand (kg):

3.29 kg.

- Product with packaging (kg):

8.94 kg Operating conditions:

- Temperature range (operation):

0°C to 40°C.

- Temperature range (storage):

-20°C to 60°C.

- Relative humidity:

20-80% %.

- Altitude:

Operation:

+12,000 ft (3658 m), Non-operation:

+40,000 ft (12,192 m).

- MTBF (demonstrated):

70,000 hrs (excluded backlight) Sustainability:

- Environmental and energy:

EnergyStar 7.0, EPEAT, PowerSensor, TCO Certified Edge, RoHS.

- Recyclable packaging material:

100 %.

- Post-consumer recycled plastic:

85%.

- Specific Substances:

PVC/BFR free housing, Mercury free, Lead free Compliance and standards:

- Regulatory Approvals:

CE Mark, FCC Class B, SEMKO, cETLus, CU-EAC, TUV Ergo, TUV/GS, EPA, WEEE, UKRAINIAN, ICES-003, RCM, VCCI Cabinet:

- Finish:

Texture What´s in the box:

- Monitor with stand:

Yes.

- Cables:

D-Sub cable, HDMI cable, DP cable, USB-C to C cable, USB-C to A cable, Audio cable, Power cable.

- User Documentation:

Yes.
