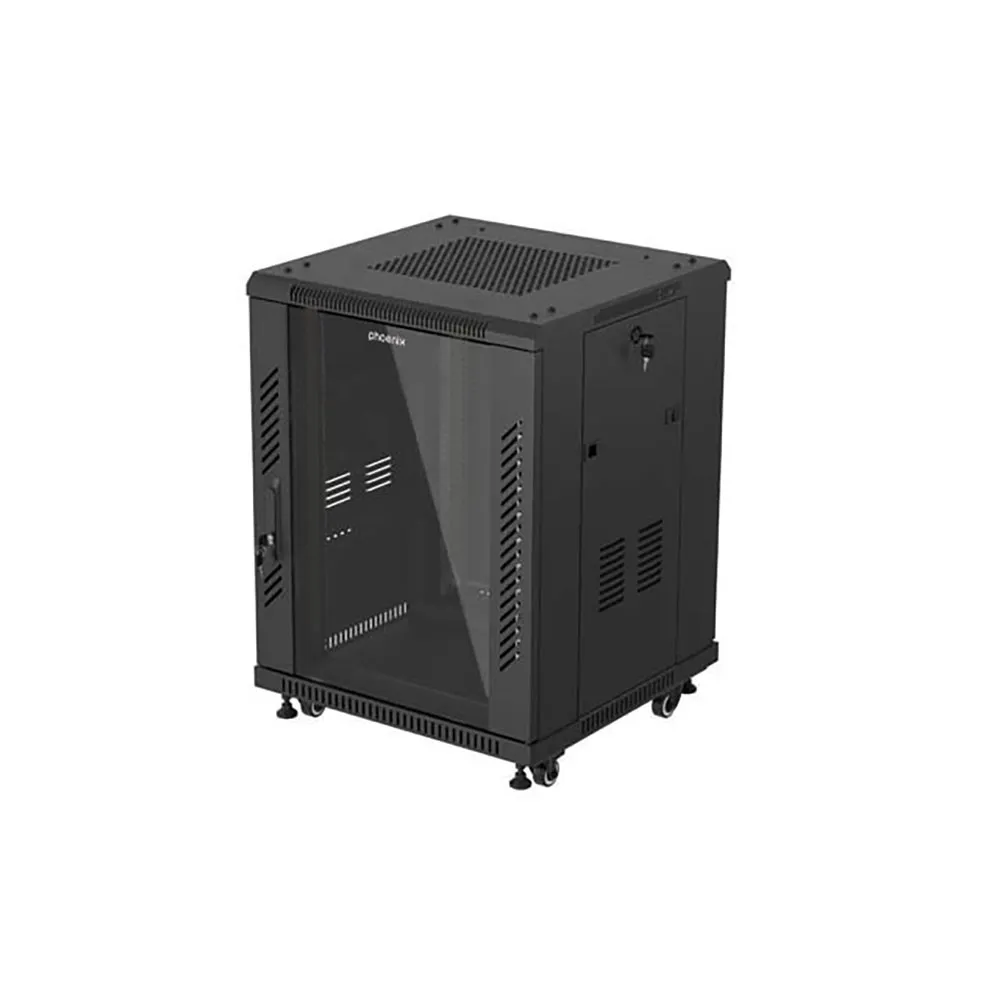

Phoenix Technologies PHTN215U 15U rack cabinet

EU PlugPHOENIX TECHNOLOGIES PHTN215U 15U Rack Cabinet Professional Server and Network Enclosure Optimize your IT infrastructure with the PHOENIX TECHNOLOGIES PHTN215U, a professional-grade 15U rack cabinet designed to provide superior organization, security, and accessibility for your servers, network switches, and other critical 19-inch equipment.

Engineered for performance and durability, this cabinet is the ideal solution for server rooms, data closets, and co-location environments where space and efficiency are paramount.

Its sleek, modern design ensures a professional appearance while delivering the robust protection your valuable hardware demands.

Experience the benefits of a streamlined and secure system.

The PHTN215U cabinet helps to significantly reduce clutter and improve system maintenance by centralizing your equipment in a single, secure enclosure.

This consolidation enhances airflow, helping to maintain optimal operating temperatures and extend the lifespan of your components.

With lockable access points, you can safeguard your infrastructure against unauthorized access, ensuring data integrity and network security.

The flexible design allows for easy installation and future scalability, making it a smart investment for growing businesses.

Main Features * Generous 15U vertical mounting space for a wide range of standard 19-inch rack-mountable devices.

* Adjustable front and rear vertical mounting rails to accommodate various equipment depths and configurations.

* Lockable and reversible front door, providing enhanced security and installation flexibility.

* Removable and lockable side panels allowing for convenient access to equipment for maintenance and cabling.

* Integrated cable management pathways through dedicated entry points at the top and bottom of the cabinet.

* Passive ventilation design to promote natural heat dissipation, with options for active fan integration.

* Durable steel framework built to support a significant load capacity, ensuring stability for your entire setup.

Decks and Structure The PHOENIX TECHNOLOGIES PHTN215U is constructed with fortified top and bottom decks that form the foundation of its structural integrity.

The top deck is pre-perforated, ready for the installation of an optional fan tray unit to create active cooling for high-density applications.

The bottom deck provides a solid base while also featuring a secure, brush-strip-covered panel for organized cable entry, minimizing dust ingress and maintaining a clean internal environment.

These decks work in concert with the four-post frame to provide a stable and reliable housing solution.

Technical Specifications * Model:

PHOENIX TECHNOLOGIES PHTN215U * Rack Capacity:

15U * External Dimensions (H x W x D):

769x600 x 600 mm * Mounting Rail Type:

4-Post, Adjustable Depth * Static Load Capacity:

60 kg * Material:

High-quality cold-rolled steel * Color:

Powder-coated Black (RAL9004) * Doors:

Lockable, tempered glass front door * Side Panels:

Lockable, quick-release, removable * Compliance:

ANSI/EIA RS-310-D, IEC297-2, DIN41494.

PART1, DIN41494.

PART7
