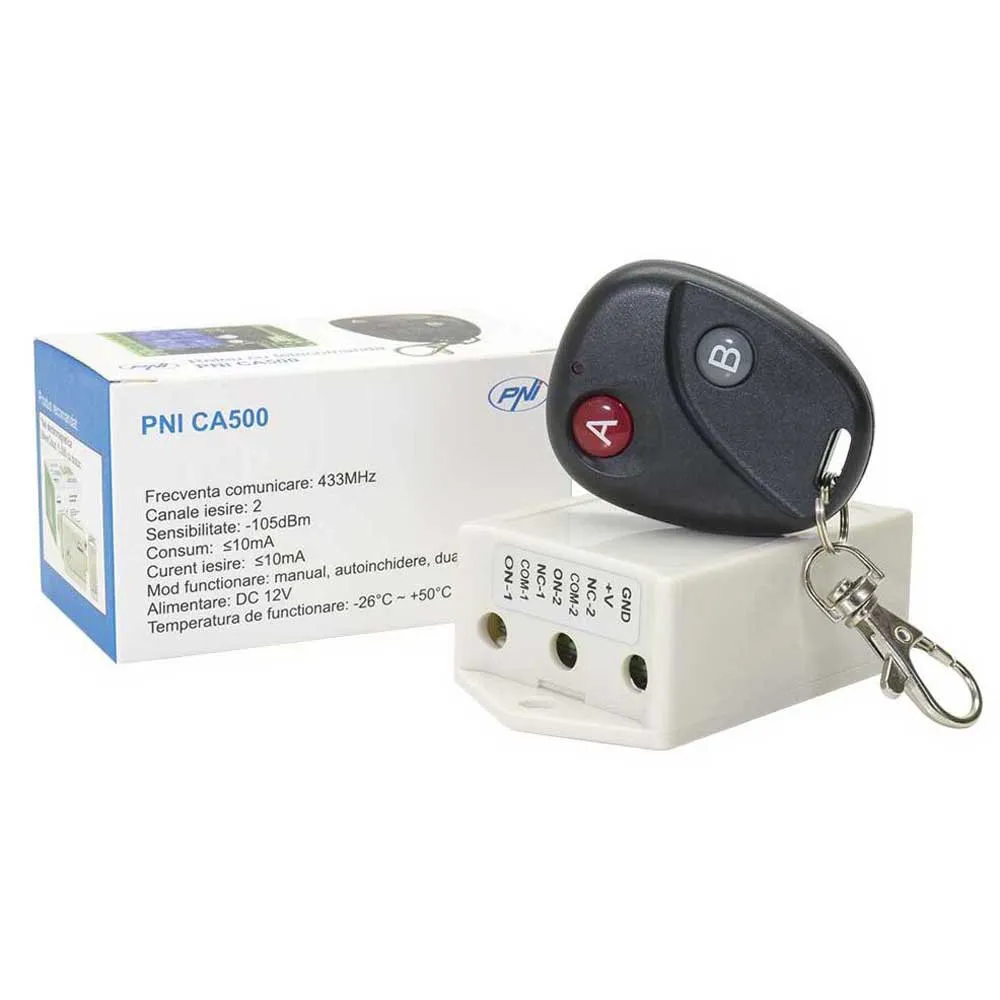

PNI CA500 Relay+Remote Control

Relay package with PNI CA500 remote control for 1 or 2 garage doors, gates, barriers + Additional remote control


Feature:

Remote control:

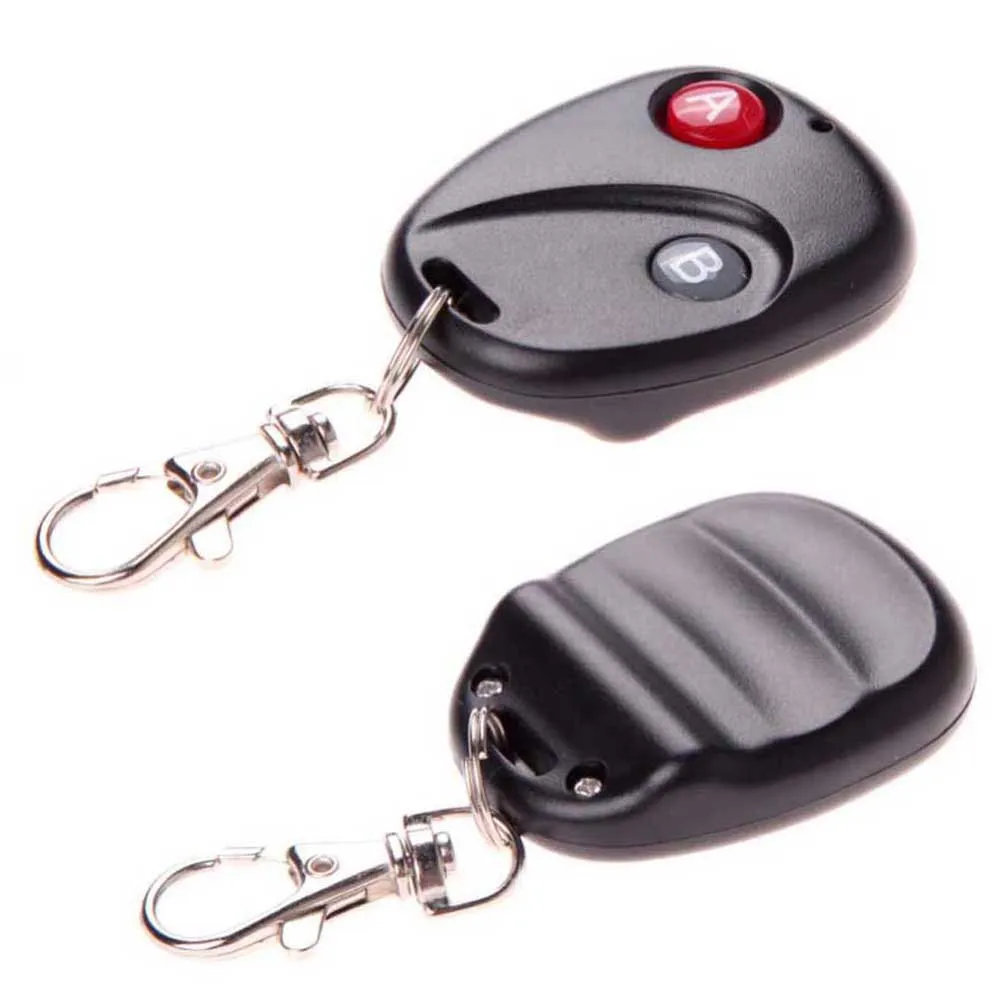

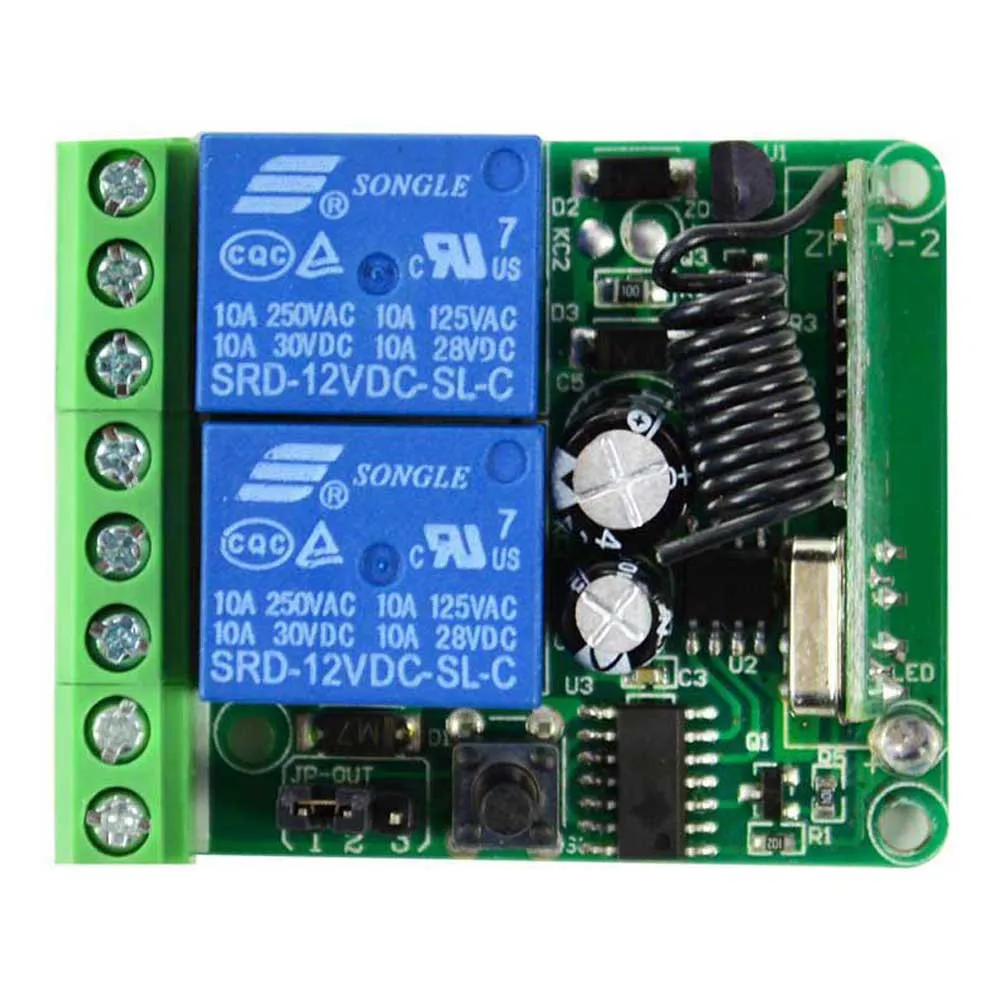

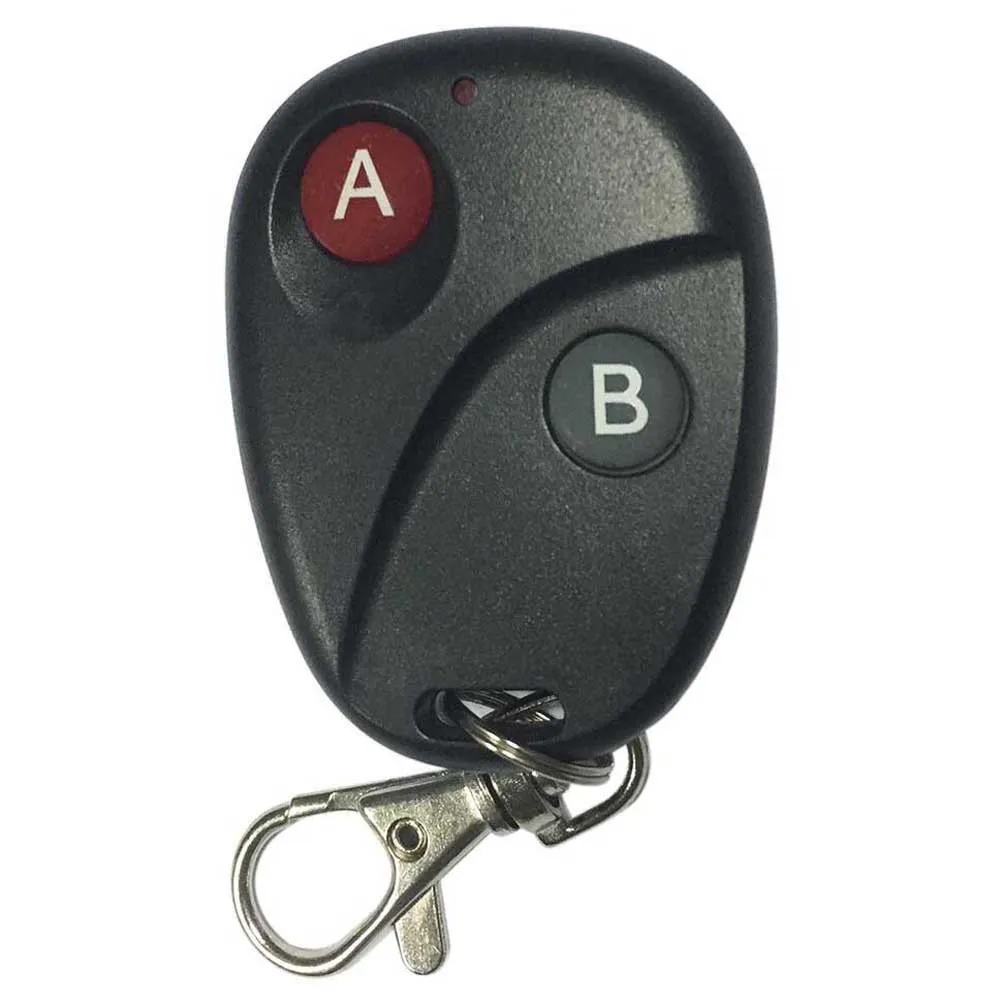

- With a wide range of applications, PNI CA500 can control garage doors, access gates, elevators, elevators, electromagnetic yales, etc. The device includes a transmitter (remote control) and a receiver with 2 relays independent of each other.

Operating modes:

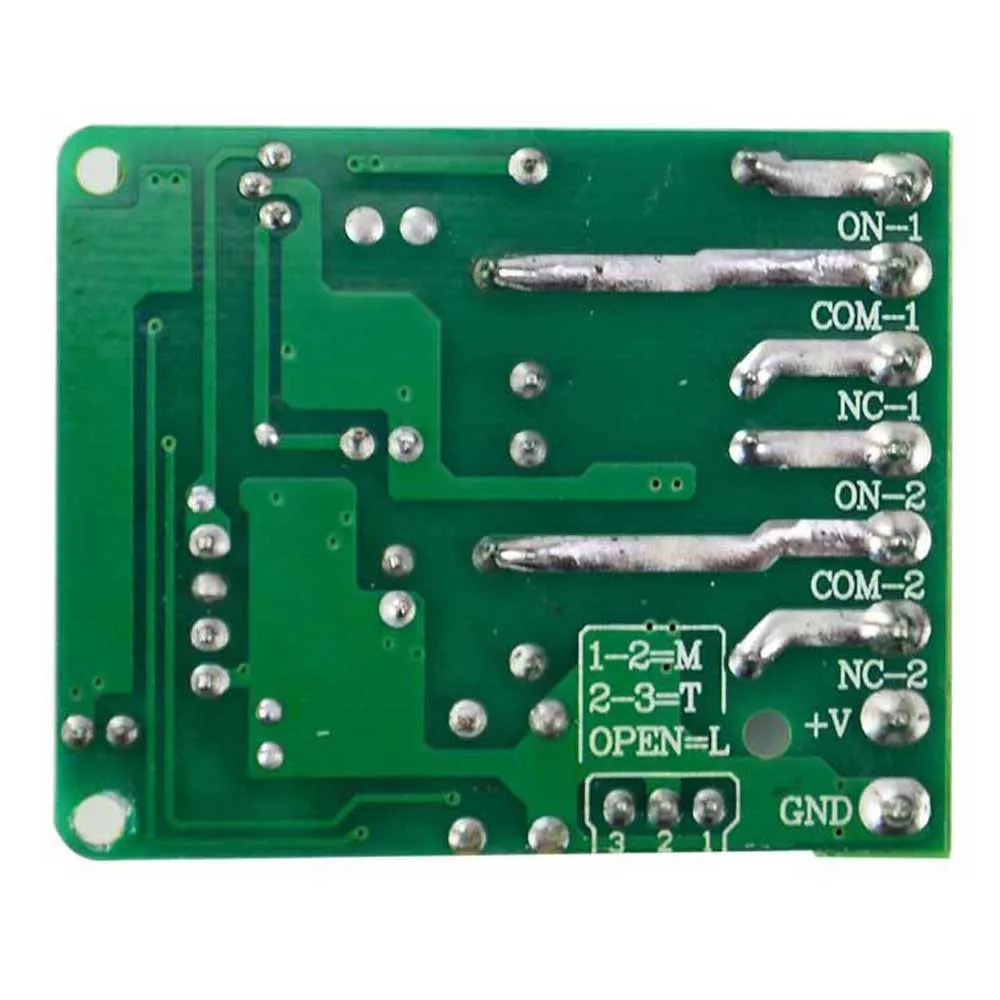

- By positioning the jumper on the motherboard, several modes of operation of the two relays can be programmed: manual mode (by pressing the button on the remote control, the corresponding relay will close and open), automatic mode (after releasing the button on the remote control, the corresponding relay returns to the initial stage) and dual mode (one relay closes and another opens).


Specification:

- Command relay: 2 pcs
- Sensitivity: -105 dB
- channels: 2
- feeding: 12V
- Consumption: ~ 10mA
- Temperature of use: -26 ° C ~ + 60 ° C
- remote: 2 pcs
- Battery Remote Control: Alkaline type 23A 12V and Type 27A battery (included)
- dimensions: 49 x 40 x 16 mm
