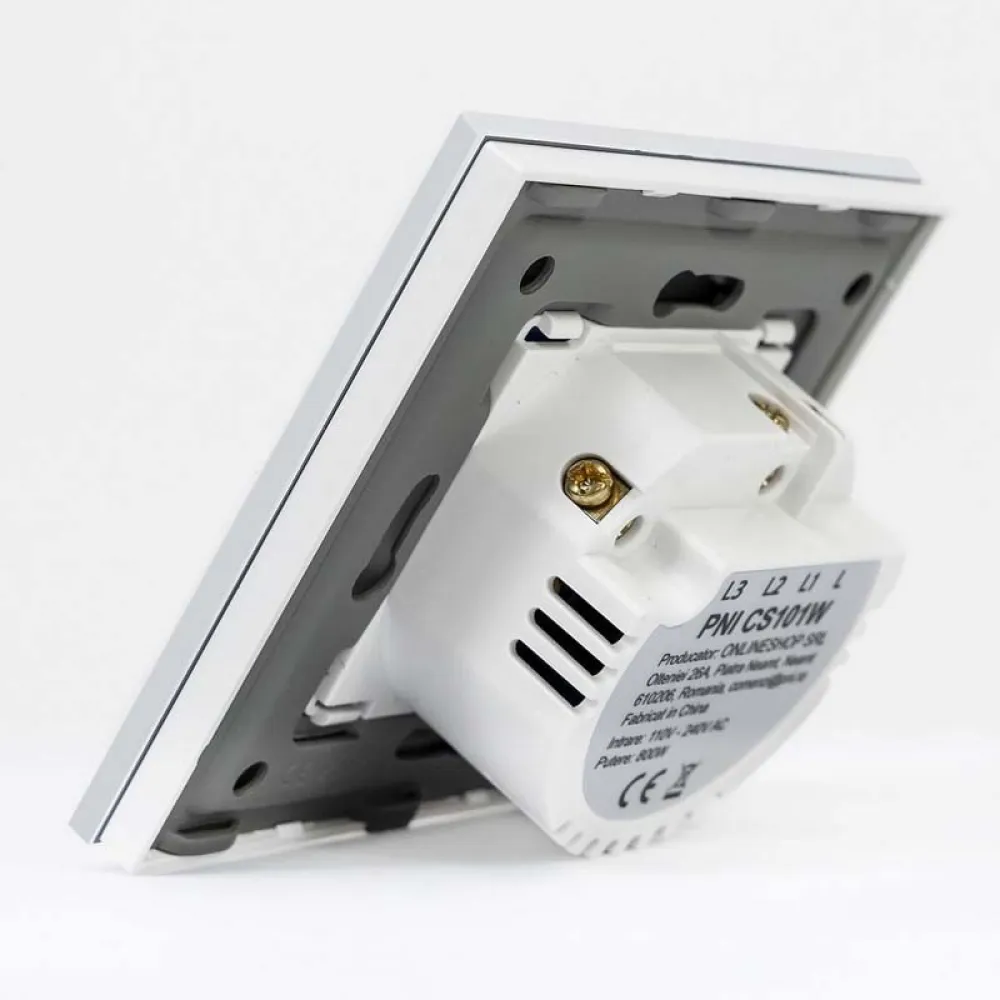

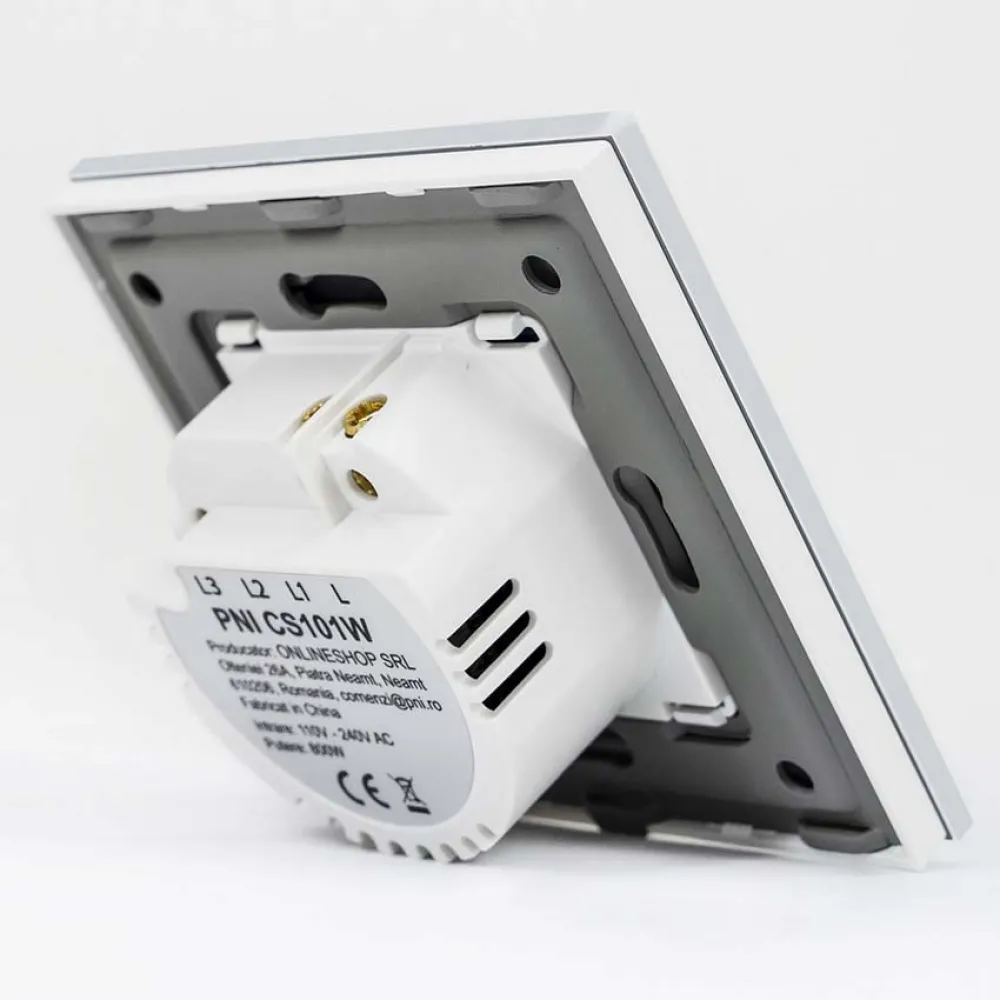

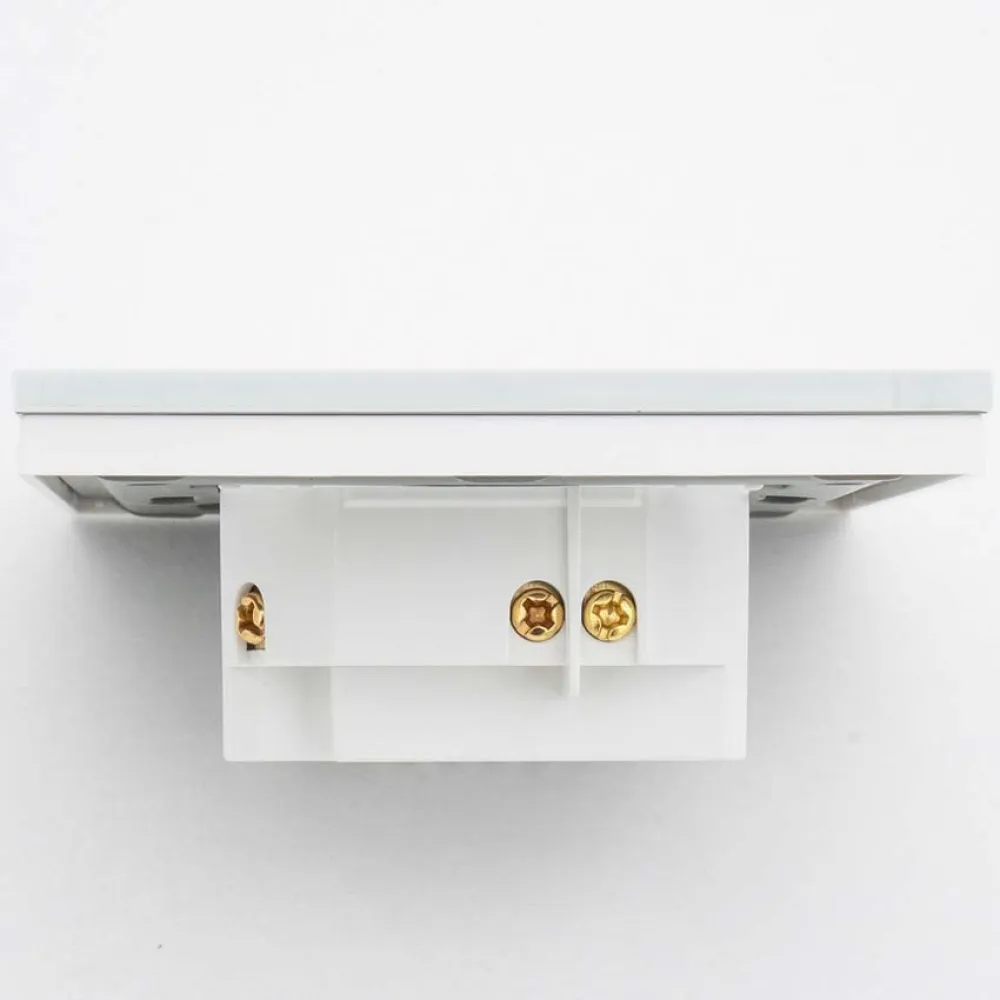

PNI CS101W Smart Switch

Features:

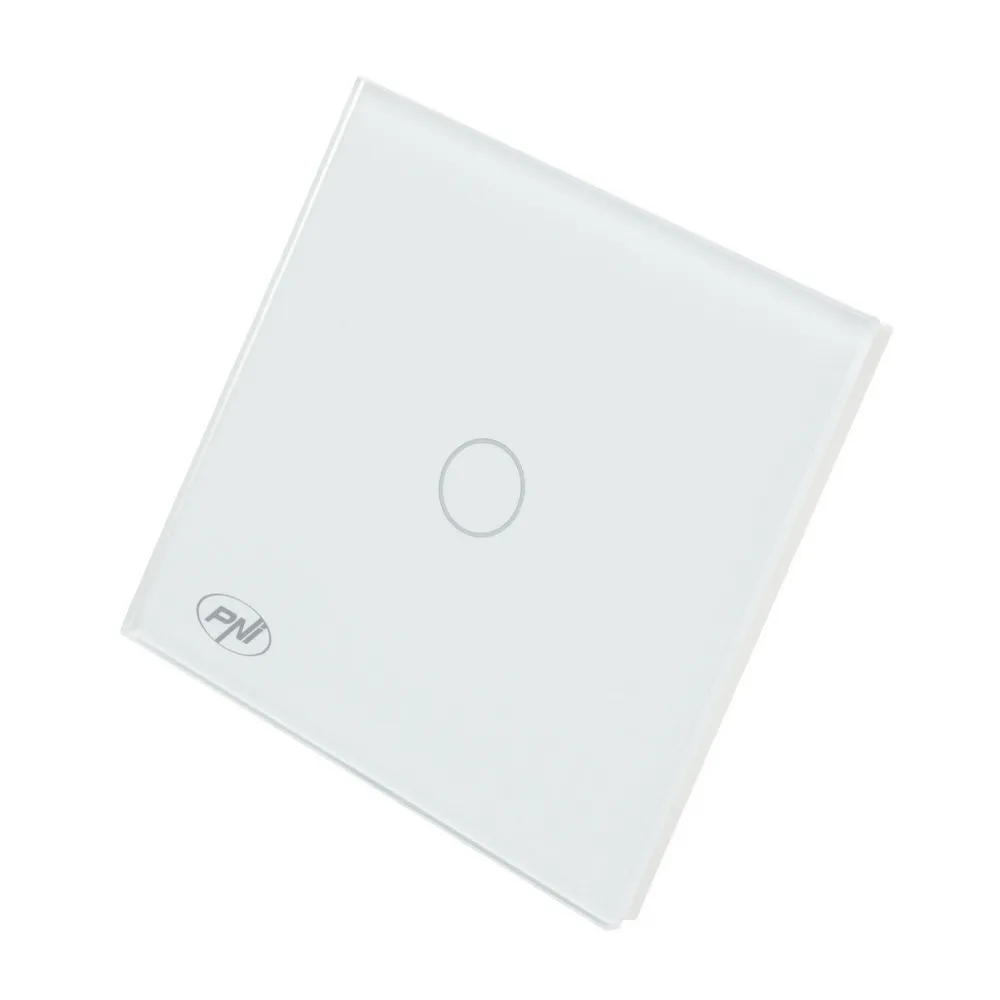

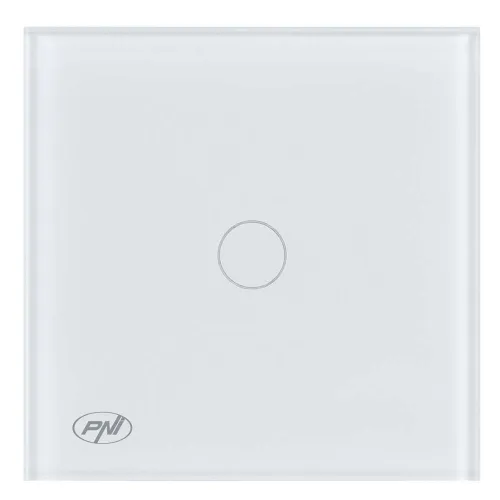

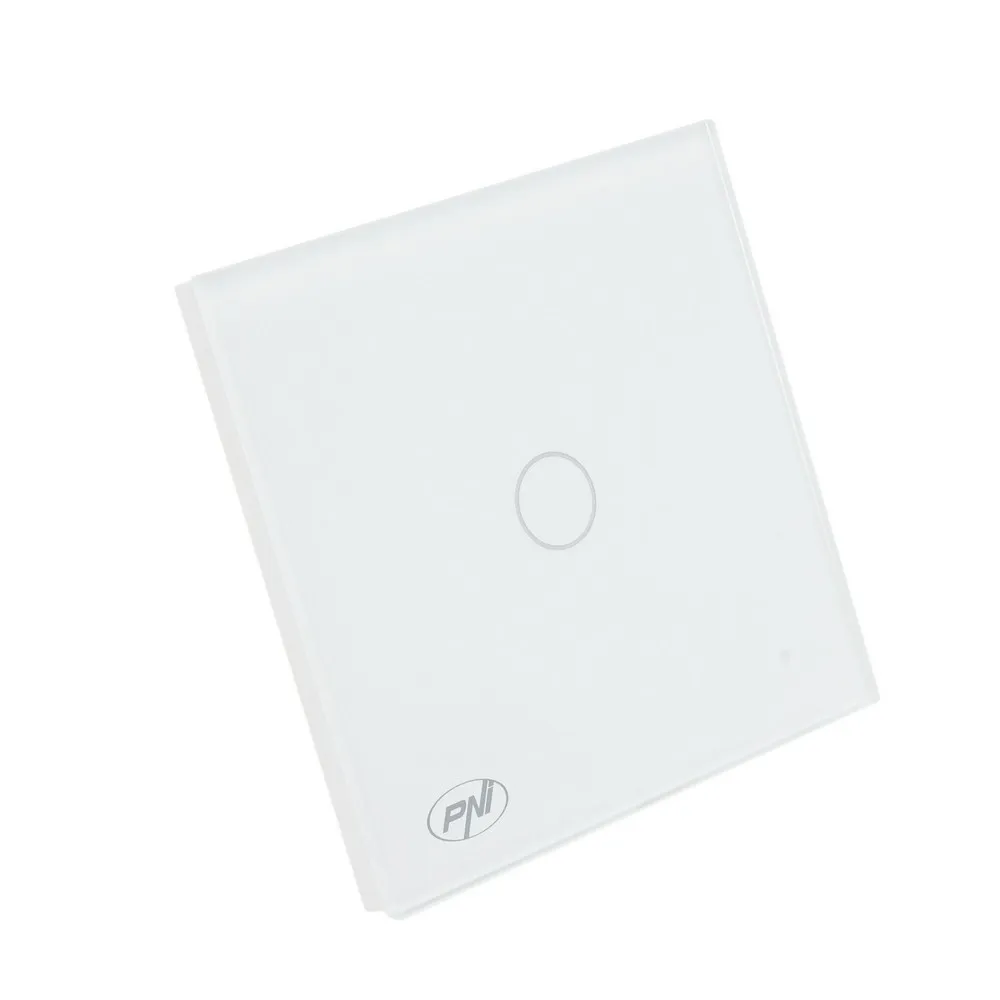

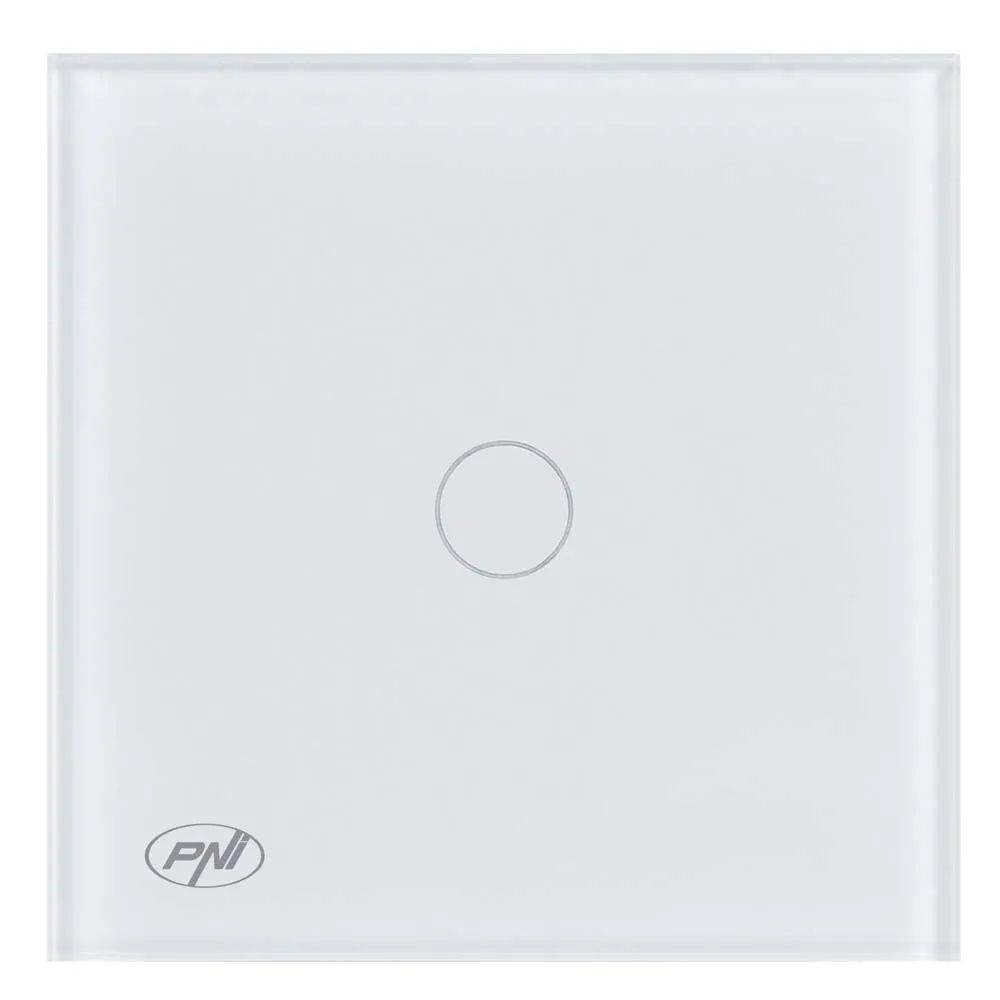

Touch buttons and tempered glass panel:
- The PNI CS101W Simple Touch Ladder and Cross Head Switch can be operated by touching the touch button. The LED indicator shows the status of the lights (on – red LED, off – blue LED). The capacitive, quick-touch front panel made of scratch-resistant tempered glass also provides protection against electric shock in case you touch the switch with wet hands.

Head-to-ladder circuit:
- The advantage of a two-way circuit breaker is the ability to control a single device from two separate locations. Suitable locations for installing such a switch are stairs, a long corridor or a very large room. So, imagine, it´s late at night and you´re at the bottom of a staircase. Press the switch to illuminate the stairs as you climb. Once you´ve reached the top of the stairs, simply press the two-way switch at the top to turn off the staircase light. The same applies to a long corridor or a large room with several entrances.

Ladder head and cross ladder head:
- The PNI CS101W switch can operate in both head-to-scale and head-to-scale to cross-head modes. Note: in ladder head - cross head mode, up to 8 single, double or triple switches can be connected in the same installation. We recommend that the installation of the circuit breaker be carried out by a qualified electrician. Make sure that before installing the circuit breaker you have disengaged the general fuse of the home. Observe all safety precautions to avoid personal injury and damage to property.

Specifications:

General features:

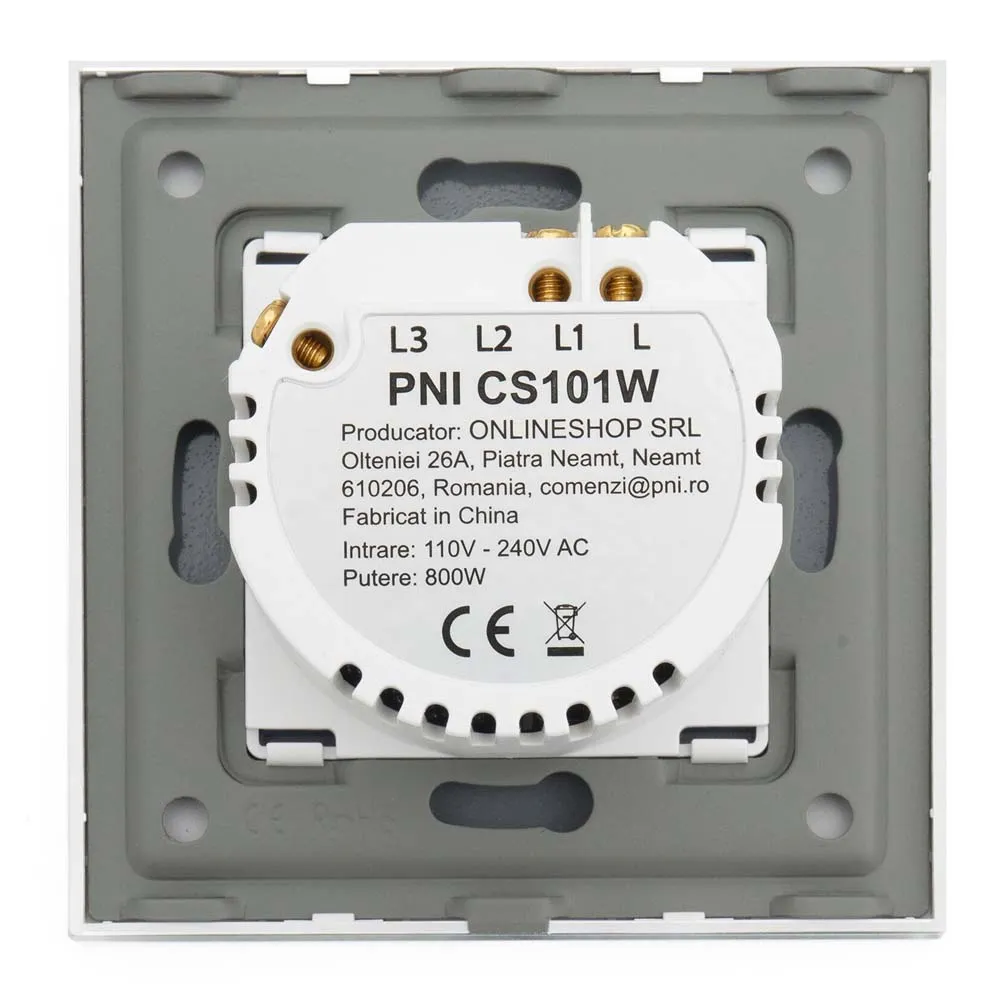

- Supply voltage: 110-240VAC
- Output power: 800W
- Maximum load supported: 1000W
- Rated current: max. 3.6 A
- Standby consumption: 0.02W
- Material: Fire-resistant glass/PC

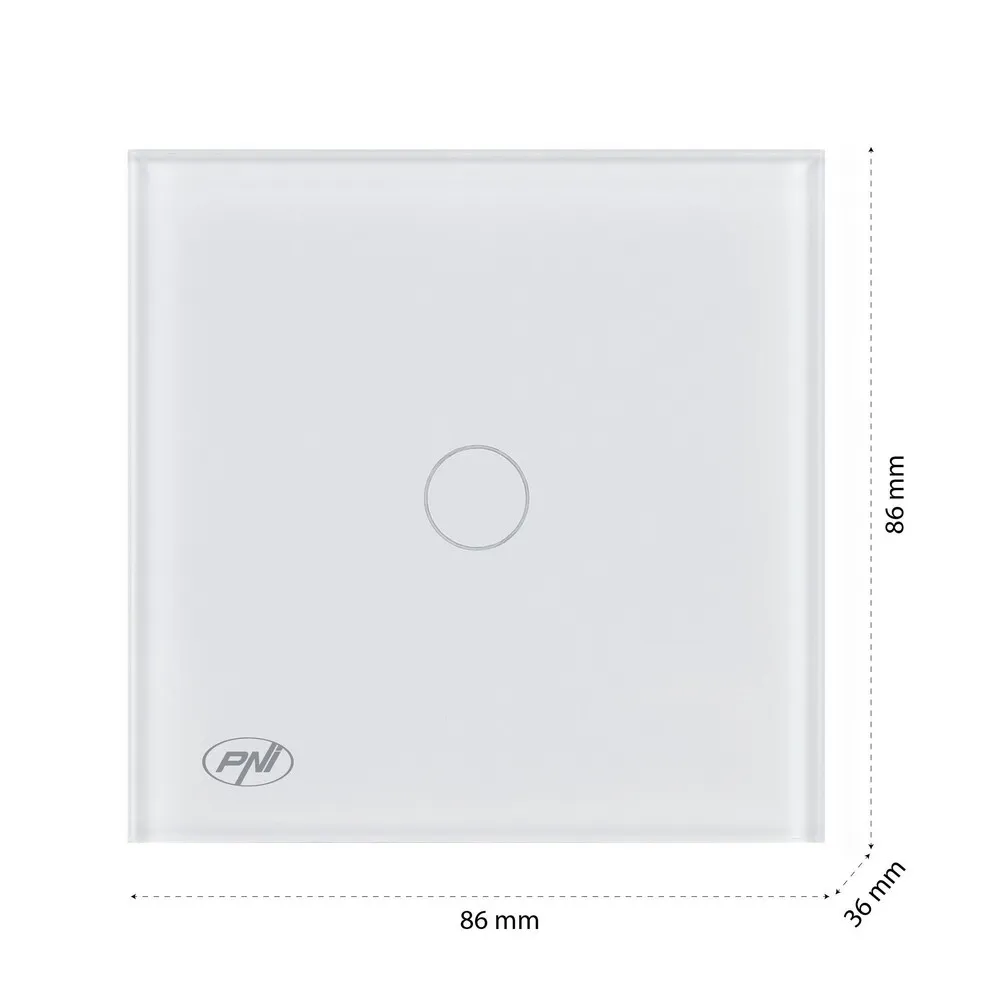

- Size: 86 x 86 x 35 mm
- Weight: 155 grams
- Moisture: 10% - 95%
- Working temperature: -26°C ~ +80°C

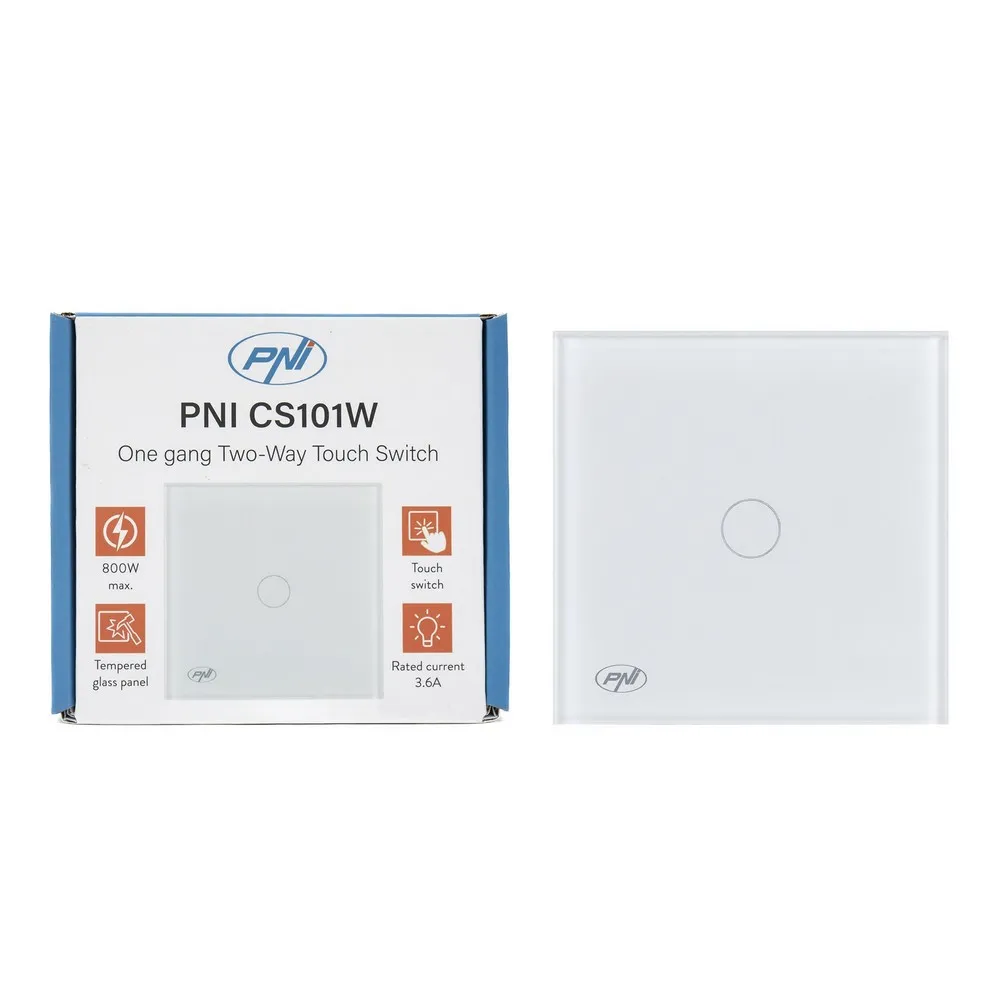

In the box:
- User manual: Yes
- Switch: Yes, simple.
- Mounting screws: Yes
