PNI CS202W Smart Switch

Features:

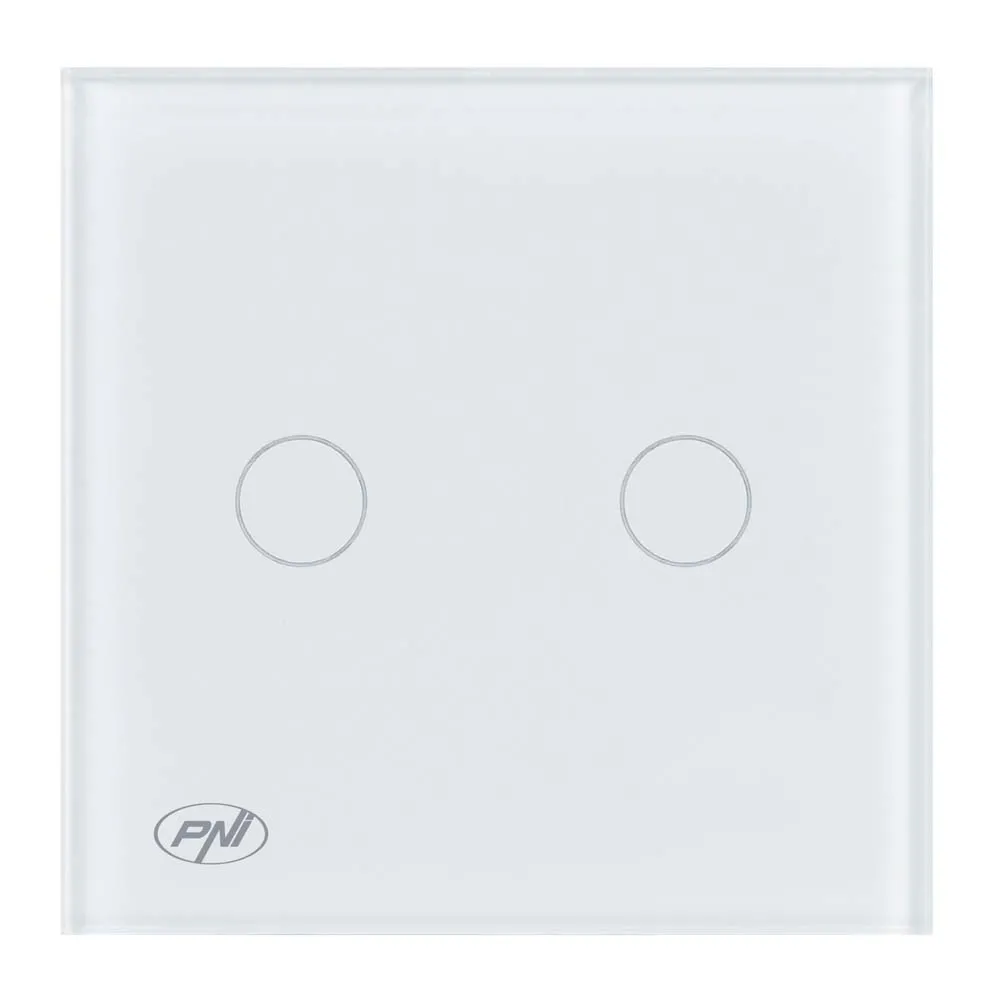

Touch buttons and tempered glass panel:
- PNI CS202W Dual Touch Ladder Head and Cross Head Switch can be operated by touching the touch buttons The LED indicator shows the status of the lights (on - red LED, off - blue LED). Capacitive touch front panel with fast touch response and scratch-resistant tempered glass also provides protection against electric shock if you touch the switch with wet hands.

Circuit head-ladder and head cross:
- The advantage of this switch is the ability to control a light source from two or more separate locations. Suitable locations for installing such a switch are stairs, long corridors or bedrooms. So imagine, it´s late at night and you enter the bedroom. Press the door switch when you enter. Once you are in bed simply press the switch at the head of the bed to turn off the light i. The same applies to both sides of the bed and in this case for 2 separate lighting sources. The same principle applies to a long corridor or a large room with several entrances

Head-ladder and head-ladder-cross-head:
- The PNI CS202W switch can operate both in head-ladder and head-ladder - head-cross mode.

Note: in ladder head - cross head mode, up to 8 single, double or triple switches can be connected in the same installation.

We recommend that the circuit breaker be installed by a qualified electrician.

Make sure that before installing the circuit breaker you have turned off the main fuse of the house. Follow all safety precautions to avoid personal injury and property damage.

Specifications:

General features:
- Supply voltage: 110-240VAC
- Output power: 800 W / switch
- Maximum load supported: 2000W
- Rated current: max. 3.6 A
- Standby consumption: 0.02W
- Material: Fire-resistant glass/PC
- Size: 86 x 86 x 35 mm
- Weight: 165 grams
- Moisture: 10% - 95%
- Working temperature: -26°C ~ +80°C

In the box:
- User manual: Yes
- Switch: Yes, double.
- Mounting screws: Yes
