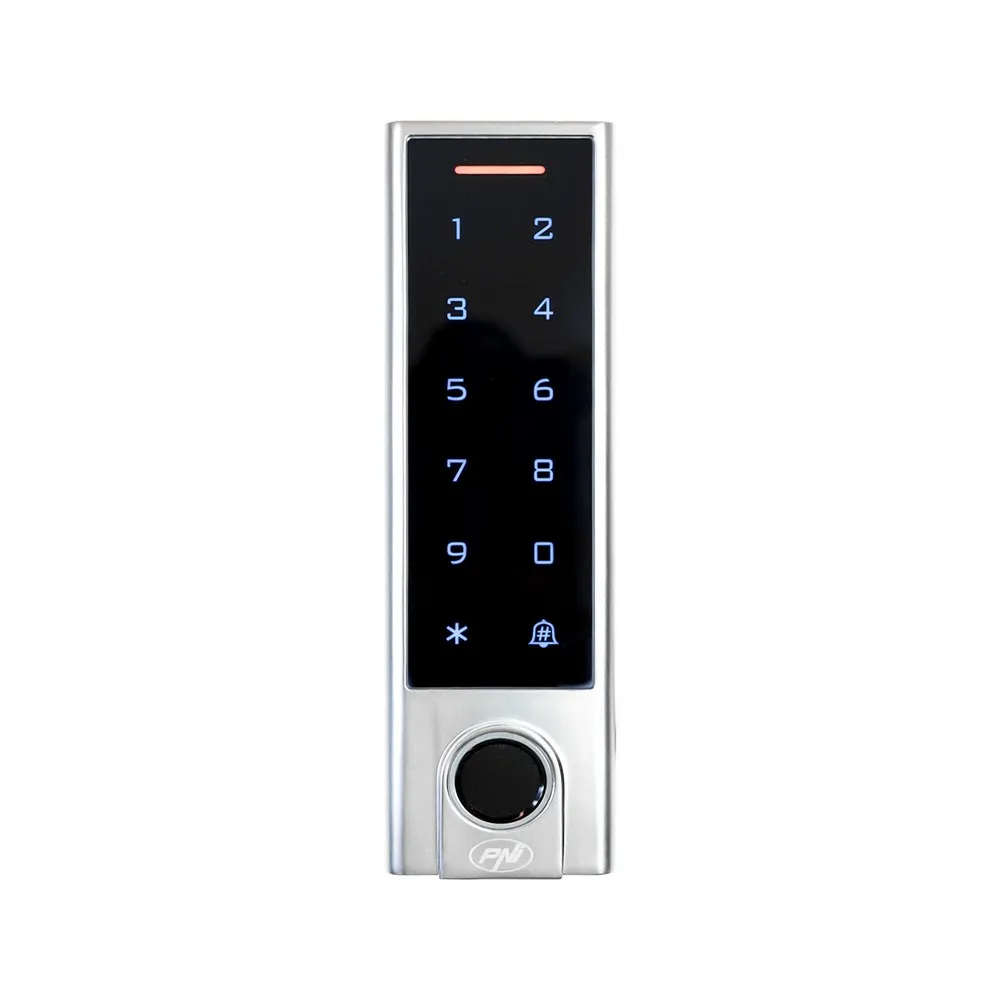

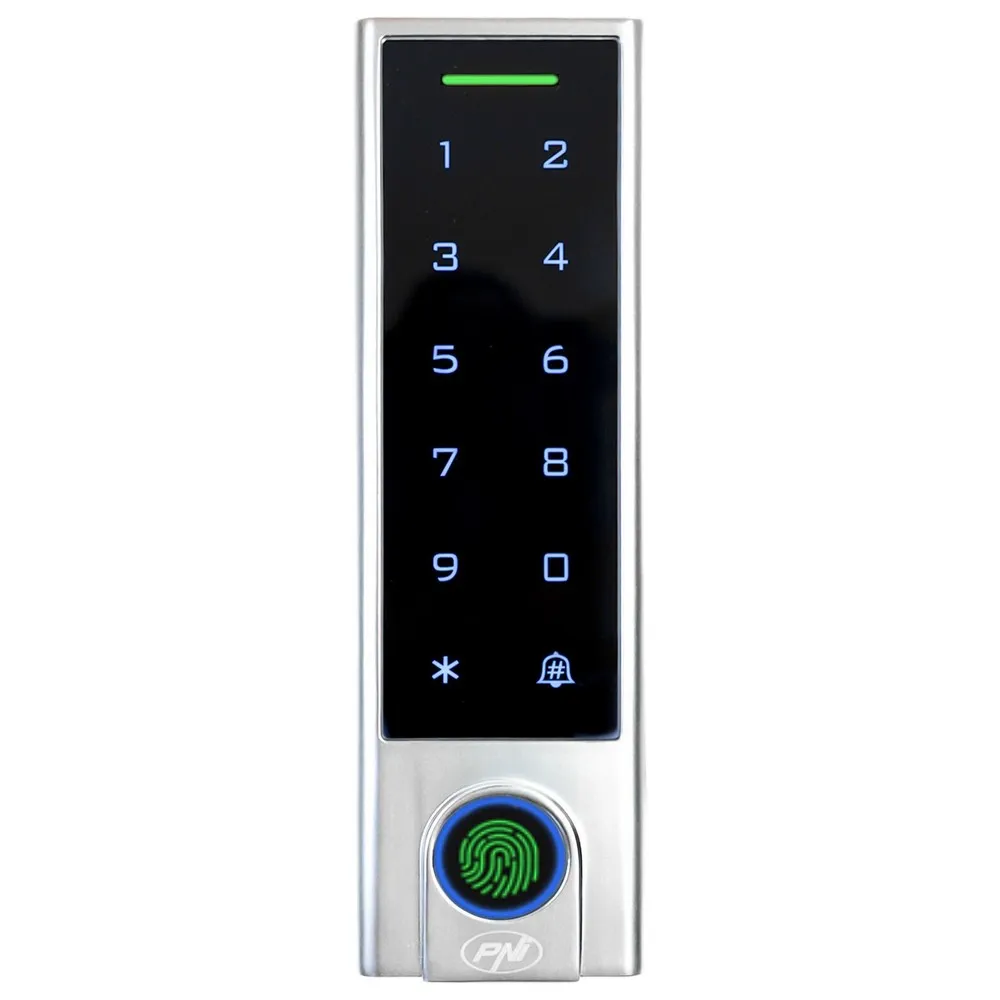

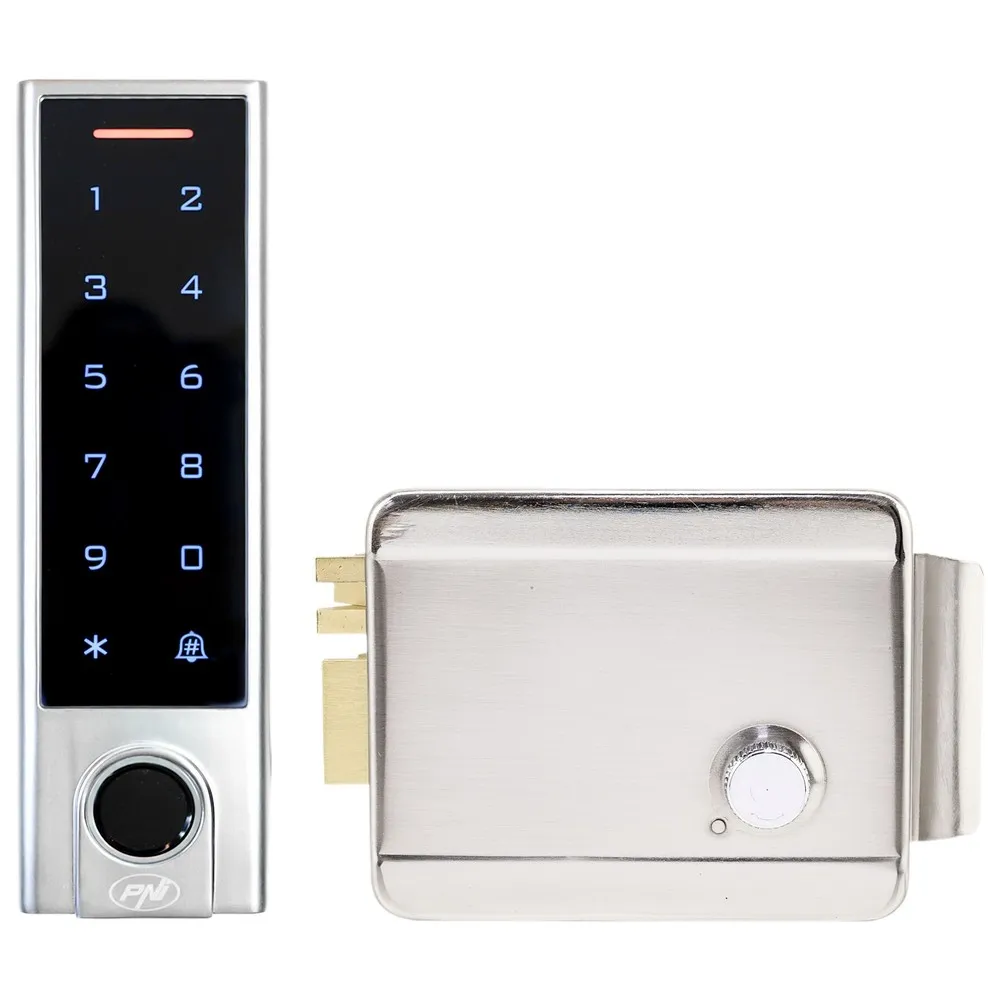

PNI DK350 Access control keypad and lock

PNI-DK350 - PNI DK350 Access Control Keypad with Wi-Fi, Access Card, Fingerprint, PIN, Touch, IP66, Tuya App.

What it is and what it is used for:

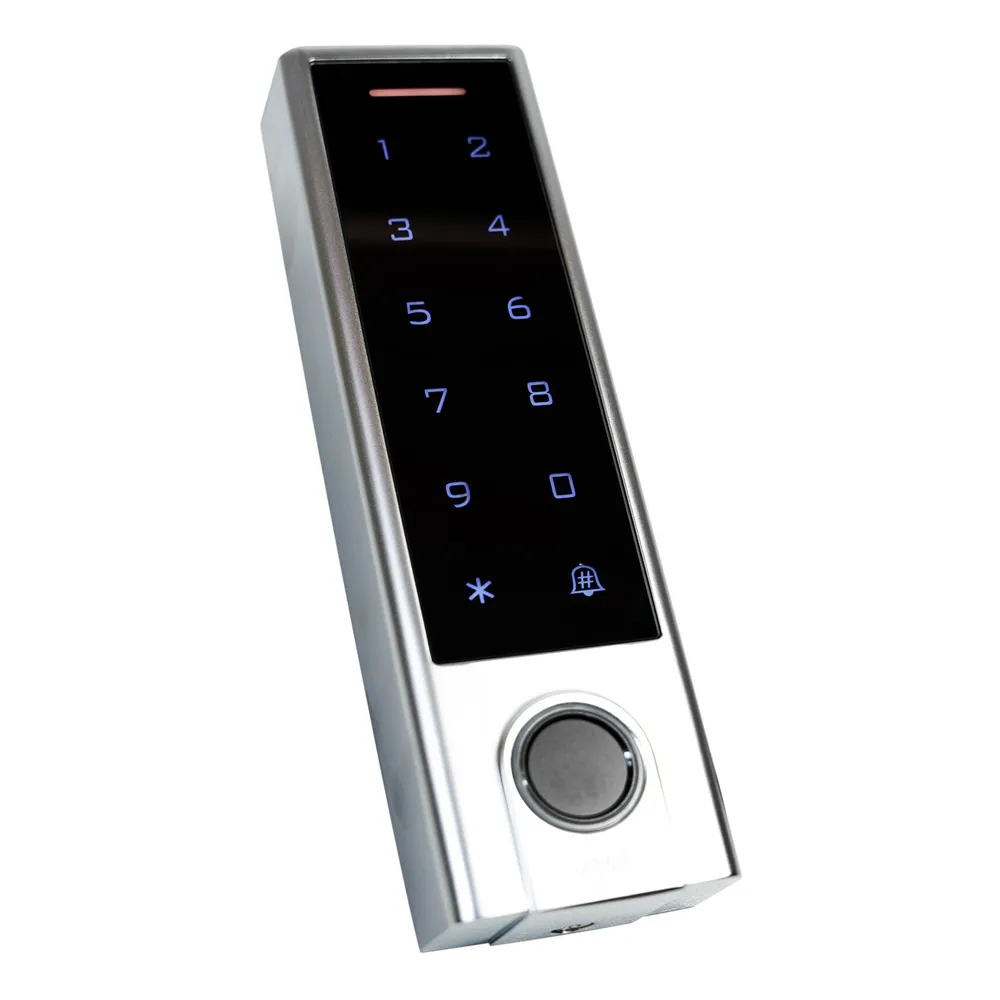

- PNI DK350 is a modern access control keypad that allows authentication by several methods: fingerprint, PIN code, EM RFID card (125 KHz). The device is suitable for both indoor and outdoor use, having anti-vandal protection and an IP66 watertight rating, which allows it to withstand harsh weather conditions, dust and water.

Smart connectivity and integration:
- An important aspect is Wi-Fi connectivity and compatibility with the Tuya Smart app, which offers the possibility to manage users, access, alerts and access logs remotely, via smartphone. This integration makes the product more flexible and easier to manage in modern access control contexts, where remote monitoring and configuration are an advantage.

User performance and capacity:
- The keyboard supports up to 1000 users, making it useful for businesses, institutions, or multi-hit blocks. The memory is permanent (i.e. data storage is not lost when power is interrupted). The card reader operates on the EM frequency 125 KHz. The required power supply is 12 V, with a standby consumption of about 60 mA.

Reliability and recommended applications:
- With IP66 protection and anti-vandal characteristics, the PNI DK350 is suitable for outdoor installation, but also for indoor installation, in areas that require increased security: entrances to courtyards, secondary doors, garages, gate modules, institutions or commercial buildings. The materials and solid construction give it durability, and the variety of authentication methods help personalize access. The PNI DK350 offers a good balance between functionality, security and adaptability.

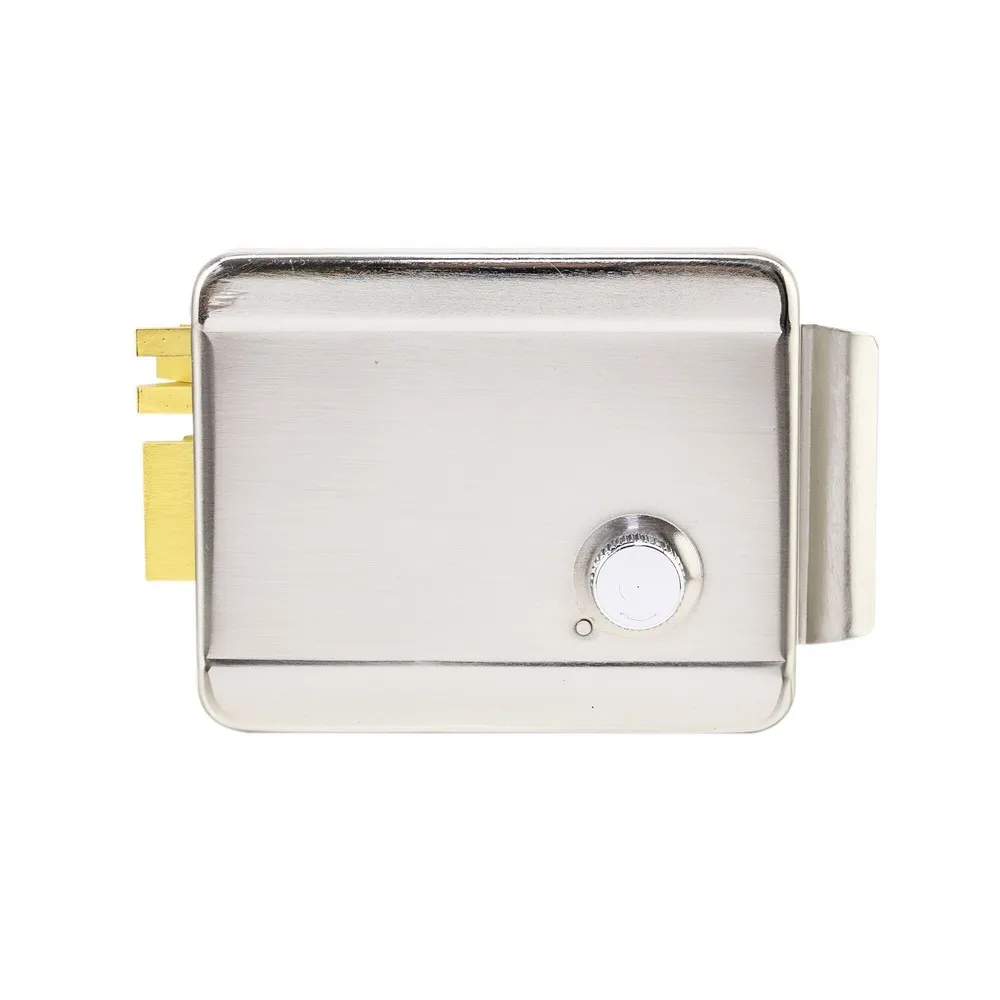

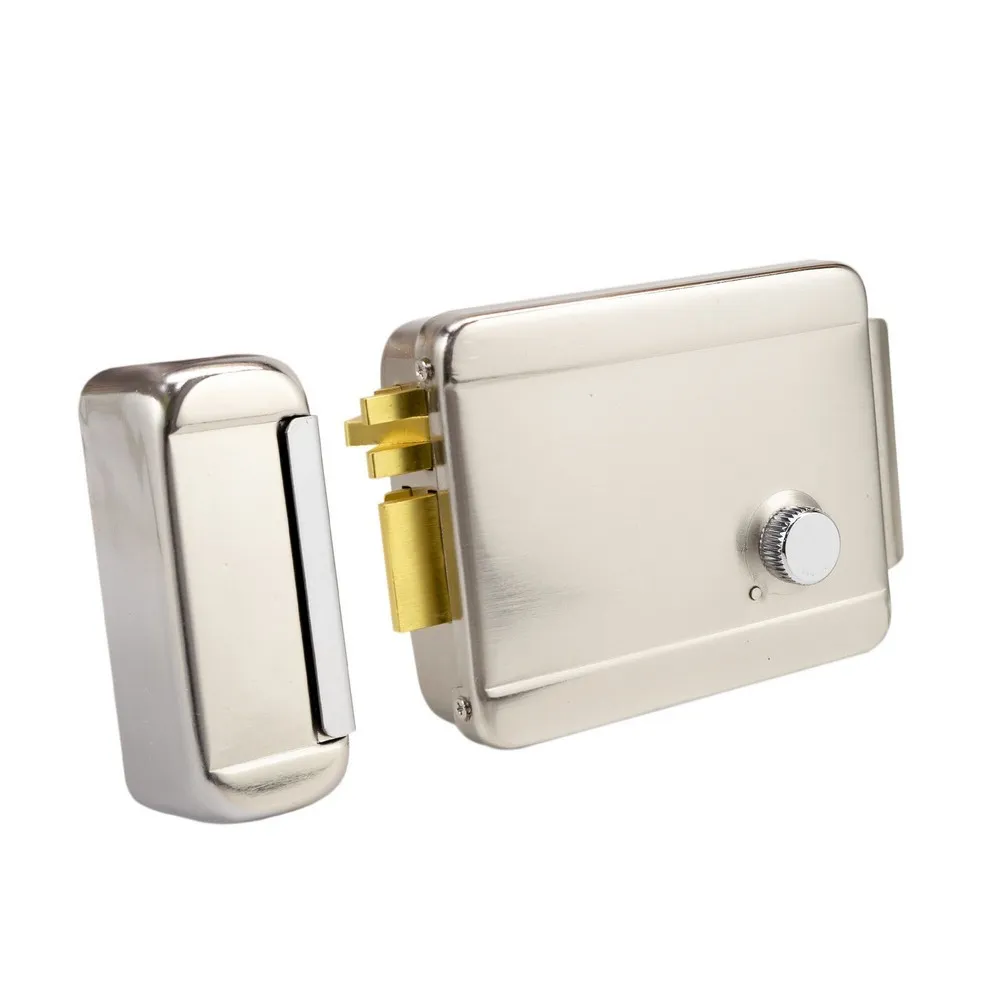

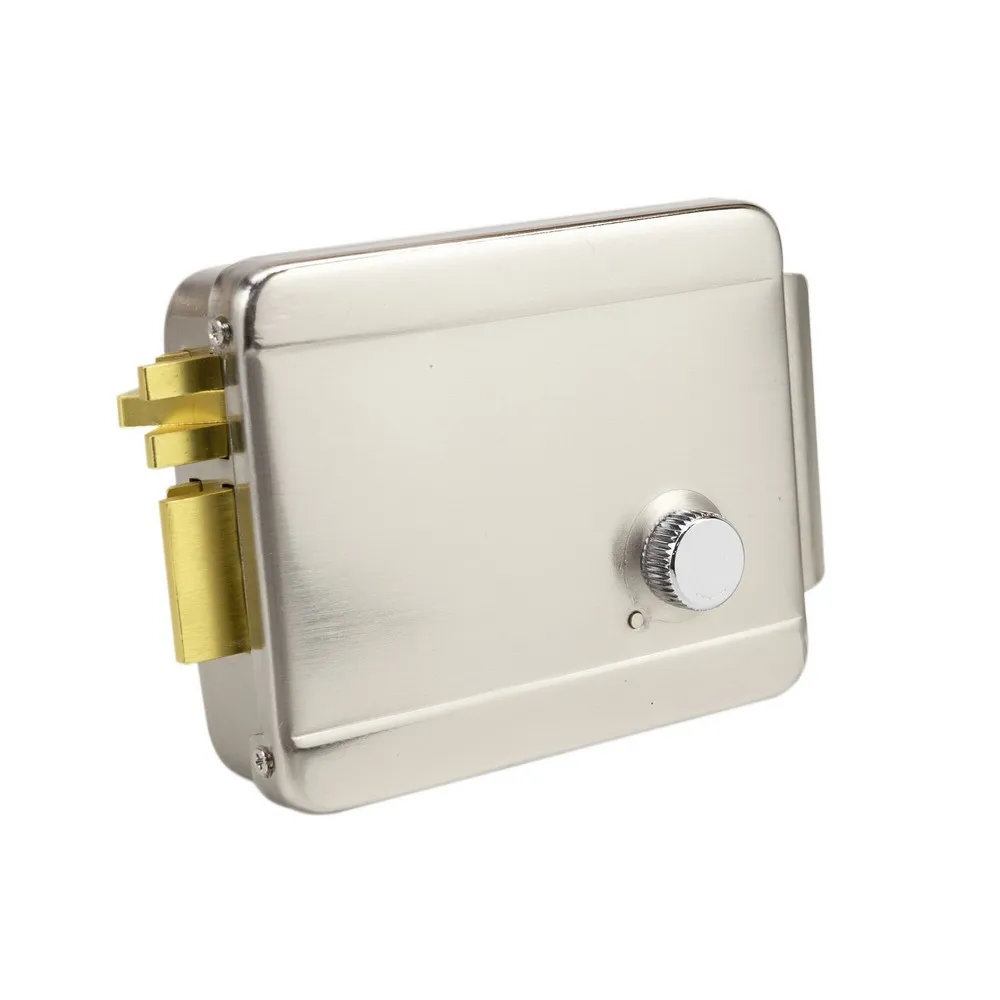

H1073A - Electromagnetic Yala PNI H1073A Steel with Fail Secure NC Hub.

Non-fail safe actuation:
- Non-fail safe (Fail-secure) action. In this configuration, the application of electric current will cause the yala to open. The mechanical components ensure the opening from the inside even in the event of power failures.

Applied Mounting:
- Fits intercom solutions with intercom or access control systems. It can be installed in residential buildings, commercial spaces, hotels, schools, warehouses, institutions, etc.

Electrical equipment:
- Yala operates powered by a current of 12V max 1A. The opening command is made by electric impulse or manual operation.

Made of steel:
- With stainless steel housing, this electromagnetic yala is suitable for many exterior or interior doors. Mounting on the door can be done depending on the installation specifics, with the possibility of changing the opening direction.

Waterproof IP66:
- The electromagnetic YAL PNI H1073A complies with the IP66 dust and water protection standard.

Specifications:

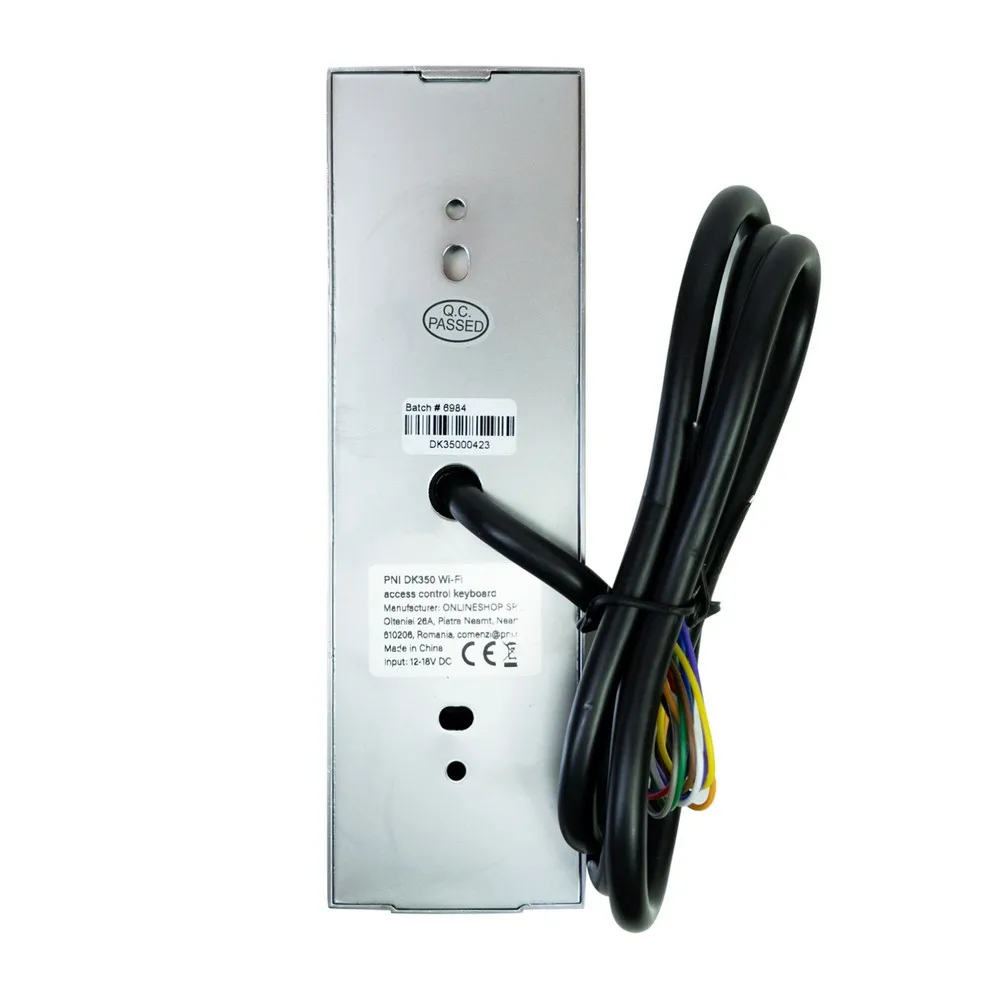

PNI-DK350 - PNI DK350 access control keyboard with Wi-Fi, access card, fingerprint, PIN, touch, IP66, Tuya application:

General features:
- Feeding: 12V
- Standby power consumption: 60mA
- Illuminated keyboard: Yes
- Material: Zinc alloy
- Anti-vandal: Yes
- Protection level: IP66
- Card reader: EM - 125 KHz
- Permanent memory: Yes
- Mounting type: Applied
- Dimensions/weight: 45 X 23 X 150 mm / 342 g
- Operating temperature: -26°C ~ +80°C
- Working humidity: 0 ~ 95%
- User capacity: 1000 users

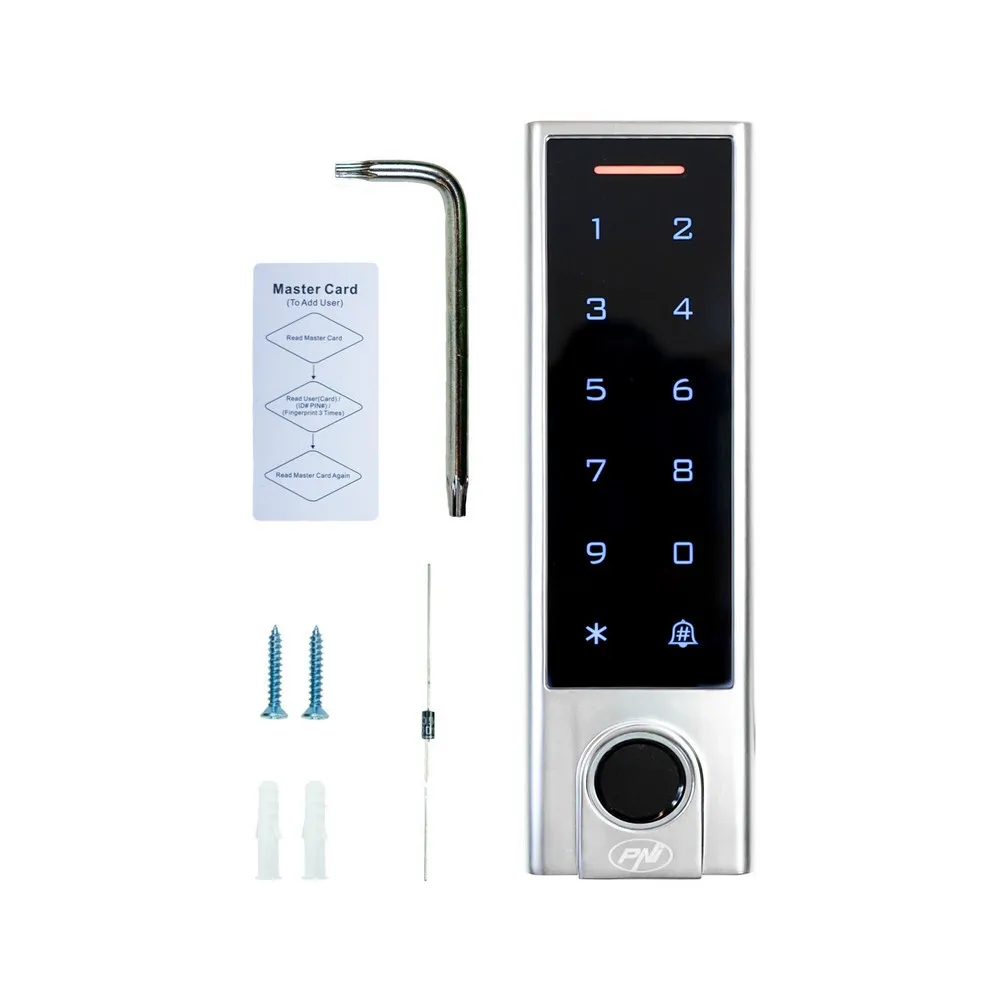

In the box:
- Access control unit: Yes
- Installation accessories: Yes
- Installation and user manual: Yes
- RFID card: Yes

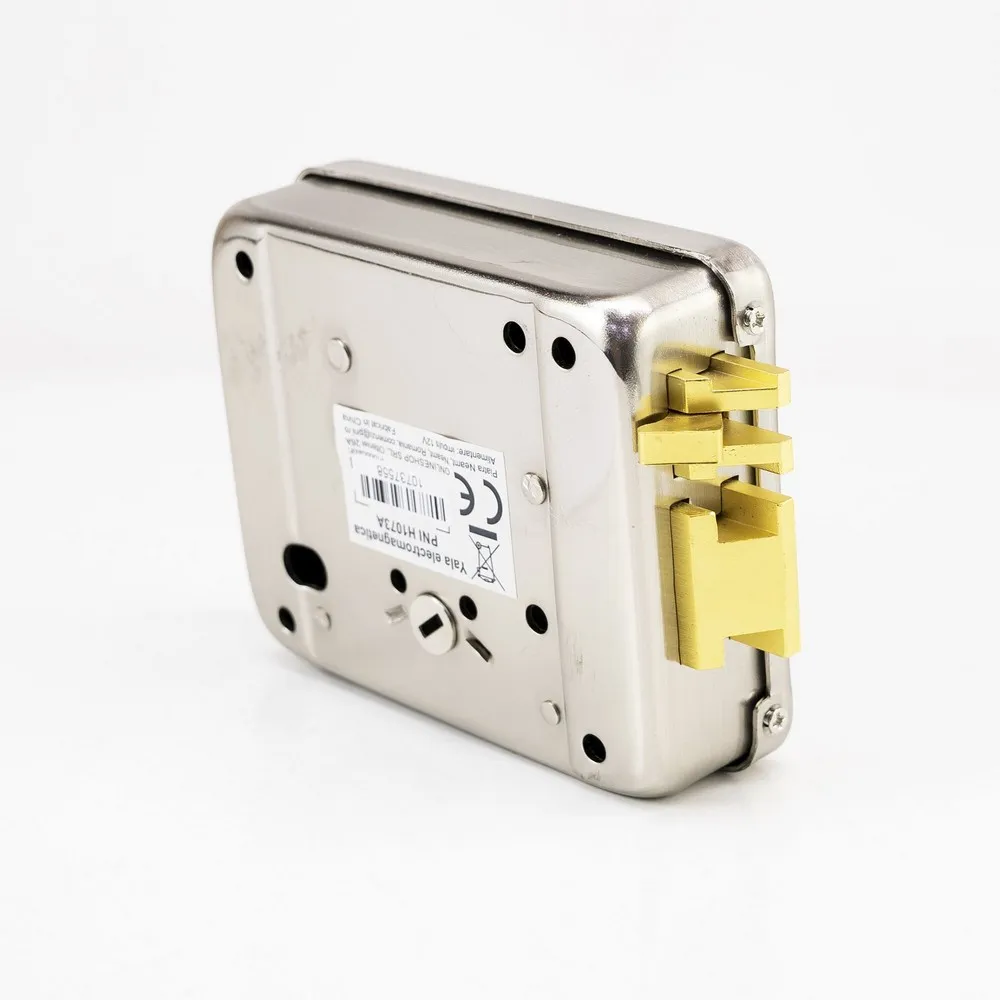

H1073A - PNI H1073A electromagnetic door lock made of steel with Fail Secure NC hub:

General features:
- Type yala: Applied
- Inside opening type: Mechanics
- Supply voltage: 12V (pulse)
- Consumption: 1A at 12V
- Drive type: Fail Secure (NO / Normally Open Circuit)
- Dimensions/Weight: 129x105x39mm / 1117g
- Application method: Left/Right
- Retention system: Yes, mobile tongue/puppy

Included:
- Electromagnetic yala: Yes
- Opening hub: Yes
- Opening keys: 3 pcs.
- Frame fastening system: Yes
- Mounting accessories: Yes
