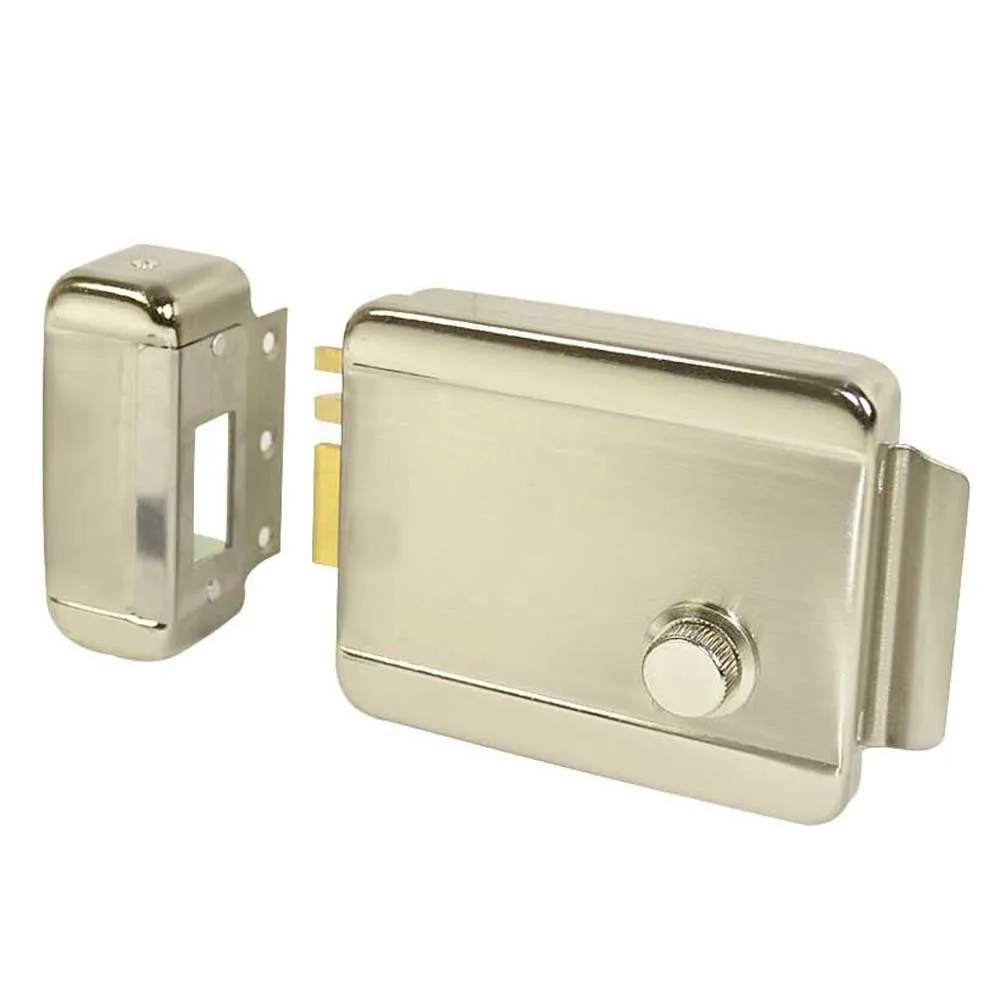

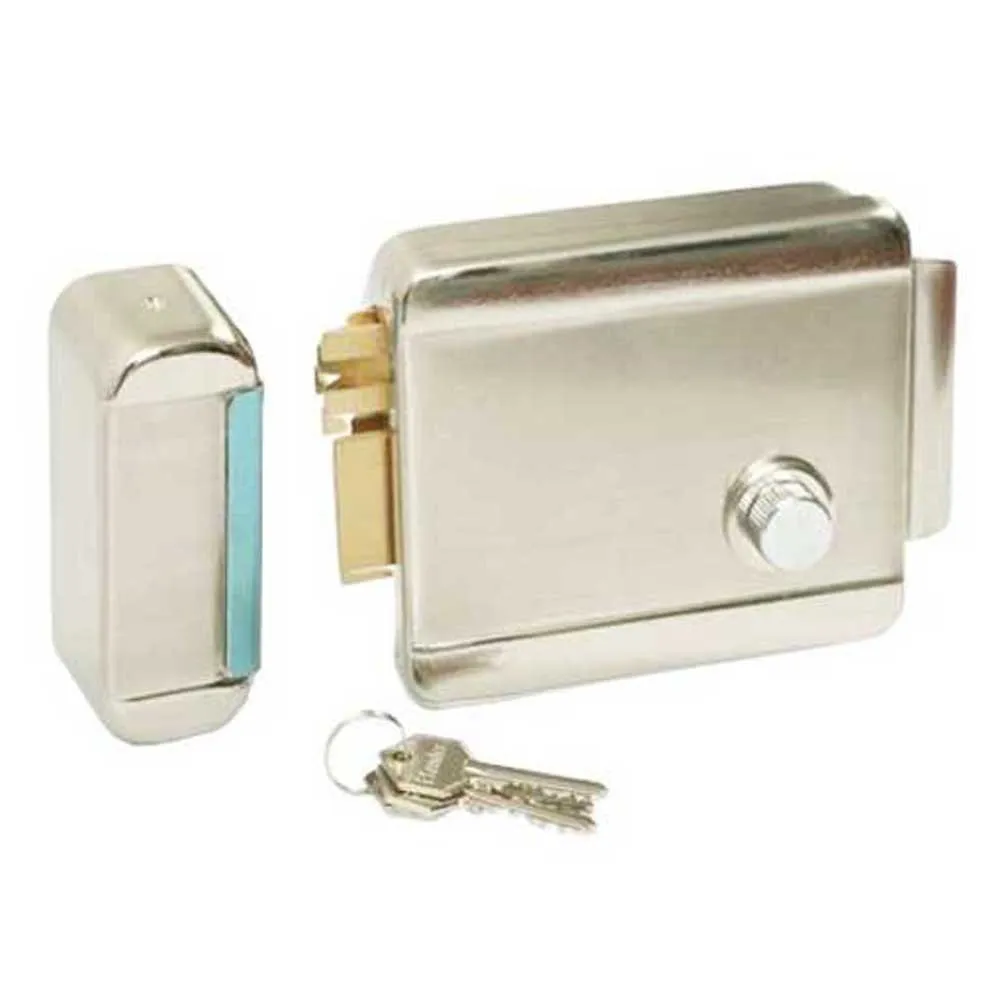

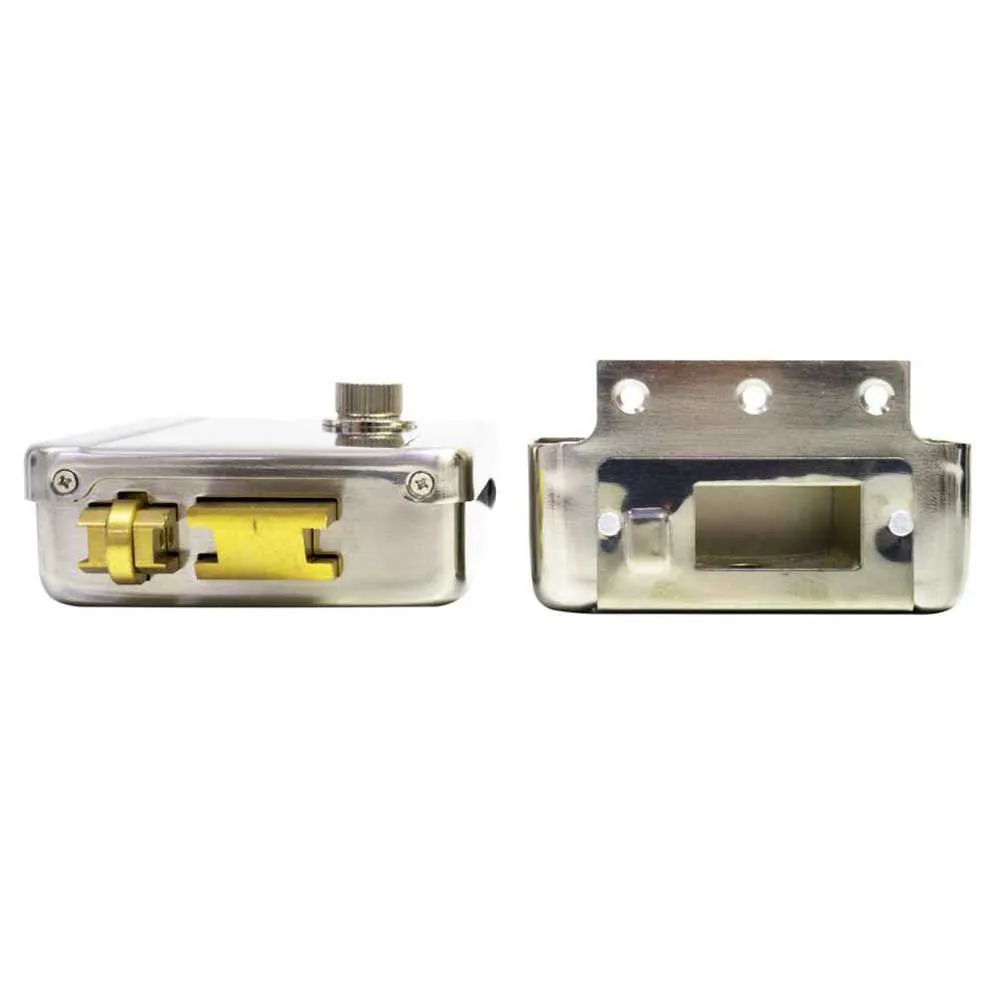

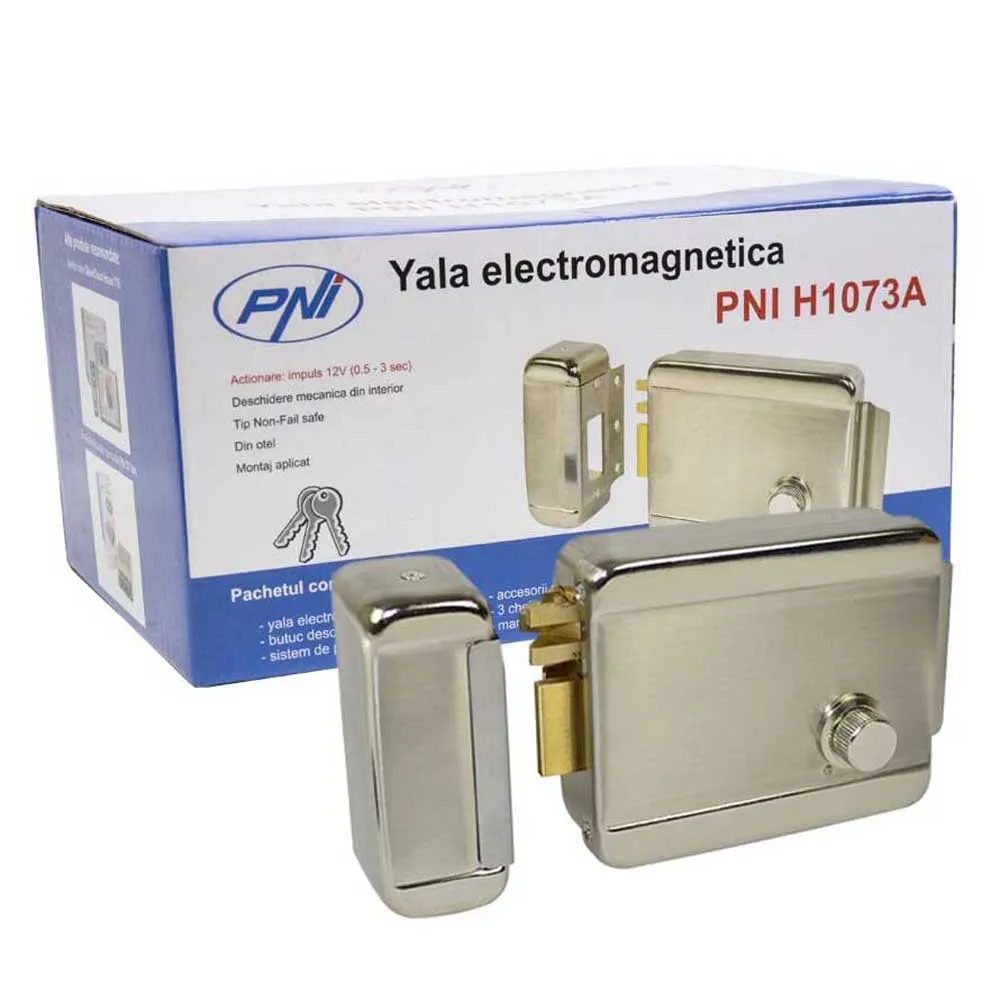

PNI H1073A Electromagnetic Door Lock

Non-fail safe drive:
- Non-fail safe (Fail-secure) drive. In this configuration, the application of electric current will cause the shaft to open. The mechanical components ensure the opening from the inside, even in the case of power failures.

Applied mounting:
- Suitable for intercom solutions with intercom or access control systems. Can be mounted in residential buildings, commercial spaces, hotels, schools, warehouses, institutions, etc.

Electrical equipment:
- Yala operates powered by a current of 12V max 1A. The opening command is made by electric impulse or manual operation.

From steel:
- With stainless steel housing, this electromagnetic yoke is suitable for many exterior or interior doors. Mounting on the door can be done according to the installation specification, with the possibility of modifying the opening direction.

Waterproof IP66:
- Yala electromagnetic PNI H1073A complies with the IP66 dust and water protection standard.


Specifications:

- Product identification
- Manufacturer: PNI
- Product code: H1073A
- Material: metallic
- General characteristics
- Yala type: Applied
- Opening type from inside: Mechanics
- Supply voltage: 12V
- Consumption: 1A to 12V
- Drive type: Fail Secure (Circuit NO / Normal Open)
- Dimensions / Weight: 129x105x39mm / 1117g
- Application mode: Left Right
- Retention system: Yes, language / mobile puppy

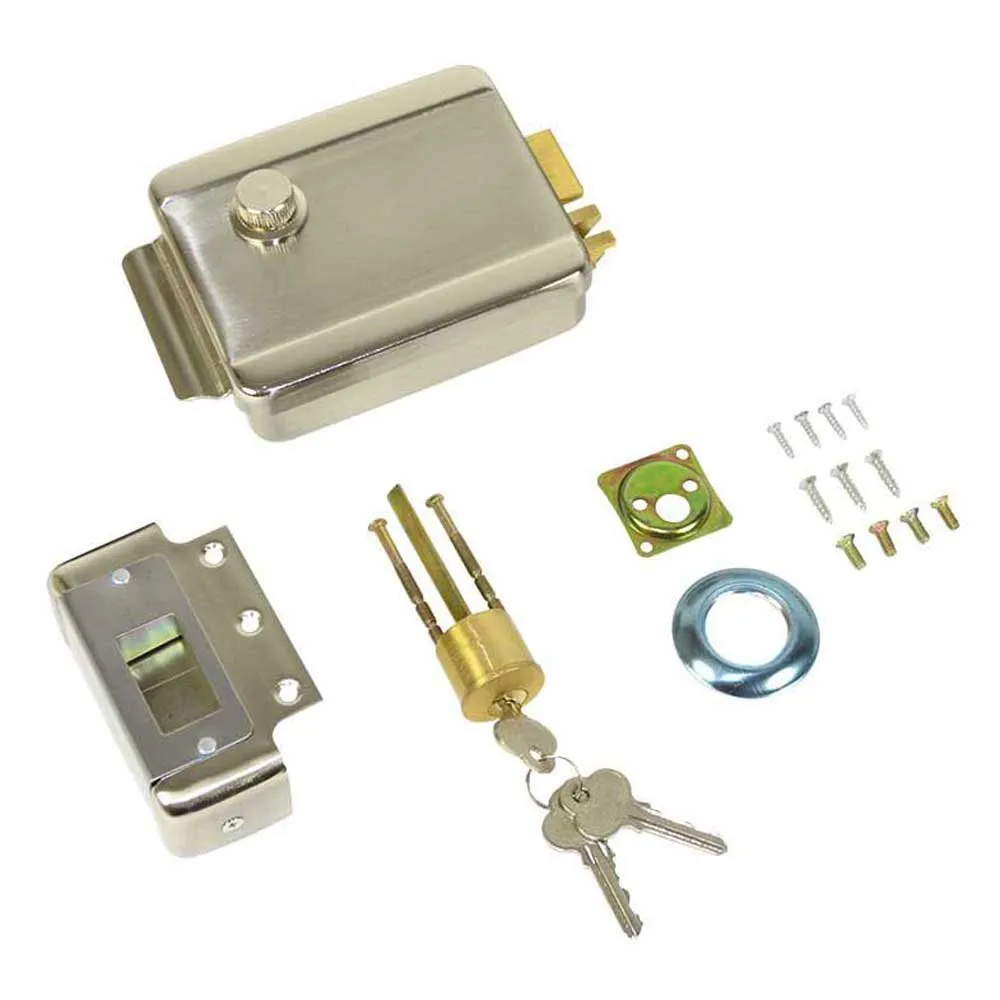

- Package Included
- Electromagnetic Yala: Yes
- Opening hub: Yes
- Opening keys: 3 pcs.
- Clamping system: Yes
- Mounting accessories: Yes
