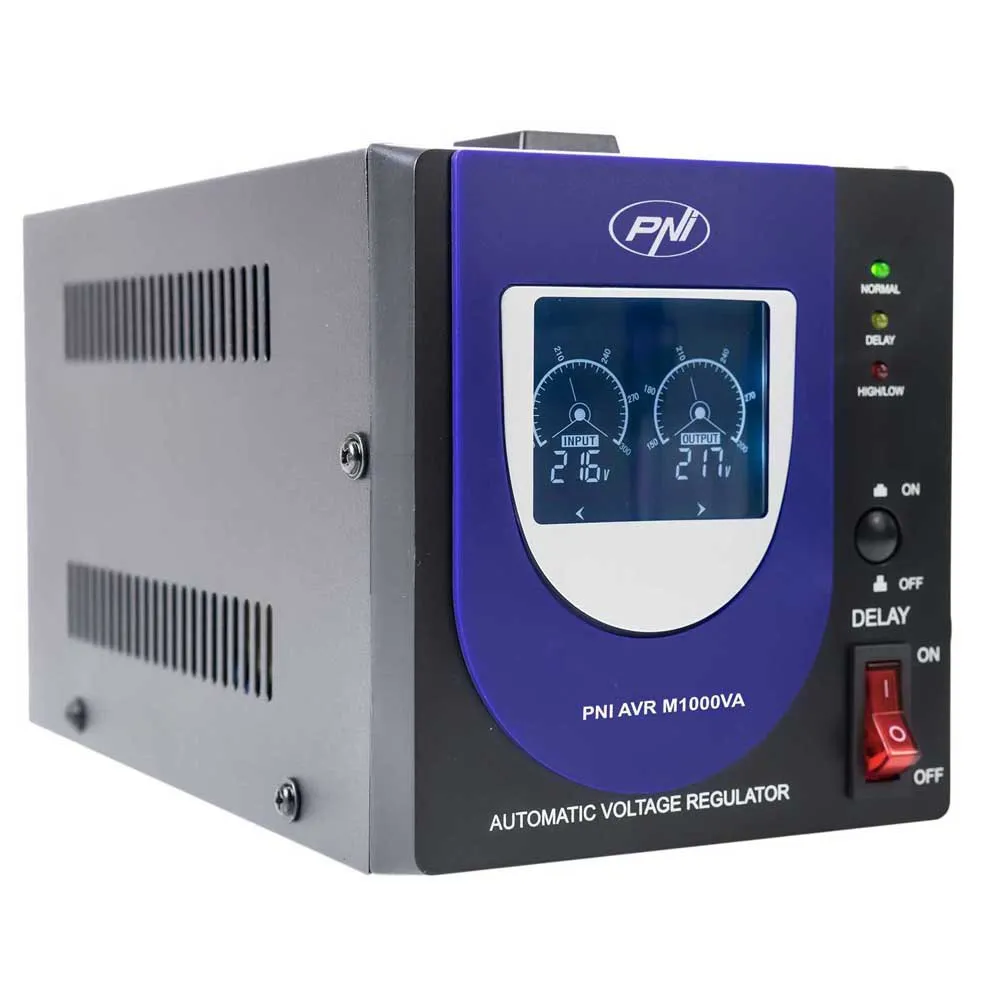

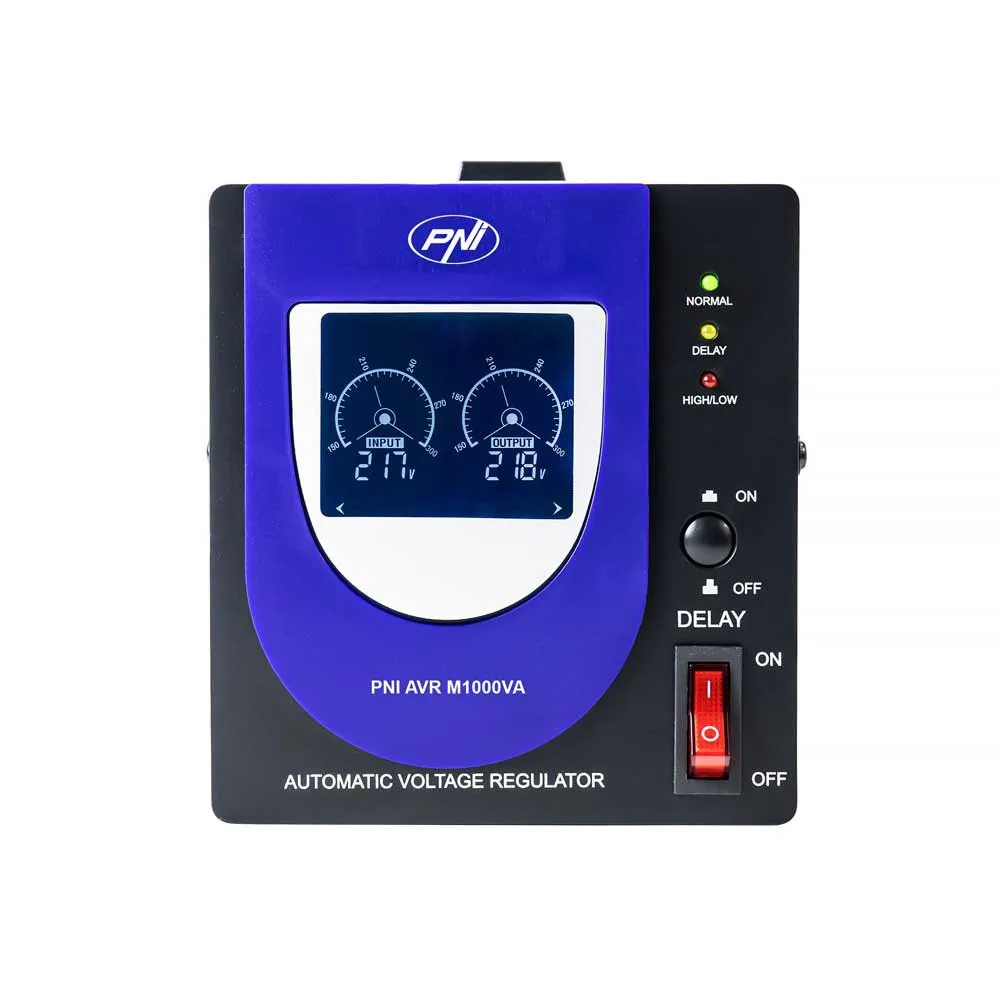

PNI M1000VA Voltage Stabilizer

EU PLUG.

No voltage fluctuations:

- The PNR AV1 M1000VA 600W Relay Voltage Stabilizer has been designed to keep the output voltage as stable as possible.

When the mains voltage fluctuates, the PNI AVR M1000VA will automatically adjust the output voltage to normal.

Depending on their capacity, PNI stabilizers have a wide range of applications:

electronic appliances, home appliances, air conditioners, power tools, refrigerators and in general, electronics that need stable voltage.

How does it work?.

- When the unit that measures the input voltage detects a variation outside the preset range, it will send a signal to the control unit.

This will switch on / off the relays connected to the secondary voltage transformer to compensate for the variations and for a more precise control of the output voltage in the preset range.

- Copper coil is the basic component of the voltage stabilizer.

Voltage stabilizer with relay PNI AVR M1000VA 600W uses high quality pure copper.

Thus, the coil has a longer service life and a higher efficiency.

Maximum load supported:

- The maximum load supported by the PNR AVR M1000VA voltage stabilizer is 600W 2.6A.

- The 600W 2.6A capacity of the stabilizer allows the connection of household appliances, including TVs, printers, fans and more.

Essential functions:

- In the rated voltage range ± 25% 50 / 60Hz, the PNI stabilizer provides 100% output power.

Outside this range, the output power should be according to the adjacent diagram.

Important Features:

- Time-delay.

- 6 or 180 seconds.

- Automatic overvoltage and undervoltage protection (180V.

- 250V).

- Overload / overtemperature protection.

- Automatic adaptation to the input frequency (50/60 Hz).

Specifications:

- Output connectors:

2 x Schuko socket.

- Output voltage:

230V ± 8%.

- Frequency of entry:

50/60 Hz.

- Rated input voltage:

230V -35%, + 20%.

- Overheating protection:

Yes.

- Short circuit protection:

Yes.

- Efficiency:

> 98%.

- Working temperature:

-10 ° C ~ + 40 ° C.

- Moisture:

≤90%.

- size:

125 x 155 x 265 mm.

- Exit delay:

6/180 seconds.

- Ventilation fan:

Yes.

- Overvoltage protection:

Yes.

- Low voltage protection:

Yes.

- Phase:

phase.
