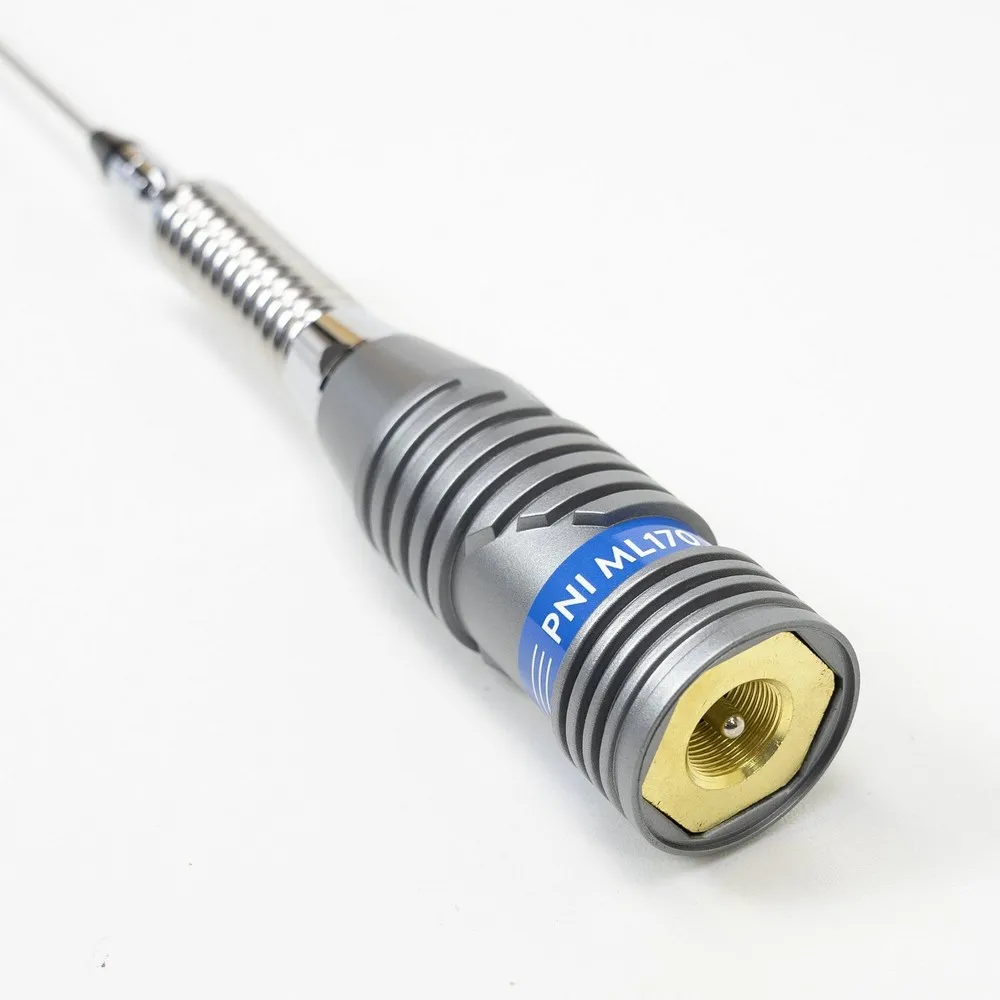

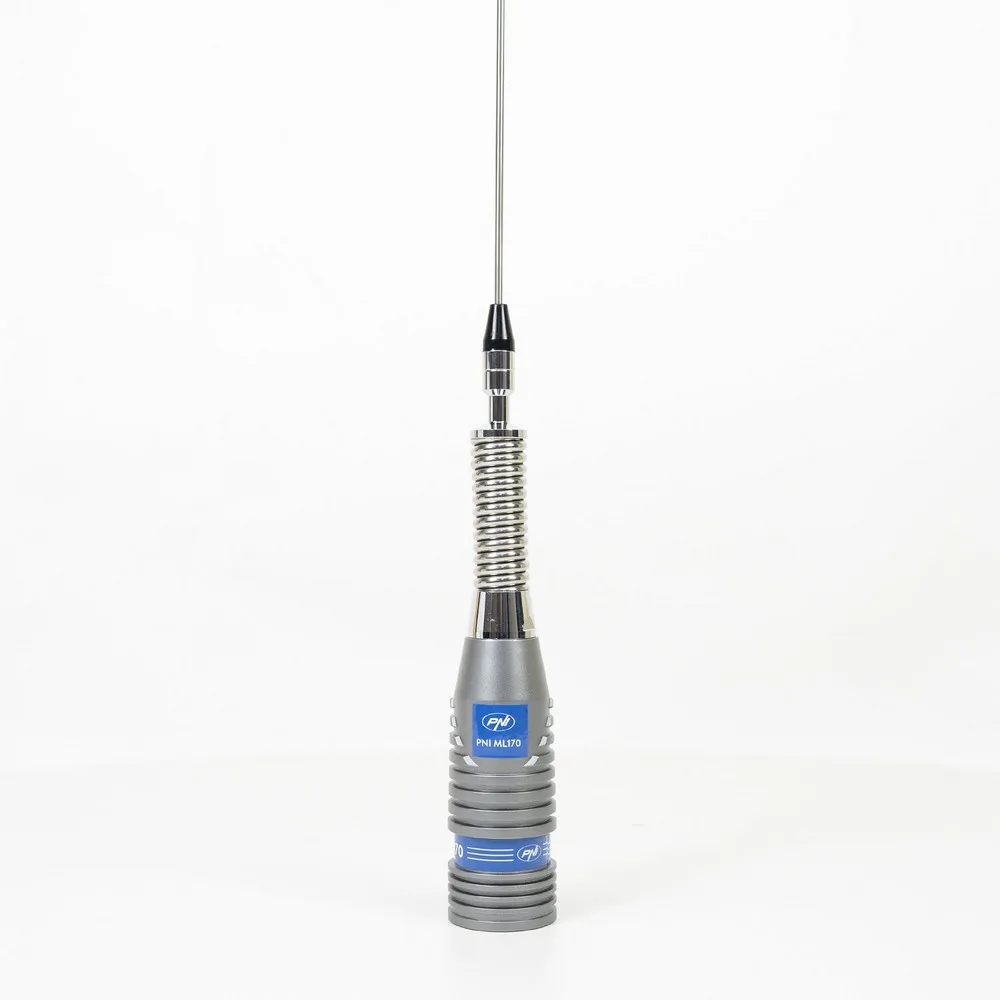

PNI ML170 cb antenna

Features:

Increased performance:
- The PNI ML170 CB antenna operates in the 26 - 30 MHz frequency range with a length of 168 cm and a communication distance of up to 15 km in ideal conditions. The PNI ML170 is perfect for drivers of both TIRs, trucks and cars who want a product that ensures good communication in the Citizen Band. With an SWR value of less than 1.2 and a maximum supported power of 1000W (short period) are essential specifications that recommend this product to the most demanding radio station users.

Compatibility:

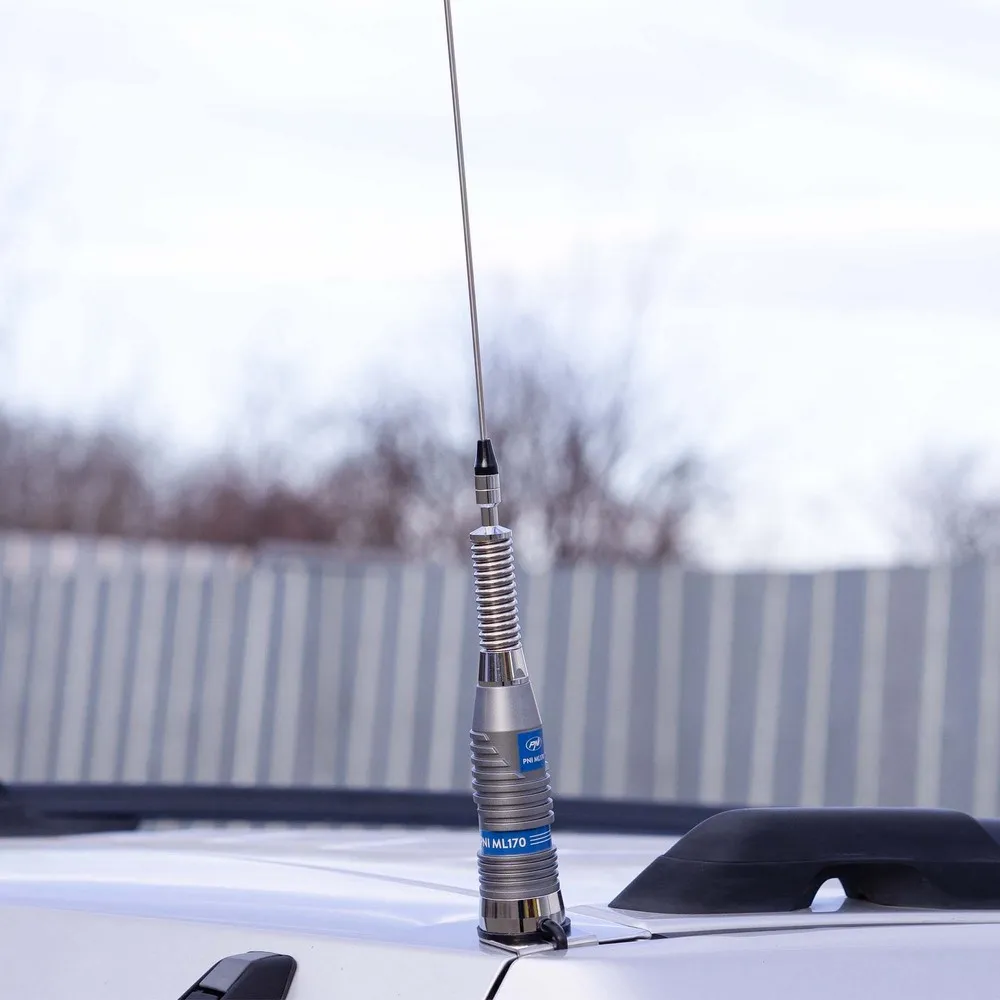

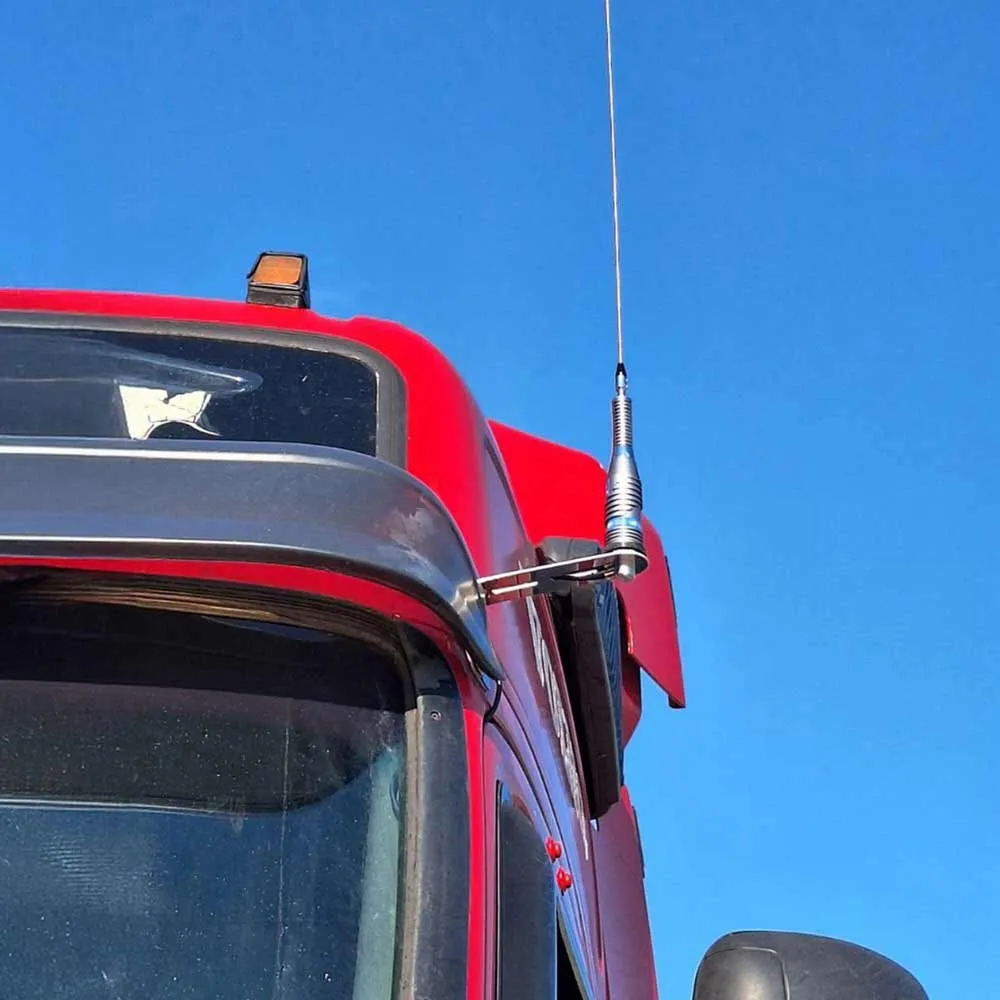

- The PNI ML170 CB antenna with ø 16 mm thread is compatible with all PL type magnetic bases (we recommend a minimum of 145 mm, PNI 145/PL). It can be mounted directly on a fixed PNI L1 / L2, PNI T941 type support or on a SPA100 support for mounting the antenna on the trunk or SPA110 for mounting the antenna on the mirror together with a PNI T601 connection cable.

High quality materials:

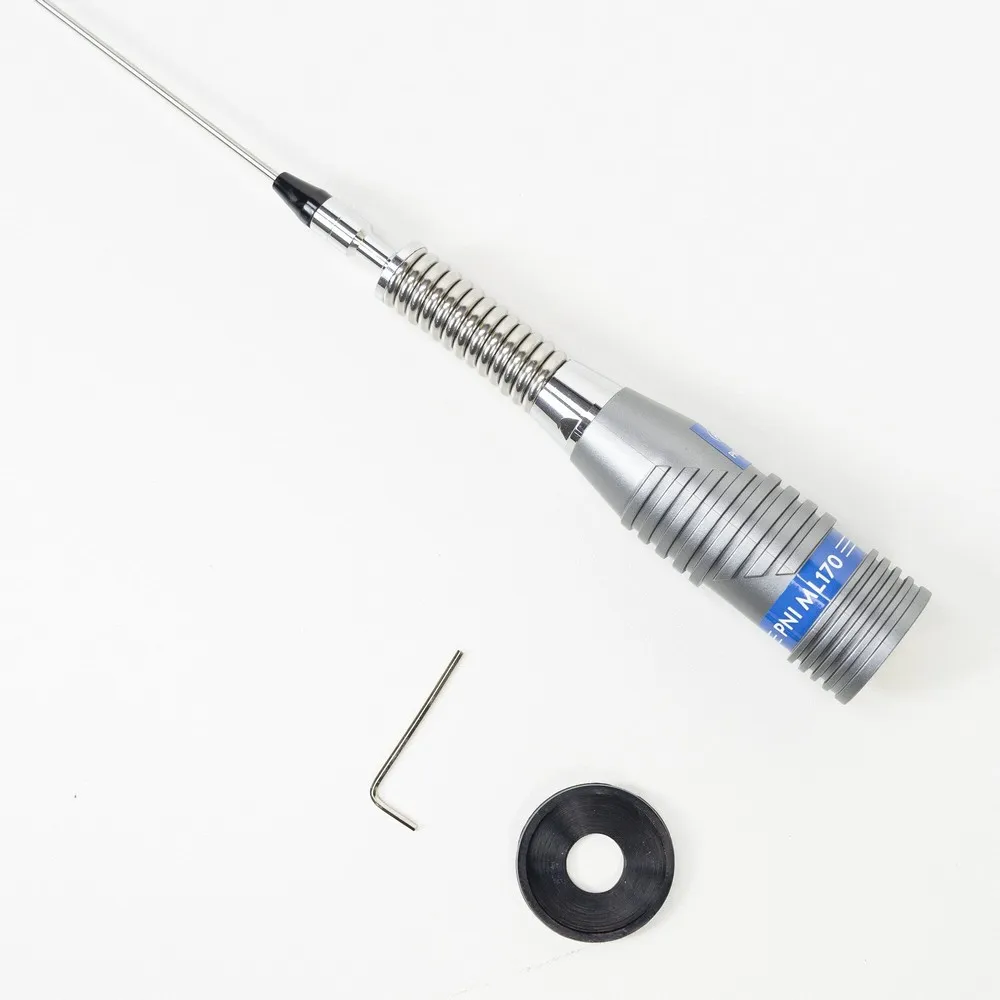

- The antenna body is made of stainless steel, and the coil is made of chrome-plated copper, ensuring wear resistance and a special aesthetic appearance. The PNI ML170 CB antenna comes prepared with everything you need for quick installation: rubber gasket, Allen key for tightening the spike.

Specifications:

General features:
- Operating frequency: 26 - 30 MHz
- Number of channels: 400
- Maximum applied power: 1000W
- Minimum S.W.R. in the center of the band: less than 1.2:1
- Length: 168 cm
- Impedance: 50 Ohm
- Material: Stainless steel
- Connector type: PL
- Hole diameter: 16 mm
- Weight: 350 gr
- Dimensions: 37 X 37 X 1680 mm
- Polarization: Vertical
- Working distance: 15 km
- Operating temperature: -26°C ~ +80°C

In the box:
- Radio antenna: Yes
