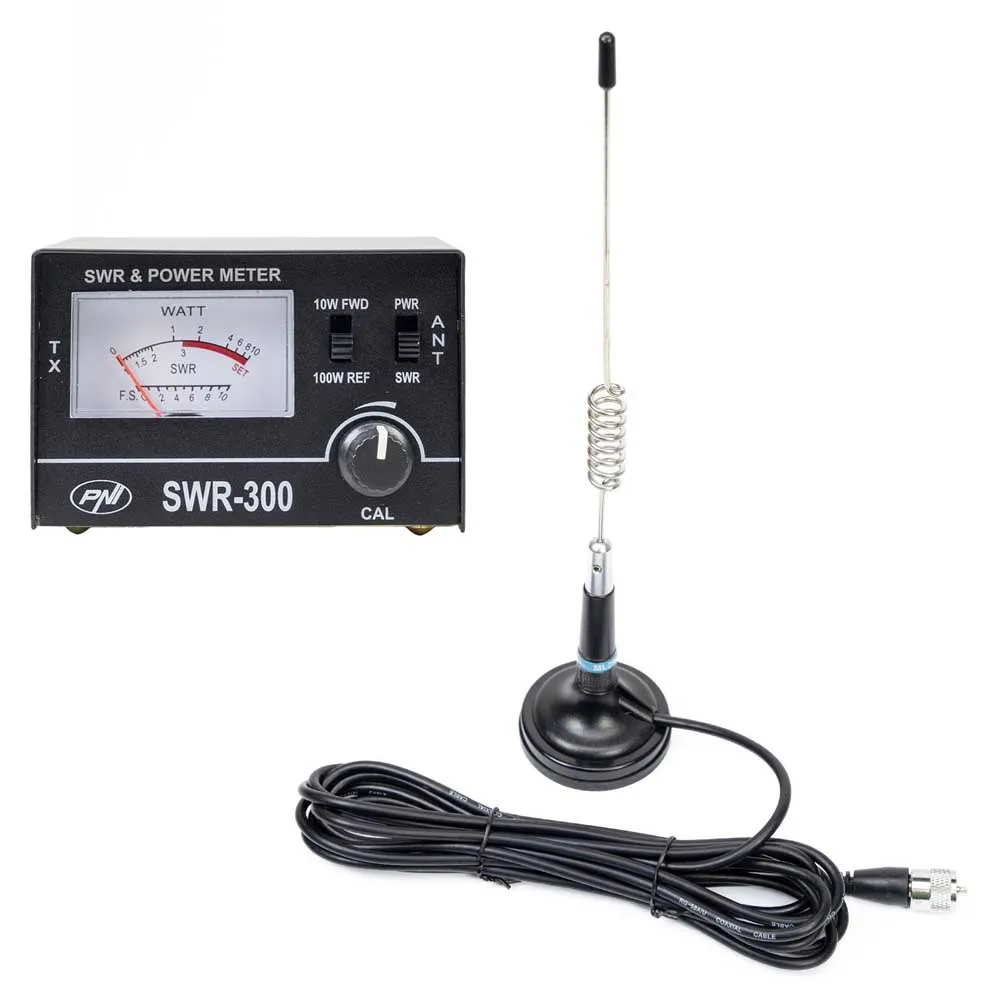

PNI ML29 & SWR-300 Reflectometer cb antenna

PNI-ML29 - PNI ML29 CB antenna, length 34 cm, with included magnet diameter 70 mm and RG58 cable.

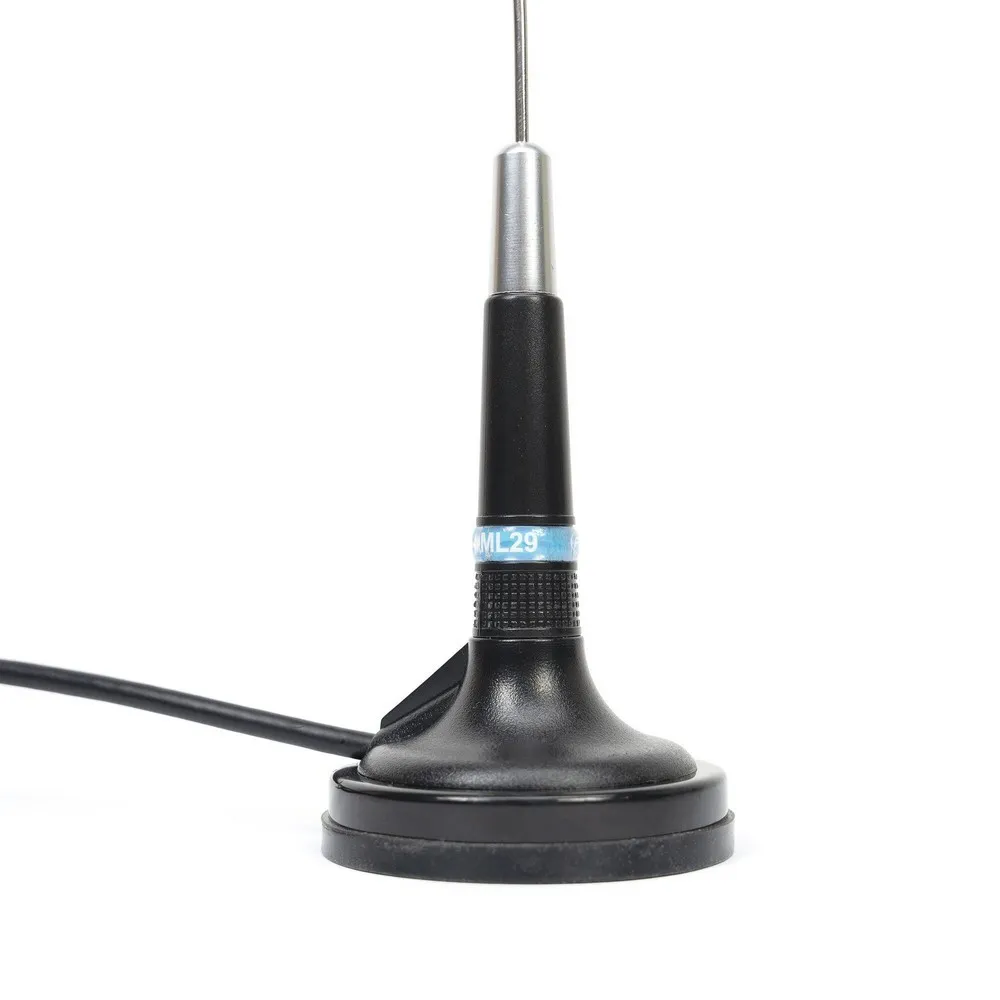

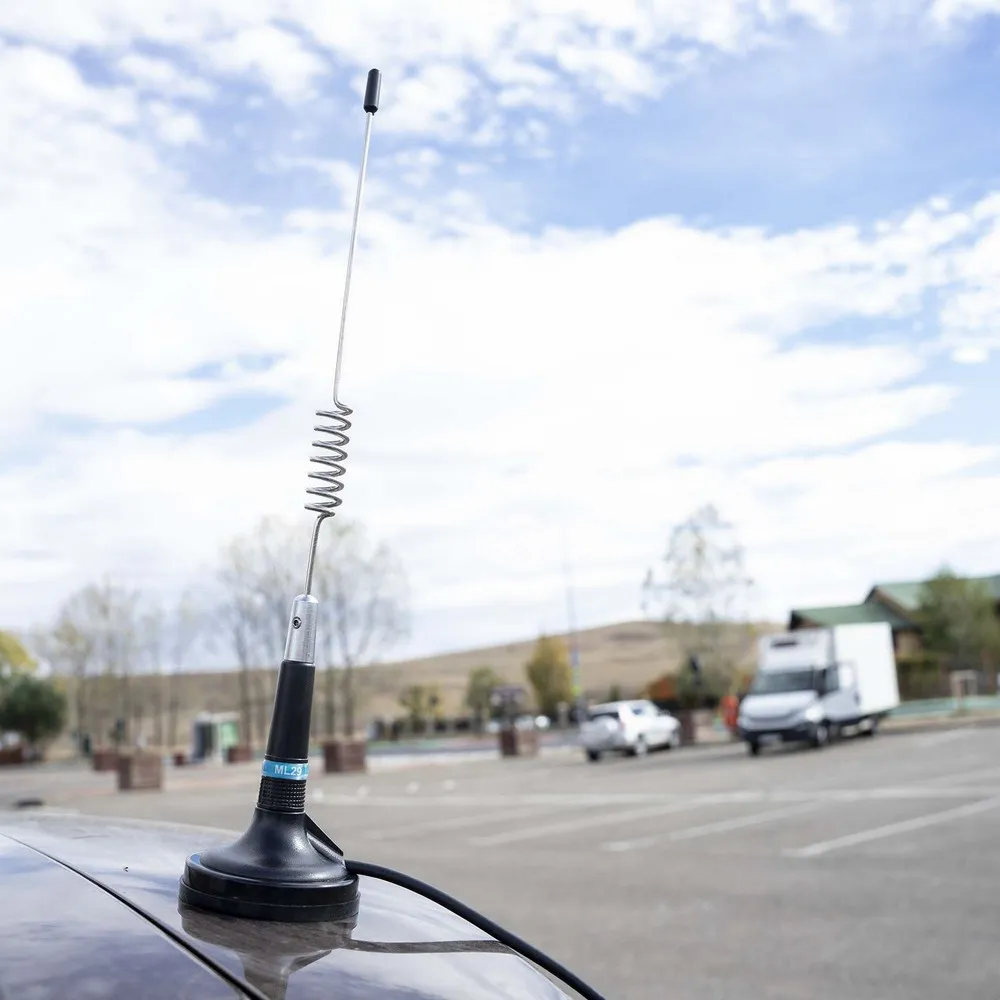

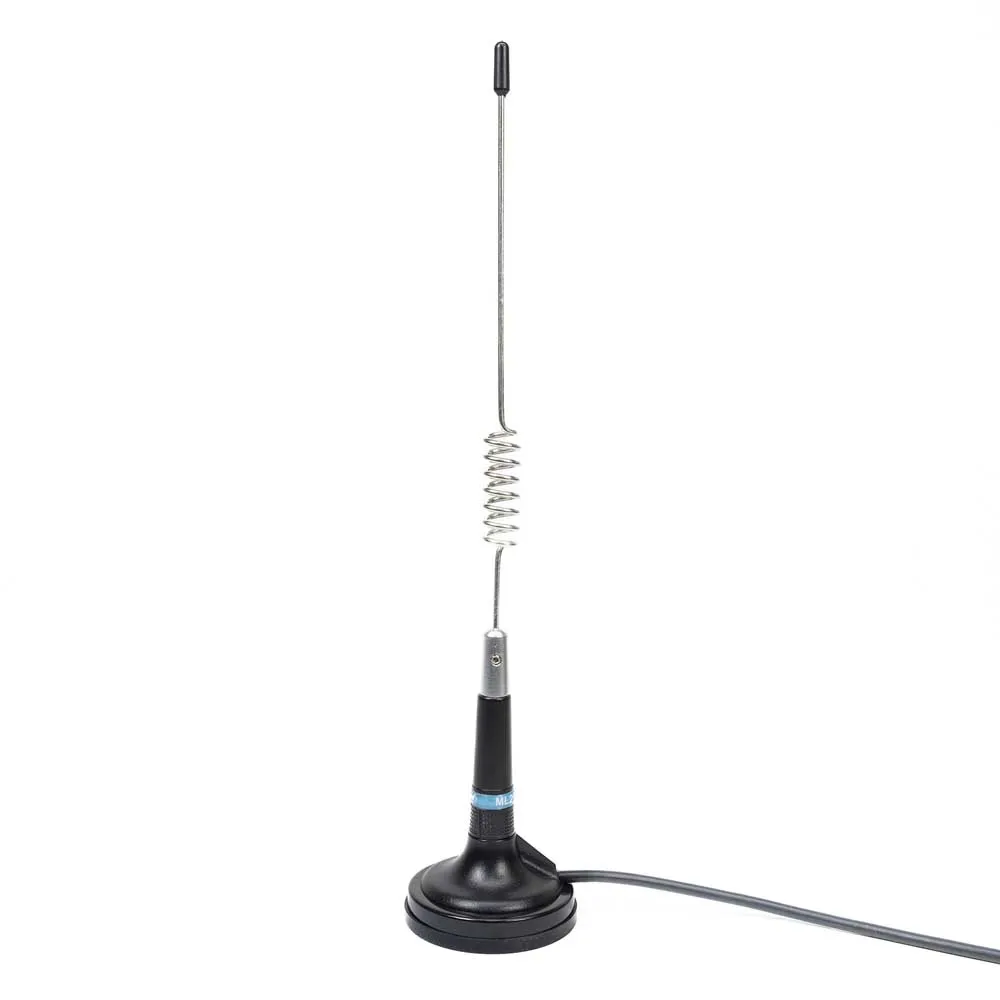

CB antenna with magnetic base:
- 34 cm long and with a Ø70 mm magnetic base, the PNI ML29 can be an alternative when you are looking for a small, economical and easy to install car antenna.

Radio communications in the CB frequency band:
- Compatible with any CB radio station, the PNI ML29 antenna is suitable for use in vehicles and offers a convenient option for communication in the 26-28 MHz frequency band.

Practical and safe:

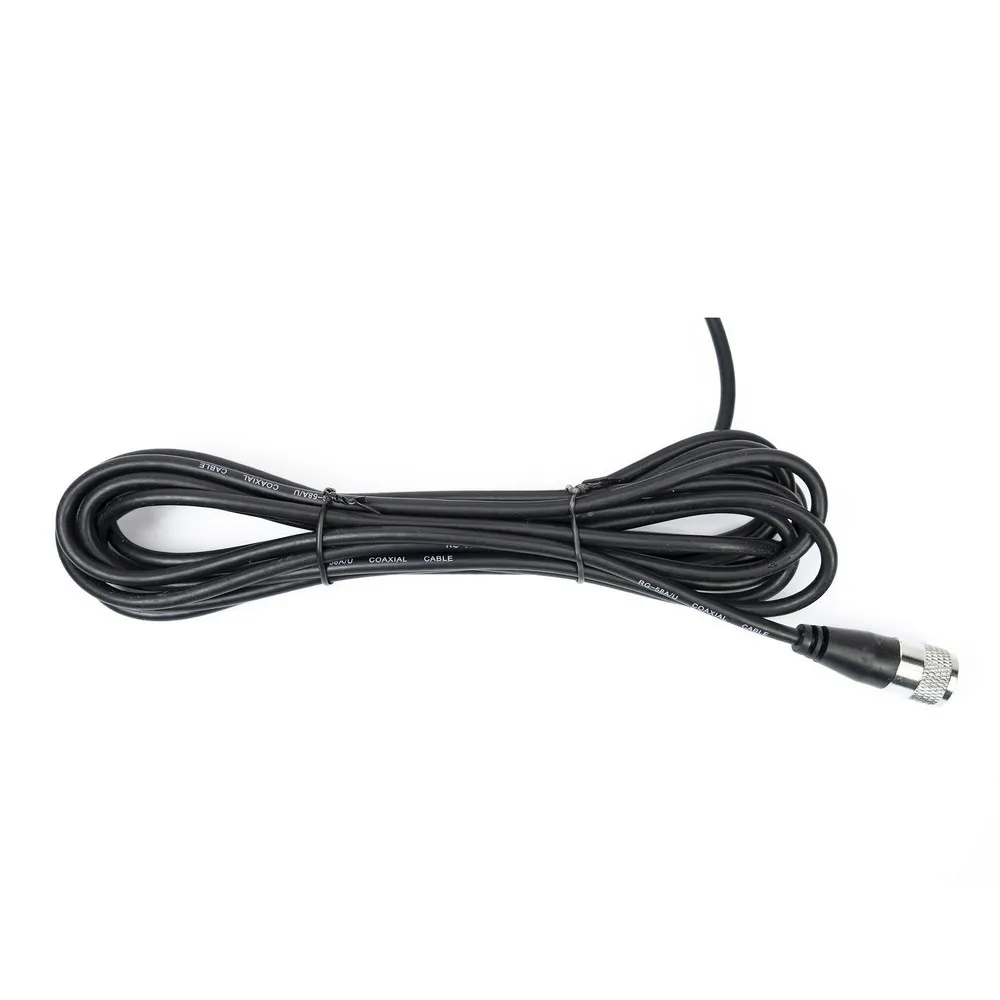

- Due to its small dimensions, the antenna can be easily mounted and removed from the car when you leave for the road or return home. The magnetic base antenna includes a 4 meter RG58 cable with a PL259 plug for connection to the CB radio station.

Specifications:

PNI-ML29 - CB antenna PNI ML29 length 34 cm, with magnet included diameter 70 mm and RG58 cable:

General:
- Frequency of work: 26 - 28 Mhz
- Maximum power applied: 200W
- Minimum S.W.R. in the center of the lane: less than 1.2:1
- Length: Spike length: 230 mm
- Impedance: 50 Ohm
- Material: Copper, Stainless Steel
- Connector Type: M6 threaded
- Cable length: 4m
- Weight: 250 gr
- Dimensions: 340 x 70 x 70 mm (magetic base included)
- Win: 3 dBi
- Polarization: Vertical
- Working distance: 7 km
- Magnetic base: 70 mm
- Operating temperature: -26°C ~ +80°C

In the box:
- Radio Station Antenna: Yes
- RG58 Cable: Da, 4 meters
- PL259 Plug: Yes
- Magnetic base: Yes

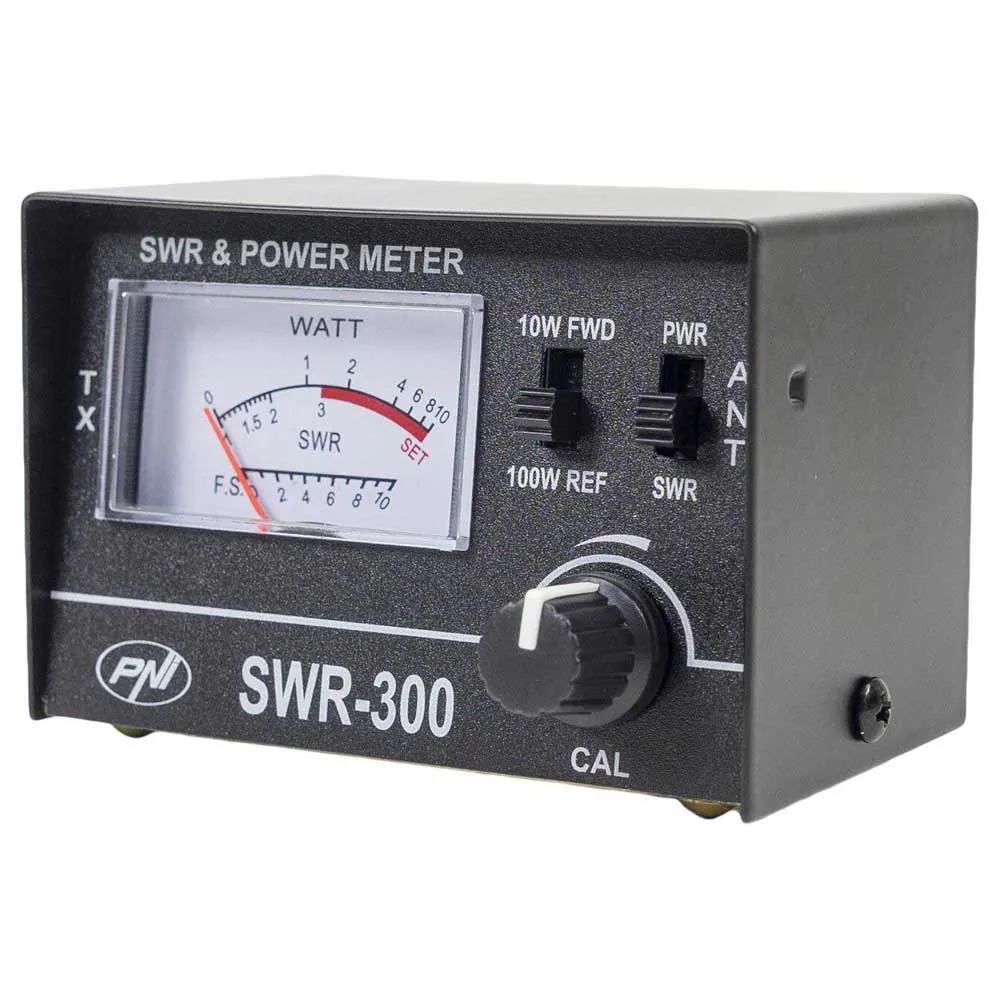

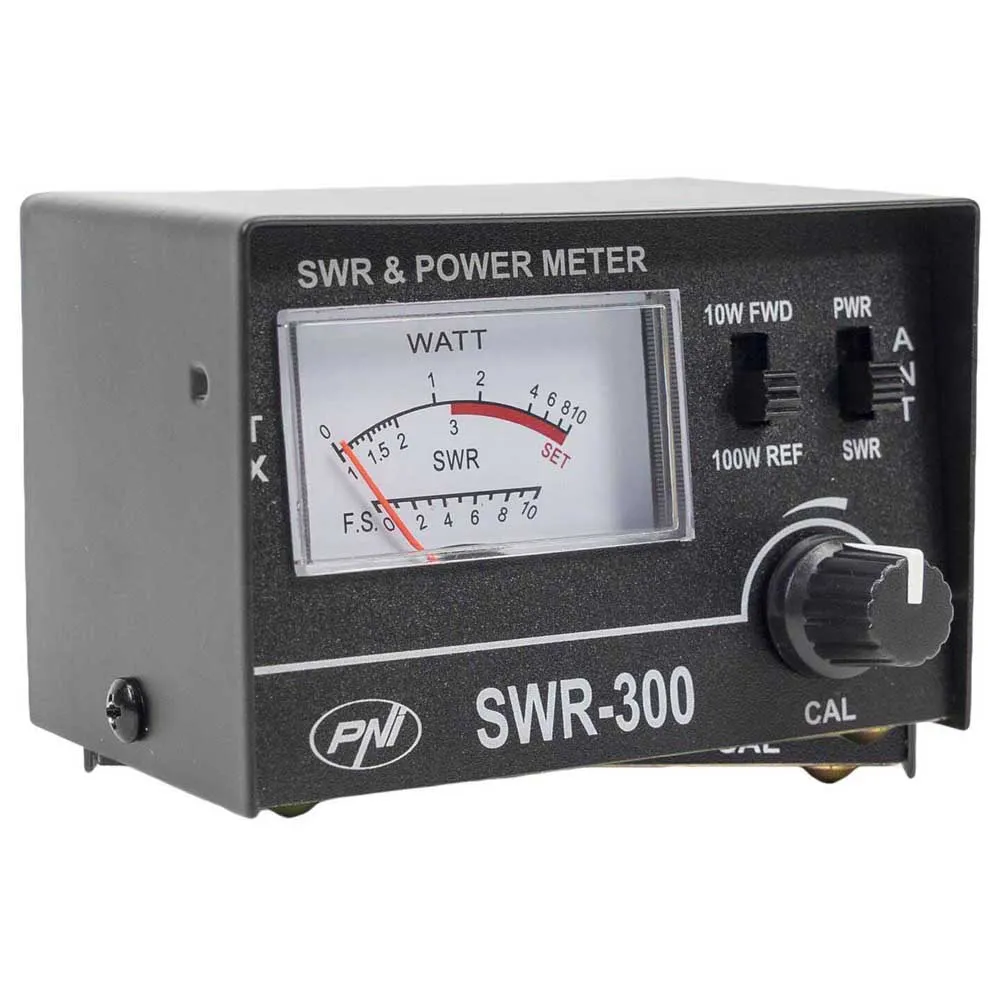

PNI-SWR300 - PNI SWR-300 PWR-SWR Meter reflectometer, for measuring SWR radio antennas in frequency 26-30Mhz and power of CB radio stations:

General:
- SWR Measurement: Yes
- Power measurement: 0.5-10 W / 10-100 W
- Accuracy: SWR ± 5% / POWER ± 10%
- Frequency: 1.5-150MHz
- Dimensions: 85 X 76 X 58 mm
- Impedance: 50 Ohms

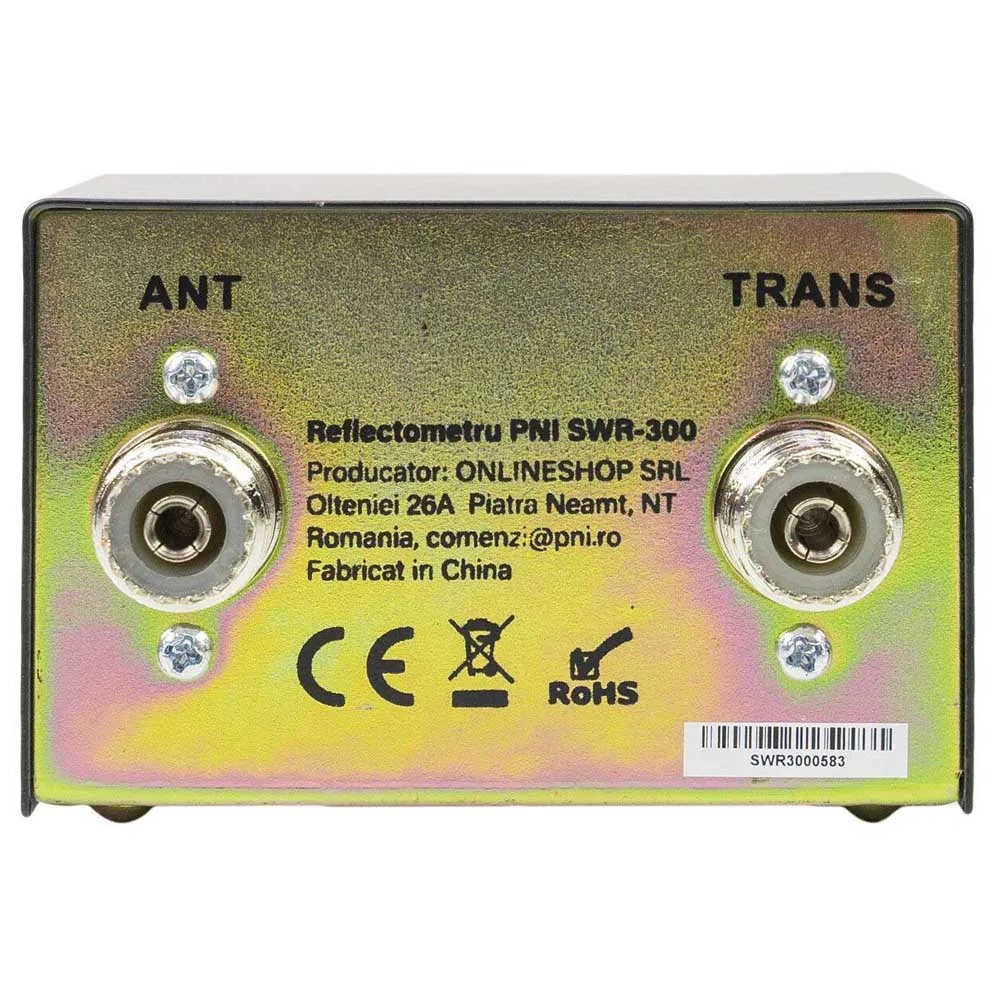

- Connector: SO 239

In the box:
- Reflectometer: Yes
- User manual: Yes
