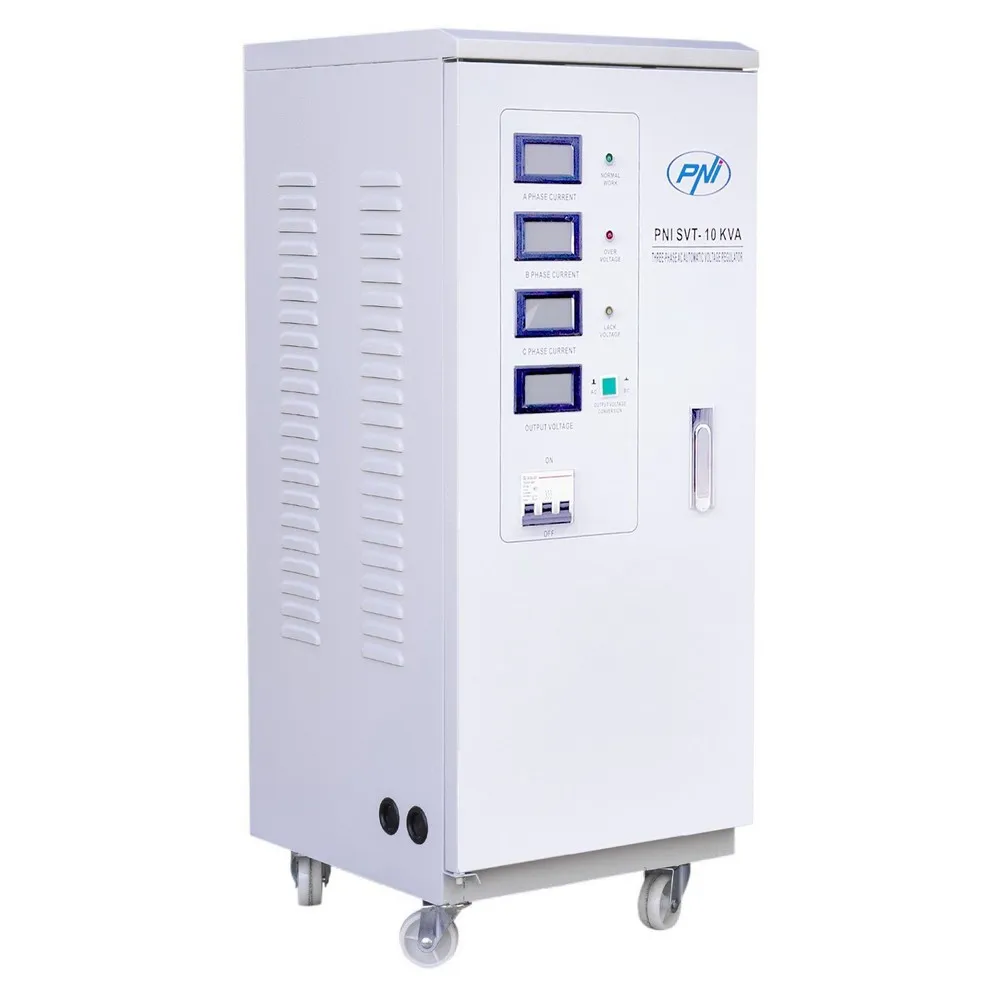

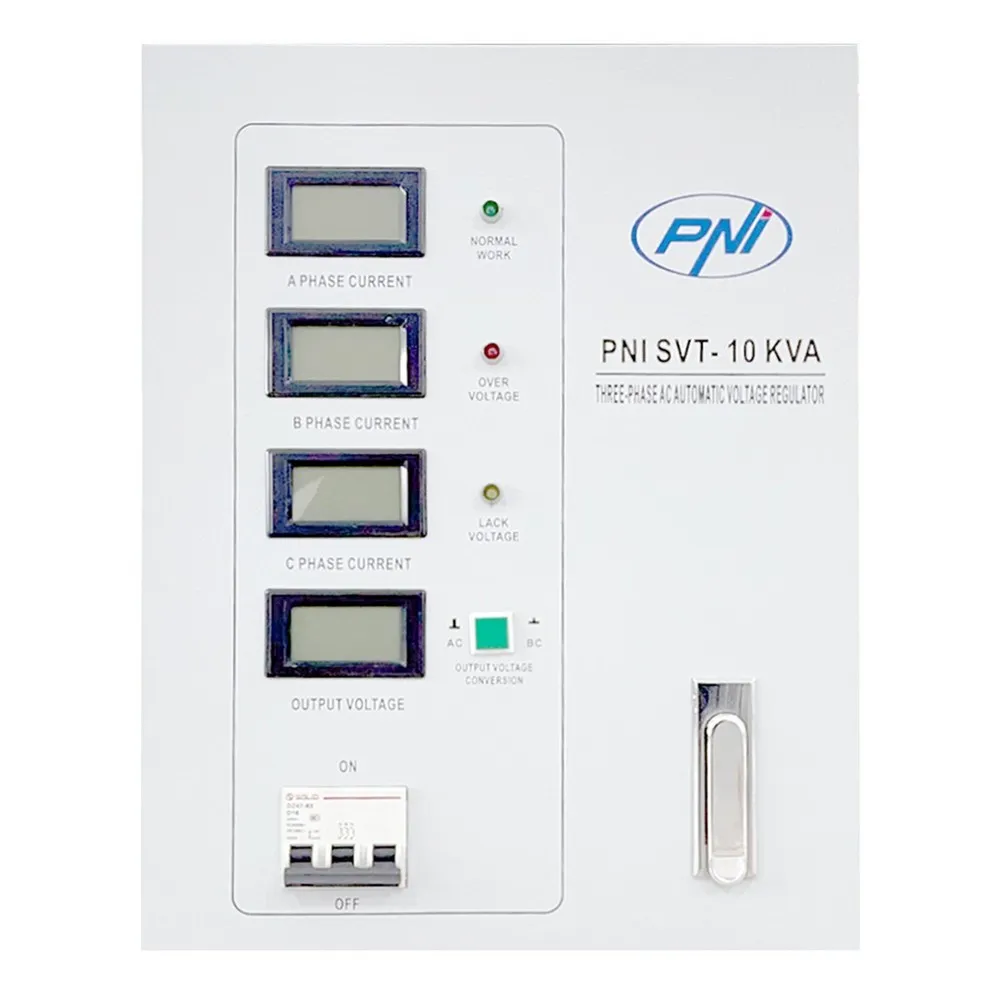

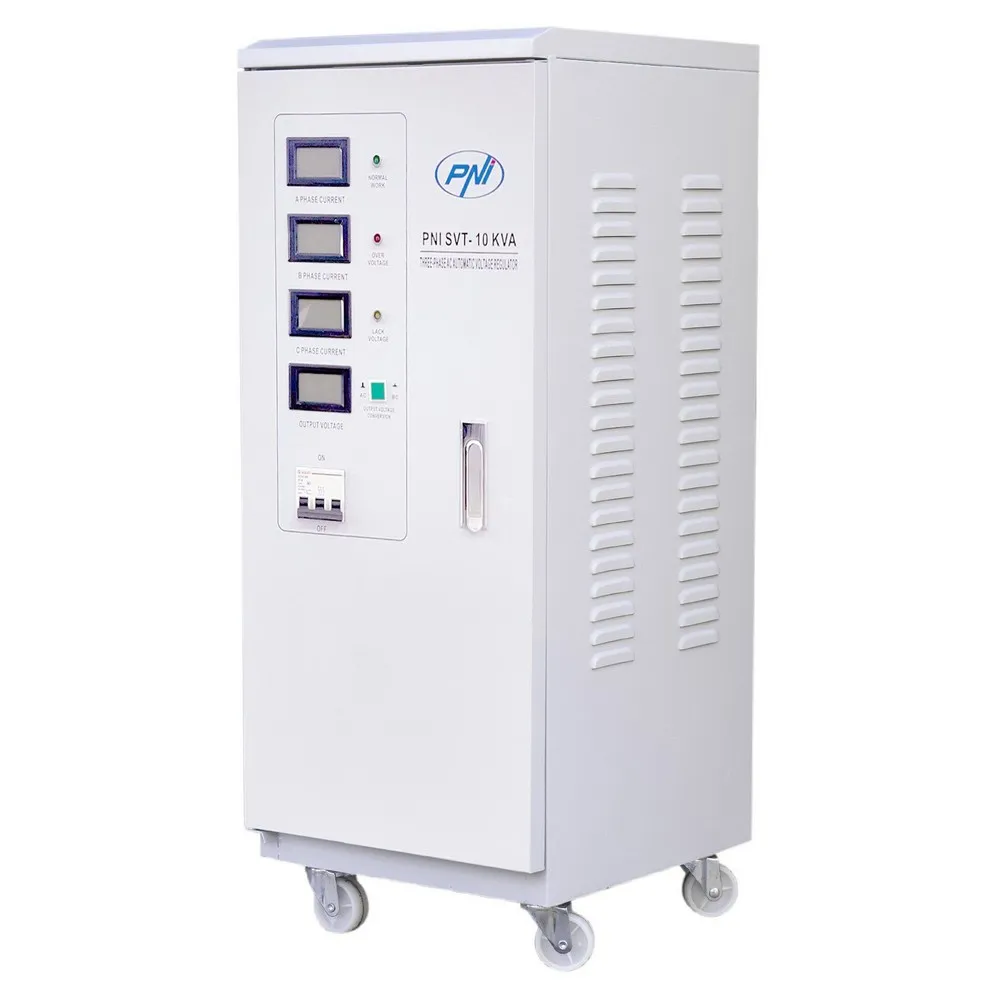

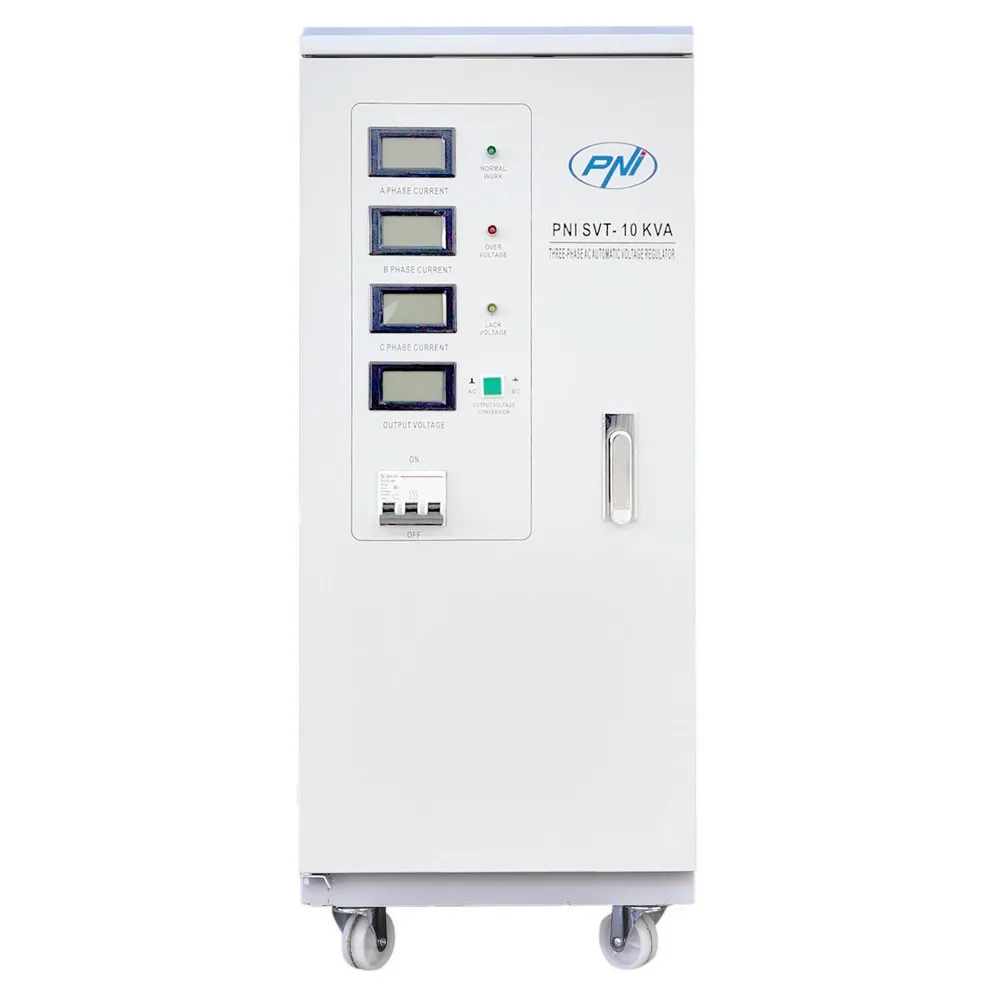

PNI SVT-10K voltage stabilizer

Features:

Automatic voltage stabilizer:

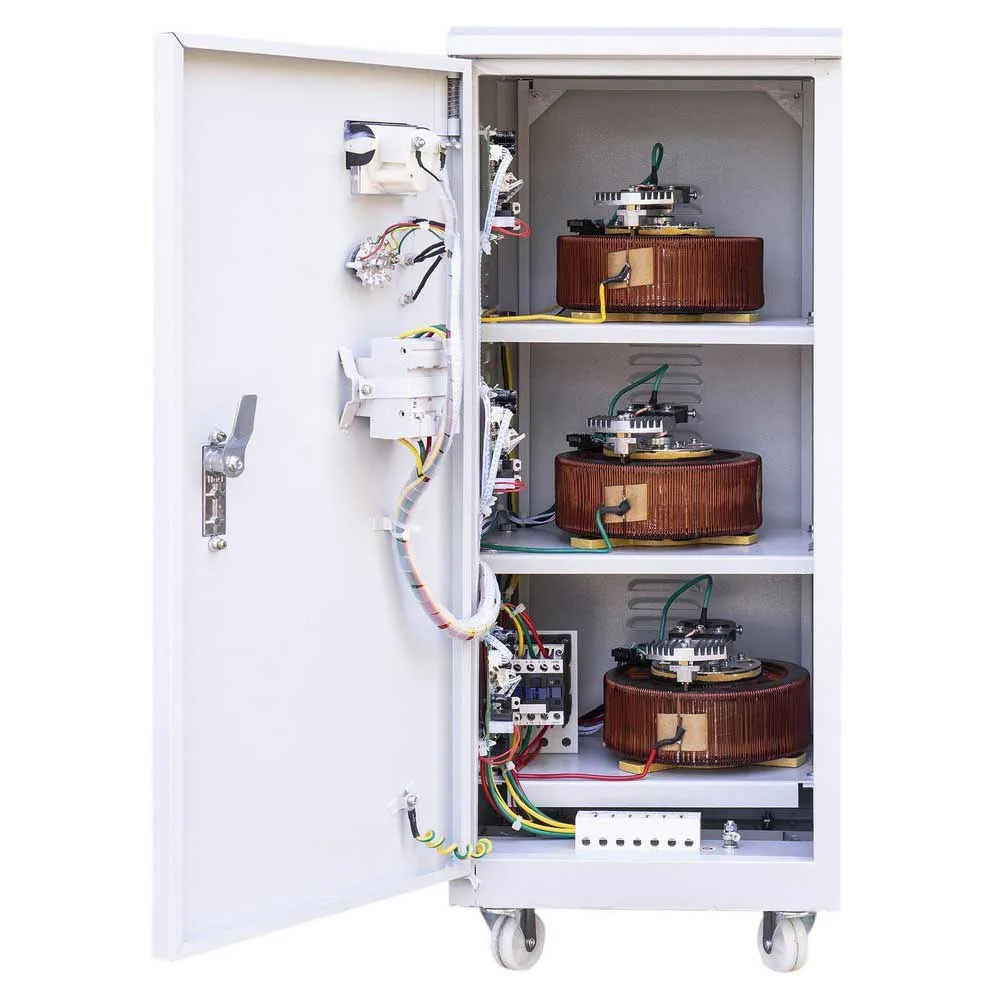

- The PNI SVT-10K three-phase voltage stabilizer with servomotor consists of a contact voltage regulator, a servo-electromotor and a self-control circuit. The self-sampling circuit that sends a signal for the operation of the servomotor and for adjusting the position of the carbon brush, will ensure constant operation of the output voltage.

Automatic voltage regulation:
- The PNI SVT-10K three-phase voltage stabilizer has been designed to maintain a constant voltage level. When the voltage from the public network fluctuates, the stabilizer will automatically adjust the voltage as close as possible to the preset value to ensure the normal operation of various electrical and electronic equipment. Servo motor voltage stabilizers have large capacity, high efficiency, no wave distortion, automatic voltage regulation, long service life and performance.

Three-phase AVR - applications:
- The PNI SVT-10K three-phase voltage stabilizer can be widely used in industry, agriculture, transport, post and telecommunications, in the military, railway, scientific, cultural fields, in the metalworking industry, in production lines, together with engineering equipment, medical equipment, computer control equipment, in the radio and television field.

Independent automatic three-phase power regulation:
- When dealing with three-phase power, it is not uncommon to find that one phase has a ´´high´´ voltage level, while another has a ´´low´´ voltage level. In this situation, adjusting the voltage level of all three phases together may not produce satisfactory results. That is why the PNI SVT-10K three-phase voltage stabilizer regulates each phase independently. Independent phase regulation provides better balance of voltage levels from phase to phase. Large differences in voltage levels from phase to phase can cause malfunctions in electrical devices.

Specifications:

Features:
- Capacity: 10KVA
- Output voltage: 380 V / 400V
- Input frequency: 50/60 Hz
- Nominal Input Voltage: 277V ~ 433V AC
- Working temperature: -10°C ~ +45°C
- Humidity: max. 95% (non-condensing)
- Dimensions: 310 x 345 x 720 mm
- Weight: 37.72 kg
- Surge protection: Yes
- Low voltage protection: Yes
- Phase: Three-phase
- Power Factor: 0.8
