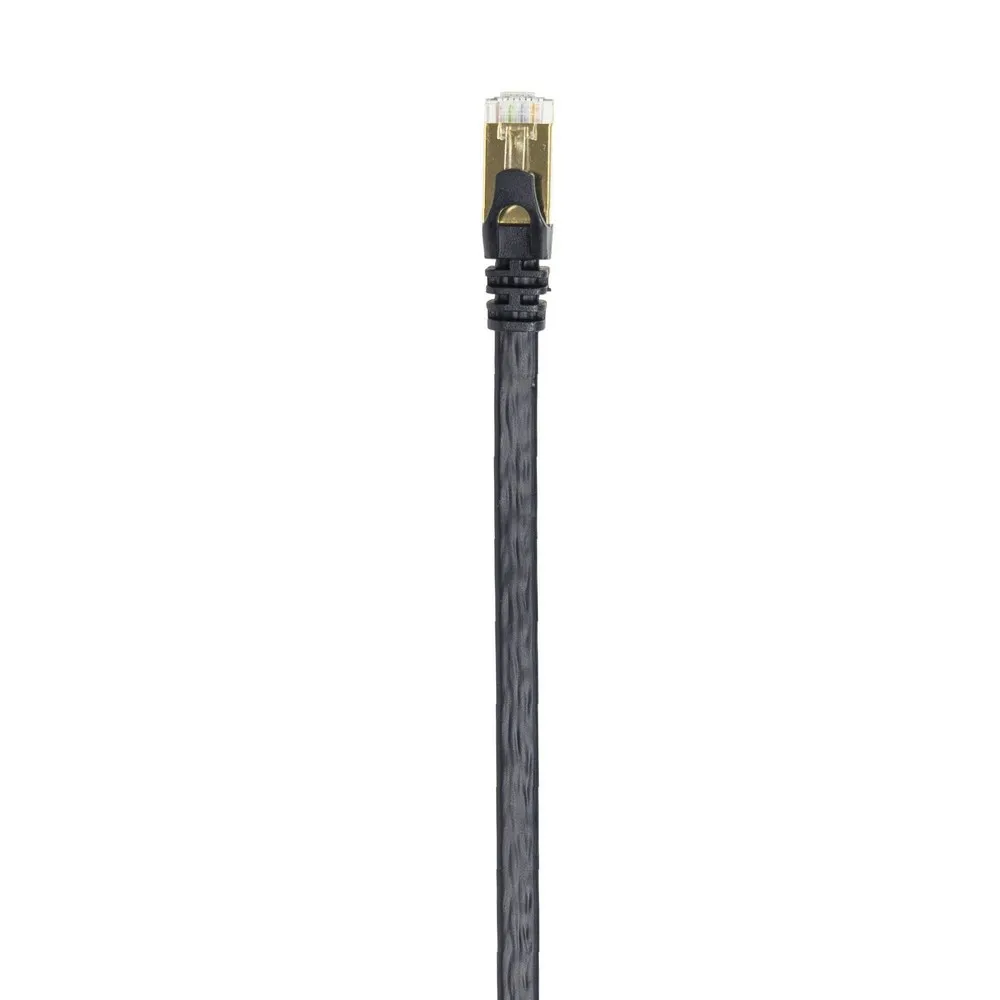

PNI U7150B 15 m CAT7 network cable

Flat network cable S/STP CAT7 PNI U7150B, 2 x RJ45, 4 pairs of wires, 32AWG, copper, 10 Gbps, 600 MHz, 15m.

Stable and fast connection up to 10 Gbps:
- The PNI U7150B S/STP CAT7 flat network cable is a quality product designed to improve your internet connection. It is ideal for use in homes, offices and other spaces where a fast and stable connection is required in tandem with a modern design.

The connection of up to 10 Gbps will make you forget about blockages or buffering and enjoy video streaming, gaming or data transfers at maximum quality.

Low interference, modern design:

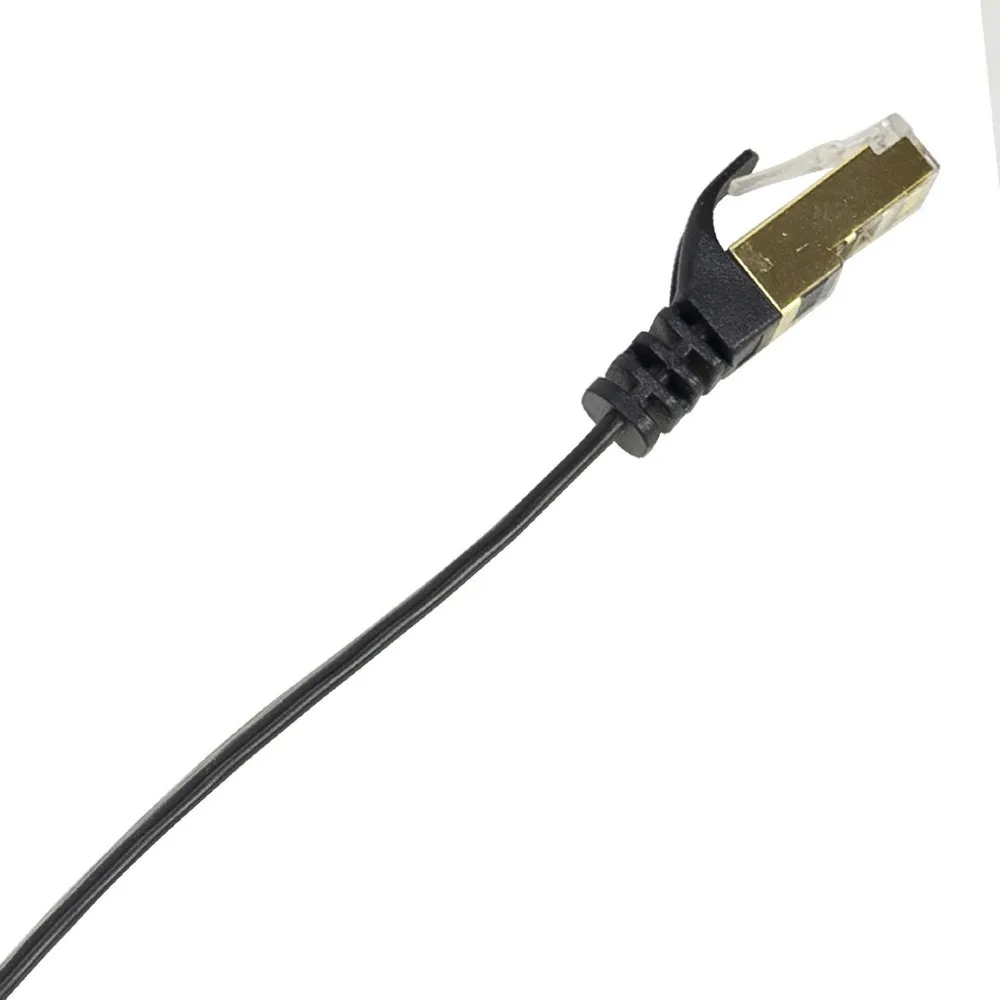

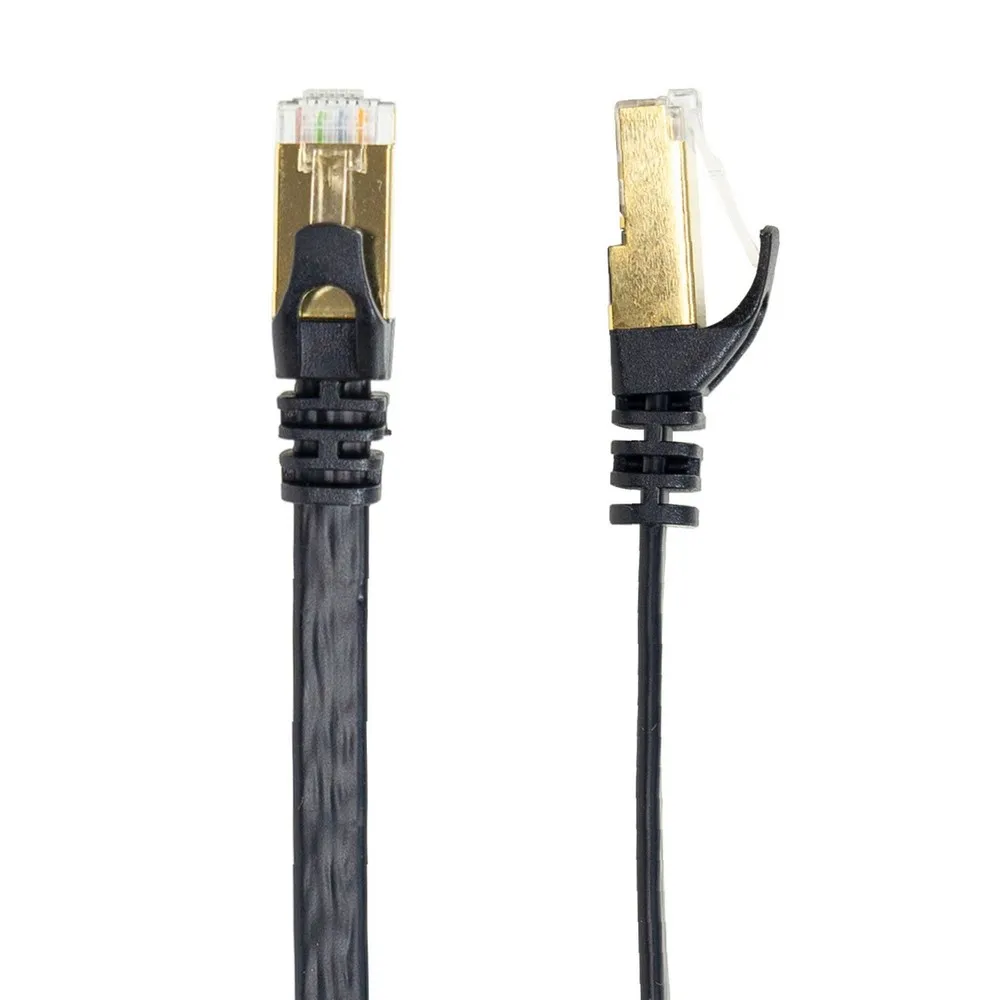

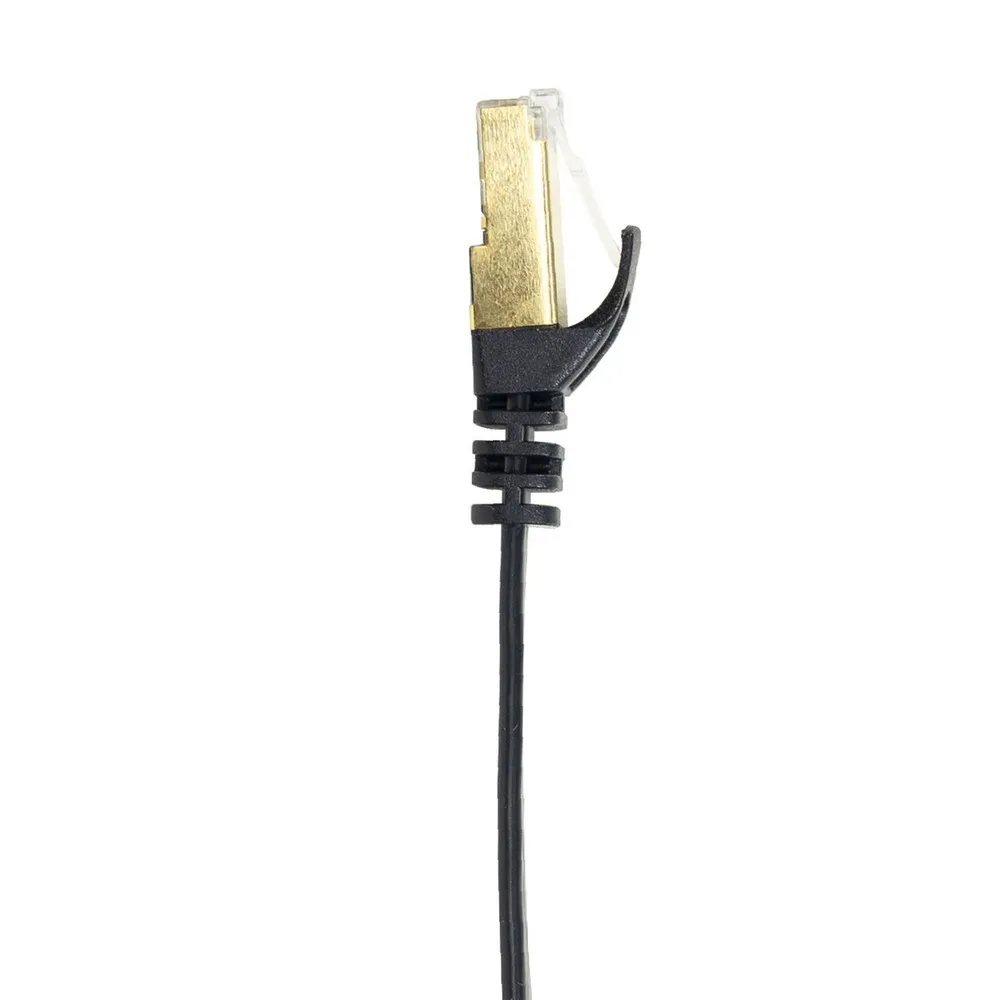

- It is equipped with 2 RJ45 jacks, 4 pairs of 32AWG copper wires and can transmit data at speeds of up to 10 Gbps at frequencies of up to 600 MHz.

Thanks to its construction , the PNI CAT7 flat network cable is resistant to interference and offers constant and linear performance and stability.

The smart choice for the future:
- With the PNI U7150B CAT7 network cable, the speed and stability of your connection will never be a problem again. It is the perfect solution for all those who value quality and performance in their daily connectivity.

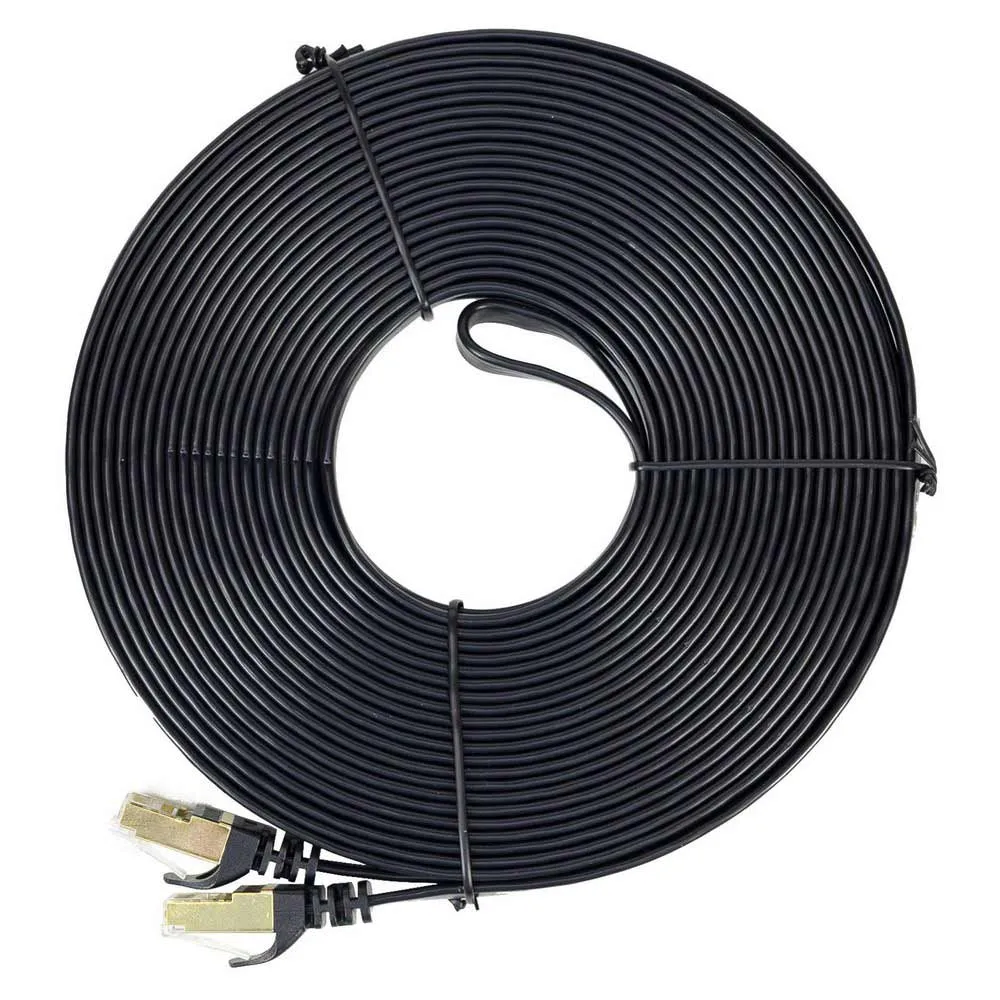

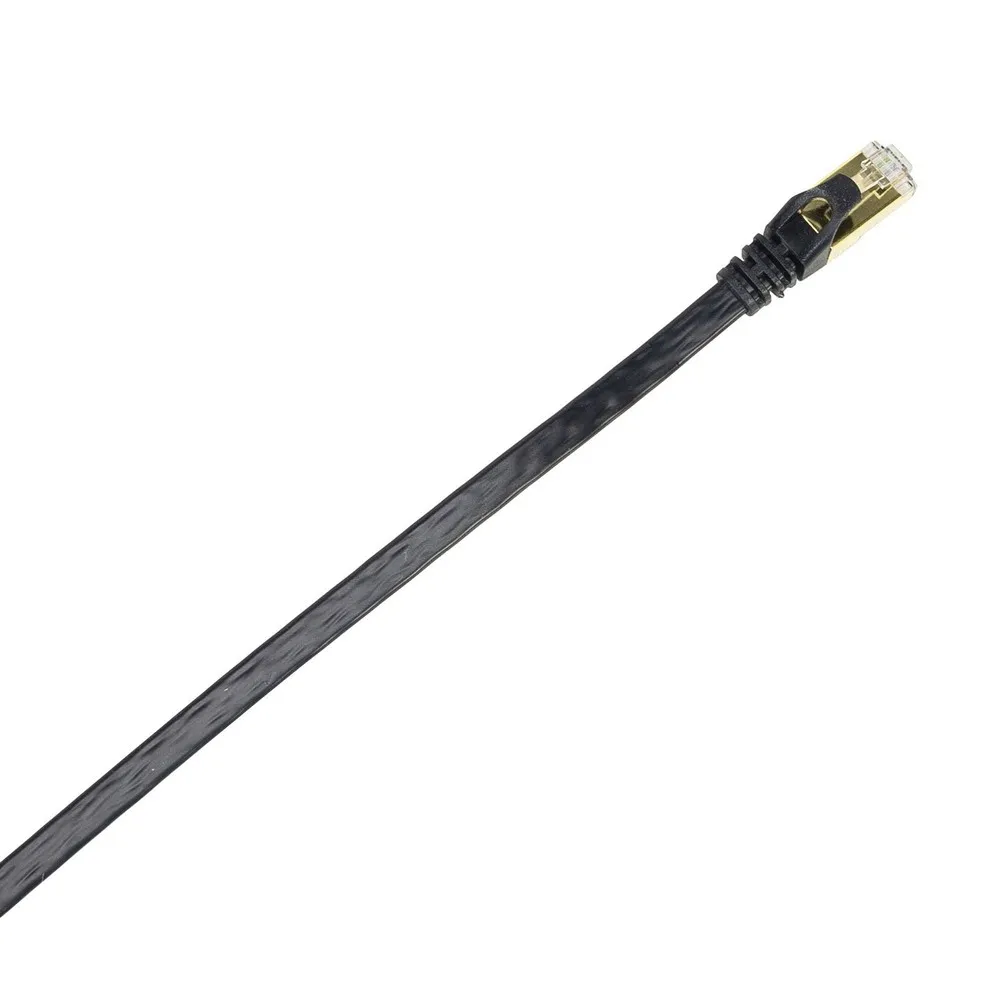

The flat and flexible design of the cable makes it suitable for any location, whether it´s your home office or your work office.

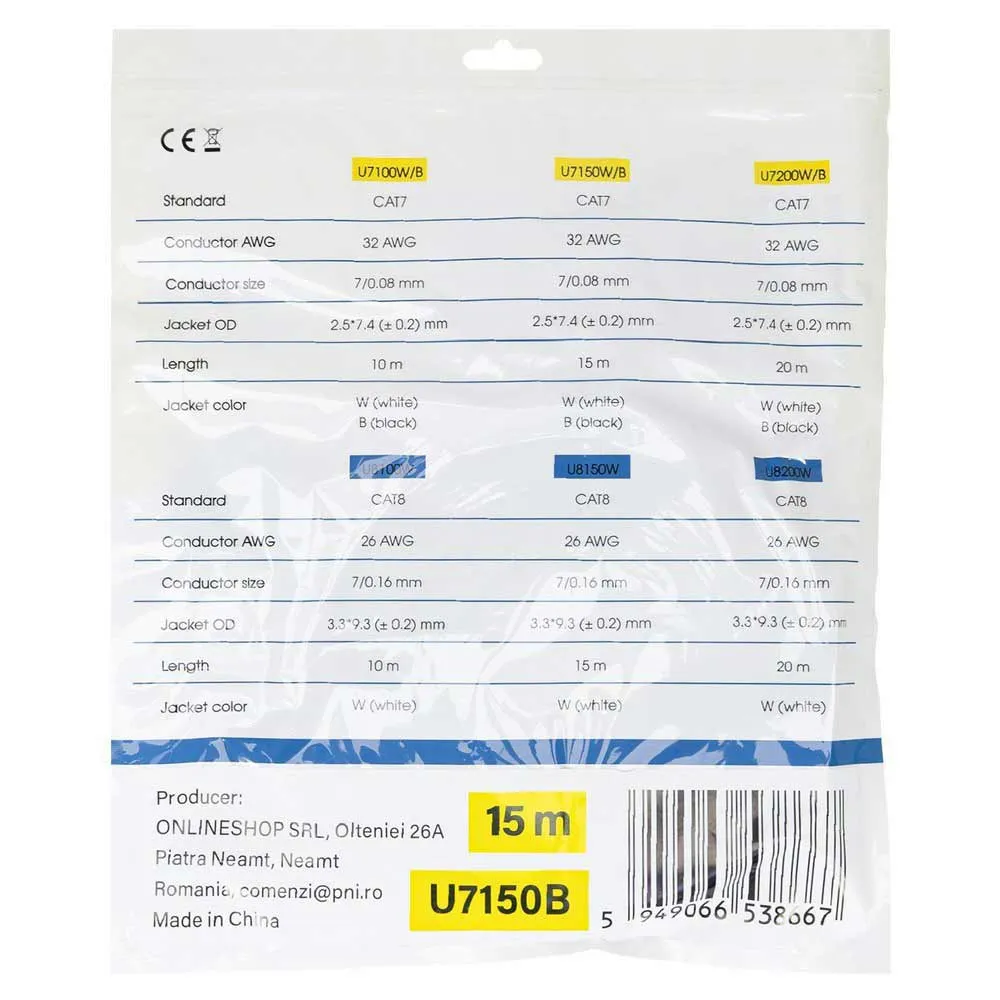

Technical specifications:

- Cable type: S/STP CAT7
- Frequency band: 600MHz
- Maximum speed: 10Gbps
- Cable length: 15 meters
- Conductor: AWG 32 AWG Material Copper Size 7/0.08±0.008 mm
- Insulation: Average thickness 0.12 mm Material HD-PE Outer diameter 0.78±0.08 mm Number of wires 4 pairs
- Ground wire (drainage): AWG 32AWGx1C Size 7/0.08±0.008 mm TC
- SCREEN: Coverage 100% Overlap 25% Material AL-Mylar
- Outer shell: Average thickness 0.51 mm Material PVC Outer diameter 2.5x7.4( ± 0.2) mm
- Input impedance: 100±15%Ω (@4~100Mhz) 100±22%Ω (@100~600Mhz)
- Nominal temperature: -26 ~ 80°C
- Propagation delay: 548ns/100m max
- Propagation discrepancy: 45ns/100m Max
- Maximum unbalanced capacitance: 330pF/100m
- Conductor resistance: 589Ω/Km @20°C
- Minimum insulation resistance: 5000 MΩ.Km
- Minimum bending radius: 8 x outer diameter of the cable

In the box:
- Network cable: Yes
