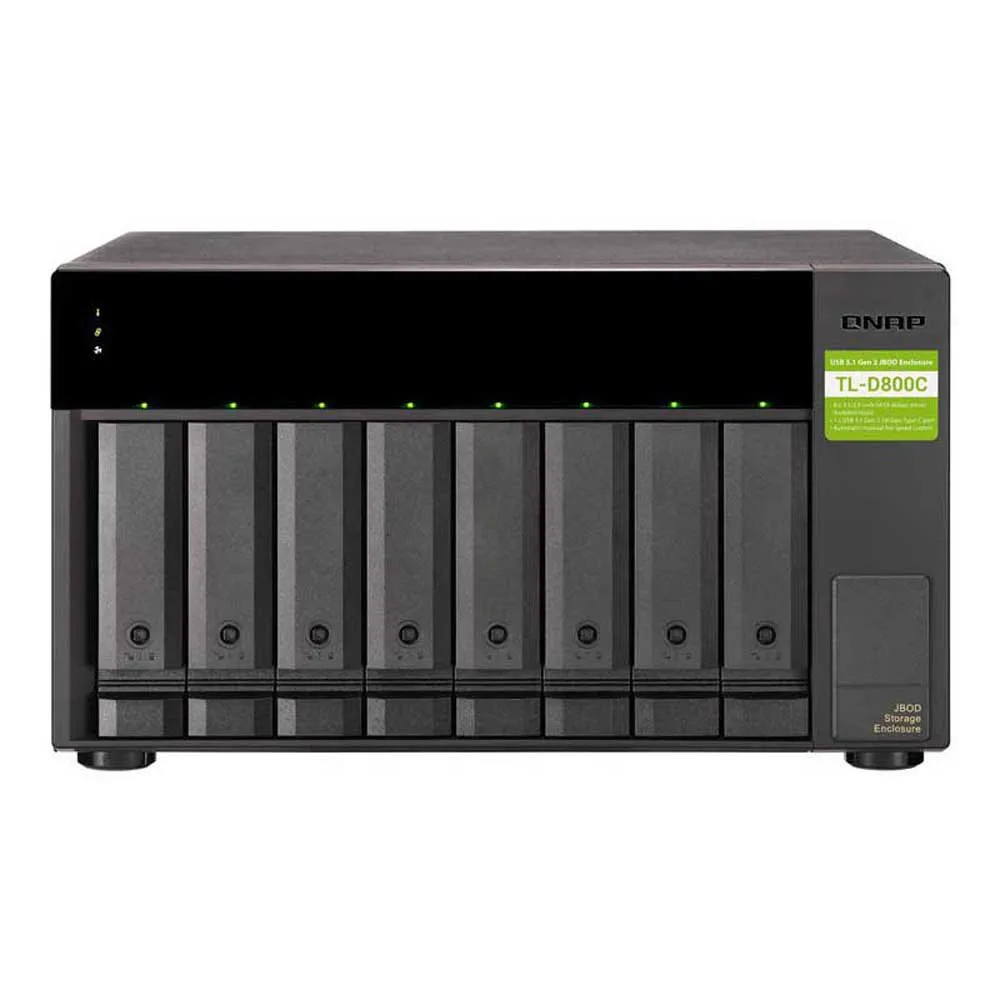

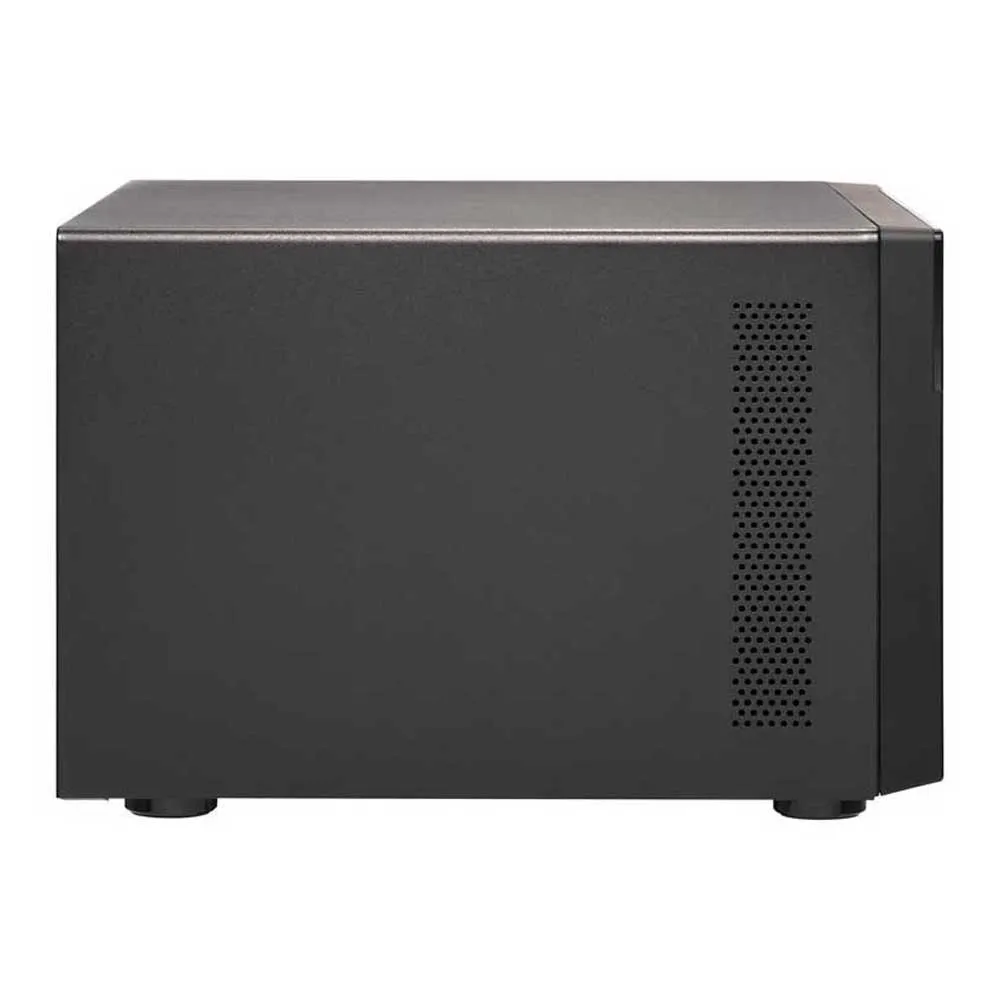

Qnap TL-D800C NAS

The JBOD TL-D800C storage box allows you to backup and expand your QNAP NAS drives and computers (Windows and Mac supported).

The TL-D800C includes eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity for a fast and seamless expansion solution.

Flexible storage management and configuration.

The TL-D800C offers software-controlled configurations for greater management flexibility.

Users can configure RAID and monitor disk health using the QTS Storage and Snapshot Manager / QTS hero on a QNAP NAS, or using the QNAP JBOD Manager utility on their computer.

What do you need to know.

You can connect your TL-D800C to Windows, Mac, and Ubuntu computers via the USB interface and use the built-in utility to manage RAID settings.

Intelligently monitor JBOD box status on PCs and servers with QNAP JBOD Manager.

QNAP JBOD Manager is a desktop utility for monitoring TL-D800C on Windows and Mac computers.

You can quickly obtain and view information about the status and condition of JBOD and fan rotation speed, as well as check for updates.

the firmware version.

All device incidents are logged and QNAP JBOD Manager will automatically send system alert notifications to your desktop.

JBOD migration speeds up remote file transfers.

Migrating a large number of small files or a single large data file across a network environment can be time-consuming and consume a significant amount of network bandwidth, reducing work efficiency.

The TL-D800C supports remote file transfer.

All you have to do is adjust the RAID settings and store a large number of files.

You can then move the TL-D800C to another location and connect it to your computer or NAS to enjoy the device´s easy Plug and Play function and fast data migration.

Use TL-D800C as a high-capacity disk drive reader by setting single disk mode.

You can treat each disk on your TL-D800C as an individual storage space and also use it as a removable drive.

It can function as a high-capacity drive reader.

When one of the disks reaches the data storage limit, you can delete it and put it in a dry box.

Then place another disk into the empty drive slot of the TL-D800C.

Then, you can install the full disk into the TL-D800C and connect it to your computer or NAS to directly access the files.

Versatile usage scenarios to meet storage expansion needs.

The TL-D800C addresses many storage expansion needs of both home and office users.

Here is a list of possible usage scenarios:Scenario 1:Expand the capacity of your NAS.

The TL-D800C offers users an alternative method to expand NAS storage capacity.

By connecting the TL-D800C to their NAS and using the Storage and Snapshot Manager in QTS or QTS hero, users can easily configure and manage their storage expansion.

The TL-D800C supports various storage and file management functions of QNAP NAS, allowing users to create storage pools, search files with Qsirch, and organize files with Qfiling.

Scenario 2:External storage for your NAS.

You can use the TL-D800C to expand your NAS storage.

You can select drives to create storage pools to expand the capacity of your NAS, or you can treat each drive as an individual external storage space and use it as a removable drive for added flexibility.

No matter which mode you use, you can always use the Storage and Snapshot Manager in QTS or QTS hero to configure and manage your TL-D800C, and use SMART for hard drives and Notification Center to check the disk status anytime, anywhere.

Scenario 3:Expand the storage space of your Windows, Mac and Ubuntu computer.

You can use your TL-D800C with Windows, Mac and Ubuntu computers to expand more storage space.

You can adjust the RAID settings of your TL-D800C to further improve data protection.

In addition, you can also use single disk mode and format with exFAT file system to ensure more convenient file access and sharing between Windows and Ubuntu computers.

High speed USB transfer.

The TL-D800C features high-speed USB 3.2 Gen 2 Type-C connectivity and UASP (USB Attached SCSI Protocol) for fast, convenient file sharing and intensive data transfer.

The TL-D800C not only gives you greater file transfer performance than traditional USB interfaces, but it also offers a more affordable option than the REXP SAS JBOD.

Specifications:-Quantity of USB ports:1.

-USB connector gender:Female.

-USB Connector:USB Type C.

-USB Version:3.2 Gen 2 (3.1 Gen 2).

-USB connection:Yes.

-Height:188.2 mm.

-Package weight:7.54 kg.

-Weight:6.18 kg.

-Depth:281.4 mm.

-Width:329.3 mm.

-AC adapter frequency:50/60 Hz.

-AC adapter input voltage:100 -240 V.

-Power supply:Alternating current.

-Relative operating humidity:5 -95%.

-Operating temperature range:0 -40 °C.

-Hot-swap:Yes.

-Number of supported storage units:8.

-Supported storage disk interfaces:Serial ATA II, Serial ATA III.

-Storage unit size:2.5/3.5´´.

-User manual:Yes.

-Screws included:Yes.

-Cables included:USB type C to USB type A.

-Number of keys included:2 piece(s).

-Integrated on/off switch:Yes.

-Fan diameter:12 cm.

-Number of fans:2 Fan(s).

-LED Indicators:Fan Failure, Hard Drive, Link.

-Product color:Black, Grey.

-Product Type:Hard Drive/SSD Enclosure.

-Data transfer speed:6 Gbit/s.

-Noise level:26.2 dB.
