Ram Mounts Double Ball Mount With Backing Plate

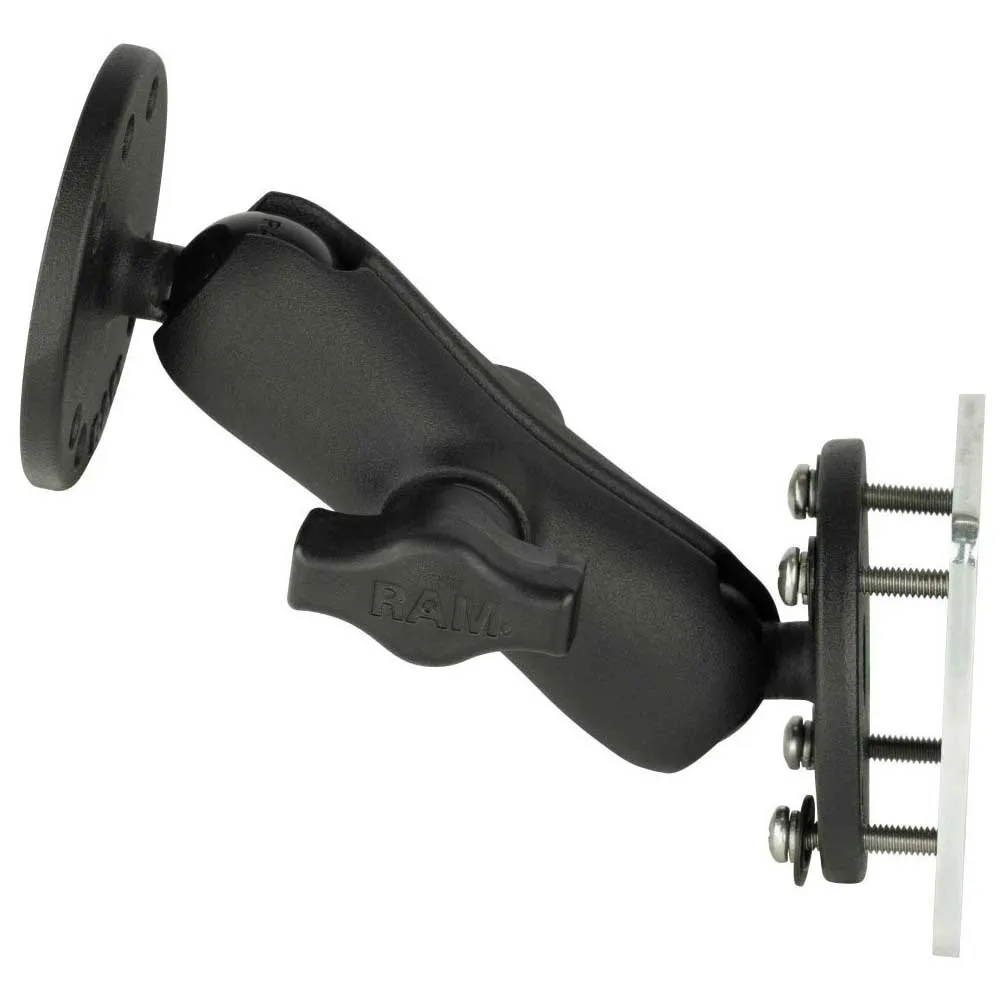

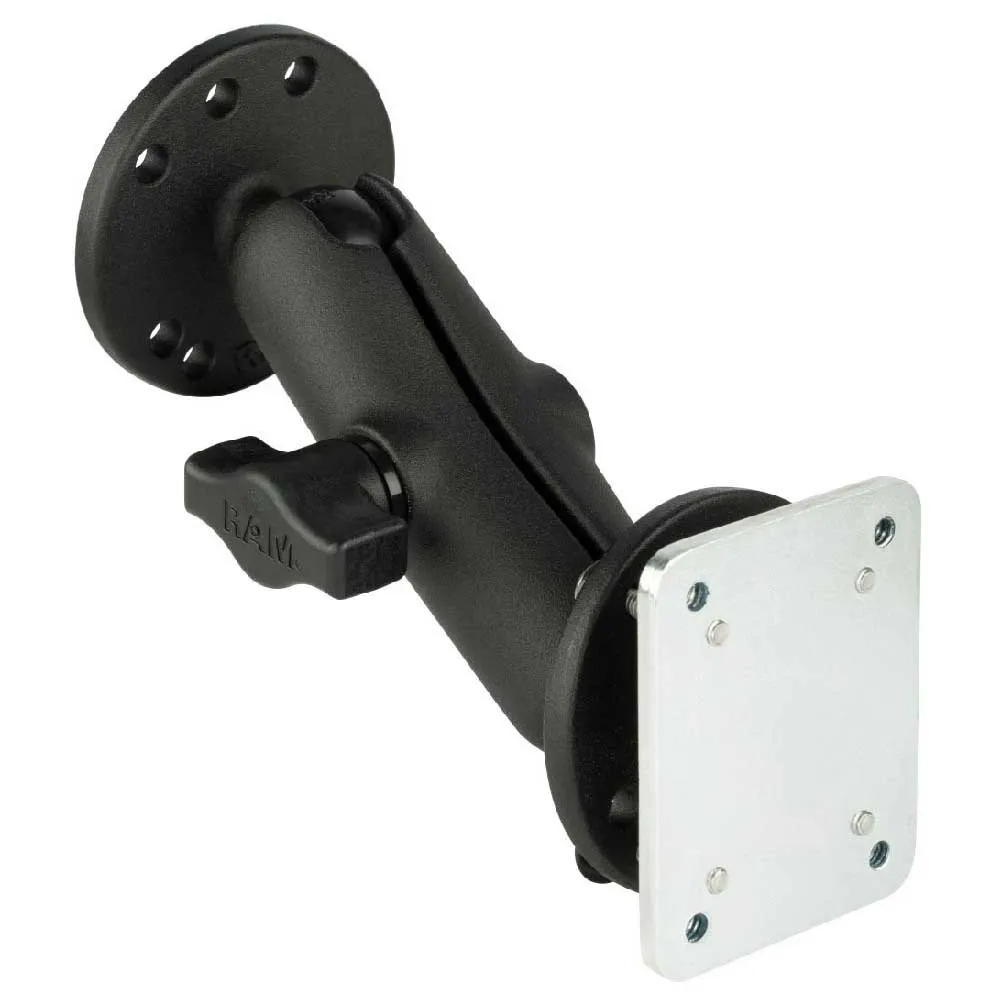

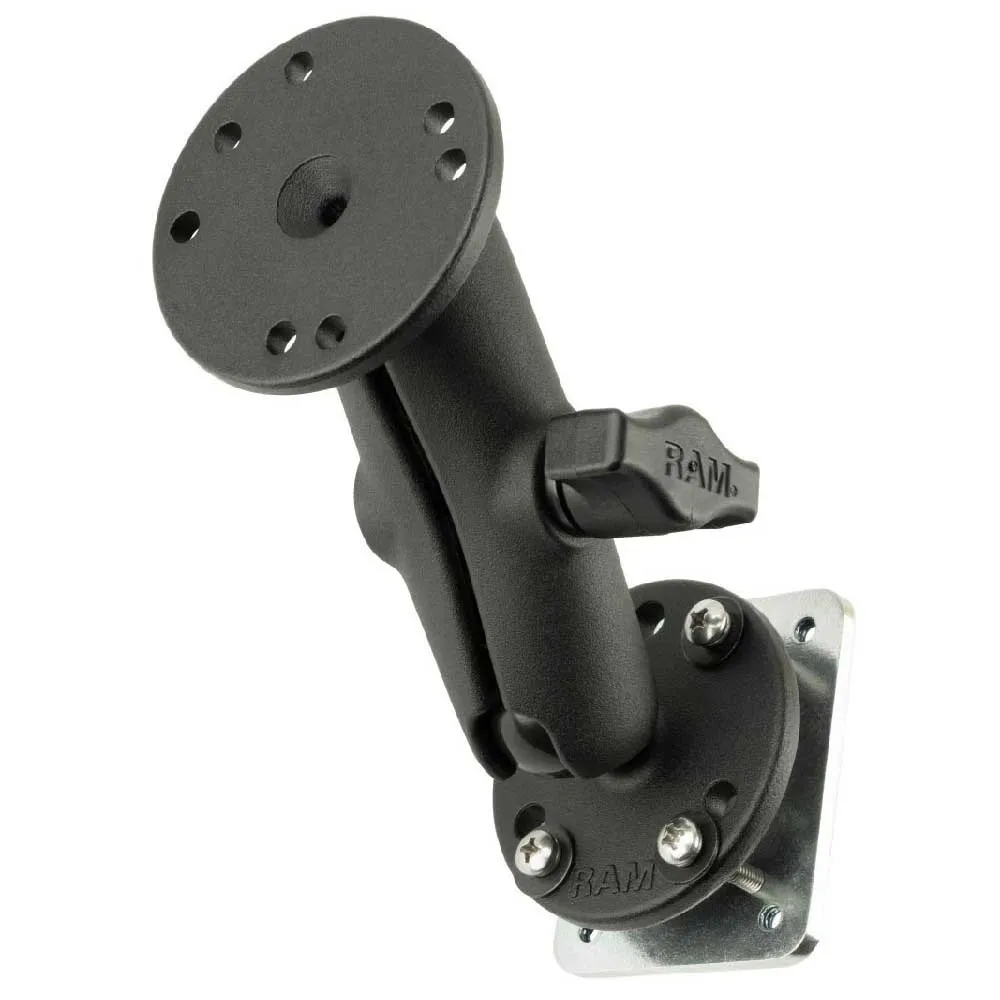

The consists of a double socket arm, two 2.5´´ diameter round bases that contain the universal AMPS hole pattern, a 2.10´´ x 2.60´´ backing plate, and mounting hardware. The mount is designed with a 1´´ diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Features:

- 2.10´´ x 2.60´´ steel backing plate attaches to a variety of RAM® Mounts ball bases
- 2.5´´ round plate with B size 1´´ RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes B size medium length double socket arm
- Made of stainless steel and high-strength composites for durability and reliability in the most demanding environments

Specifications:

- Overall Height: 5´´
- Socket to socket length: 3´´
- Ball size: B Size (1´´)
- Weight: 0.84 lb

Plate size:
- 2.5´´ Diameter
- 3´´ x 3´´ Square Plate

Hole pattern:
- 4-Hole AMPS: 1.181´´ x 1.496´´
- 3-Hole 120-Degree: 1.812´´ Diameter

Materials:
- Marine-grade aluminum
- Stainless steel

Weight capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb

Hardware included:
- (1) 2.10´´ x 2.60´´ Steel Backing Plate
- (4) 8-32 x 1´´ Screws
- (4) 8 Split Lock Washers
- (4) 8 Flat Washers
