Ram Mounts Horizontal 6´´ Fishfinders&Plotters Swing Arm Mount

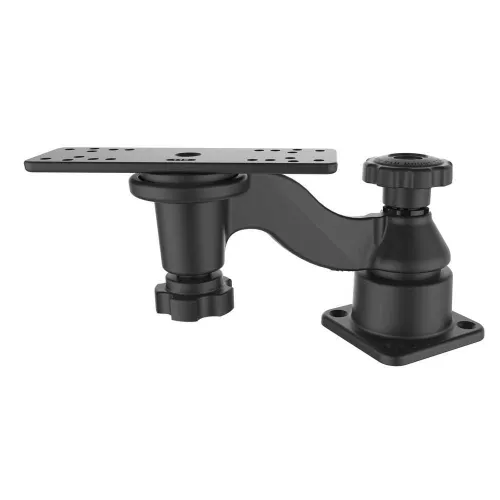

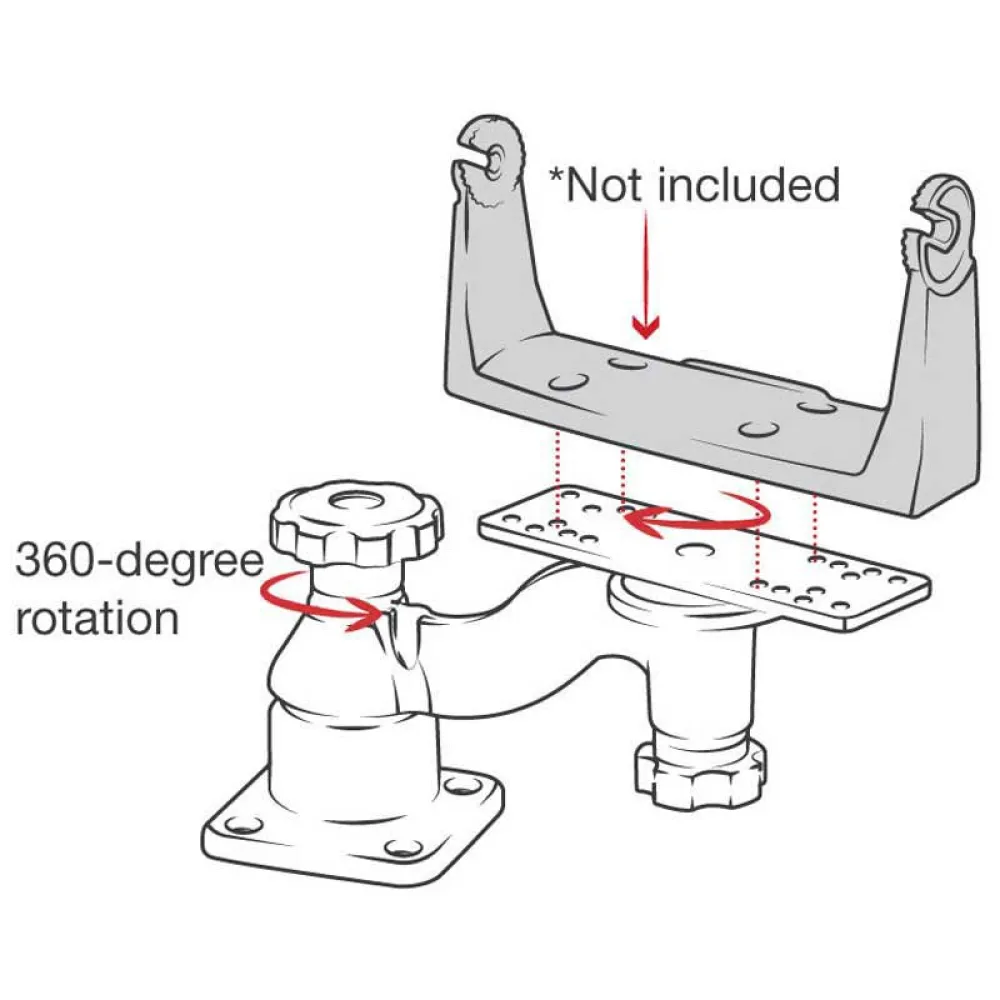

The Ram-109hu Consists Of A 6´´ Long Bent Swing Arm Mounted On A Horizontal Surface Base. At The Device Mounting End Is A Rectangular 6.25´´ X 2´´ Plate. There Are Two Pivoting Points On The Mount: One At The Base Of The Swing Arm And One At The Center Of The Rectangular Plate. Each Pivoting Point Allows A Complete 360-Degree Rotation.

Additional Information:
- The Included Plate Is A Universal Mounting Bracket With A Selection Of Mounting Hole Locations. In Certain Applications Additional Holes May Need To Be Drilled For Proper Fit With Your Electronic Device.


Features:

- Universal Drill-Down Fishfinder Mounting Solution Features 6´´ Swing Arm For Ideal Device Placement
- Two Pivot Points Allow For Complete 360-Degree Rotation
- Made Of Powder-Coated Steel And High-Strength Composite


Specifications:

- Weight Capacity: 8 Lbs
- Materials: Marine-Grade Aluminum
- Packaging Type: Poly Bag
- Weight: 2.09 Lb

Product Dimensions:
- Overall Height: 5.41
- Total Swing Arm Length: 6

Hole Pattern:
- Top Plate: See Drawing
- Bottom Plate: 2.5´´ X 2.5

Plate Size:
- Top Plate: 6.25´´ X 2
- Bottom Plate: 3.47´´ X 3.47

Compatible Devices:

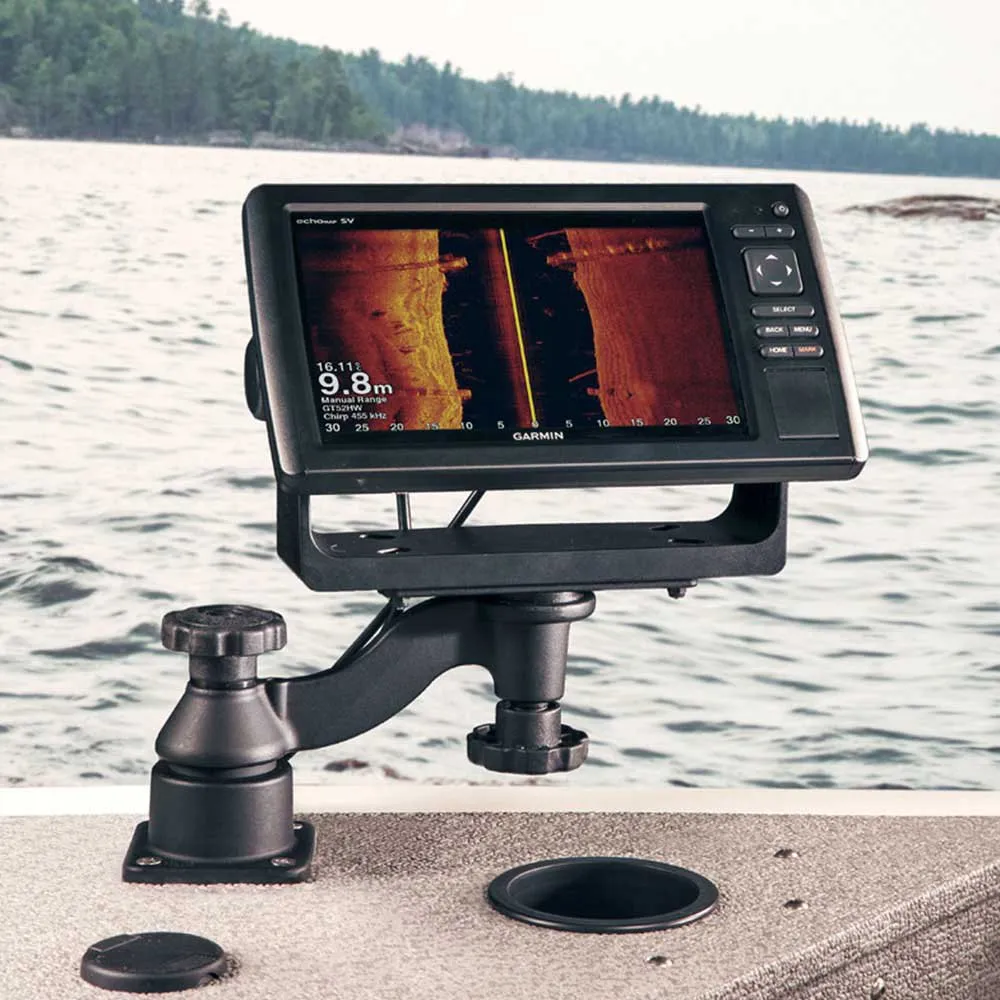

- Echomap Chirp 72-95 Series
- Echomap Plus 72-97 Series
- Echomap Uhd 62-95 Series
- Echomap Uhd2 52cv
- Echomap Uhd2 72cv
- Echomap Ultra 102sv
- Echomap Ultra 106sv
- Gpsmap 722
- Gpsmap 722xs
- Gpsmap 723
- Gpsmap 723xsv
- Gpsmap 742
- Gpsmap 742xs
- Gpsmap 743
- Gpsmap 743xsv
- Gpsmap 8410
- Gpsmap 8410xsv
- Gpsmap 8412
- Gpsmap 8412xsv
- Gpsmap 8416
- Gpsmap 8416xsv
- Gpsmap 8610
- Gpsmap 8610xsv
- Gpsmap 8612
- Gpsmap 8612xsv
- Gpsmap 8616
- Gpsmap 8616xsv
- Gpsmap 922
- Gpsmap 922xs
- Gpsmap 923
- Gpsmap 923xsv
- Gpsmap 942
- Gpsmap 942xs
- Gpsmap 943
- Gpsmap 943xsv
- Gpsmap 1223
- Gpsmap 1223xsv
- Gpsmap 1243
- Gpsmap 1243xsv
- Striker Plus 5cv
- Striker Vivid 5cv
- Striker Plus 7cv
- Striker Plus 7sv
- Striker Vivid 5cv
- Striker Vivid 7cv
- Striker Vivid 7sv
- Striker Plus 9sv
- Striker Vivid 9sv
- Fishfinders And Gps Chartplotters

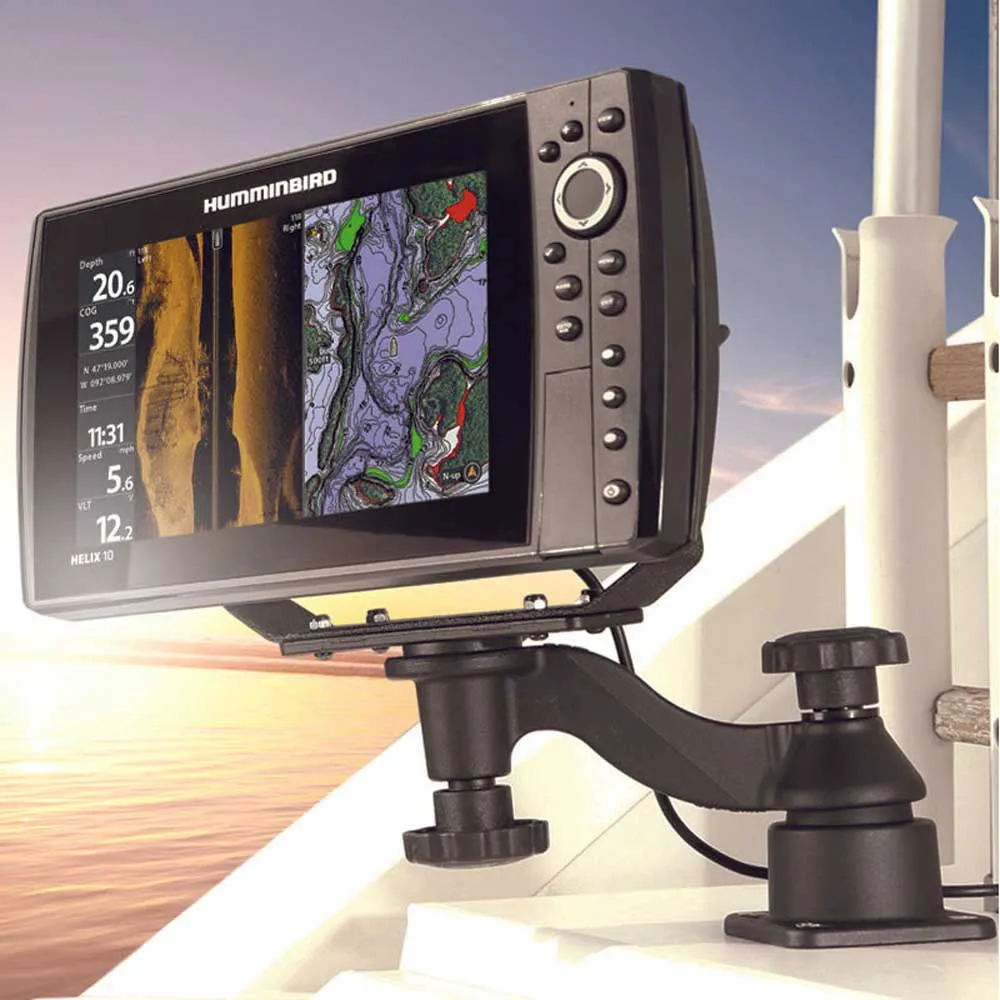

Humminbird:
- Apex 13
- Apex 16
- Helix 8
- Helix 9
- Helix 10
- Helix 12
- Helix 15
- Solix 15
- Fishfinders And Gps Chartplotters

Lowrance:
- Elite Fs 7
- Hds Carbon 7
- Hds Live 7
- Hds Live 9
- Hds Live 12
- Hook Reveal 7 Series
- Hook Reveal 9 Series
- Hook-9
- Fishfinders And Gps Chartplotters

Raymarine:
- Fishfinders And Gps Chartplotters
