Ram Mounts Large Marine Electronics Mount

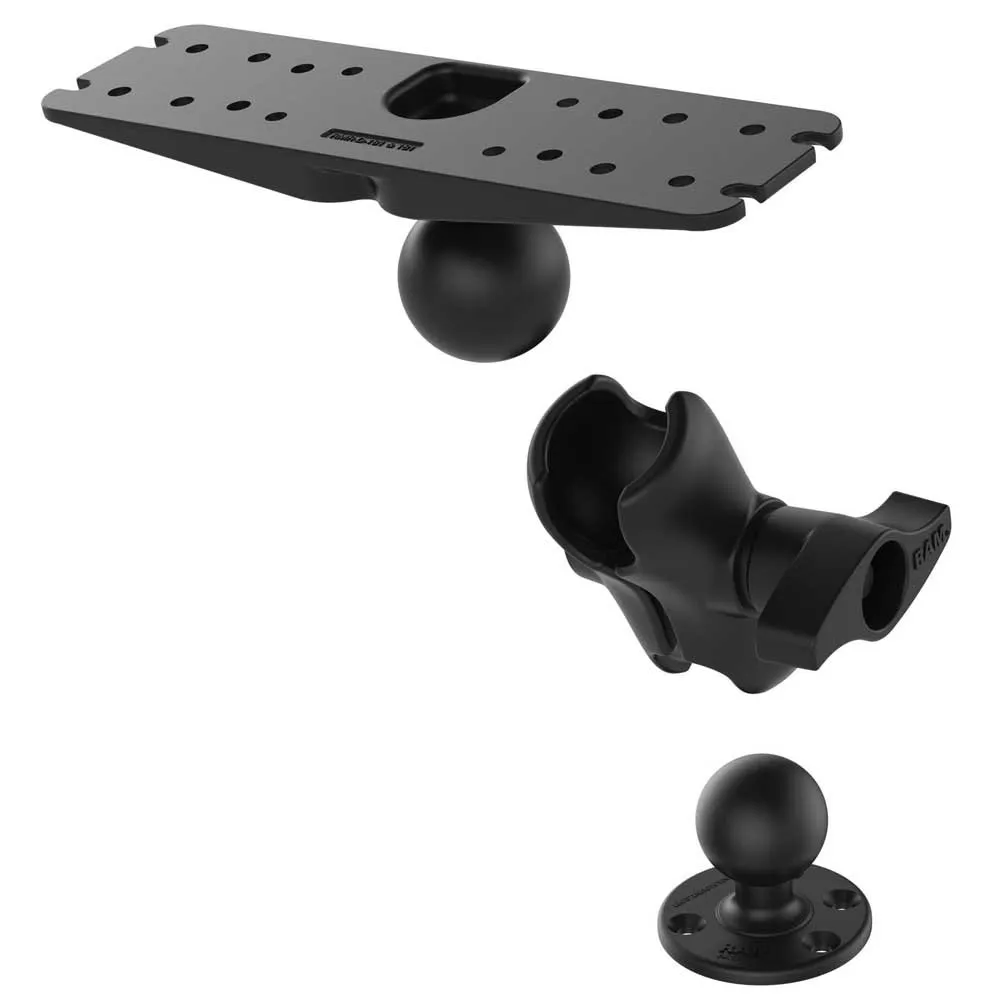

The RAM-D-111U-C consists of a short double socket arm, 3.68´´ diameter round base, and 11´´ x 3´´ rectangle base. The round base includes a 2.25´´ D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25´´ D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.

Additional Information:
- The 11´´ x 3´´ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.


Features:

- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125´´
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments


Specifications:

- Hardware Included: (4) .312´´ X .187´´ Shoulder Washers
- Product Dimensions: Overall Length: 8.125´´
- Socket To Socket Length: 3.6´´
- Hole Pattern: See Drawings
- Ball Size: D Size (2.25´´)
- Materials: Marine-Grade Aluminum
- Packaging Type: Poly Bag
- Weight: 3.58 Lb

Plate Size:
- Top Plate: 3 X 11
- Bottom Plate: 3.68 Diameter

Weight Capacity:
- Standard Use: 6 lbs
- Heavy-Duty Use: 5 lbs

Compatible Devices:
Garmin:
- ECHOMAP Ultra 122sv
- ECHOMAP Ultra 126sv
- GPSMAP 1222/xsv Touch
- GPSMAP 1242xsv/Touch
- Fishfinders and GPS Chartplotters

Lowrance:
- HDS Carbon 9
- HDS Carbon 12
- Elite-9 CHIRP
- Elite-9 Ti
- Elite-9 Ti²
- Elite-12 Ti
- Elite-12 Ti²
- Fishfinders and GPS Chartplotters

Humminbird:
- 800 & 900 Series

Raymarine:
- Fishfinders and GPS Chartplotters
