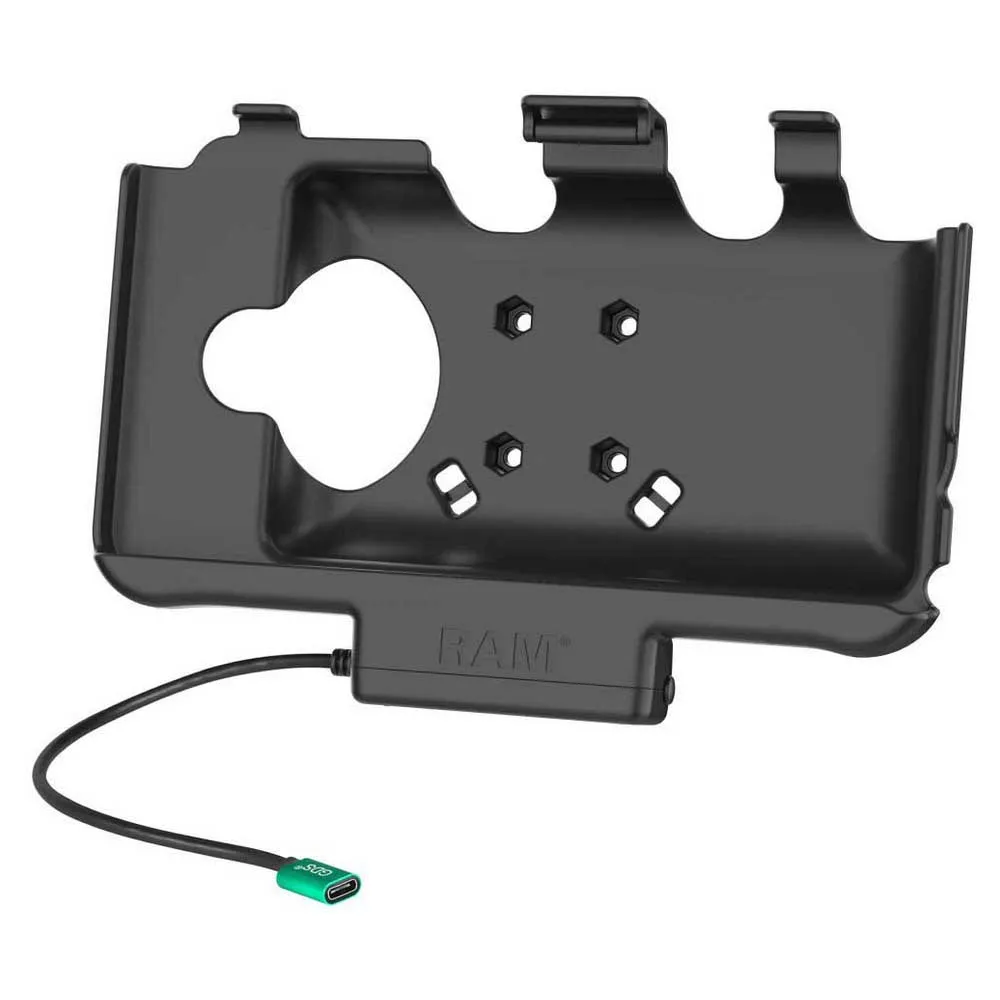

Ram Mounts USB-C Powered Dock For Samsung Tab Active5&3

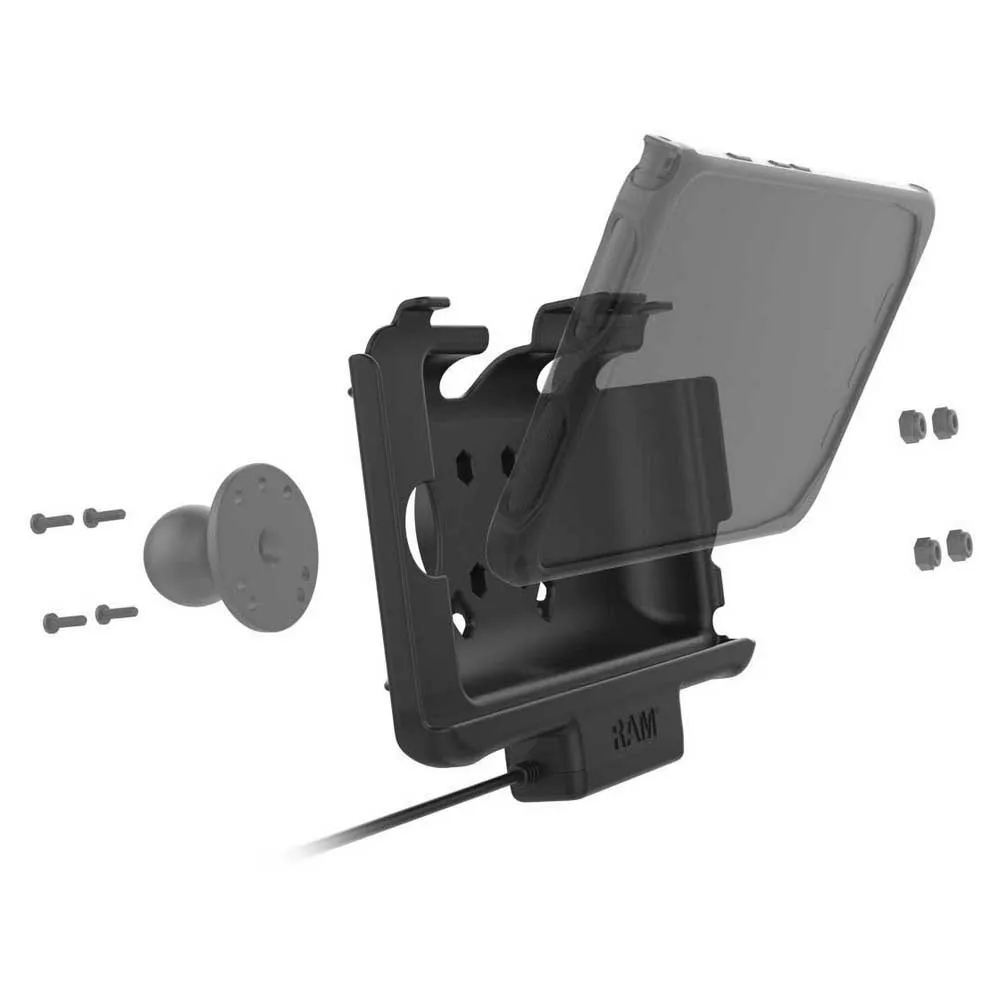

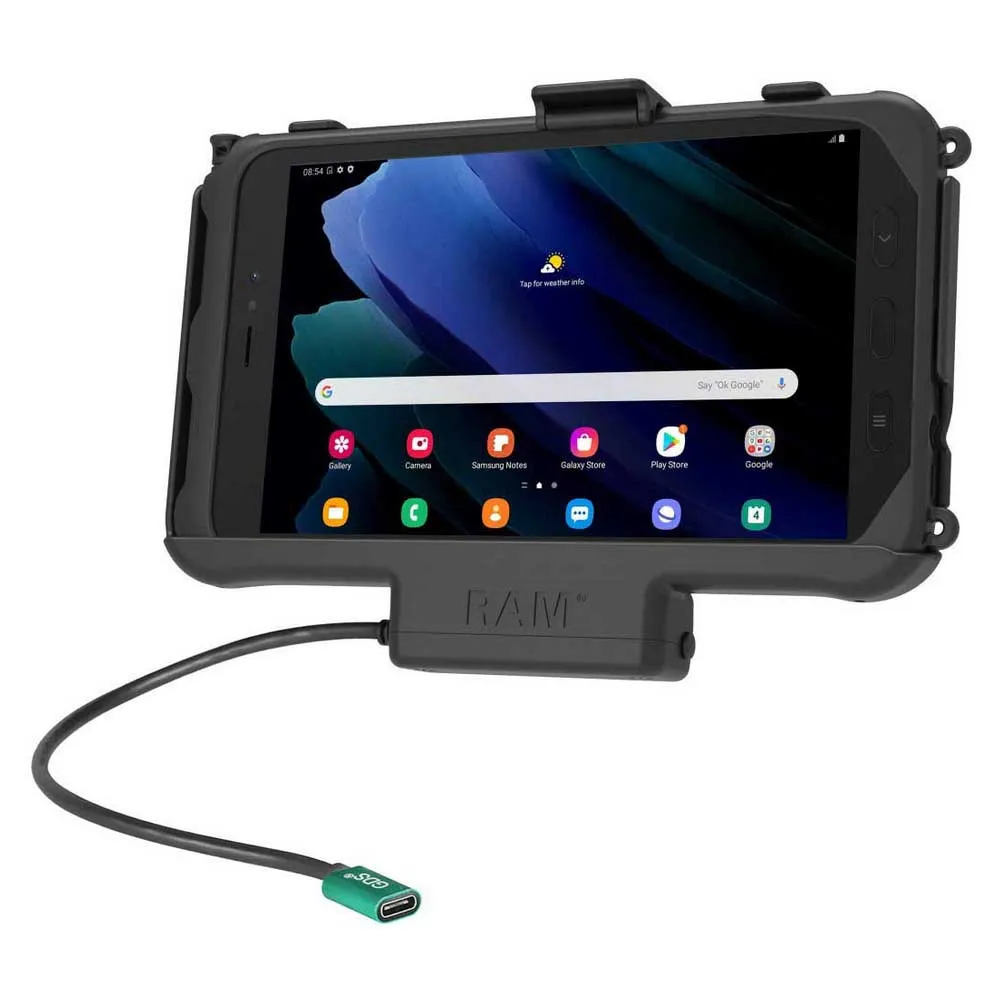

The RAM USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS pogo pins. This modular dock is compatible with the RAM Skin, factory device skin, and GDS Hand-Stand. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

Features:

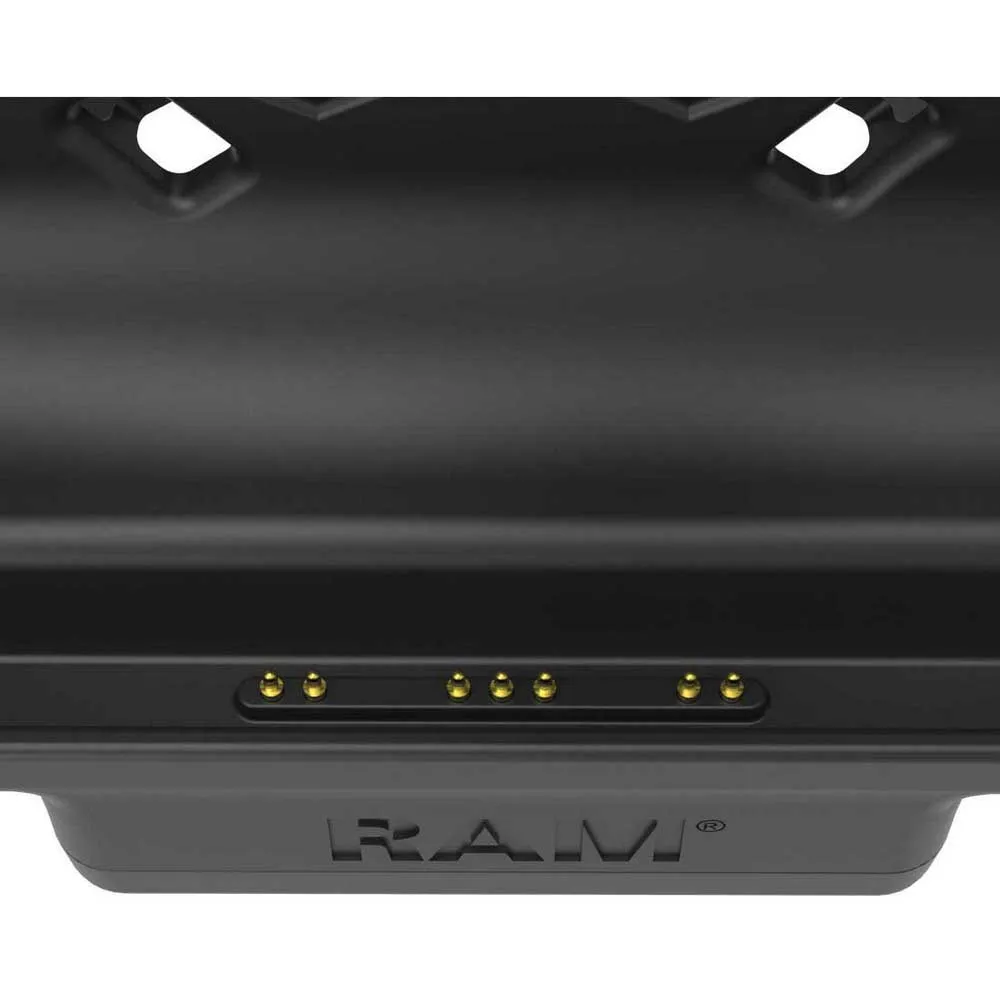

- RAM® EZ-Roll´r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable (Non-Power Delivery charger required)
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

Specifications:

- Weight: 0.31 kg (0.69 lbs)
- Width: 23.47 cm
- Height: 16.10 cm
- Depth: 6.53 cm

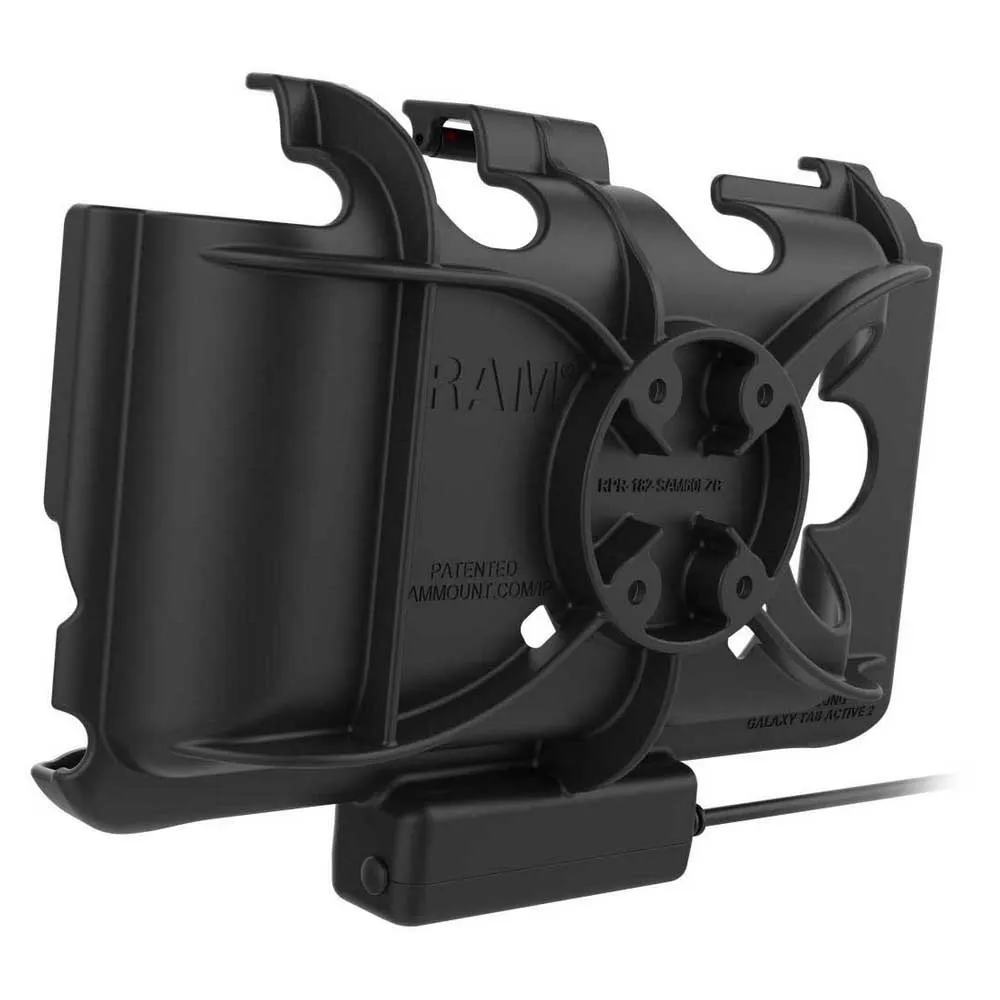

- Hole Pattern: 4-Hole AMPS: 3.00 cm X 3.80 cm
- Materials: High strength composite
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215 mm

Compatible Devices
Samsung:
- Tab Active5
- Tab Active3
- Tab Active2

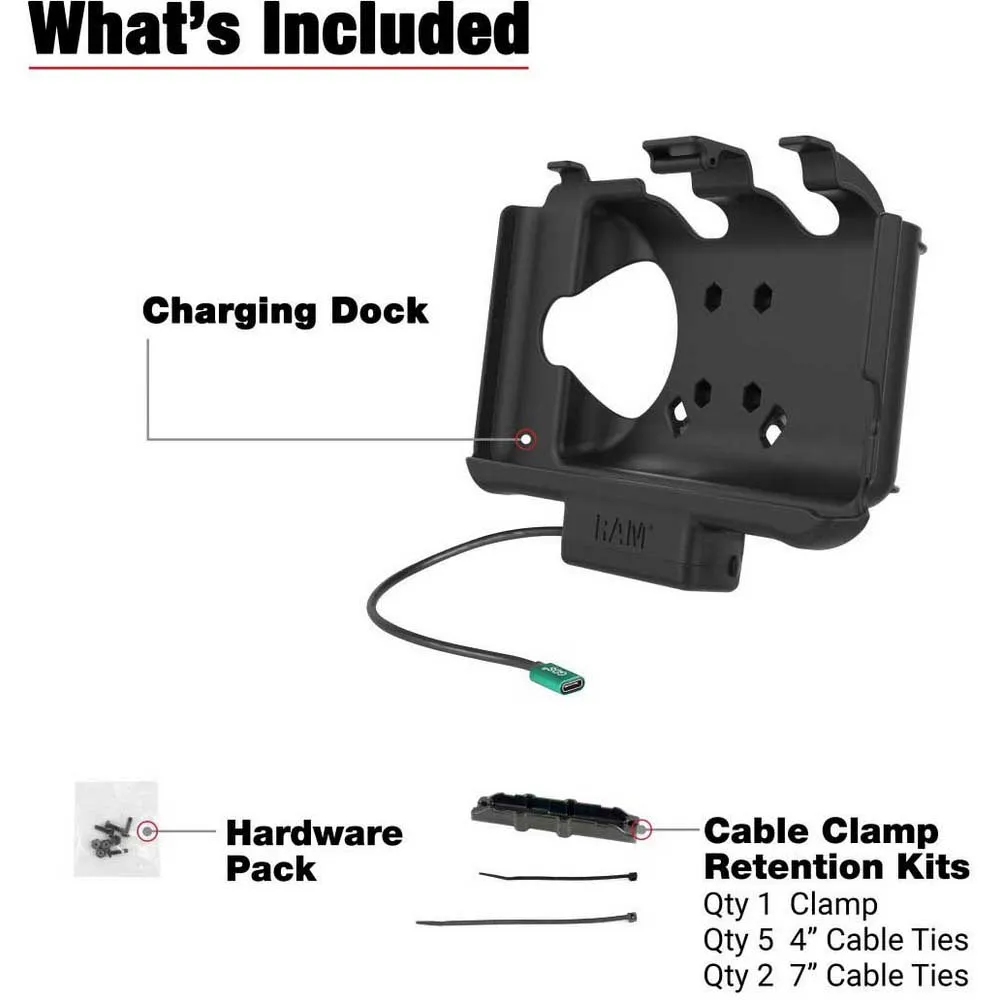

Hardware included:
- 8-32 x 12.70 cm (5´´)/20.32 cm (8´´) Machine Screws
- 8-32 Nylock Nuts
- Cable Clamp
- Large Cable Ties
- Small Cable Ties
