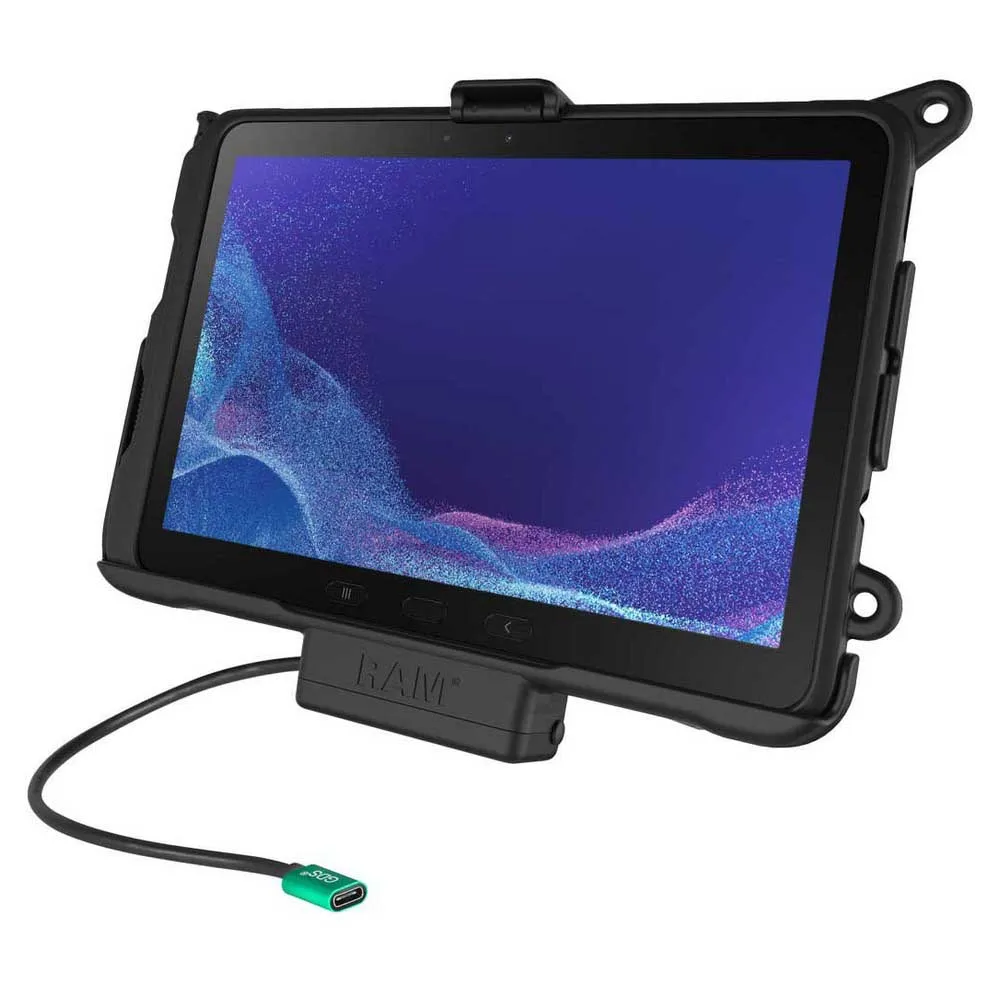

Ram Mounts USB-C Powered Dock For Samsung Tab Active5 Pro&4 Pro

The RAM USB-C Powered Dock for Samsung Tab Active5 Pro & Tab Active4 Pro features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM Skin for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin thats included with the device. In addition, this cradle works perfectly with the RAM Skin while utilizing the GDS Hand-Stand or GDS shoulder strap. While keeping the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro secure, the RAM EZ-Rollr powered cradle also leaves the devices speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

Features:

- Powered dock provides charging capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only (Non-Power Delivery charger required)
- Access to speakers, mics, and headphone jack remain while device is docked
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with the Samsung OEM skin as well as the RAM® Skin™

Specifications:

- Weight: 0.31 kg (0.68 lbs)
- Hole Pattern: 4-Hole AMPS: 3.00 cm (1.181´´) X 3.80 cm (1.496´´)
- Materials: High strength composite
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215mm

Compatible Devices
Samsung:
- Galaxy Tab Active5 Pro
- Galaxy Tab Active4 Pro
- Galaxy Tab Active Pro

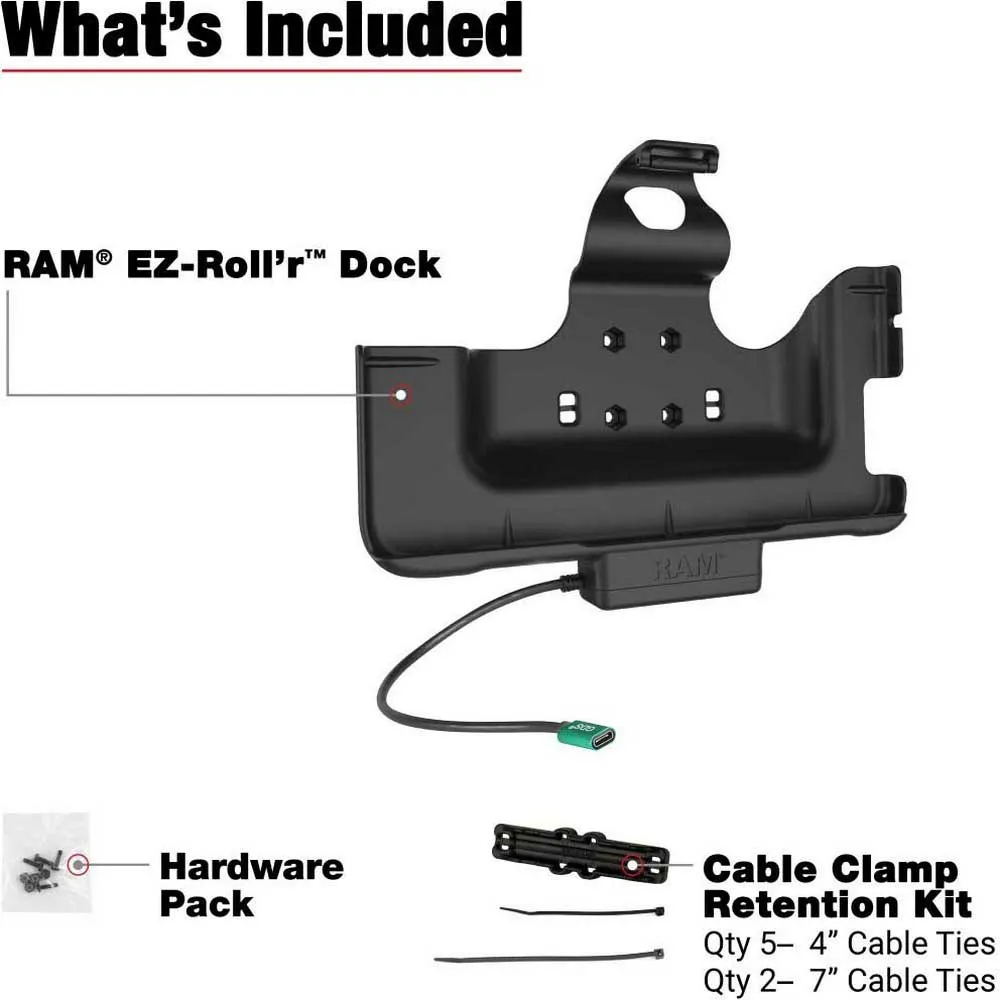

Hardware included:
- 8-32 x 12.70 cm (5´´)/20.32 cm (8´´) Machine Screws
- 8-32 Nylock Nuts
- Cable Clamp
- Large Cable Ties
- Small Cable Ties
