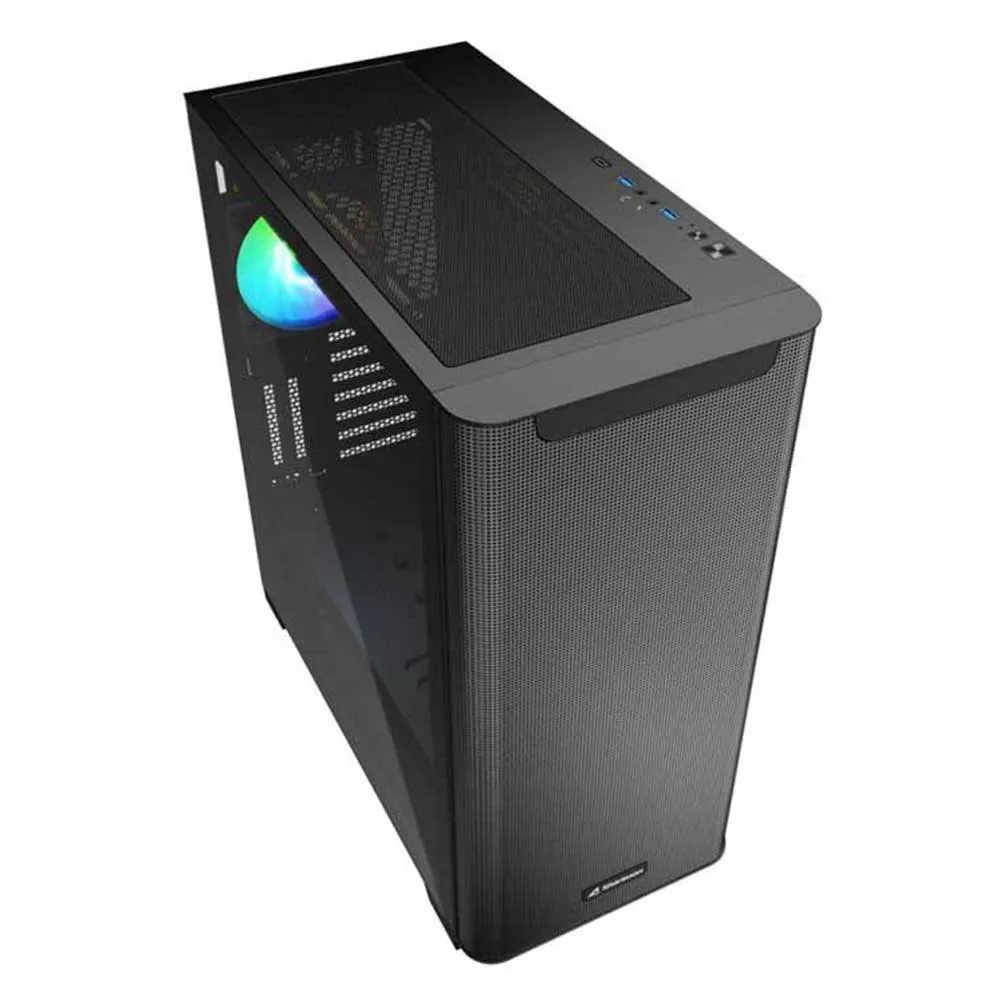

Sharkoon M30 RGB PC tower case

With a refined and subtle design as well as an extensive mesh front panel, the M30 RGB proves to be a versatile case. A pre-installed 120 mm RGB PWM fan creates awesome lighting effects, while a tempered glass side panel allows a glimpse into the spacious interior. The temperature in the M30 RGB stays nice and cool thanks to the mesh front panel and the option of installing a 360 mm radiator behind the front panel or under the top panel.

Atmospheric RGB Illumination:
- The M30 RGB is equipped with wide-ranging cooling options. Up to seven fans can be installed in the ATX case. A 120 mm PWM fan is already installed behind the front panel and a 120 mm RGB PWM fan is pre-installed on the rear panel. Thanks to the RGB controller, the case interior can be illuminated with radiant effects that can be viewed through the tempered glass side panel.

Timelessly Simple Design:

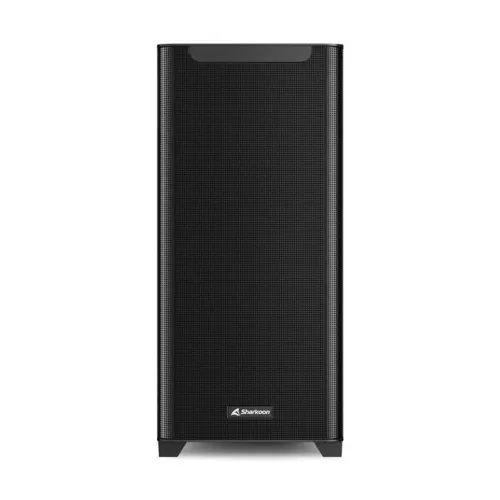

- With a matte black finish and minimalist design, the M30 RGB has a timeless look that will suit all kinds of setup. This is highlighted by the front panel with its extensive mesh surface. The rounded edges emphasize the subtle design, while, at the same time, the front panel allows a substantial amount of air to be drawn into the case.

Easy Option for Water Cooling:
- If water is preferred to air for cooling the hardware components, then the M30 RGB offers the possibility of installing a water-cooling system. Under the top panel or behind the front panel, there is space for a 360 mm radiator. Depending on the size of the mainboard and the height of the RAM, the radiator and its fans can have a height from 5 cm to 20 cm under the top panel.

More Than You Think:

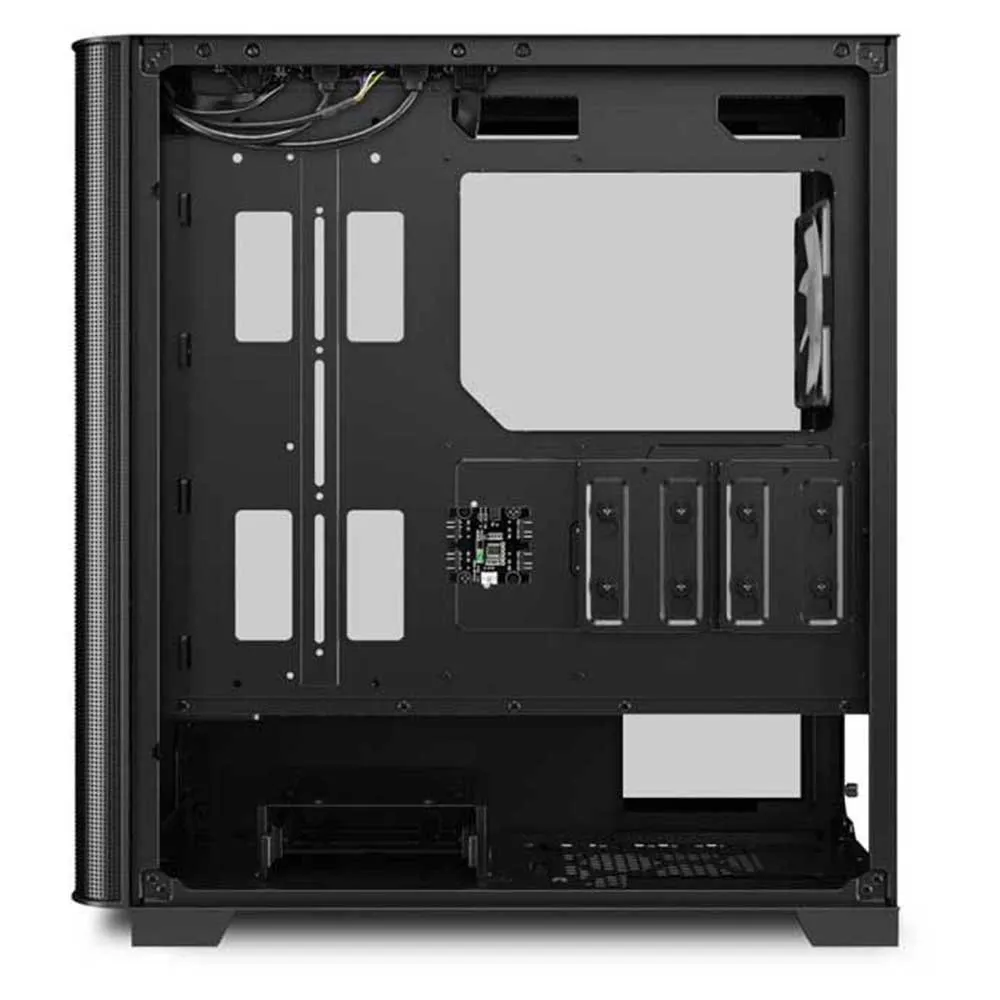

- Apart from its subtle looks on the outside, there is a lot of space to be found on the inside. For a powerful build, large pieces of hardware with ample dimensions can be easily installed. Power supply units with a length of up to 22 cm or graphics cards up to 38 cm can be mounted in the case. The M30 RGB is equipped with a USB Type-C port for fast data transfer and optimal connectivity to modern mobile devices.

Tidy and Simple:
- A hassle-free installation of all the components is possible with the M30 RGB. In a few simple steps, hard drives or SSDs can be concealed inside the power supply tunnel or behind the mainboard tray. Thanks to the easily accessible cable pass-throughs, the cabling can disappear out of sight as well, and the inside of the case will be kept neat and tidy.


Specifications:

General:
- Form Factor: ATX, E-ATX
- Expansion Slots: 7
- Interior Painting: Yes
- Tool-free Devices Installation: Yes
- Cable Management System: Yes
- Side Panel: Tempered Glass

Weight & Dimensions:
- Weight: 7.2 kg
- Dimensions (L x W x H): 45.7 x 22.0 x 48.8 cm

RGB Compatibility:
- Type: Addressable
- Ports: 4
- Manual Control: 14 Modes
- Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync
- RGB pinout: 5V-D-coded-G

Max. Drive Bays:
- 3.5´´: 2
- 2.5´´: 4

I/O:
- Type-C (USB 3.2 Gen 2): 1
- USB 3.0 (Top): 2
- Audio (Top): Yes

Fan Configuration:
- Front Panel: 1x 120 mm fan (pre-Installed) or 2x 120 mm fan (optional) or radiator* (optional)

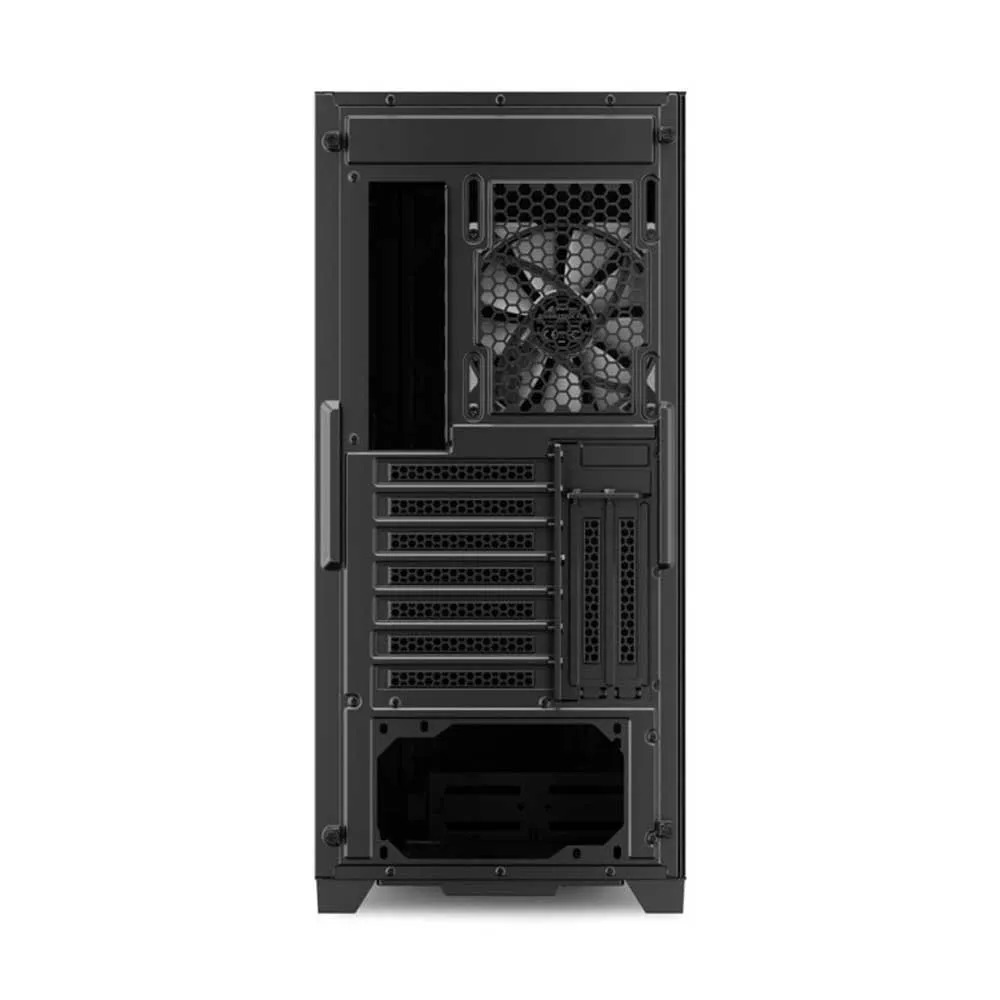

- Rear Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed)
- Top Panel: 3x 120 mm or 2x 140 mm Fan or Radiator* (Optional)

Compatibility:
- Mainboard: Mini-ITX, Micro-ATX, ATX, EATX
- Max. Length Graphics Cards: 38.0 cm
- Max. Height CPU Cooler: 17.2 cm
- Max. Length PSU: 22.0 cm
- Max. Height Radiator incl. Fan (Front): 6.0 cm
- Max. Height Radiator incl. Fan (Top): Min. 5.0 cm**
