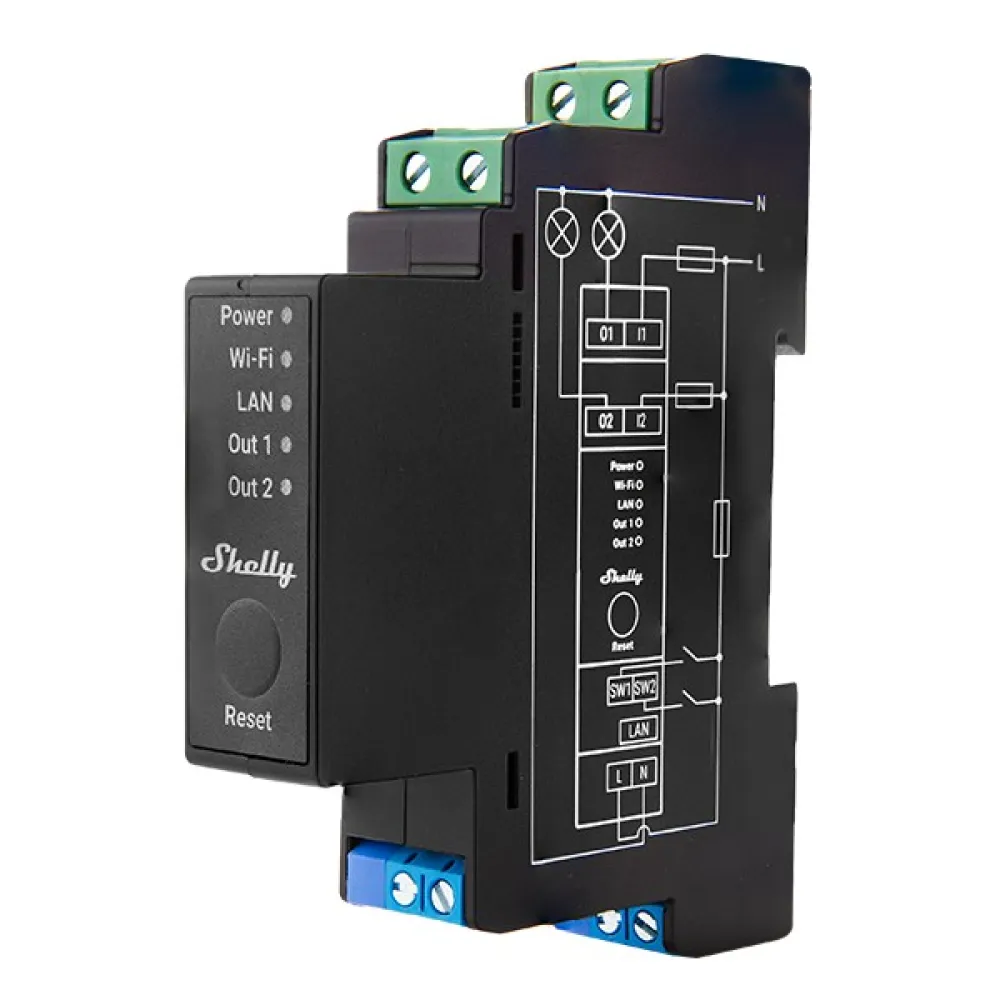

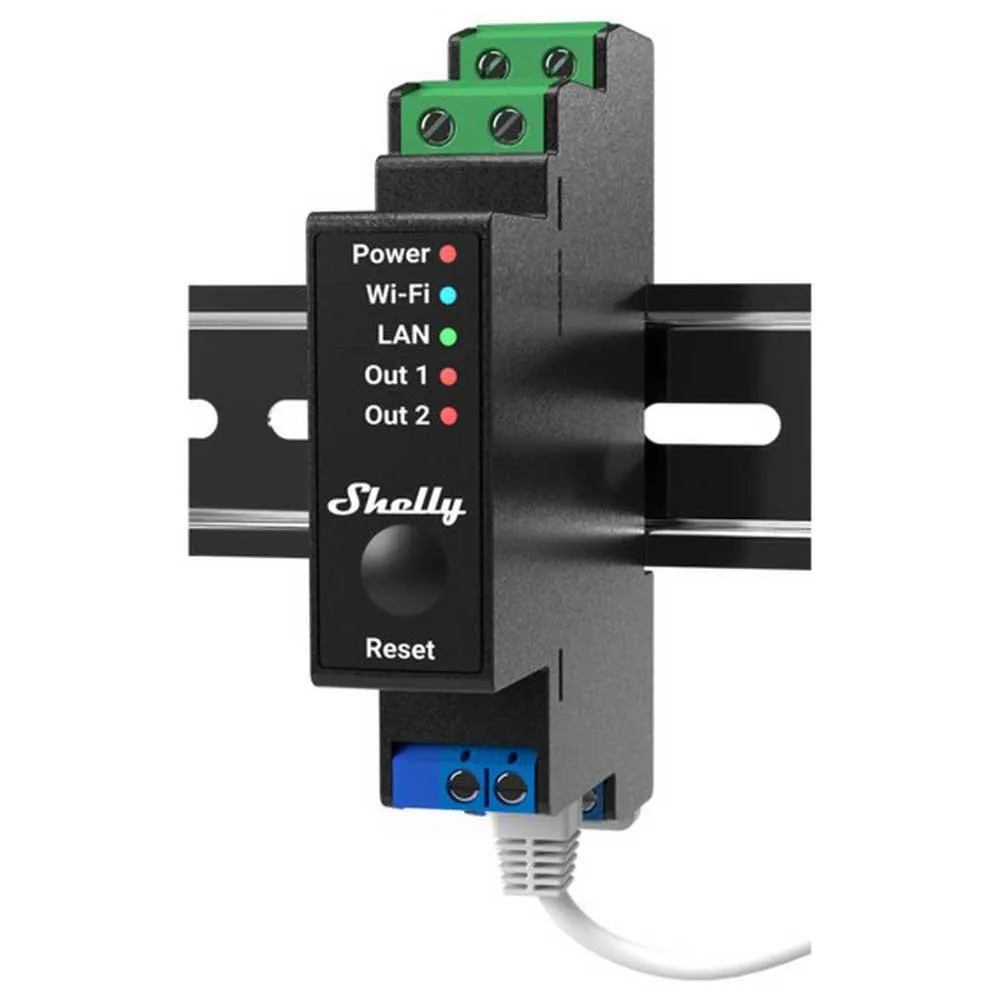

Shelly Pro 2PM Wlan Smart Relay 25A

Professional 2-channel DIN rail relay with power metering & cover (roller shutter) control Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16A per channel with a total device capacity of 25A.

Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately.

It supports two-directional motor control, which makes it perfect for the automation of roller shutters, curtains, awnings, gates, and many more! Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc.

Shelly Pro series:

- Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN).

Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

Functionalities:

LAN, Wi-Fi, and Bluetooth connectivity:

- LAN connection for high security and reliability.

Simultaneous Wi-Fi and LAN usage, as backup when needed.

2 outputs, 16 A each:

- Shelly Pro 2PM has a total device output of 25A.

Precise power metering:

- Shelly Pro 2PM provides precise monitoring of the power consumption.

Cover (roller) control:

- Control two-directional AC motors and set your desired position.

Enhanced safety & security:

- Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.

Scripting capabilities:

- Set custom scenes by combining Shelly Pro 2PM with your other Shelly devices.

Automated blinds for privacy control:

- Motorized blinds and curtains will not only encourage the use of more natural light but will also allow the guests of your hotel establishment control of their privacy by controlling motorized blinds or curtains individually.

They can open or close the blinds or set the angle of the blinds according to their own needs and preferences.

Remote control of the parking gates:

- Security services are costly to maintain.

Shelly allows the automation of access control for your office or home, giving you remote control over your parking barrier or gate door.

Use smart scheduling to set Shelly Pro 2PM to keep the barrier open between 6:00 PM and 7:00 PM when people are leaving the office to ease the traffic.

Smart conference room:

- Automate the conference rooms so that they are fully ready for your business meetings.

Set Shelly Motion2 to activate the ´´Meeting scene´´ once you enter the room.

The shades will close, the lights will dim to the desired brightness, the projection screen will open, and the projector will turn on.

The conference room is instantly ready for your presentation! Pro line capabilities:

- Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN).

Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

Connectivity:

- Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options.

- Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App.

- LAN connection for high security and reliability.

Simultaneous Wi-Fi and LAN usage, as backup, when needed.

Overheating protection:

- In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.

Internal temperature sensor is measuring the heat every 100 ms.

Features:

- LAN, Wi-Fi, and Bluetooth connection.

- 2 outputs, 16A each.

Total device maximum of 25A.

- Power metering on each channel and free storage data.

- Cover (roller) control.

- roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors.

- 1-phase control.

- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants.

Specifications:

Power:

- Power supply AC:

110.

- 240 VAC, 50/60Hz.

- Maximum load:

2 outputs, 16A each.

Total device maximum of 25A.

- Channels:

2 Channel Special Functions:

- Roller shutter mode:

Yes, with position control (roller shutters, gates, curtains, garage doors, awnings, bi-directional AC motors).

- Device temperature protection:

Yes.

- Overload protection:

Yes.

- Power measurement:

Yes.

- HTTP/HTTPS webhooks:

Yes.

- Custom scripts (mJs):

Yes.

- Operational temperature:

- 20°C to + 40 °C.

- Device power consumption:

< 3 W.

- Intelligent On/Off:

Yes.

- Local and remote control:

Yes.

- Sunrise/Sunset:

Yes.

- Weekly Schedule:

Yes.

- UL Listed option:

No Connectivity:

- Wireless:

Yes.

- Max RF output power:

13.34 dBm.

- Wi-Fi Protocol:

802.11 b/g/n.

- Wi-Fi Radio frequency:

2412.

- 2483 MHz.

- Wi-Fi Range:

up to 50 m outdoors and up to 30 m indoors (depending on the building materials).

- Bluetooth:

Yes.

- Ethernet:

Yes Dimensions:

- Size:

18,5mm x 89,5mm x 68,5mm.
