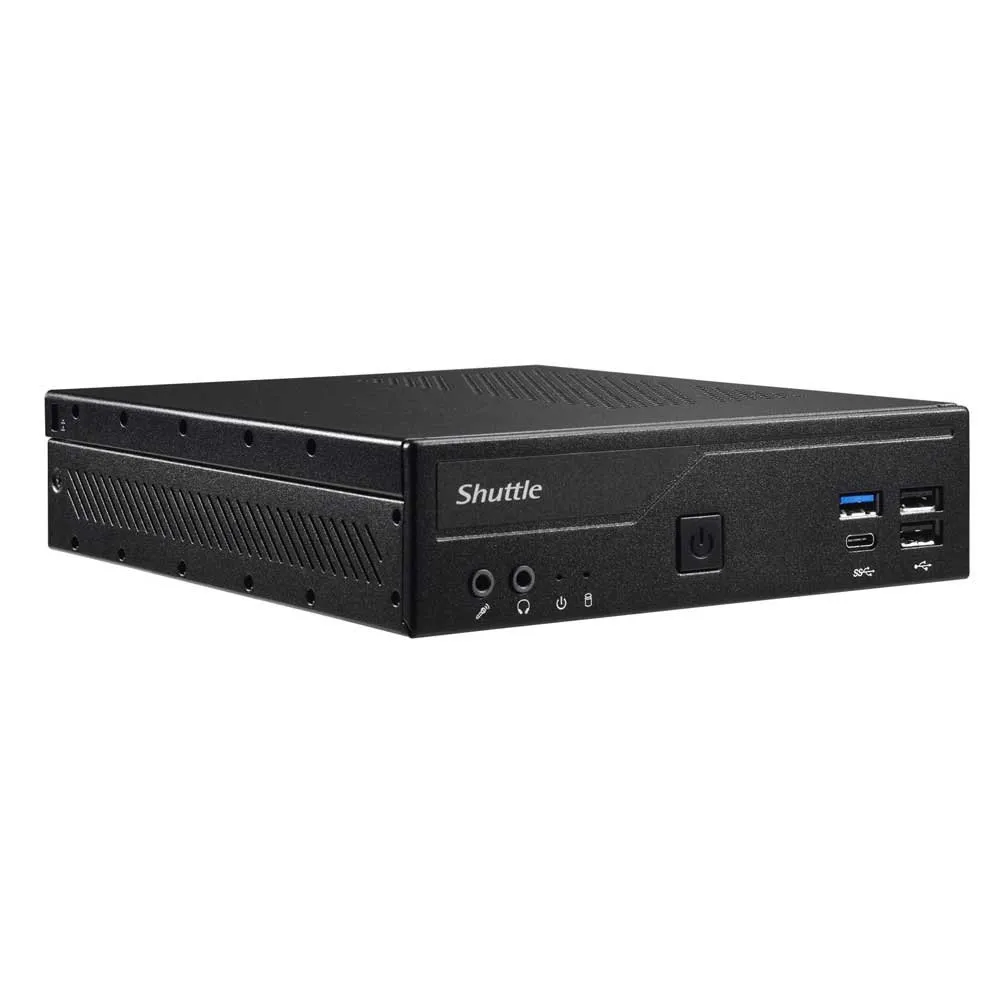

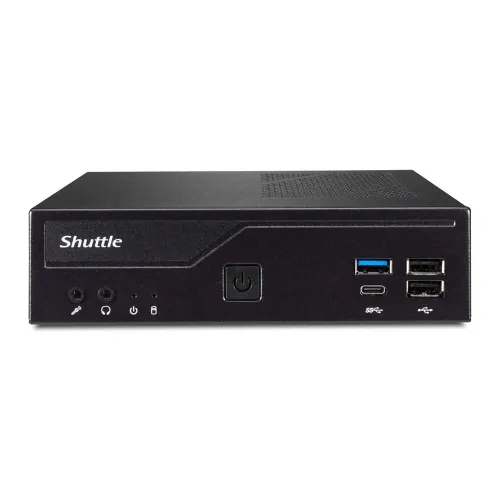

Shuttle DH610 barebone

EU Plug.

12th Gen Hybrid Power Makes Multitask Easy.

Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors.

With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment.

Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility.

Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots.

DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Intel® 12th Gen processor.

Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity.

In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.

Triple-Display Productivity.

With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2.

With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.

- M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Rich Connectivity and High-speed Intel® 2.5GbE LAN.

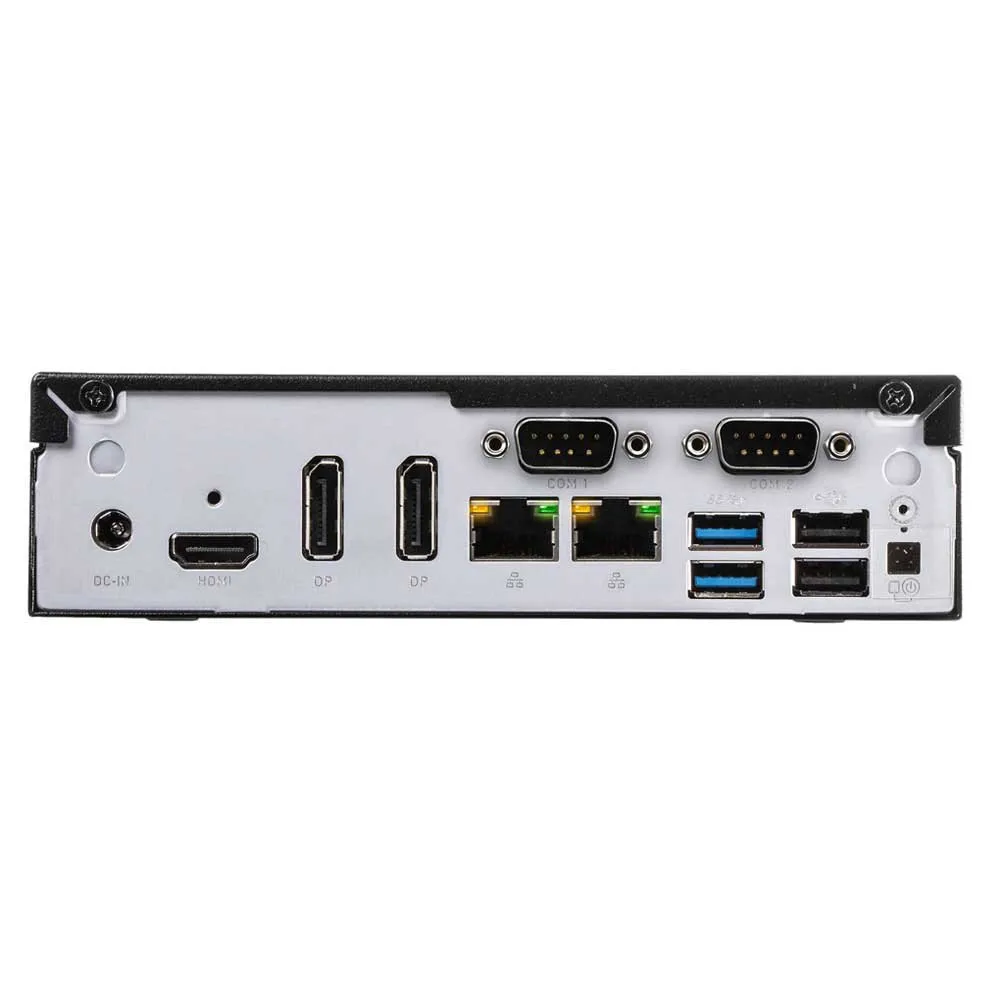

DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options.

In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.

Exclusive Cooling Technology.

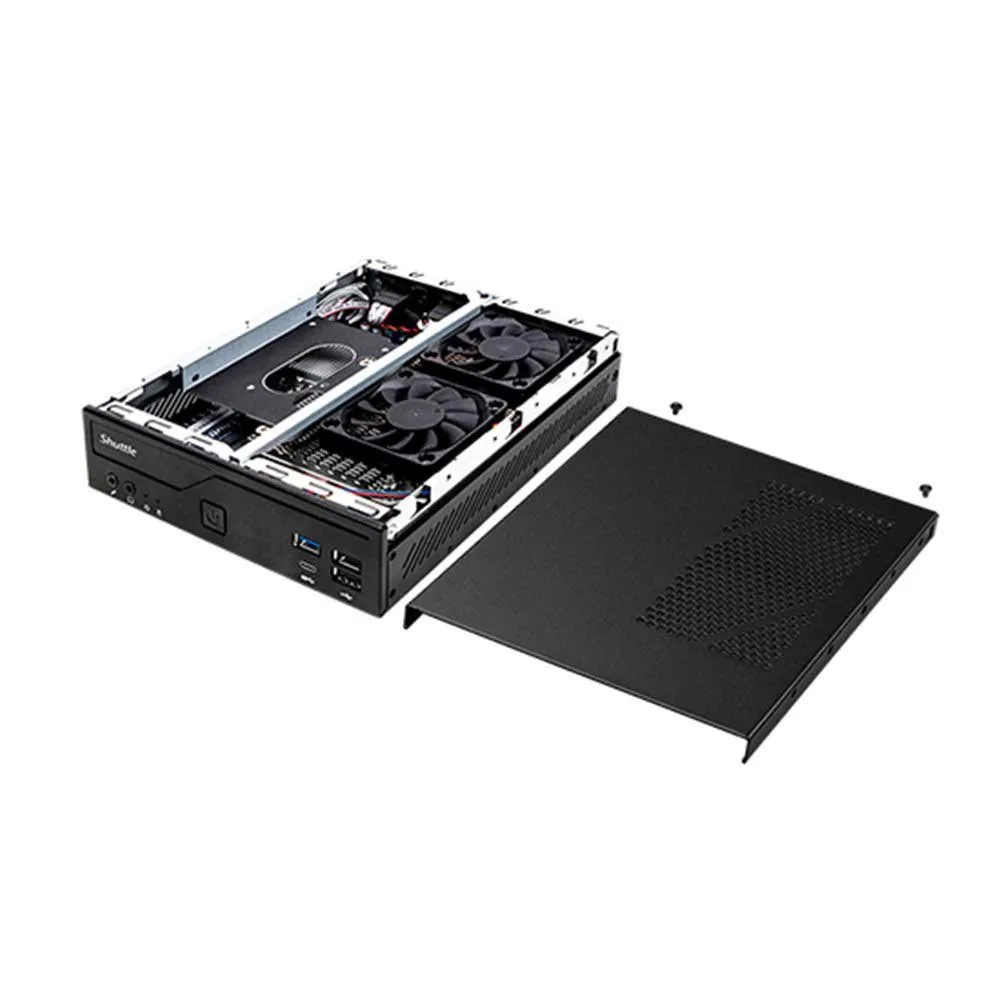

DH610 features Shuttle´s exclusive heat-pipe cooling system with an intelligent fan design.

The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Shuttle Slim PC DH610, S1700, 1x HDMI, 2x DP, 1x 2.5´´, 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl.

VESA.

Chassis type:1.3L sized PC, Product type:Mini PC barebone.

Processor socket:LGA 1700.

Supported memory types:DDR4-SDRAM, Number of memory slots:2, Maximum internal.

Memory:64 GB.

Supported storage drive types:HDD & SSD, Storage drive interface:M.2, Serial ATA, Serial ATA II, Serial ATA III.

Ethernet LAN (RJ-45) ports:2.

Cooling type:Active.

Power supply:120 W.
