Shuttle POA-POS01 Parallel Interface Adapter Card

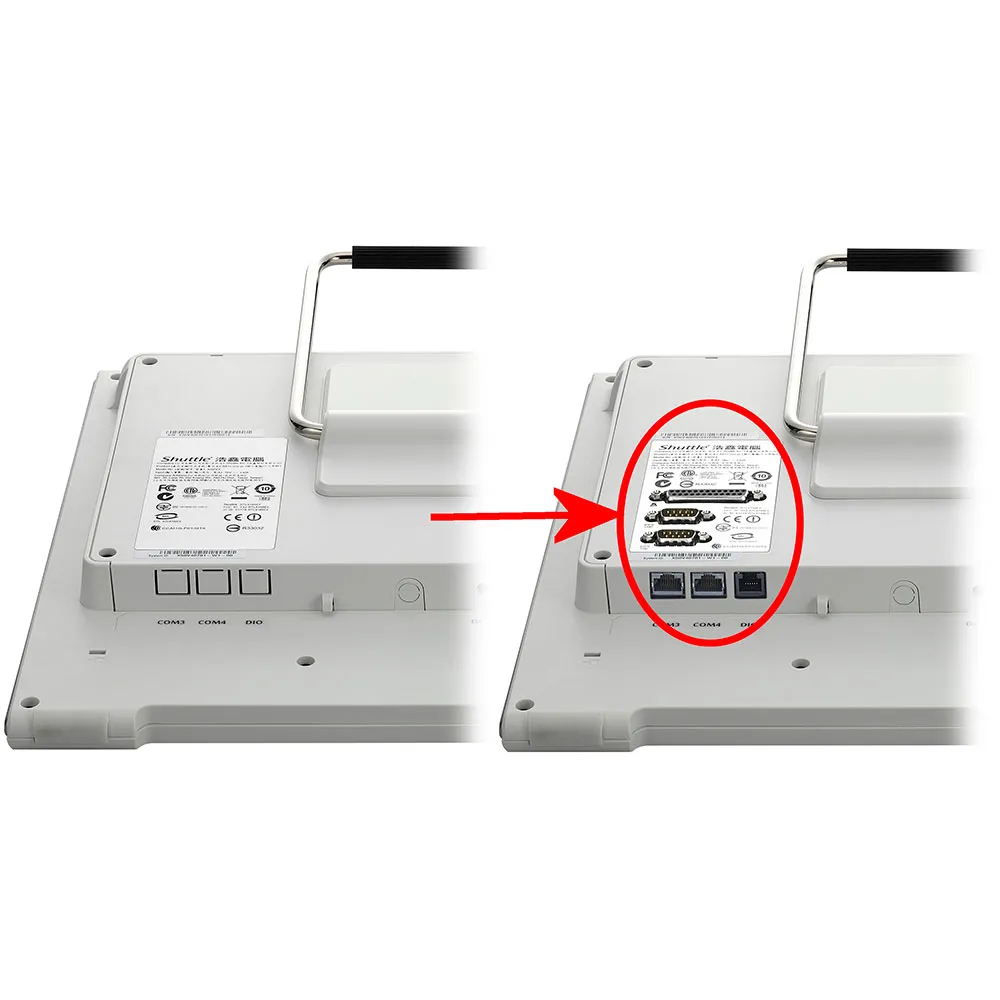

The Shuttle accessory POS01 is compatible with the Shuttle XPC All-in-One X50 series (V4~V8) and P90U/P92U series. It will add four serial (COM), one parallel (LPT) port and one RJ11 port for a cash drawer to the back panel of the PC.


Specifications:

External ports:
- 2x Serial port RS232 (Sub-D, 9 pins, male) *)
- 2x Serial port RS232 (RJ45 connector)
- 1x Parallel port (Sub-D, 25 pins, female)
- 1x Digital I/O for cash drawer (DIO, RJ11 connector, 12V or 24V)
- The serial port ´´COM 1´´ can also be switched to RS422/485 mode in the BIOS
- Serial port as voltage source
- Both serial ports with D-Sub connector can provide an
- auxiliary voltage supply of either 5V or 12V

Scope of delivery:
- Printed Circuit Board (PCB)
- 4 screws
- Power connector cable (4 pin)
- Ribbon cable
- Type label sticker (Rating label)
- Multi-language quick installation guide (EN, DE, FR)

Compatibility:
Compatible with the following Shuttle XPC All-in-One products:
- with 15.6´´ display: X50V4, X50V5(U3), X50V6(U3), X50V7(U3), X50V8(U3)
- with 19.5´´ display: P90U, P90U3, P90U5, P92U, P92U3, P92U5
