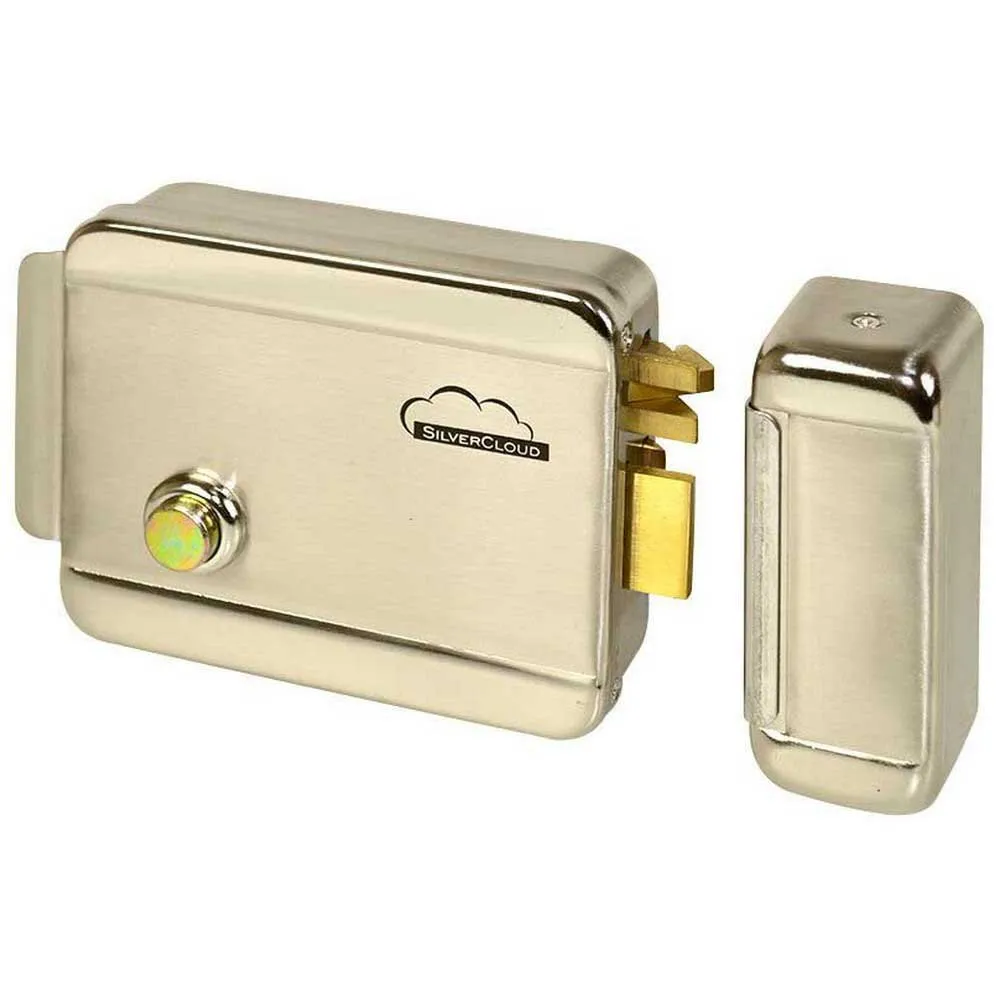

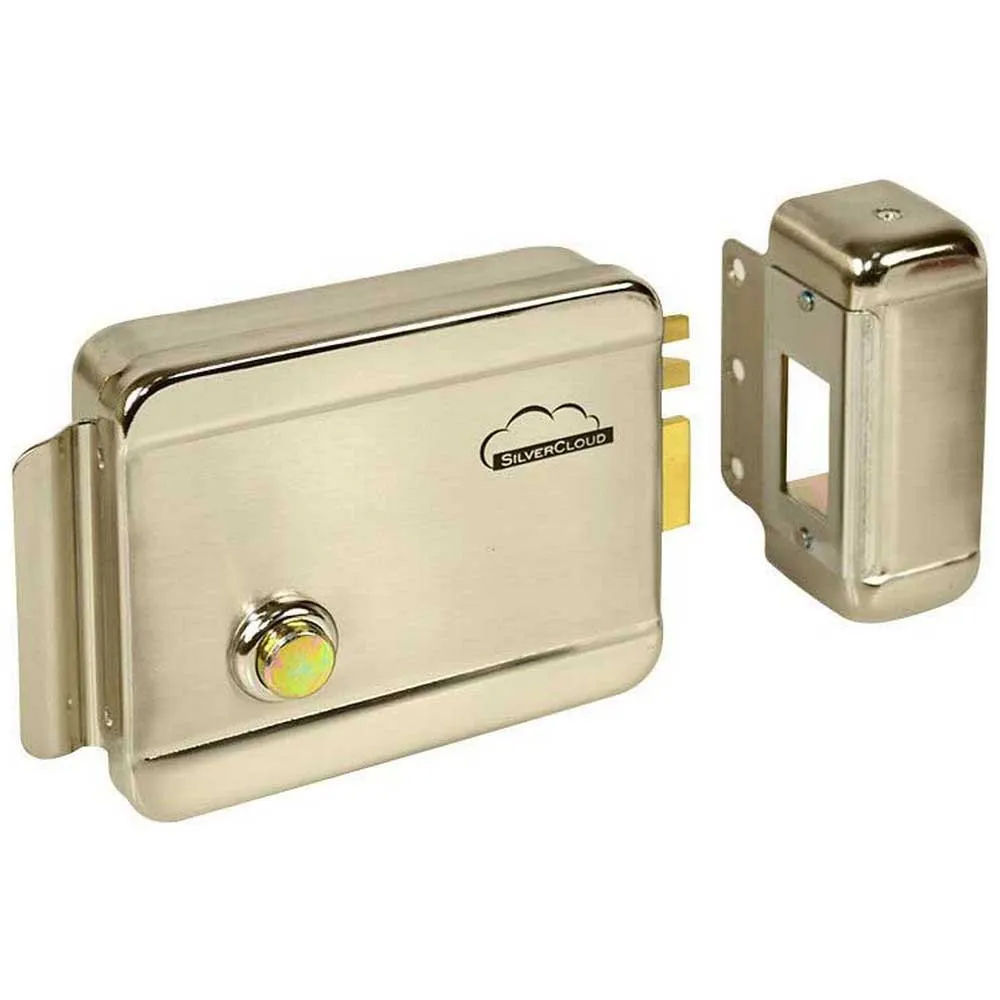

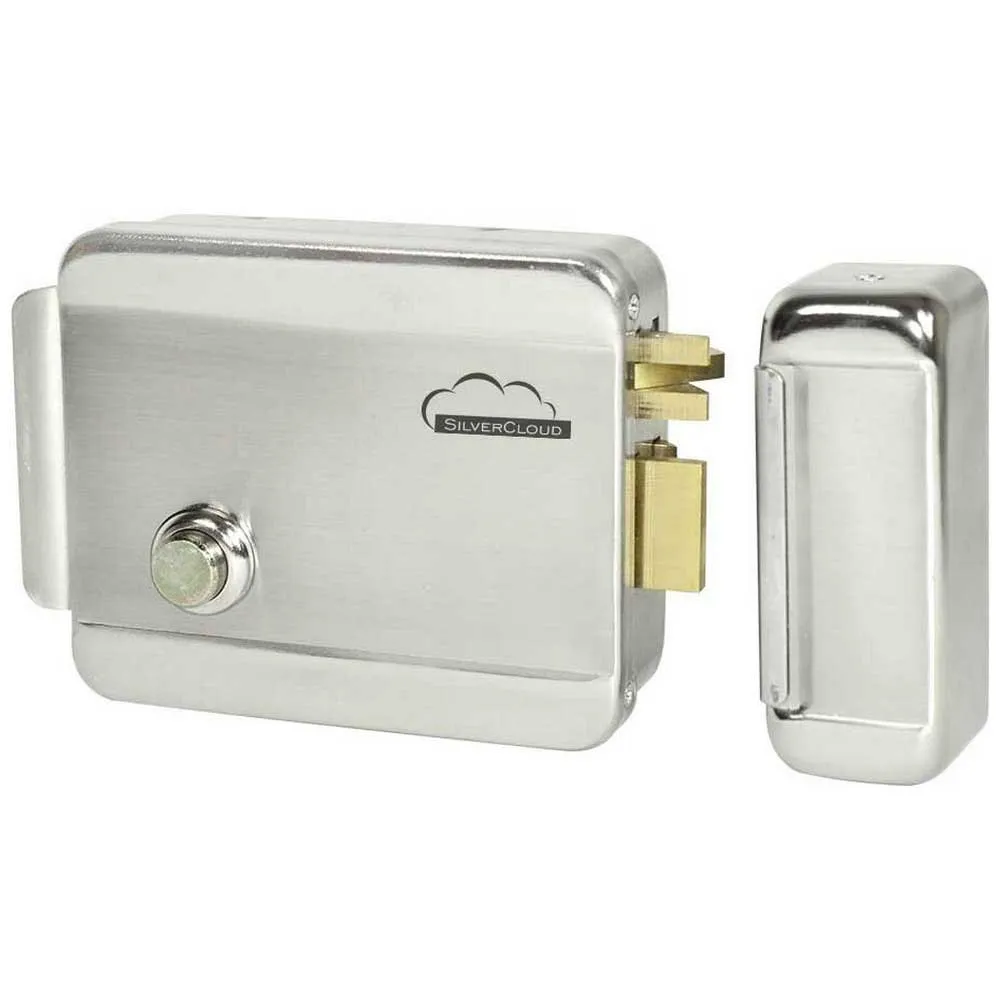

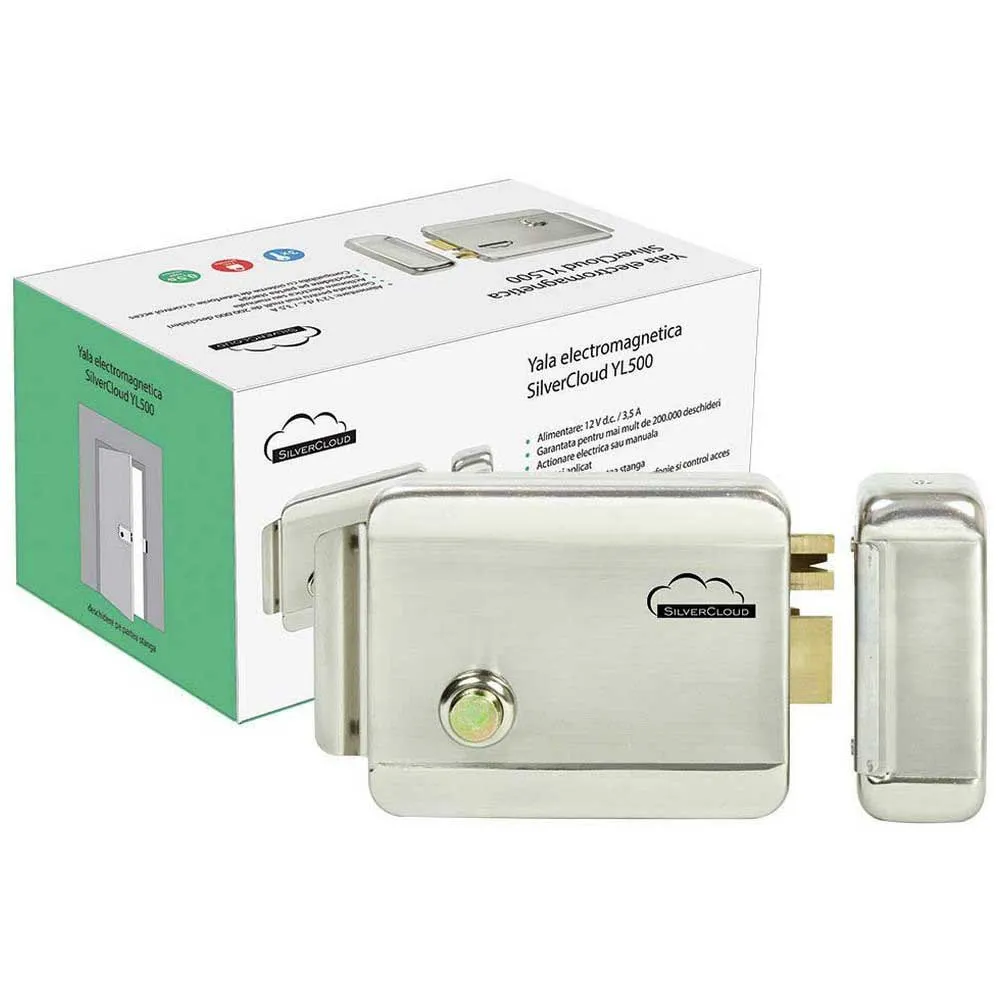

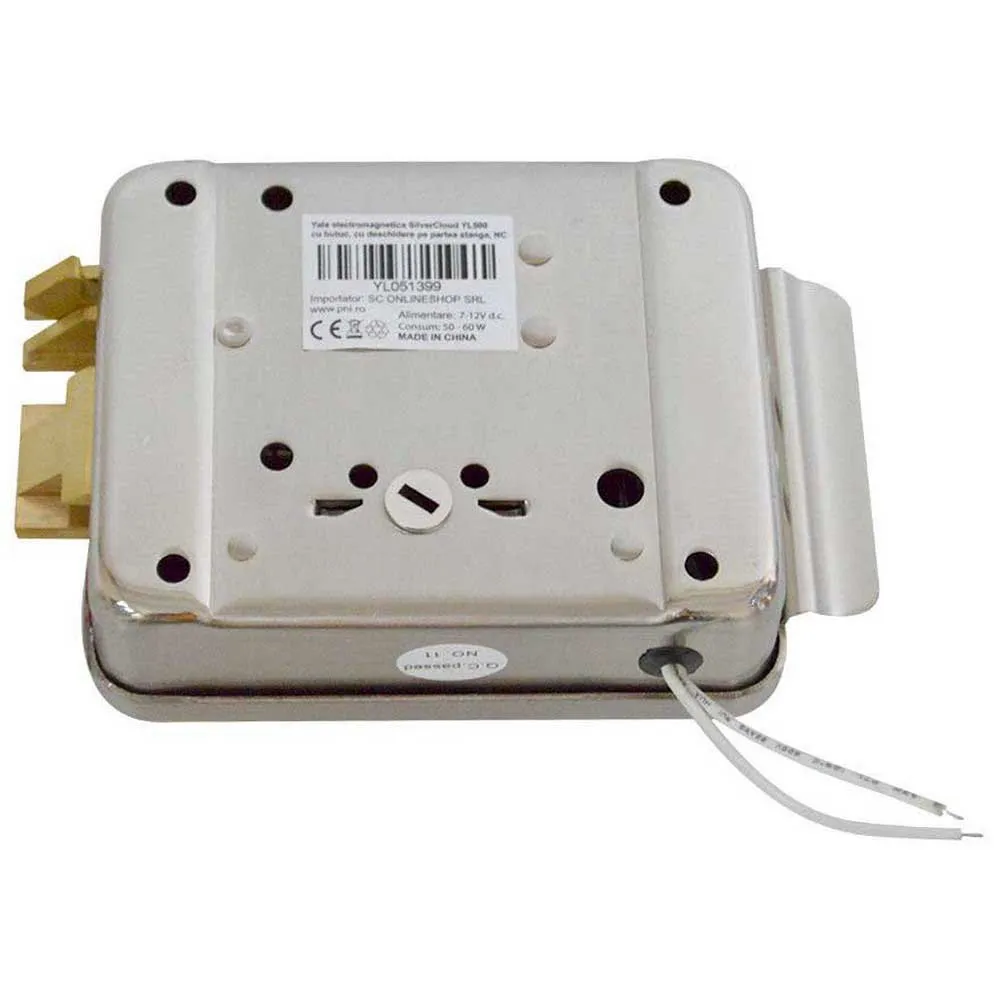

Silvercloud YL500 Electromagnetic Door Lock

Fail-secure drive, normally open:
- In this configuration, the lock opens at an electrical pulse of 12V 1A 0.5 seconds provided by a NO circuit (and closes only after the door or gate has been opened and closed) or manually (mechanical components ensure opening from the inside even in the case of wedges current).

Opening on the left:
- The applicable SilverCloud YL500 electromagnetic yala can be mounted on doors with an opening on the left side towards the inside. The recommended door thickness is between 35 and 50 mm.

Compatible with intercom or access control systems:
- The SilverCloud YL500 electromagnetic Yala can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can activate the unlocking of the yale, thus allowing visitors access inside.


Specifications:

- Tip yala: Applied
- Interior opening type: Electric
- Supply voltage: 7 - 12V
- Consumption: 2 - 3.5 A at 12V
- Drive type: Fail Secure (Circuit NO / Normal Open)
- Compatible with intercom and access control systems: Yes
- Dimensions / Weight: 125.5 x 101 x 39 mm / 1000 g
- Application mode: Left
- Operating time: 0.5 s - 3 s at 12V
- Retention system: Yes, mobile language / puppy
- Lifetime: > 200,000 openings
- Recommended thickness for the door: 35 - 50 mm
- Working temperature: -20 ° C ~ + 55 ° C

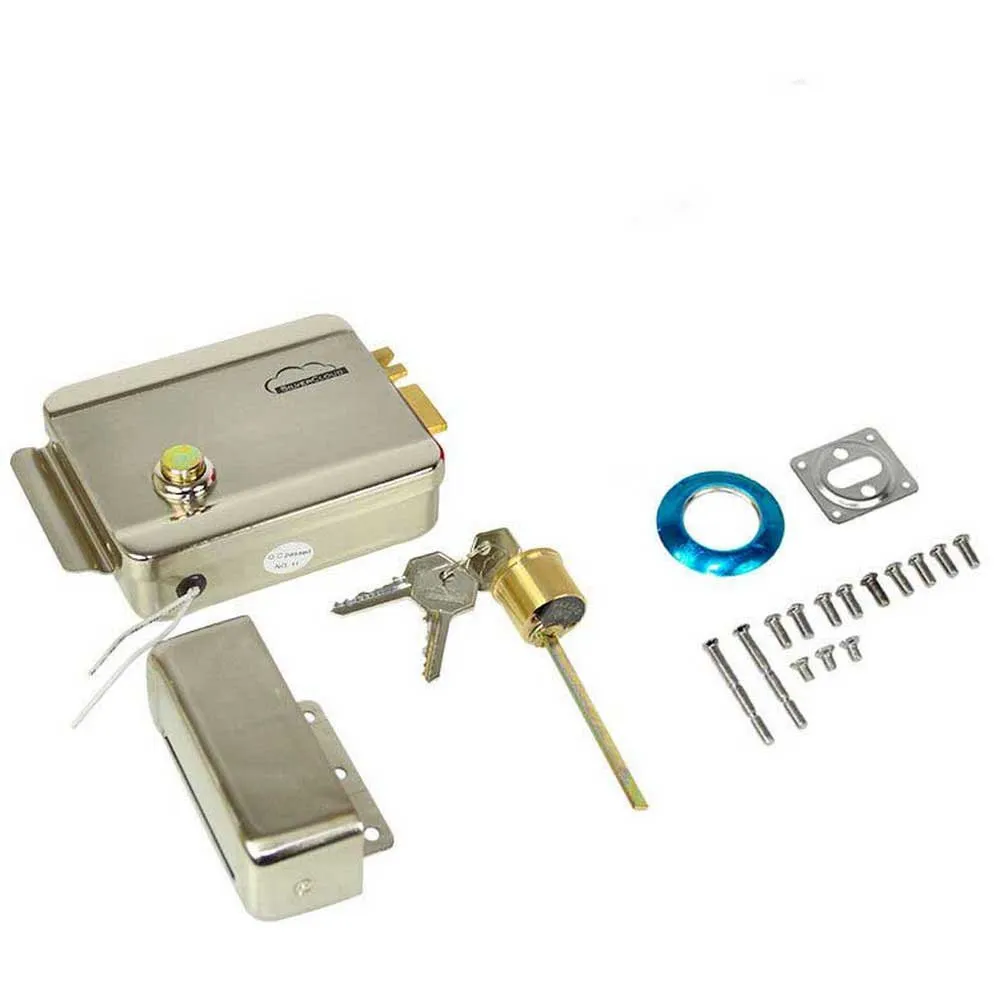

Package Included:
- Yala electromagnetic: Yes
- Opening hub: Yes
- Opening keys: 3 pcs.
- Heel fastening system: Yes
