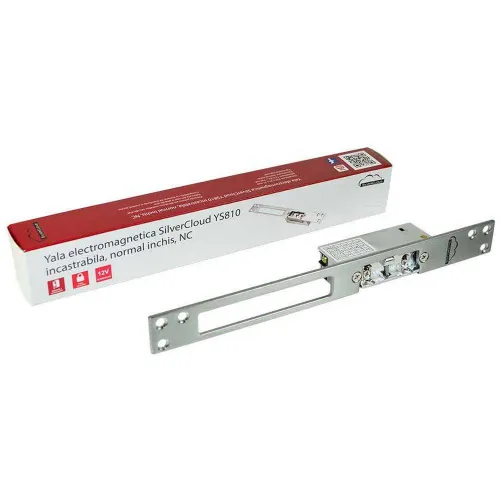

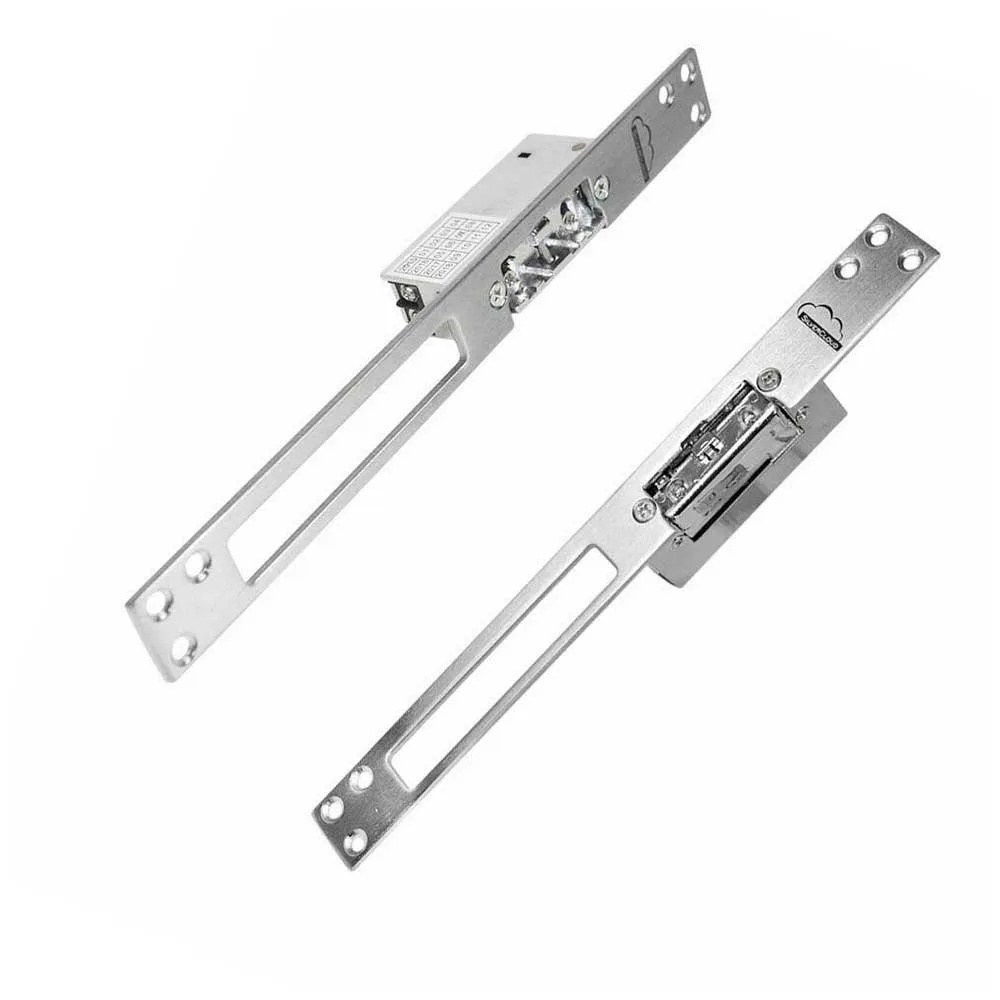

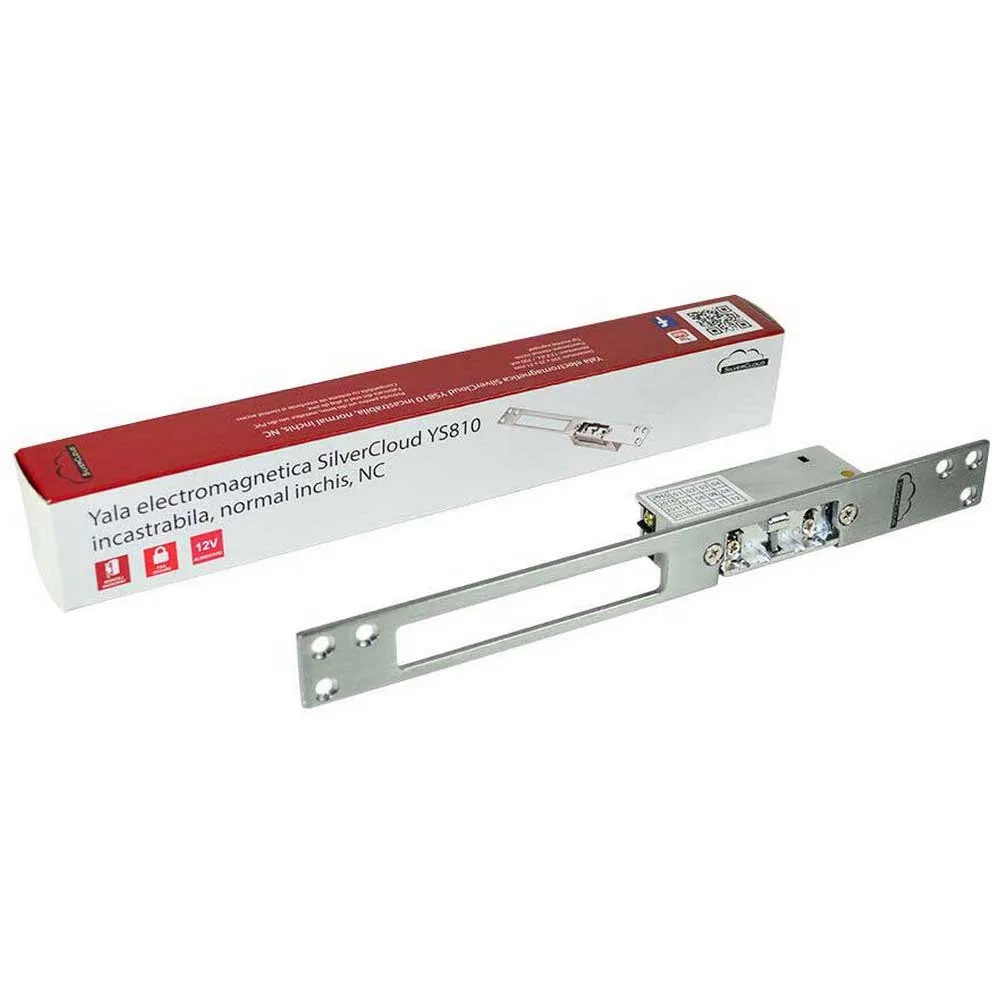

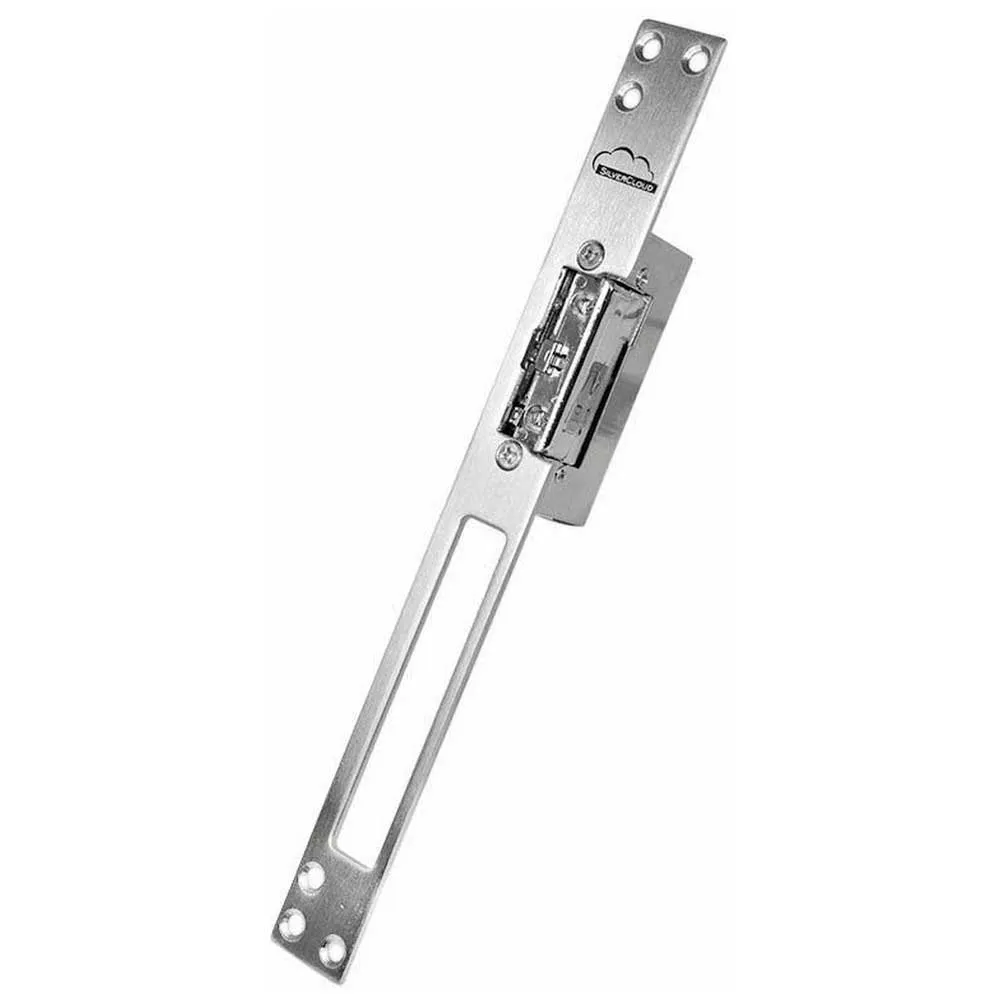

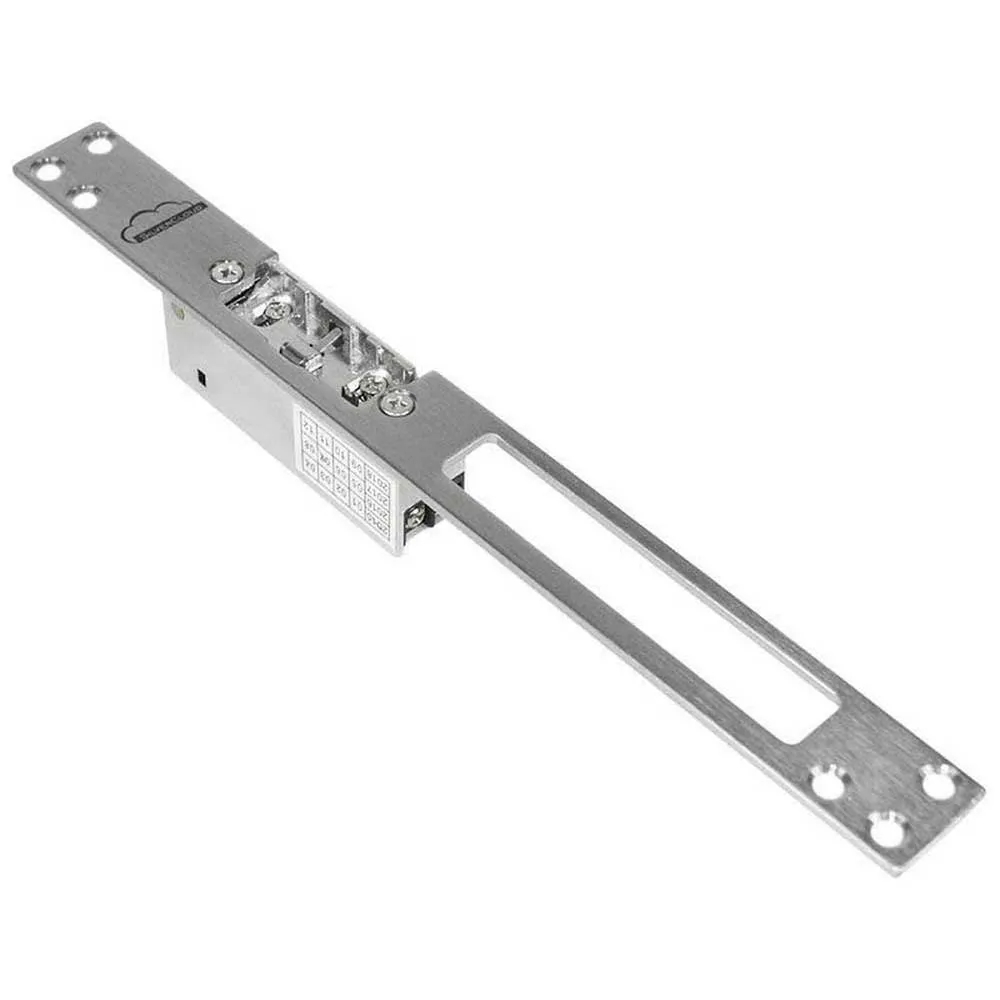

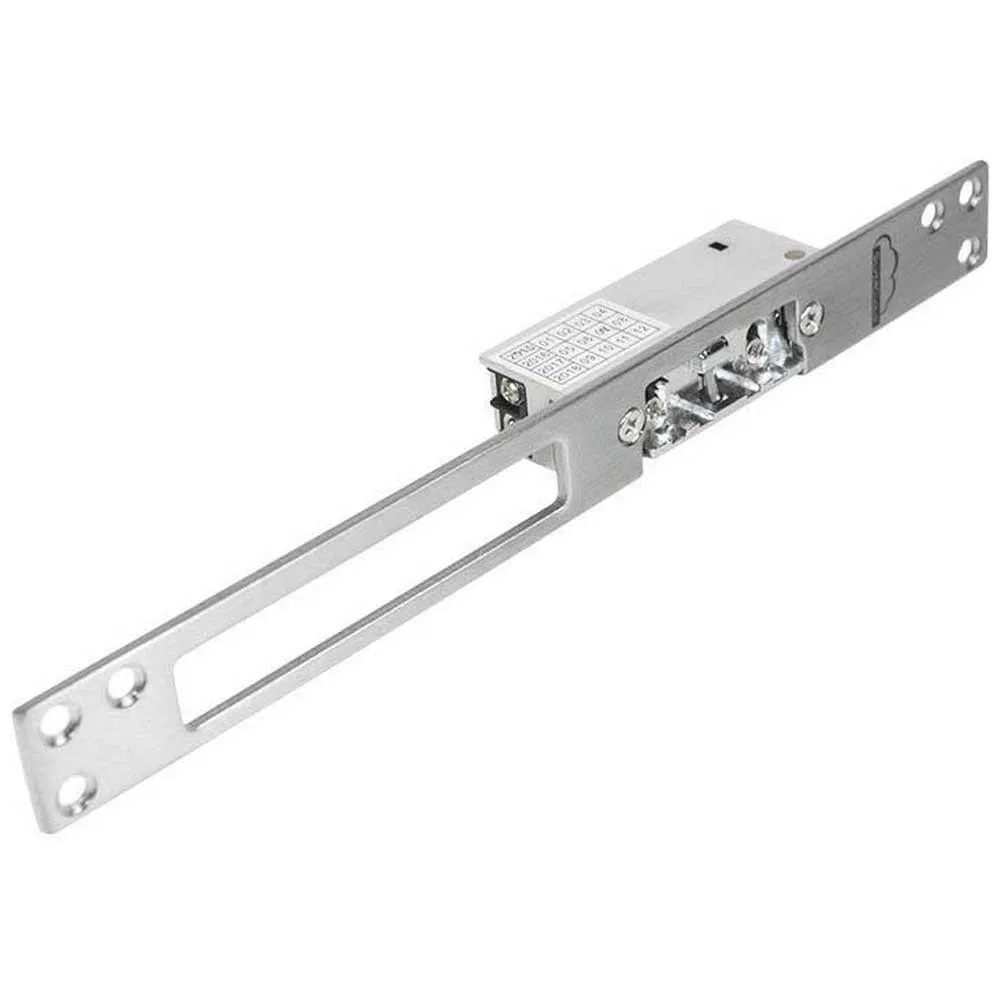

Silvercloud YS810 Electromagnetic Door Lock

Fail-secure drive, normally open (NO):
- This type of yala can be controlled by a NO circuit (Normally open) that offers a voltage of 12 V either impulse type (if the retention function is applied) or timed (maximum 5 seconds).

Universal opening:
- The SilverCloud YS810 recessed electromagnetic Yala can be mounted on any door, wood, metal or PVC, regardless of its opening direction: inwards or outwards, to the left or to the right.

Functions:
- The SilverCloud YS810 electromagnetic Yala is equipped with a central reinforcement pin (impulse retention function). The retention function is functional if the central retaining pin inside the yoke is pressed by the puppy / bolt of the door when the door is closed. This function allows the lock to be opened open, until the door / door / door is opened. Also, the yala can be locked on the open mode by positioning the dedicated pin on the open mode.

Reliability and safety:
- The electromagnetic Yala YS810 is made of resistant materials: steel on the outside and zinc alloy on the inside, with a closing force of 250 kg.

Fail-secure drive, normally open (NO):
- This type of yala will open when it receives an electrical pulse or a voltage delay of 12V, depending on the type of installation. In case of power outages, the yala remains closed, ensuring protection against intruders of the areas where it is mounted. The door can be unlocked from the outside using an access control system, and from the inside with an access button or through the door handle.

Remote control:
- The SilverCloud AP101 power supply allows the power of an electromagnetic yoke and its remote control with the help of the included remote controls. The maximum range is 50 m. The length of the power cord between the adapter and the yoke should not exceed 10 m.


Specifications:

- Tip yala: bury
- Supply voltage: 12 V pulse type
- Consumption: 1.2A
- Drive type: Fail Secure (Circuit NO / Normal Open)
- Compatible with intercom and access control systems: Yes
- Closing force: 250 kg

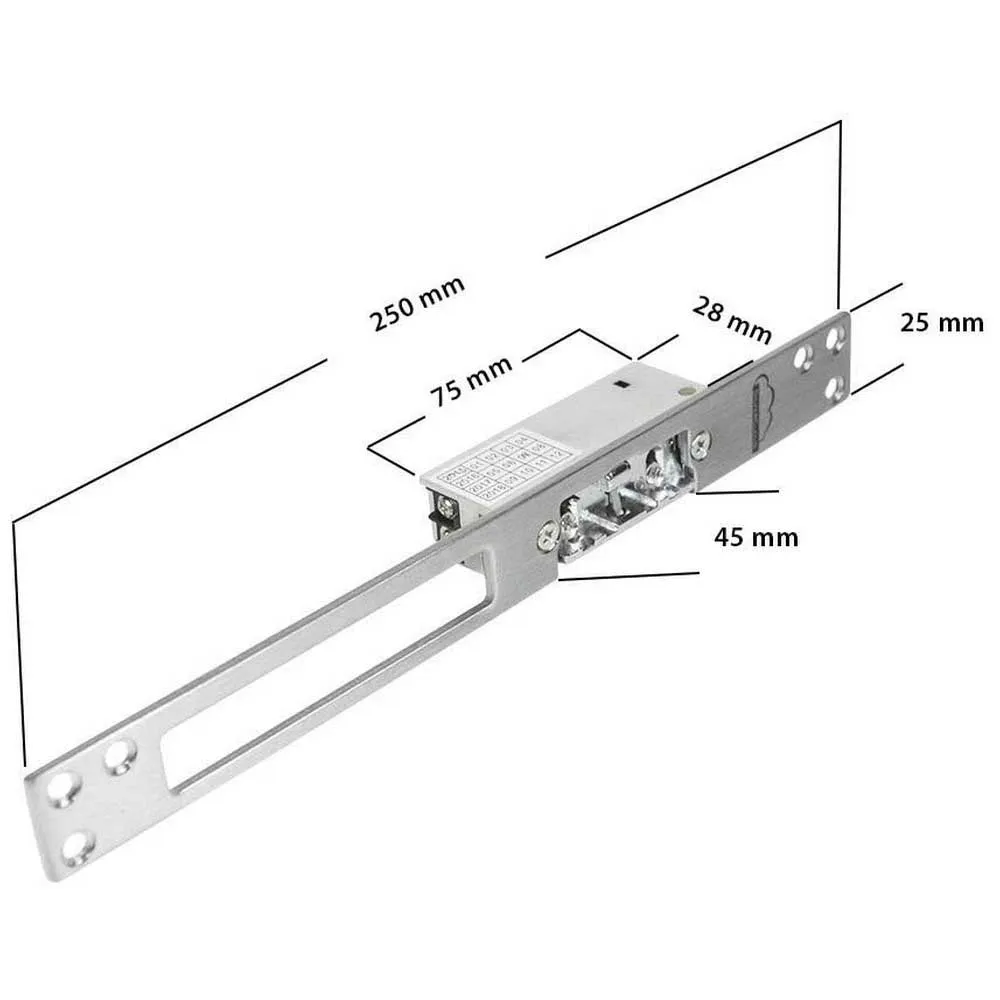

- Dimensions / Weight: 250 x 25 x 31 mm / 257 g
- Application mode: Left Right
- Retention system: Yes, mobile central mechanical pin
- Mechanical release system: Yes
- Working temperature: -26 ° C ~ + 60 ° C

Package Included:
- Yala electromagnetic: Yes
