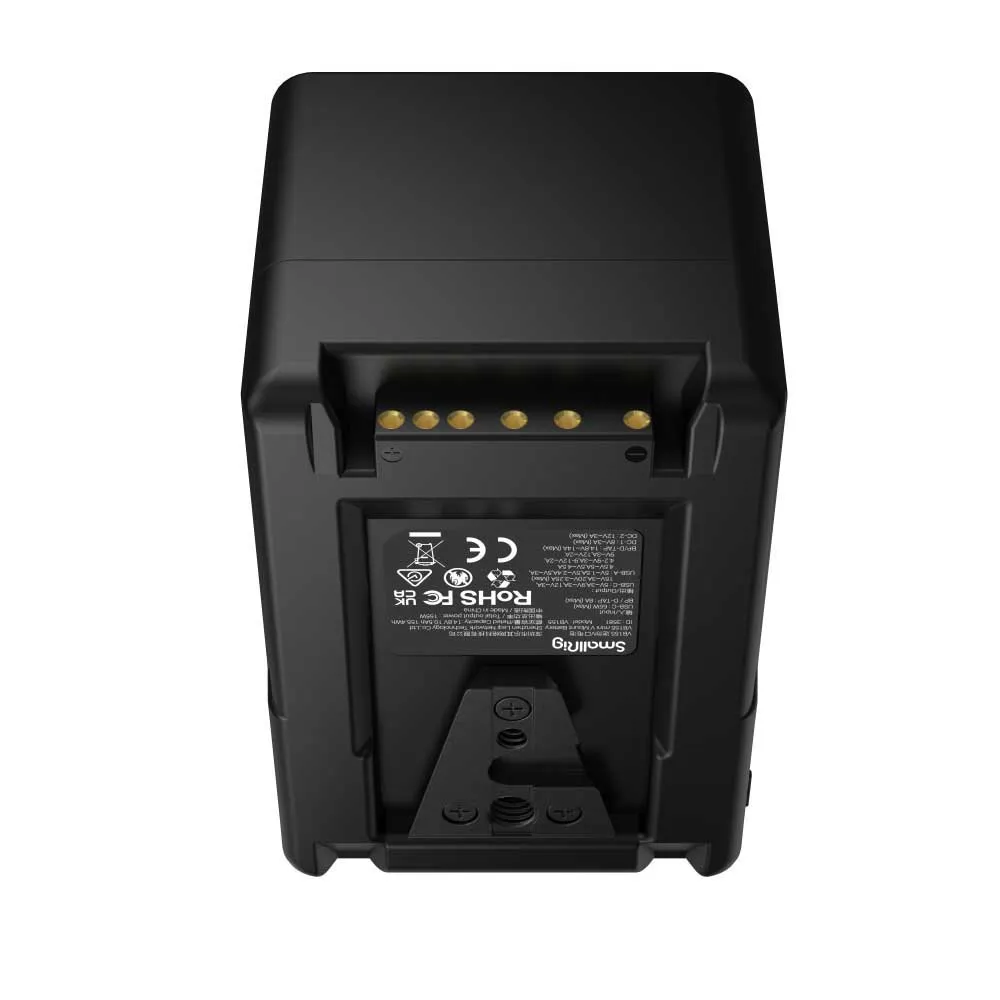

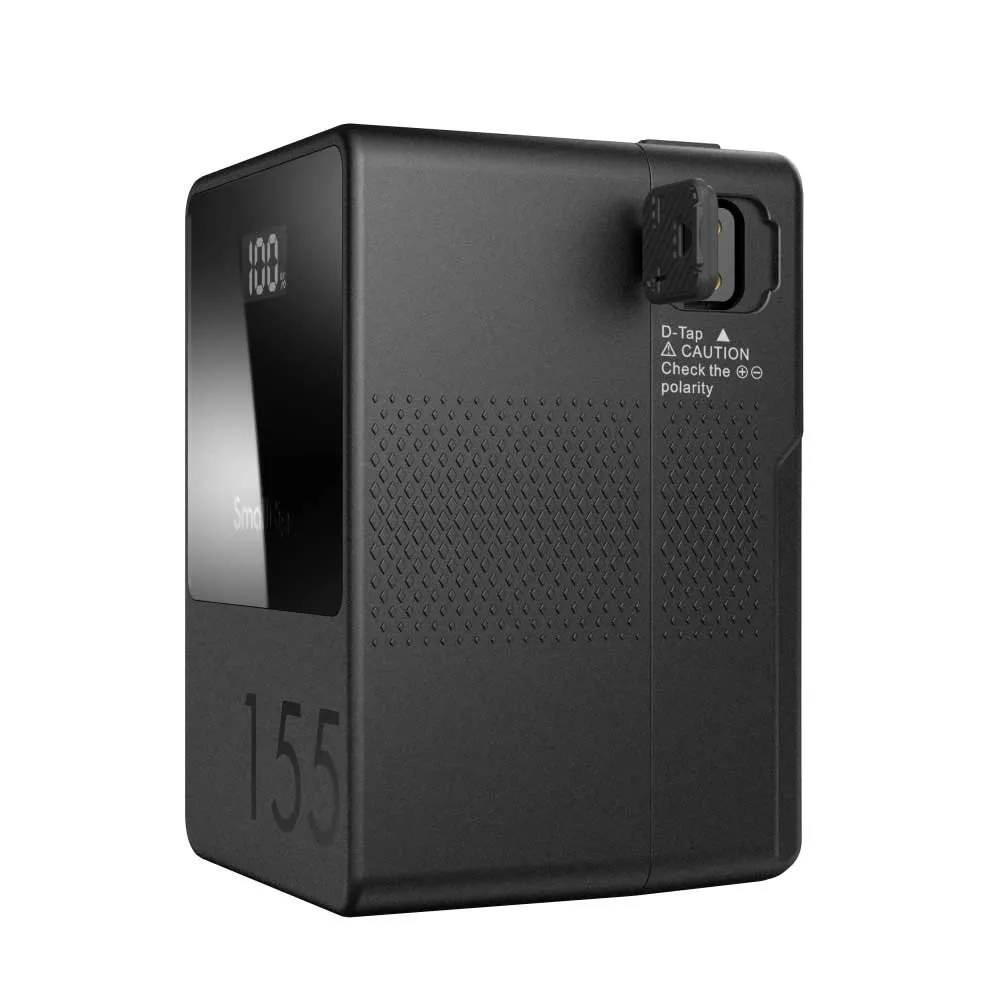

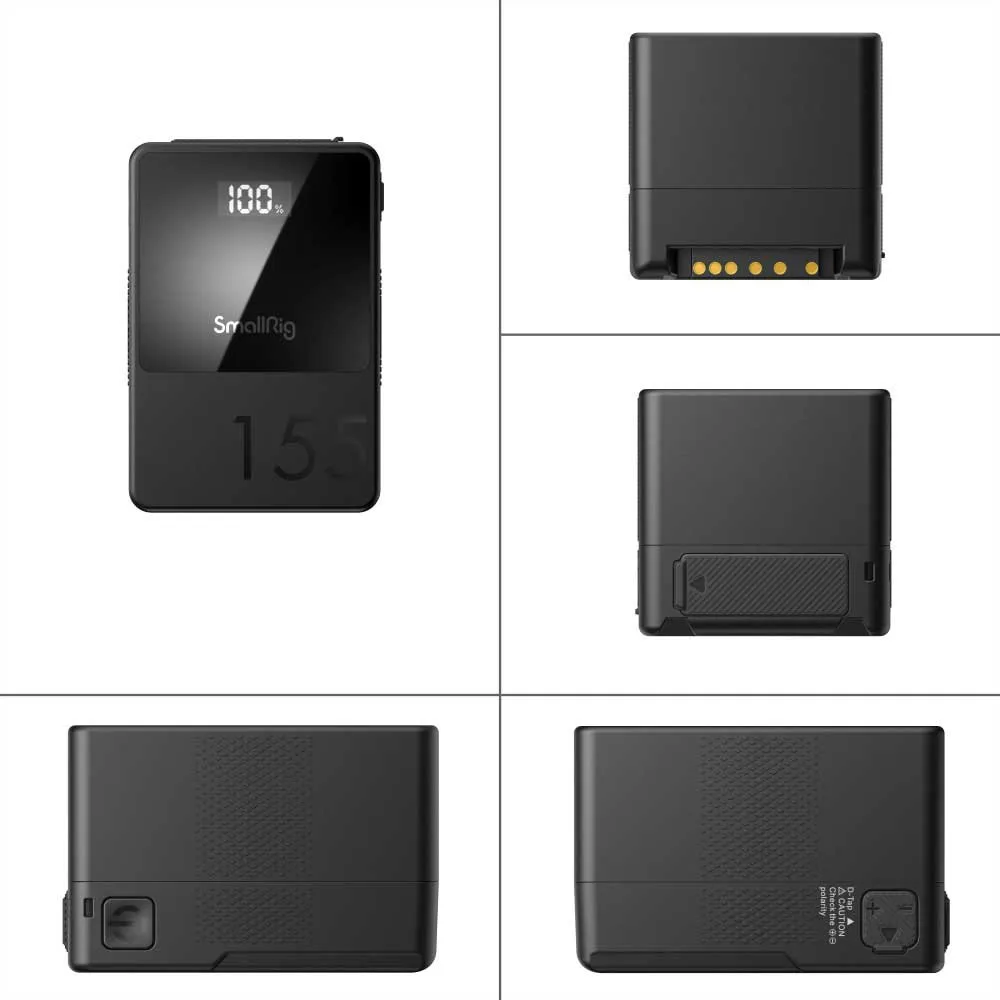

Smallrig 3581 VB155 Baterry Mount

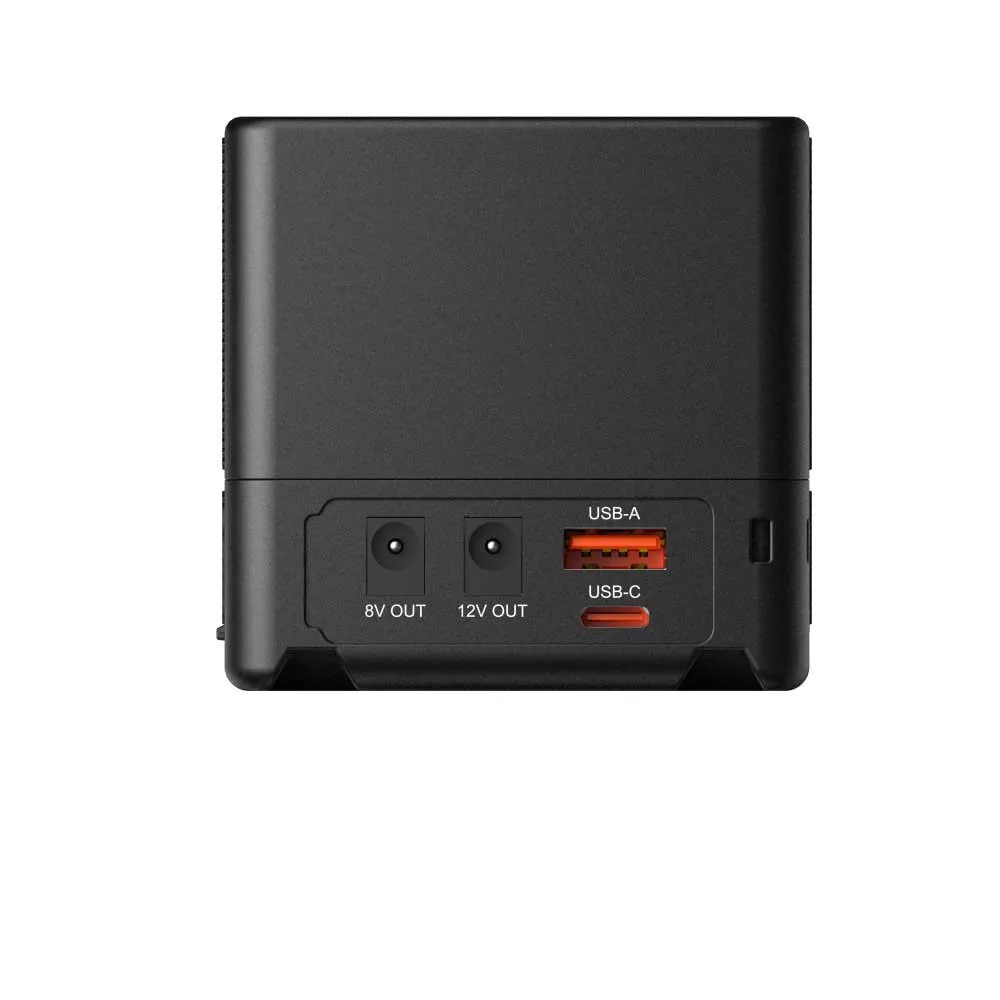

Vb155 Is About 70% Of The Size Of A Normal V-Mount Battery, Given Its Highly Integrated Design Which Takes Up Less Space, Making It Lighter And More Portable! The Highly Integrated (Fast Charging Protocol Chip + Mcu + Voltage Boost Control) Bms Chip Supports A Wide Range Of Mainstream Fast Charging Protocols (Pd / Qc / Scp / Pps / Apple-2.4a Etc.), Bi-Directional 65w (Max) Usb-C Pd Fast Charging, As Well As Adaptive Voltage Boost/ Adaptive Current Regulation Etc.! In Addition, Its Customized Intelligent Bms System Ensures Faster And Safer Charging By Providing Multiple Protections Against Over-Current / Short-Circuit / Over-Temperature / Over-Voltage Etc. Such Interfaces As Usb-A / Usb-C / D-Tap / Dc 8v / Dc 12v / V Mountare Also Included For Efficient Charging / Powering Of Camera / Camcorder / Monitor / Wireless Video Transmitter / Video Light / Mobile Phone / Laptop Etc., Without Using A V-Mount Plate To Convert! The Bms Chip Has A 16bit Adc / Power Meter Algorithm, Together With An Mcu And An Oled Digital Display For You To Keep Track Of The Battery´s Status At All Times. Built-In Premium High-Performance Battery (No Inflated Capacity), Which Are Rechargeable And Stable, Meet Msds / Un38.3 / Iec62133 / Ul2054 / Ul62368 And Other Internationally Recognized Standards, Allowing You To Capture Every Moment Without Burden!


Features:

- Compact And Lightweight To Be Carried Around:Designed To Lighten The Burden Of The Film Industry, The Vb Series Are Approximately 30% Smaller Than Traditional V-Mount Batteries!
- Intelligent Bms Chip For Efficient And Safe Use:A Built-In Highly Integrated Bms Chip Takes Up Less Space While Supporting Varied Fast-Charging Protocols And Bi-Directional 65w (Max) Usb-C Pd Fast Charging!

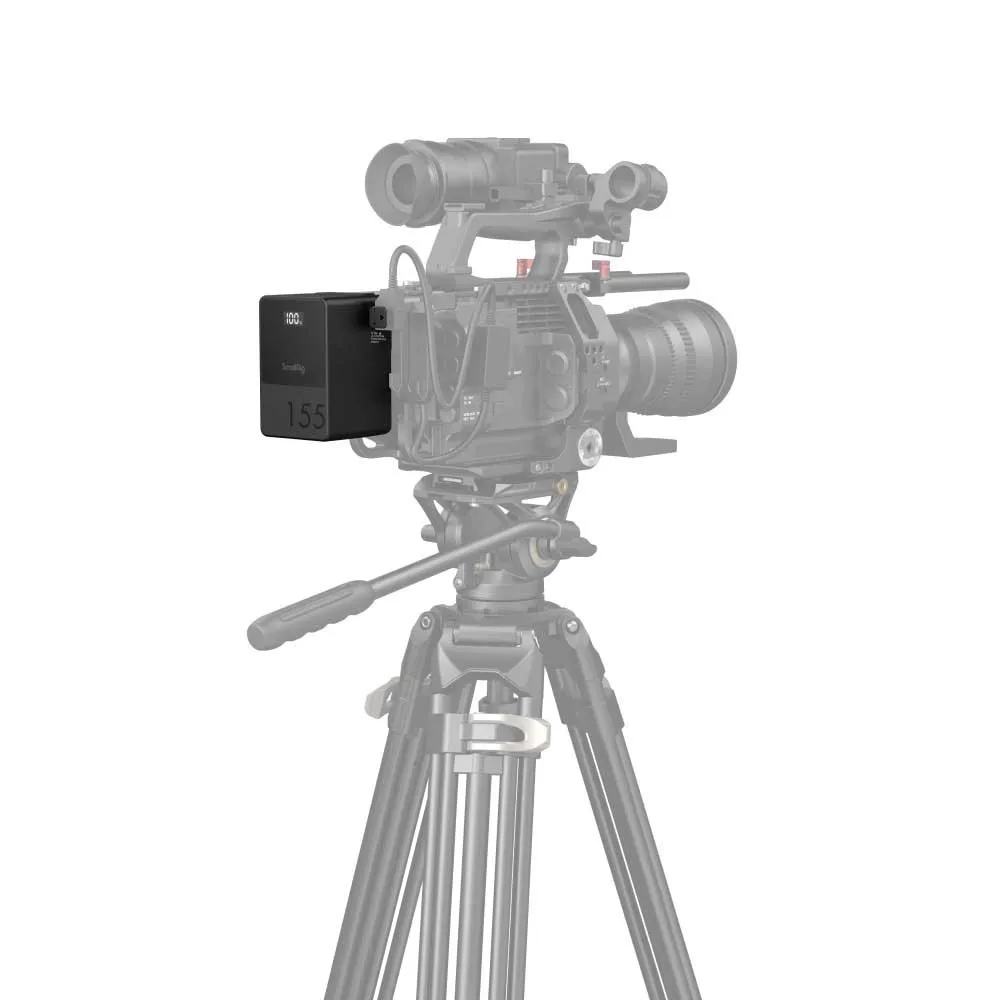

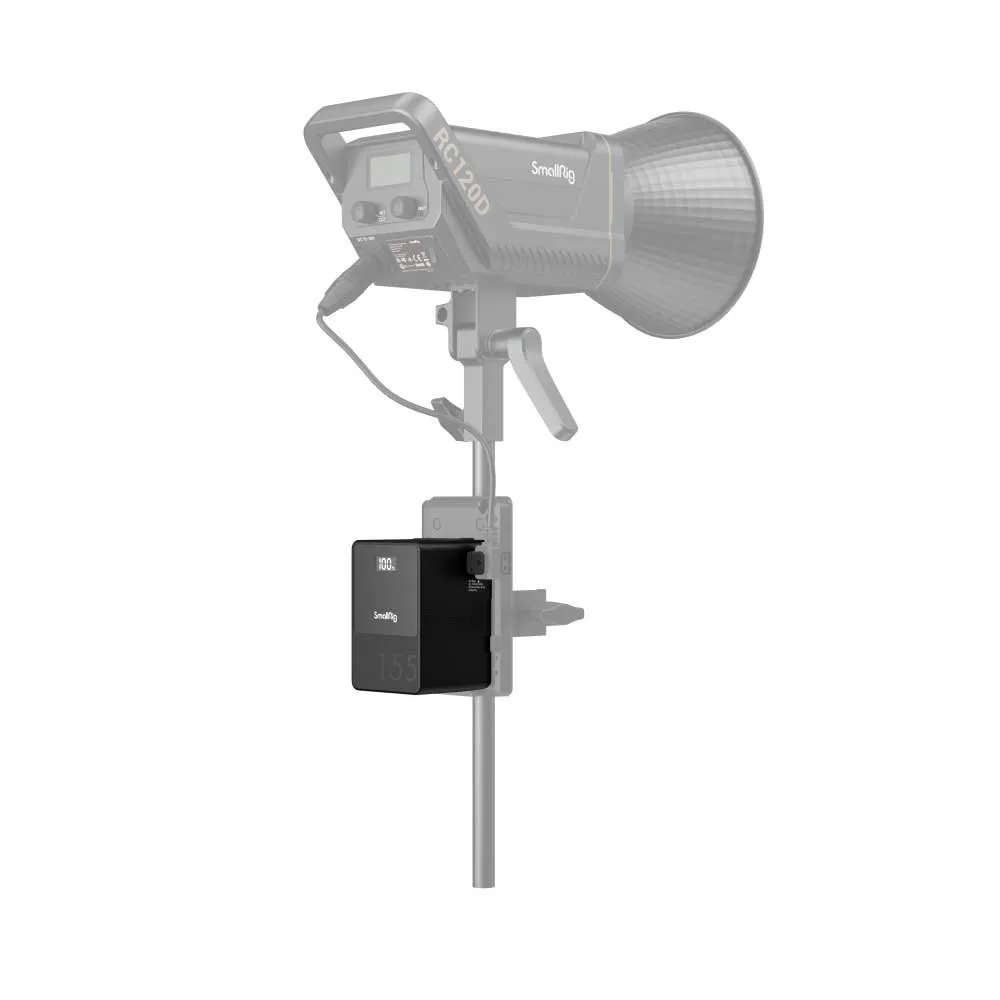

- Various Interfaces For High Compatibility: Compatible With Camera/ Camcorder / Monitor / Wireless Transmitter / Video Light, Etc.

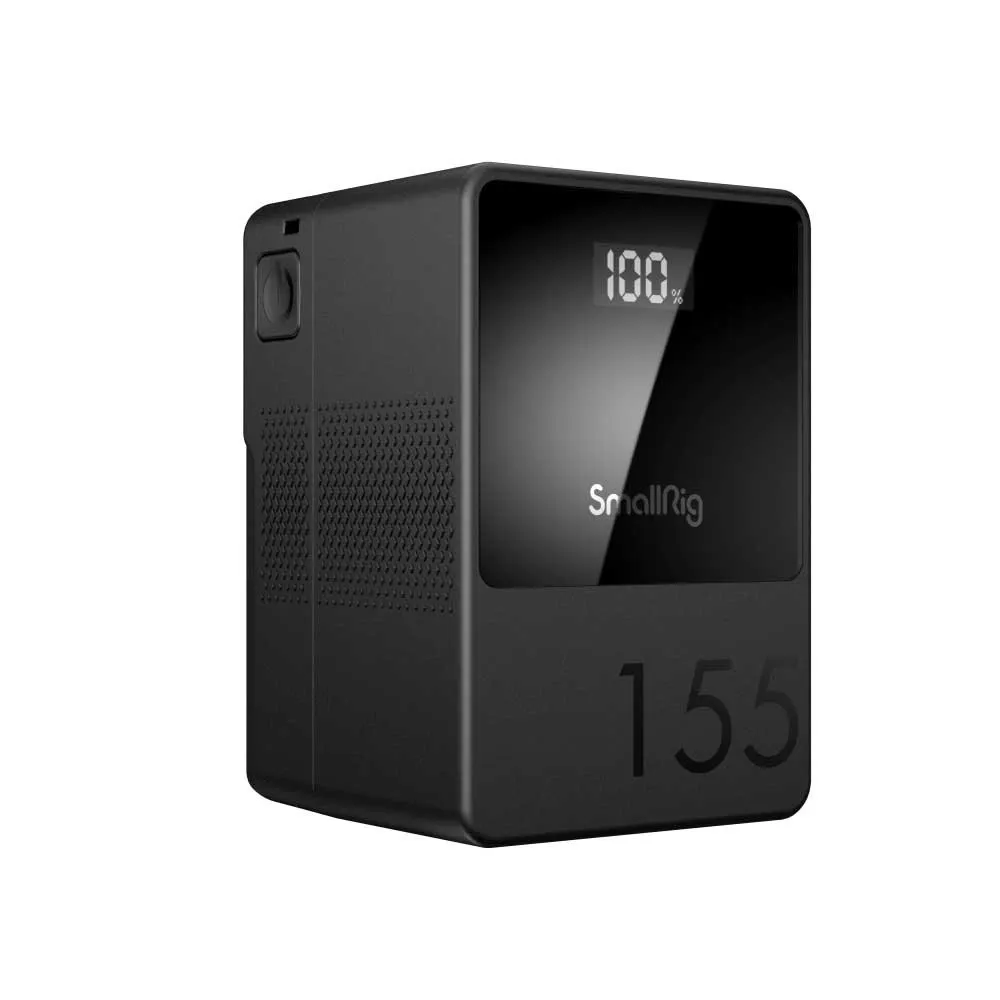

- Practical Oled Display For Precise Control:Keeps Track Of The Battery´s Working Status At All Times!
- Premium Li-Batterywith Guaranteed Quality And Safety: Built-In High-Capacity Premium Li-Battery, A Double Guarantee Of Quality And Performance!


Specifications:

Parameters:
- Material: Fireproof Pc
- Capacity: 14.8v 10.5ah 155wh
- Rated Power Discharge: 155w Charge: 65w
- V Mount / D-Tap Input: 16.8v / 8a
- V Mount / D-Tap Output: 14.8v / 14a（Max）
- Dc1 Output: 8v / Max3a
- Dc2 Output: 12v/Max3a
- Cutoff Voltage: 11v
- Optional Charging Method: 16.8v D-Tap Charger, Usb-C Charger Such As Gan Charger With Pd Fast Charging Tech (Up To 65w)
- Product Dimensions: 107.0 × 73.0 × 71.0 Mm
- Weight Kg: 0.78
