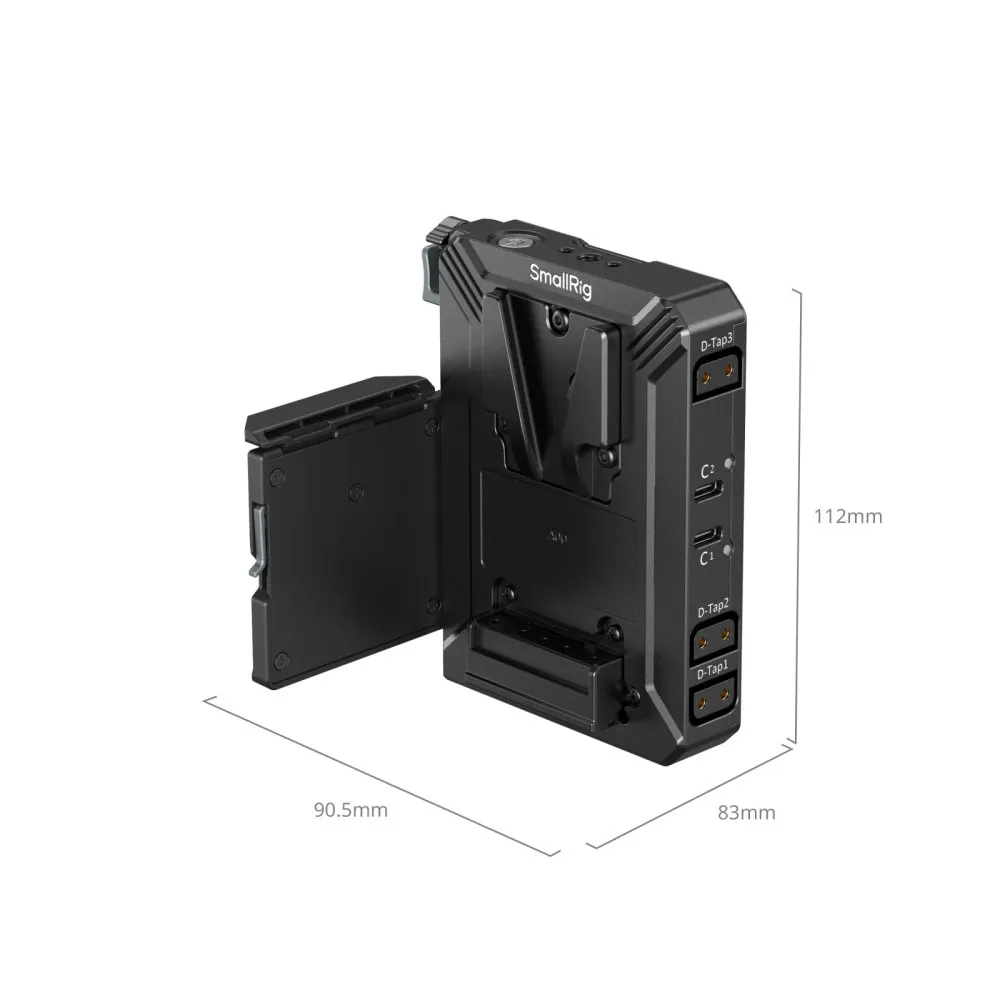

SMALLRIG V-Mount Battery Adapter Plate 5228

Elevate your filmmaking and photography with the SMALLRIG 5228 V-Mount Battery Adapter Plate, an essential power distribution hub designed for the modern content creator. This professional-grade accessory streamlines your camera rig by centralizing your power source, eliminating the need for multiple, small batteries and messy cables. Unlock uninterrupted shooting sessions and power your entire setup—from camera to accessories—from a single high-capacity V-mount battery. The adapter plate is engineered not just for power but for efficiency, providing a robust and versatile mounting solution that integrates seamlessly into any professional rig, enhancing both functionality and balance.

Experience the ultimate freedom in power management. The SMALLRIG 5228 is built to support demanding production environments, ensuring your camera, monitor, wireless transmitter, and other crucial gear remain operational throughout the longest shoots. Its intelligent design incorporates multiple industry-standard mounting options, allowing for quick attachment and detachment to various support systems. Crafted with precision from a durable and lightweight aluminum alloy, this adapter plate offers a secure and stable foundation for your expensive V-mount batteries while adding minimal weight to your setup. The built-in power switch provides an extra layer of safety, allowing you to completely cut power to all connected devices with a single press, preventing battery drain when not in use.

The key benefit of the 5228 lies in its exceptional versatility. It acts as a central nervous system for your rig´s power, featuring a comprehensive array of output ports to accommodate a wide range of devices simultaneously. This consolidation drastically simplifies your workflow, reduces potential points of failure, and allows you to focus on capturing the perfect shot. Furthermore, its strategic placement on a rig can serve as an effective counterbalance, improving the ergonomics and stability of shoulder-mounted or gimbal setups.

Main Features

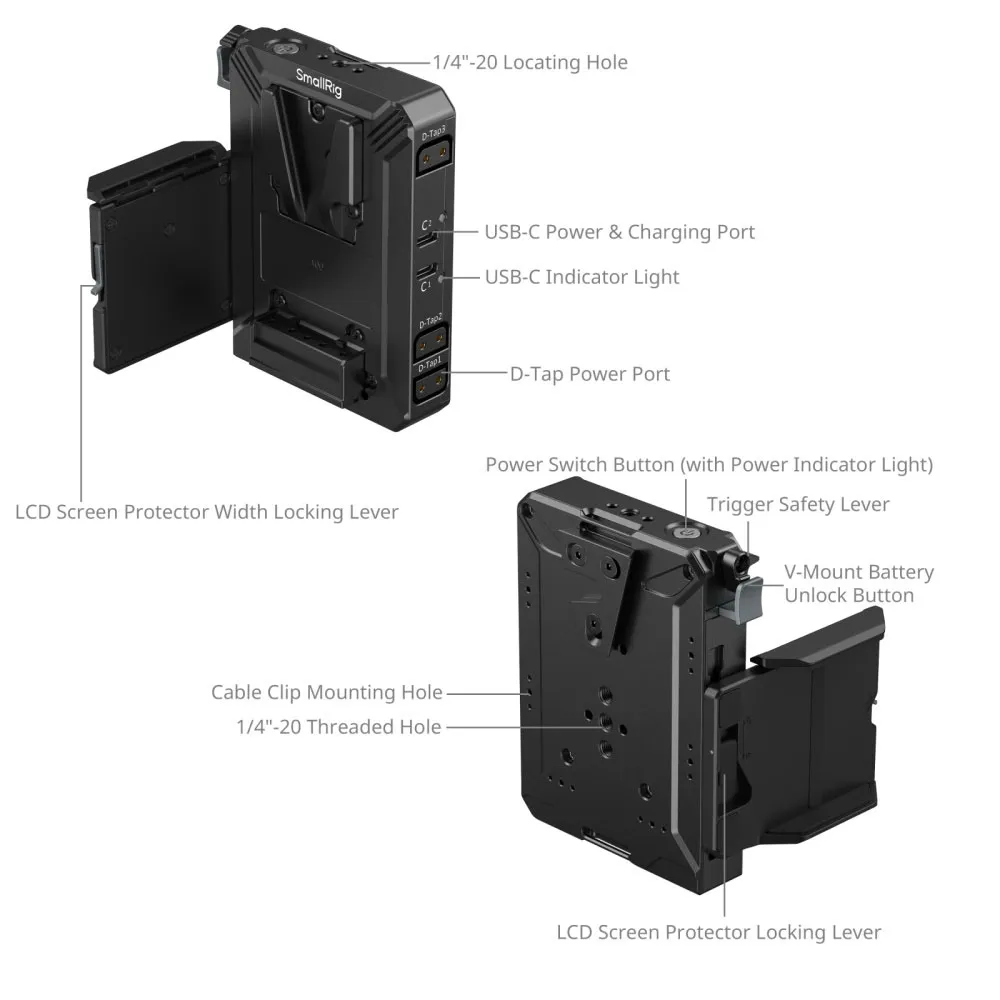

* Versatile Power Distribution: Equipped with multiple output ports, including D-Tap, 8V DC, 12V DC, and a powerful USB-C port, to simultaneously run a diverse range of filmmaking accessories.
* High-Speed 65W USB-C PD: Features a Power Delivery (PD) compliant USB-C port capable of delivering up to 65W, perfect for powering or fast-charging compatible cameras, laptops, smartphones, and other modern electronics.
* Integrated ARCA-Swiss Quick Release Plate: The base of the adapter includes a standard ARCA-Swiss plate, enabling rapid mounting and dismounting from compatible tripod heads, gimbals, and other supports.

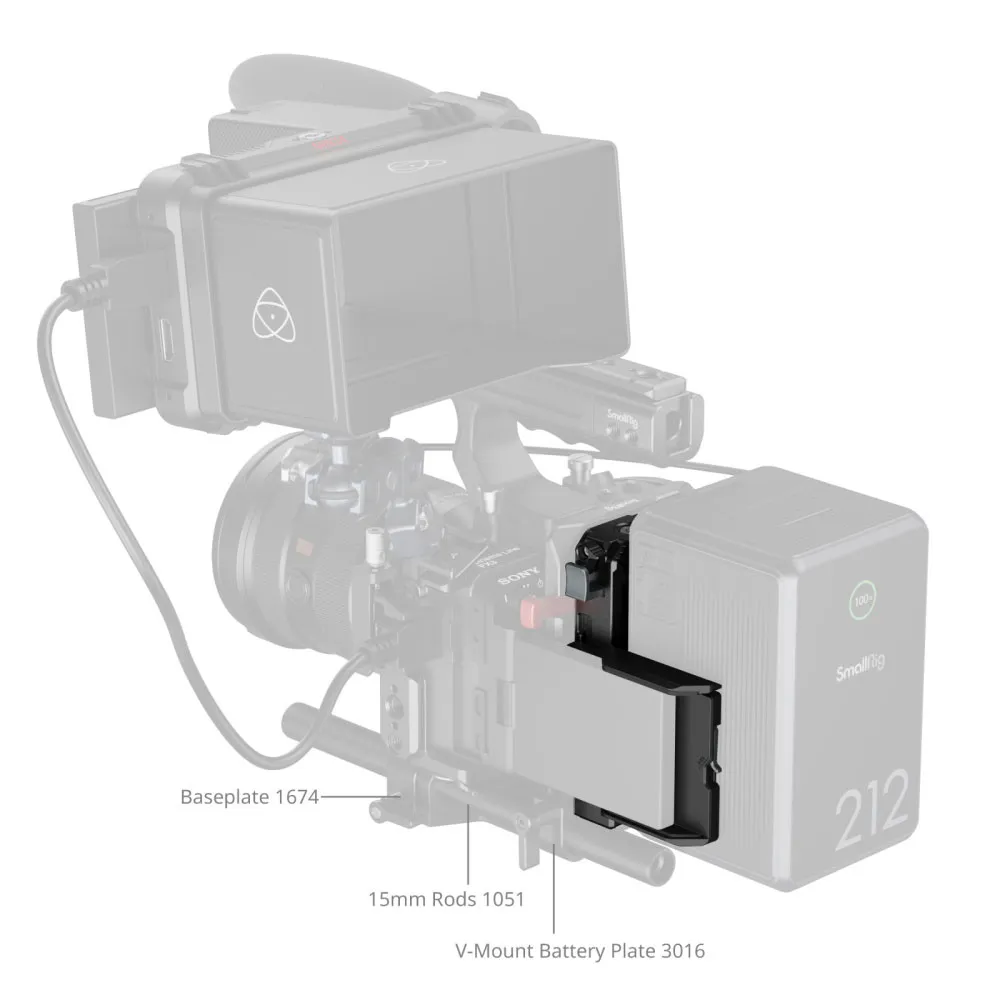

* Built-in 15mm Rod Clamp: Includes an adjustable dual 15mm LWS rod clamp, allowing for secure and positionable mounting onto standard cinema rig systems.
* Multiple Mounting Points: Features several 1/4"-20 threaded holes for expanded compatibility, offering limitless options for attaching articulating arms, brackets, and other accessories directly to the plate.
* Master Power Control: A convenient and accessible on/off switch allows you to control power to all output ports at once, conserving battery life and ensuring equipment safety during setup changes.
* Robust and Lightweight Construction: Engineered from high-strength aluminum alloy for maximum durability and reliability in professional field use, without adding significant weight to your camera build.

Supports
* Battery Type: Compatible with most standard V-Mount (V-Lock) batteries.
* Device Powering: Mirrorless cameras, DSLR cameras, cinema cameras, on-camera monitors, wireless video transmitters, follow focus systems, LED lights, smartphones, and laptops (via USB-C).
* Mounting Systems: Standard 15mm LWS rod systems, ARCA-Swiss compatible tripods and gimbals, camera cages, and cheese plates via 1/4"-20 threaded holes.

Technical Specifications
* Input: V-Mount Battery (11V - 16.8V)
* Output D-Tap: 14.8V / 14A (Max)
* Output DC 8V: 8V / 3A (Max)
* Output DC 12V: 12V / 3A (Max)
* PD 3.0 Input: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
* PD 3.0 Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
* Mounting Interface: 15mm Rod Clamp, ARCA-Swiss Quick Release Plate, 1/4"-20 Threaded Holes
* Material: Aluminum Alloy, Stainless Steel
