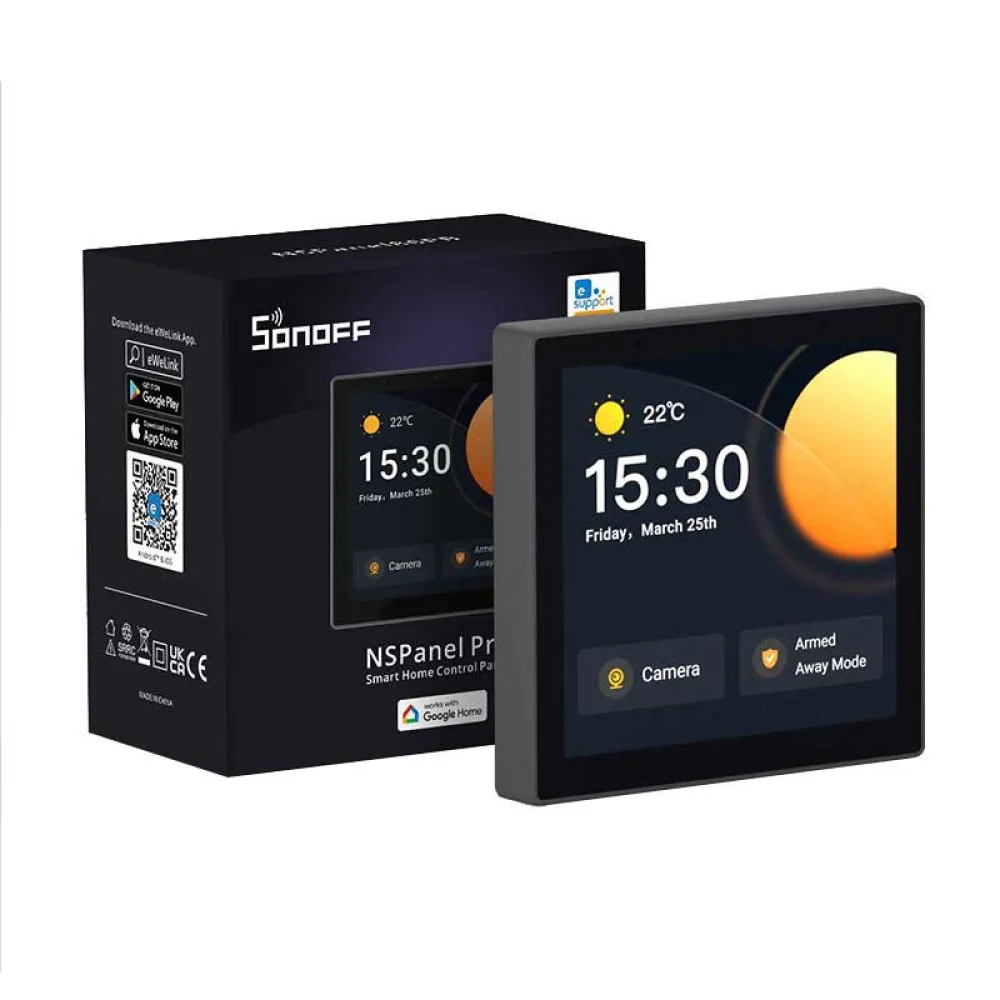

Sonoff NSPanel86P Smart control panel

Sonoff wall switch will allow you to conveniently manage your smart home. It allows you to control lights, sensors, temperature, camera, etc. It will also notify you when someone breaks into your home. The product works with Home Assistant and supports Wi-Fi and Bluetooth connection. It will be perfect for everyday use as a timer or alarm clock, it will also notify you when someone rings the doorbell.

Built-in thermostat:
- The Sonoff wall switch also allows you to intelligently control room temperature. All you have to do is pair it with your radiators or air conditioner and set the desired temperature. There are also 2 operating modes to choose from. Auto will make the device turn on/off automatically when the temperature reaches a value you specify. Manual, on the other hand, allows you to manually adjust the temperature to your liking - whenever you want.

User-friendly:
- Want to listen to music, watch an episode of a TV series or a tutorial on a topic of your choice? The Sonoff wall switch will make it possible for you. All you have to do is save the website address in NSPanel Pro and launch it with one click. In addition, you can personalize the appearance of the device by choosing one of the available wallpapers. What´s more, the wallpaper will change according to the weather. You can also add your own photo.

Convenience and security:
- The switch is equipped with a display and works with Sonoff cameras (CAM Slim, GK-200MP-B), RTSP and ESP32. Thus, you will pair them with the device, gaining a view of your garage, dining room, or home entrance. What´s more, it supports two-way audio, so you can conveniently communicate with a courier, for example. In addition, it has a built-in microphone and speaker - when connected to a smartphone or switch, it allows you to communicate with others.

Lower electricity bills:
- Another advantage of the Sonoff wall switch is the ability to control the amount of energy used. This will allow you to reduce the cost of your electricity bills. The device works with Sonoff smart relays and switches, including POW Origin/Elite, DualR3, S40/31.

Thoughtful design:
- The device was designed to make using it simple. The switch features a 3.95´´ TFT LCD touchscreen display that provides clear access to information and settings. What´s more, the brightness of the screen is adjusted automatically, thanks to the ICC sensor, for more convenient operation.

More capabilities:
- The standard Zigbee 3.0 protocol makes the connection more stable and the range greater. Added slave devices can be voice-controlled through cooperation with Alexa, Google Home, etc. In addition, it supports two-way synchronization between NSPanel Pro and the Home Assistant ecosystem. You can also pair Zigbee devices from NSPanel Pro to HA, and sync HA lights and switches to NSPanel Pro.

Specifications:

- Voltage: 100-240V AC 50/60Hz
- Maximum power consumption: 5W max, 150mA
- Screen diagonal: 3.95´´
- Resolution: 480 x 480
- Audio output: 7Ω, 1W
- CPU: Quad-core ARM Cortex-A35 CPU
- GPU: Mali-G31GPU
- Dimensions: 86 x 86 x 39.5 mm
- Weight: 180 g
- Material: PC V0, CRS, tempered glass
- Operating systems: Android, iOS
- Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
- Bluetooth: BT2.1+EDR，BT 3.0，BT4.2
- Zigbee: IEEE 802.15.4 (Zigbee 3.0)
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 5%-90% RH
