Startech 117B usb-c adapter

Features:

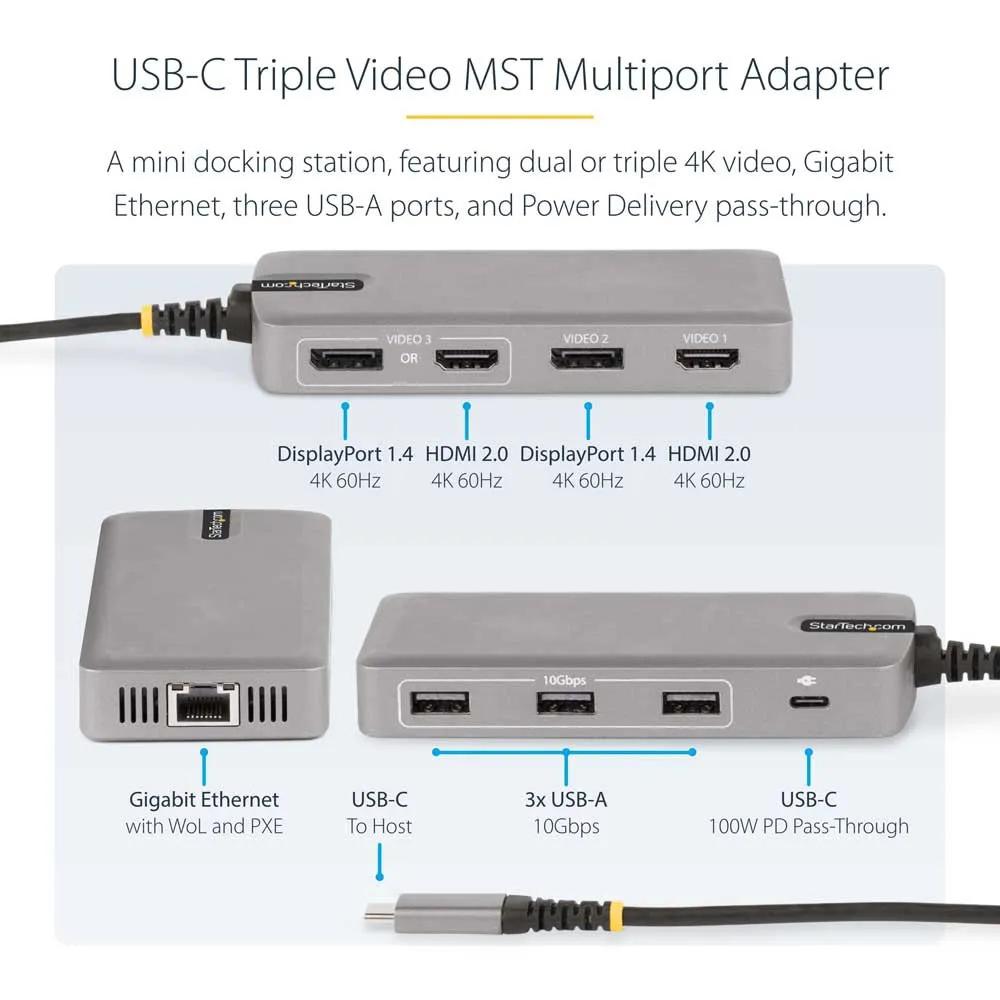

- High Performance Triple 4k:

Driver-free setup.

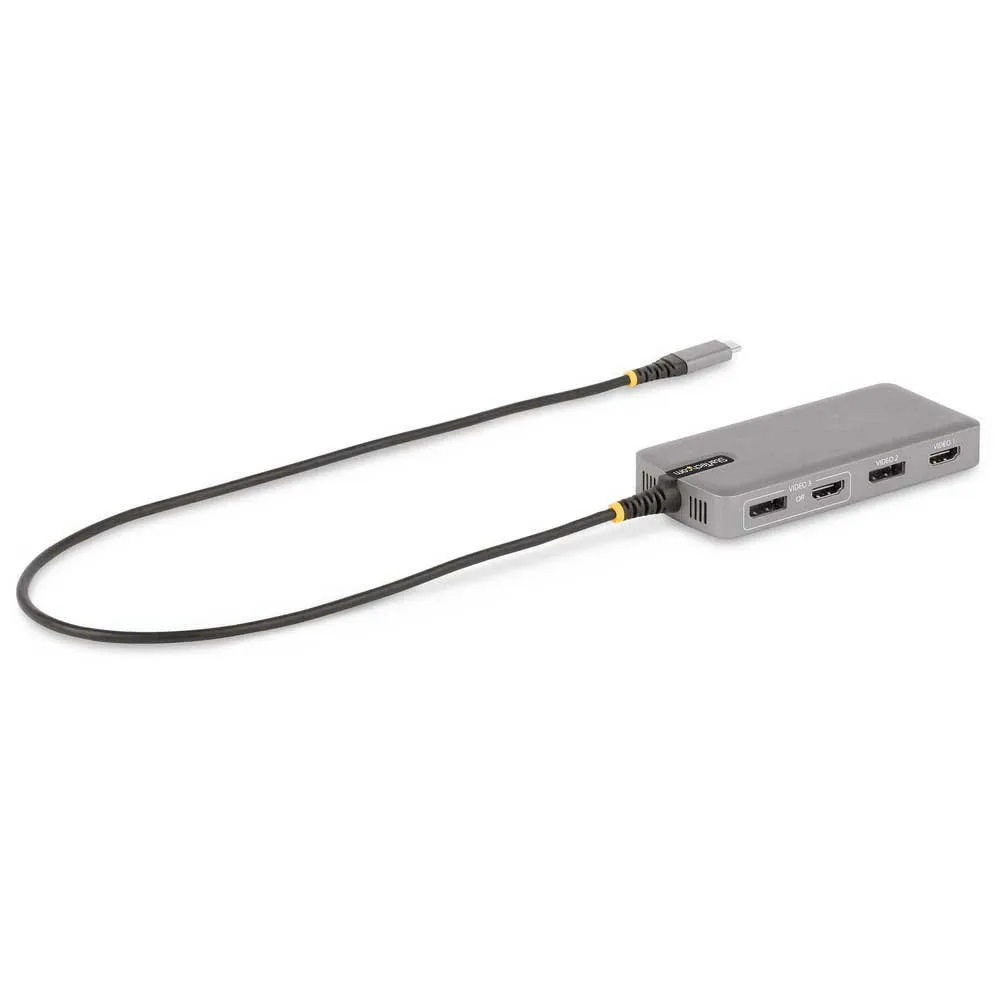

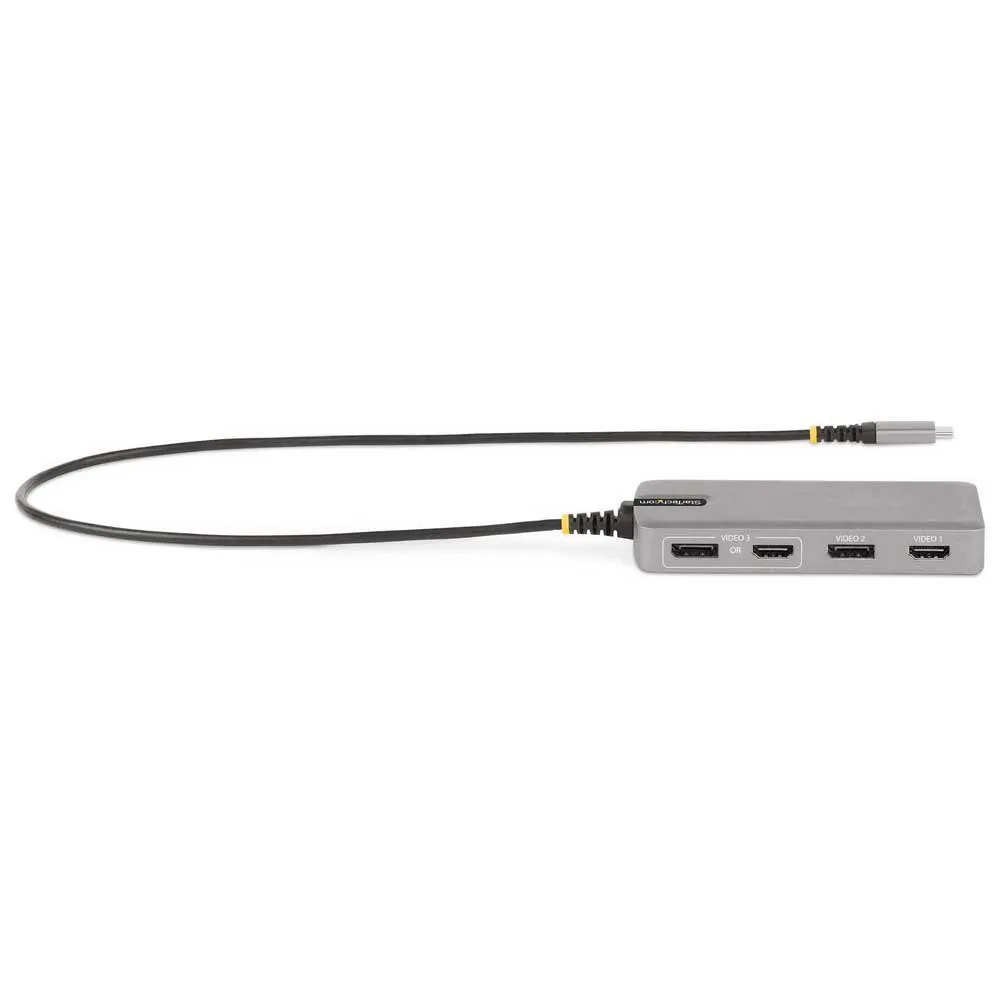

- Provides a combination of 2 HDMI 2.0b and 2 DisplayPort 1.4 video outputs.

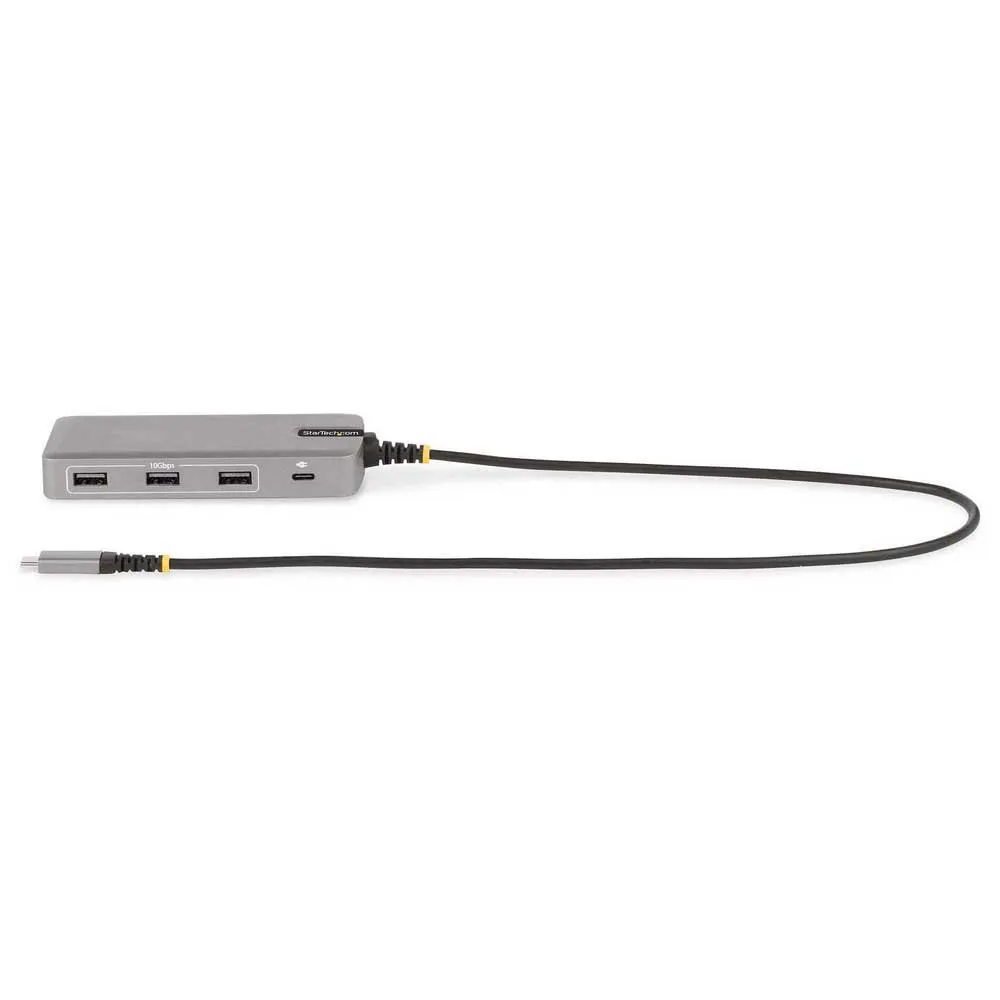

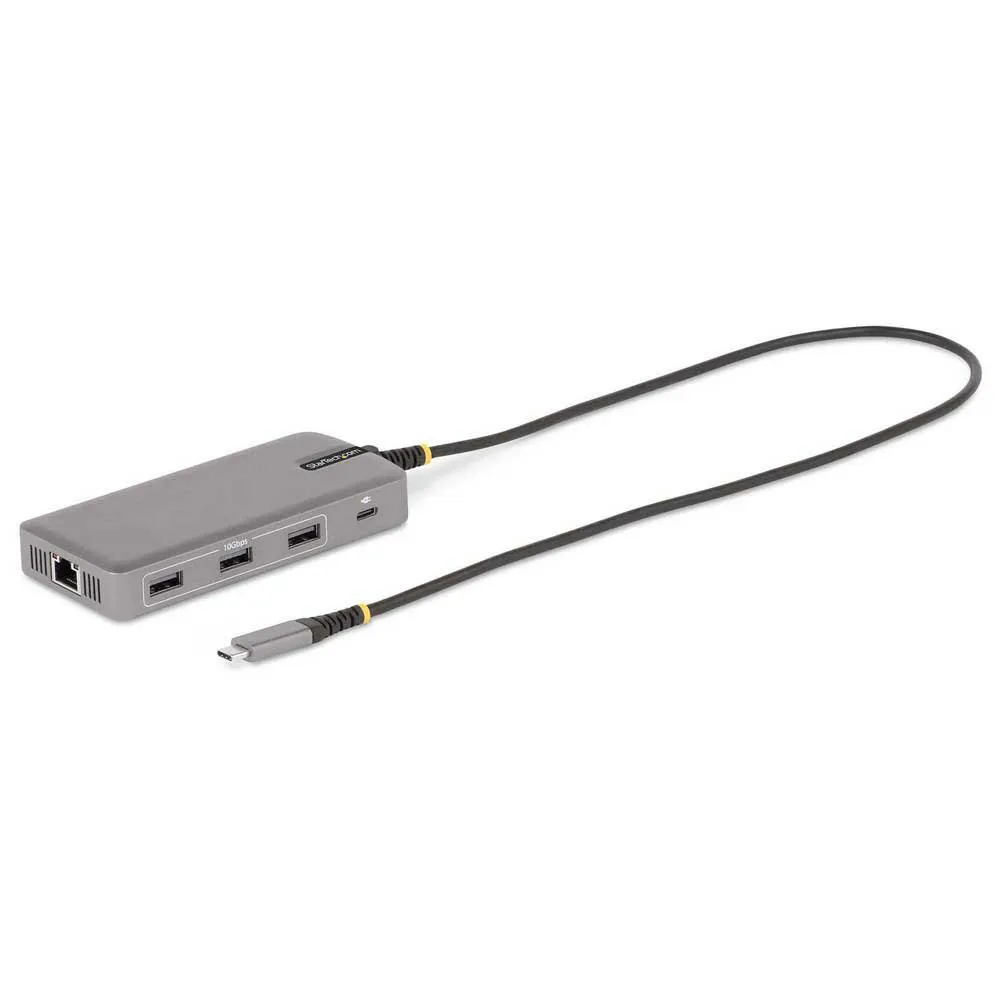

- 3-port USB-A 3.2 Gen 2 10Gbps hub.

- Gigabit Ethernet (WoL/PXE Boot).

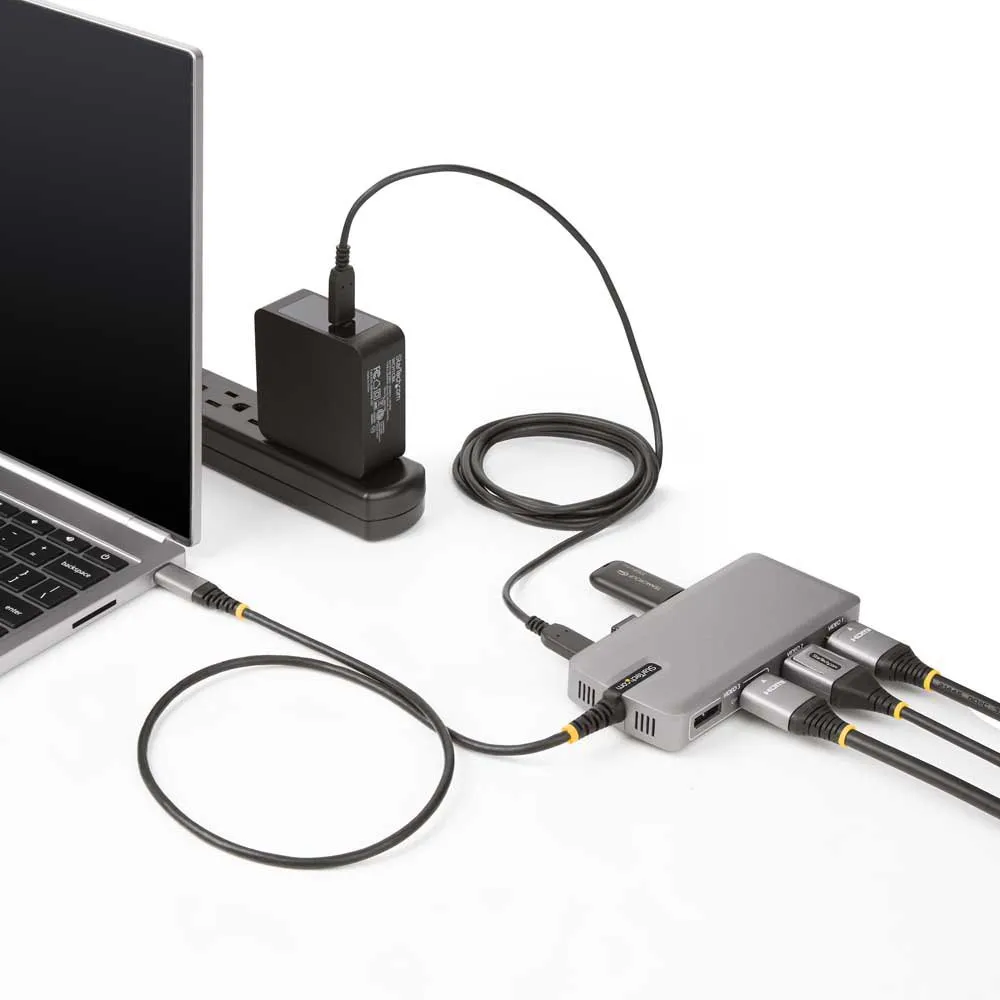

- 100W PD Pass-Through.

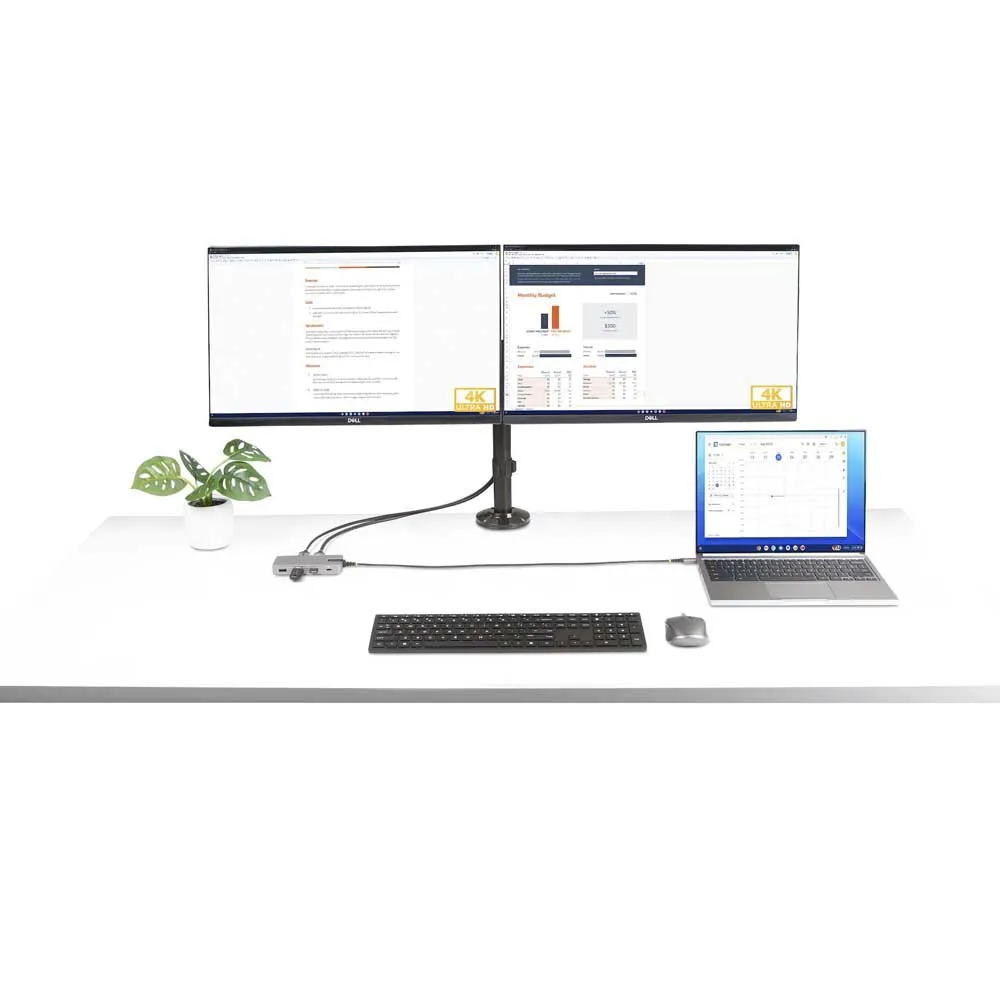

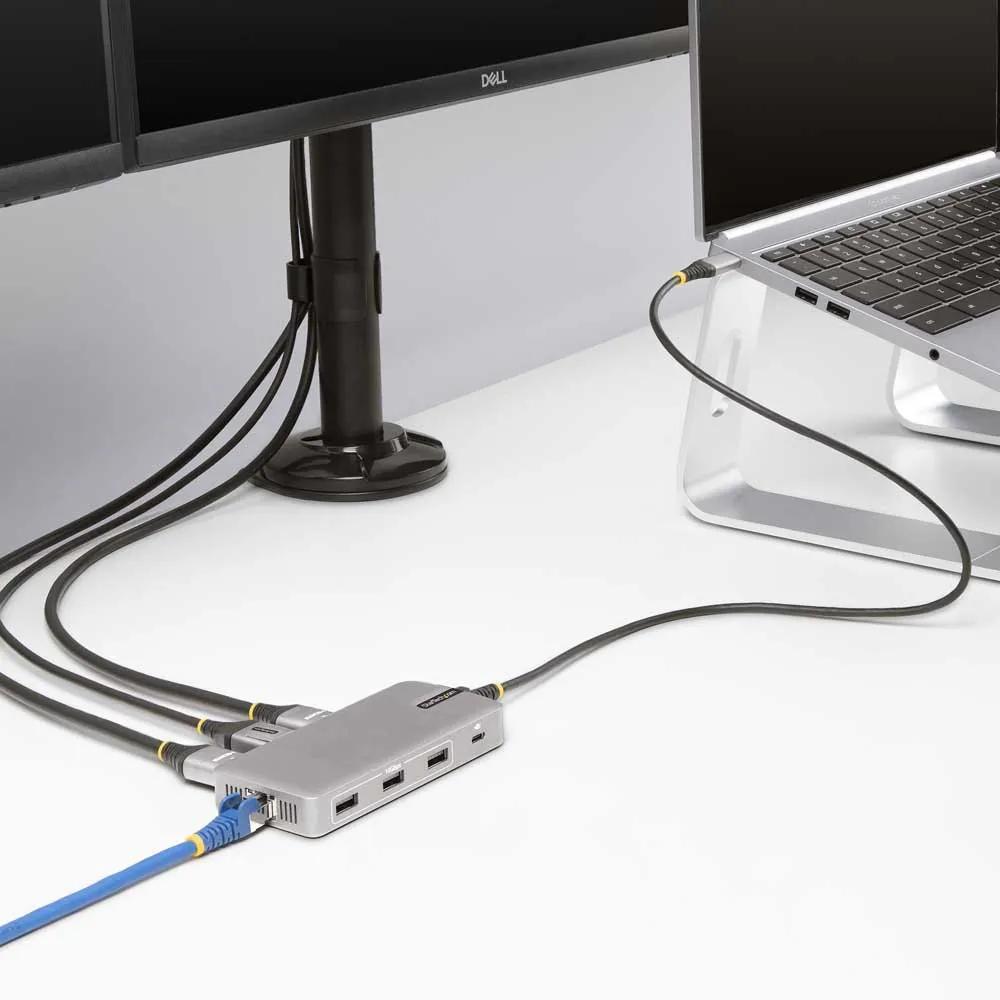

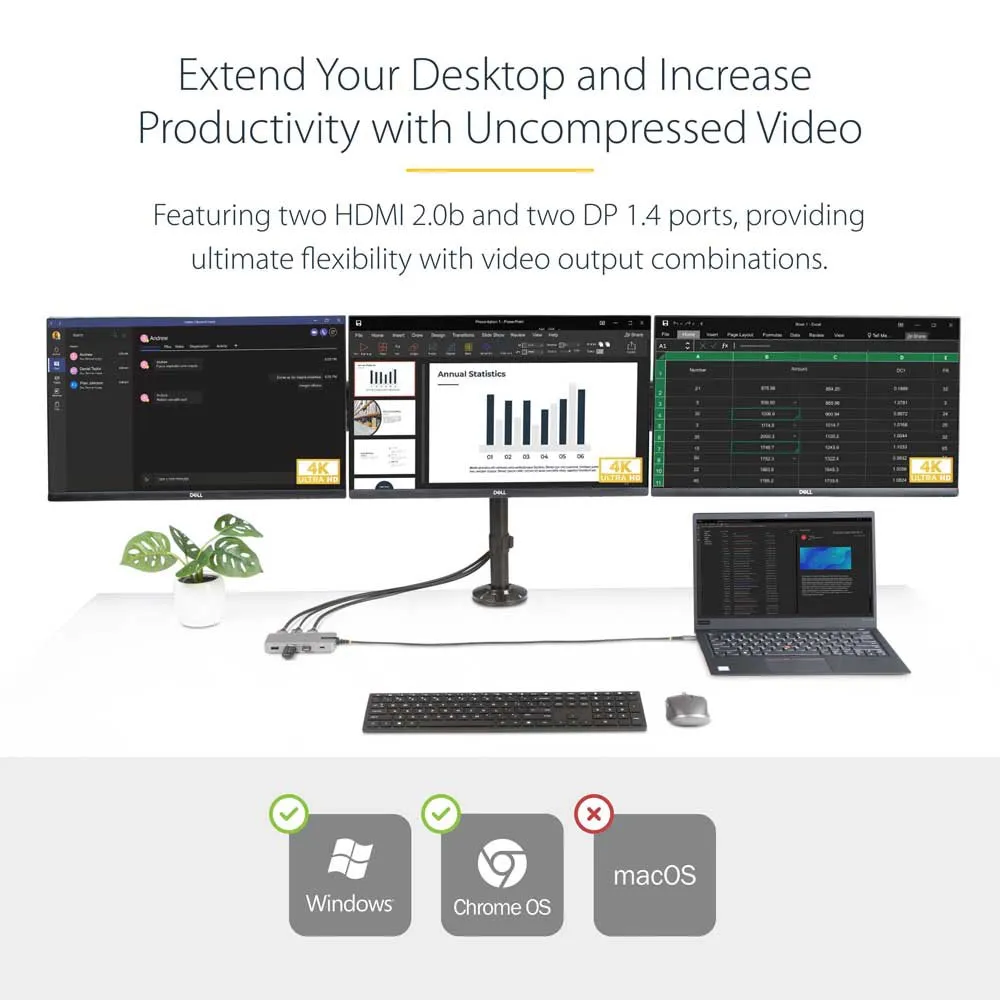

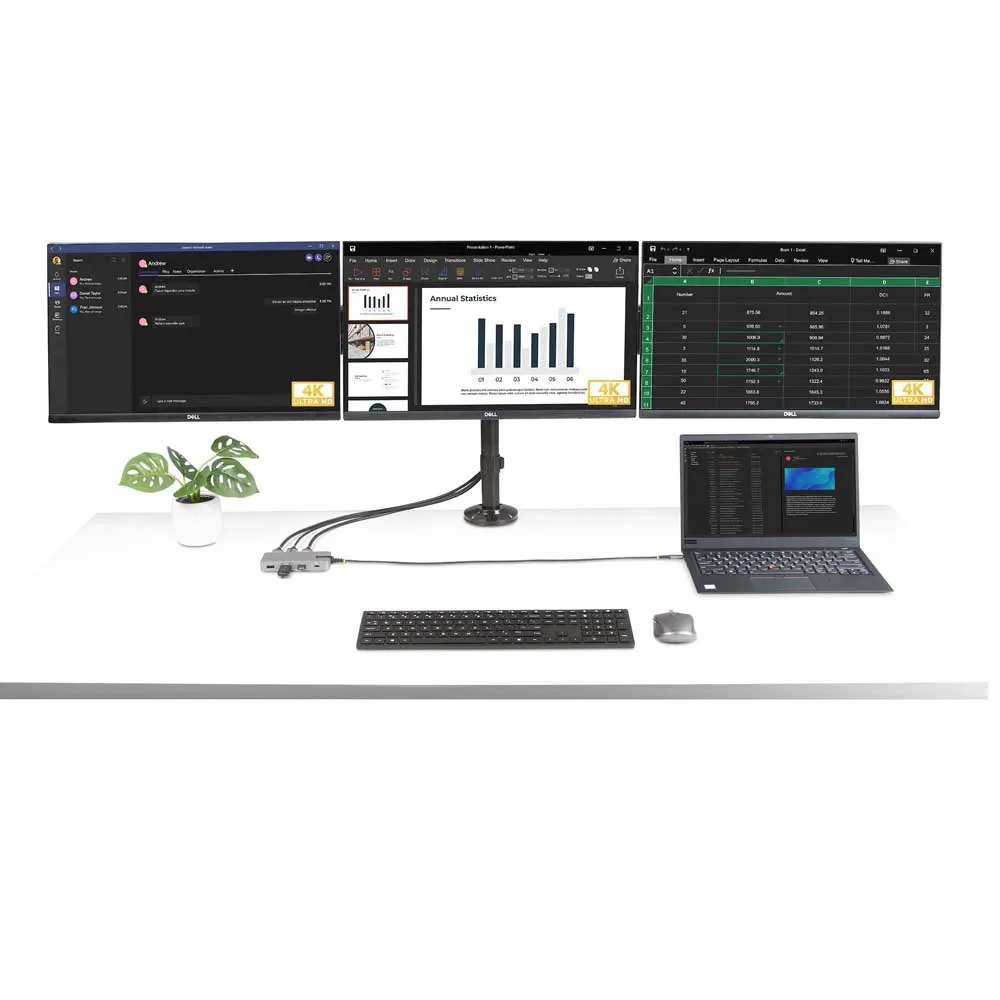

- Flexible Multi-Monitor Output:

Three, two, or one monitor.

- Up to 1x 4K 60Hz and 2x 4K 30Hz (minimum Intel 11th Gen or later with DSC).

- Utilizes the laptop´s integrated GPU for uncompressed video with reduced CPU usage.

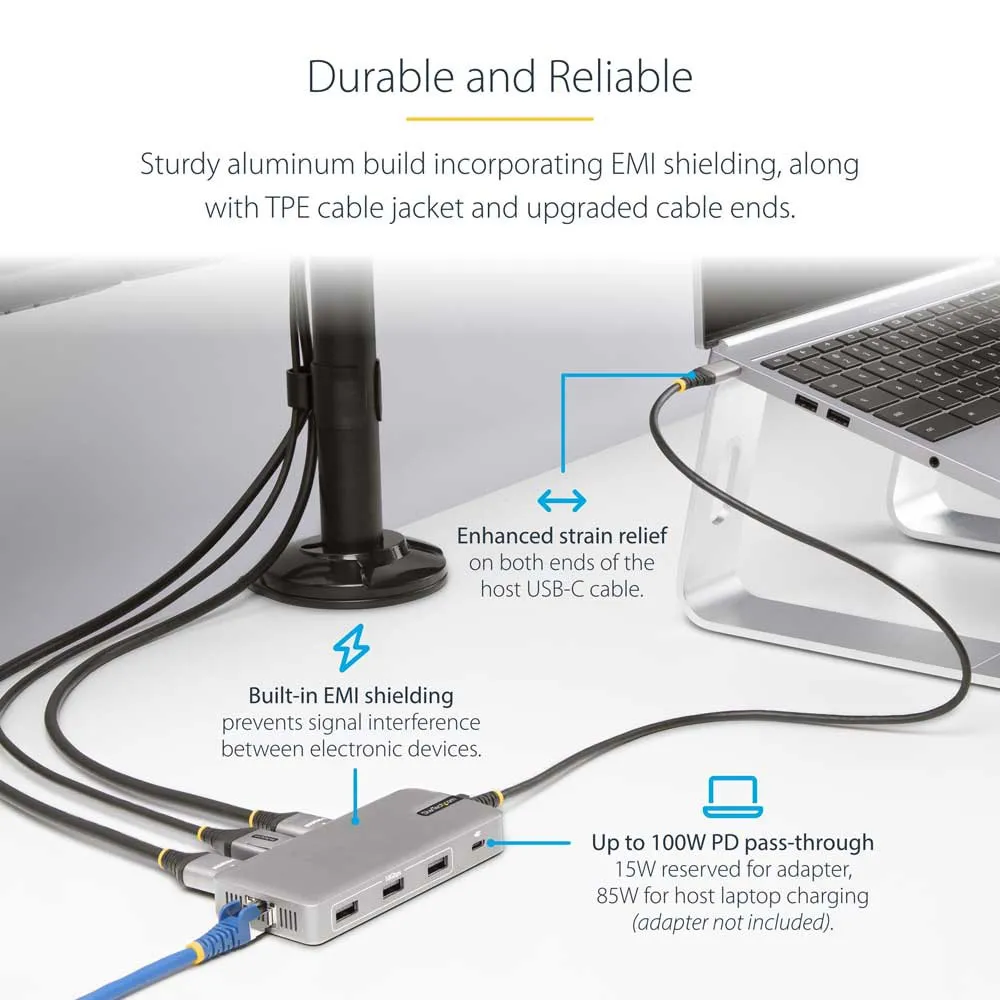

- Extra Long Cord & Durable Construction:

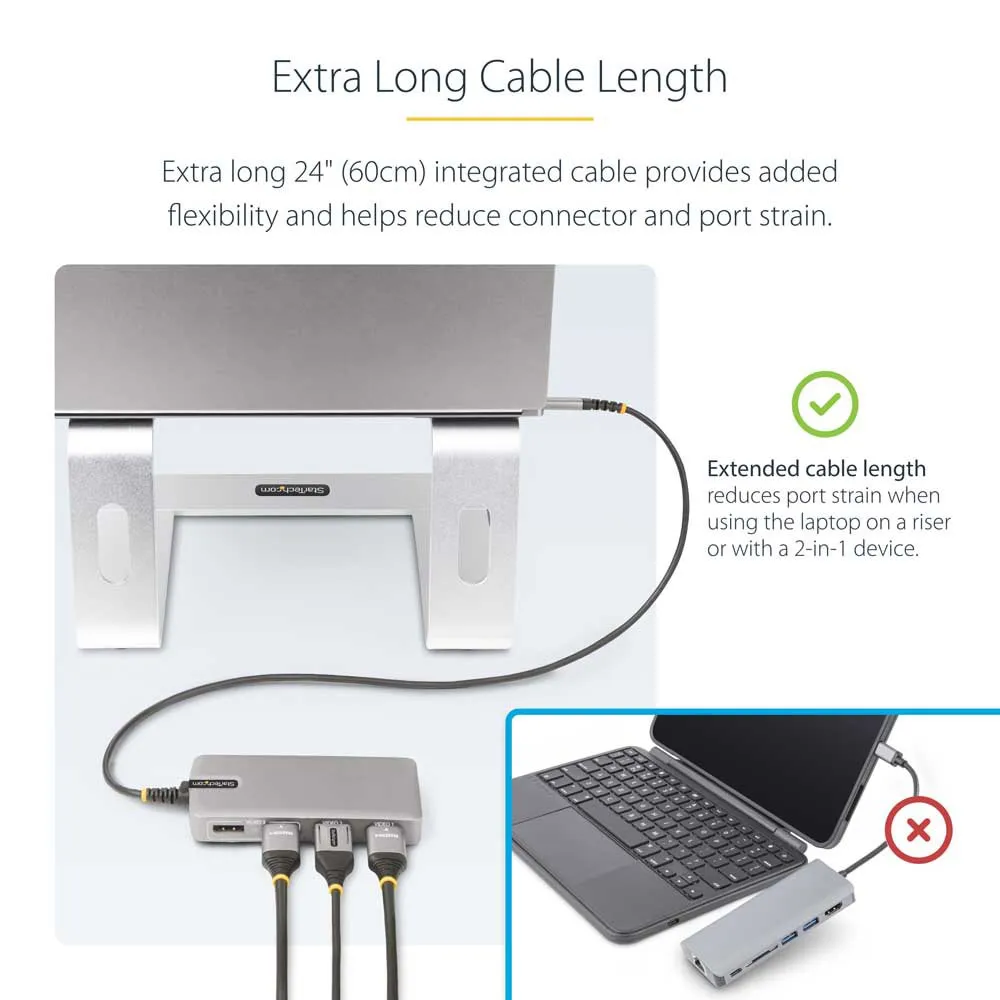

Built-in 60cm host cable features high-grade TPE jacket and strain relief.

- EMI shielding prevents signal interference between electronic devices for reliable performance.

- Compatibility:

Travel docking station for USB-C, USB4, TB3 and TB4 computers running Windows and ChromeOS.

- 100W PD with 15W reserved for the adapter and up to 85W for charging the host laptop.

- DP 1.2 Alt Mode at lower resolutions.

- Our Advantage:

Included connectivity tools like MAC Address Passthrough for network security, WiFi Auto Switching to improve network performance, USB Event Monitoring, and Window Layout Configuration.

Specifications:

Ports and Interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C.

- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports:

1.

- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports:

3.

- USB power supply:

Yes.

- USB Power Delivery Review:

3.0.

- USB Power Delivery up to:

100 W.

- Number of HDMI ports:

2.

- HDMI version:

2.0b.

- Number of DisplayPorts:

2.

- DisplayPort Version:

1.4 Connection:

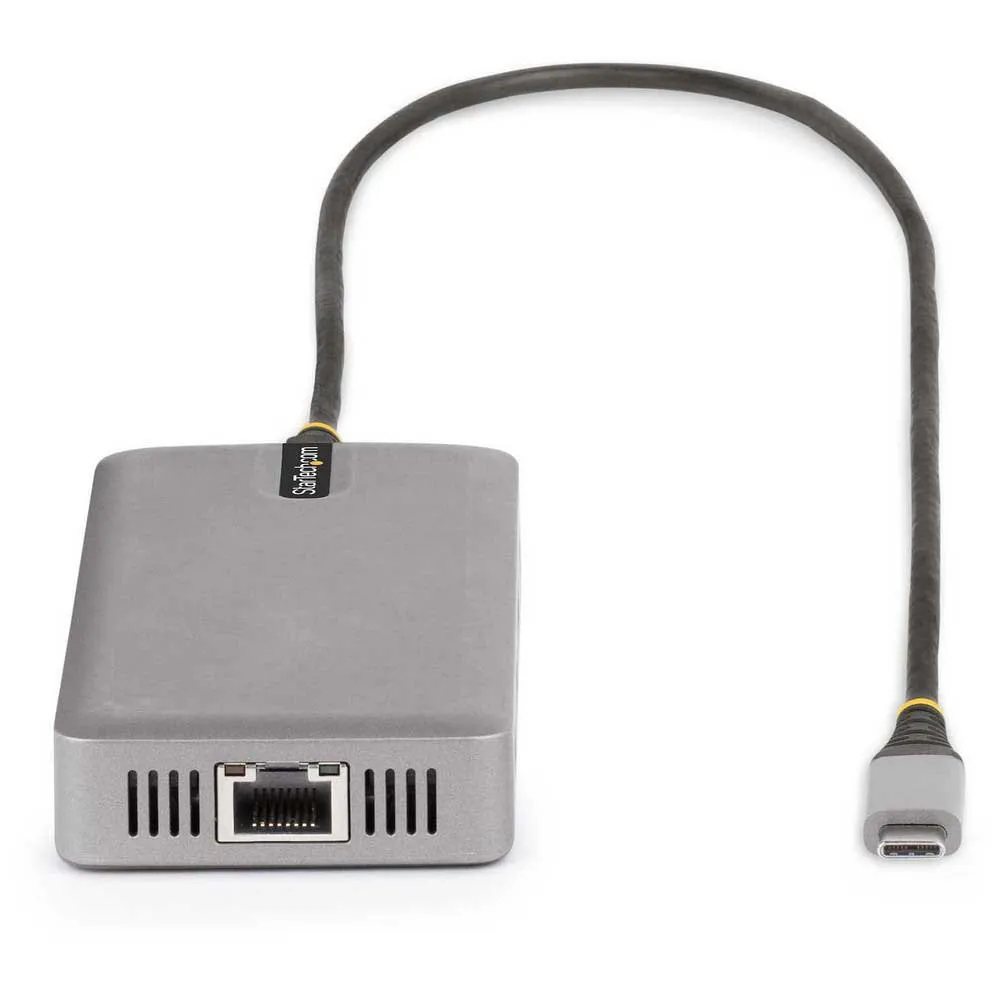

- Ethernet:

Yes.

- Ethernet LAN (RJ-45) ports quantity:

1.

- Ethernet LAN, data transfer rate:

10,100,1000 Mbit/s.

- Networking:

Yes.

- Network standards:

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u.

- Full duplex:

Yes.

Performance:

- Data transfer speed:

10 Gbit/s.

- HD Type:

4K Ultra HD.

- Resolution (maximum digital):

3840 x 2160 Pixels.

- Number of supported displays:

3.

- Maximum update speed:

60 Hz.

- LED indicators:

Yes.

- UASP support:

Yes.

- Case material:

Plastic Energy control:

- Feeding:

USB.

- Energy consumption:

15 W.

- USB cable length:

0.6 m Software:

- Supported Windows operating system:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64.

- Other supported operating systems:

ChromeOS Environmental conditions:

- Operating temperature range:

0.

- 70 °C.

- Storage temperature range:

-10.

- 70 °C.

- Relative humidity range for operation:

5.

- 90% Sustainability:

- Sustainability compliance:

Yes.

- Sustainability certificates:

CE, US Federal Communications Commission (FCC), RoHS Weight and measurements:

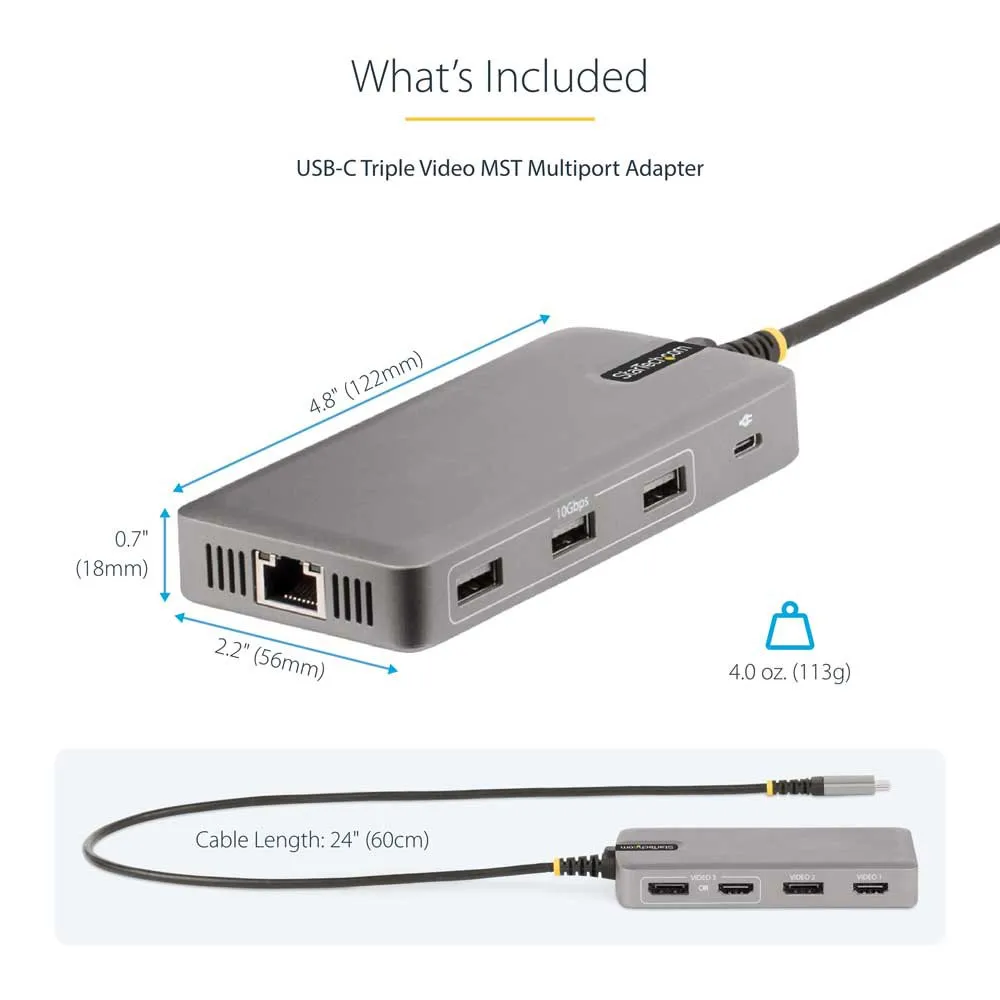

- Broad:

56 mm.

- Depth:

122 mm.

- Height:

18 mm.

- Weight:

113 g.
